INDUSTRILÅS

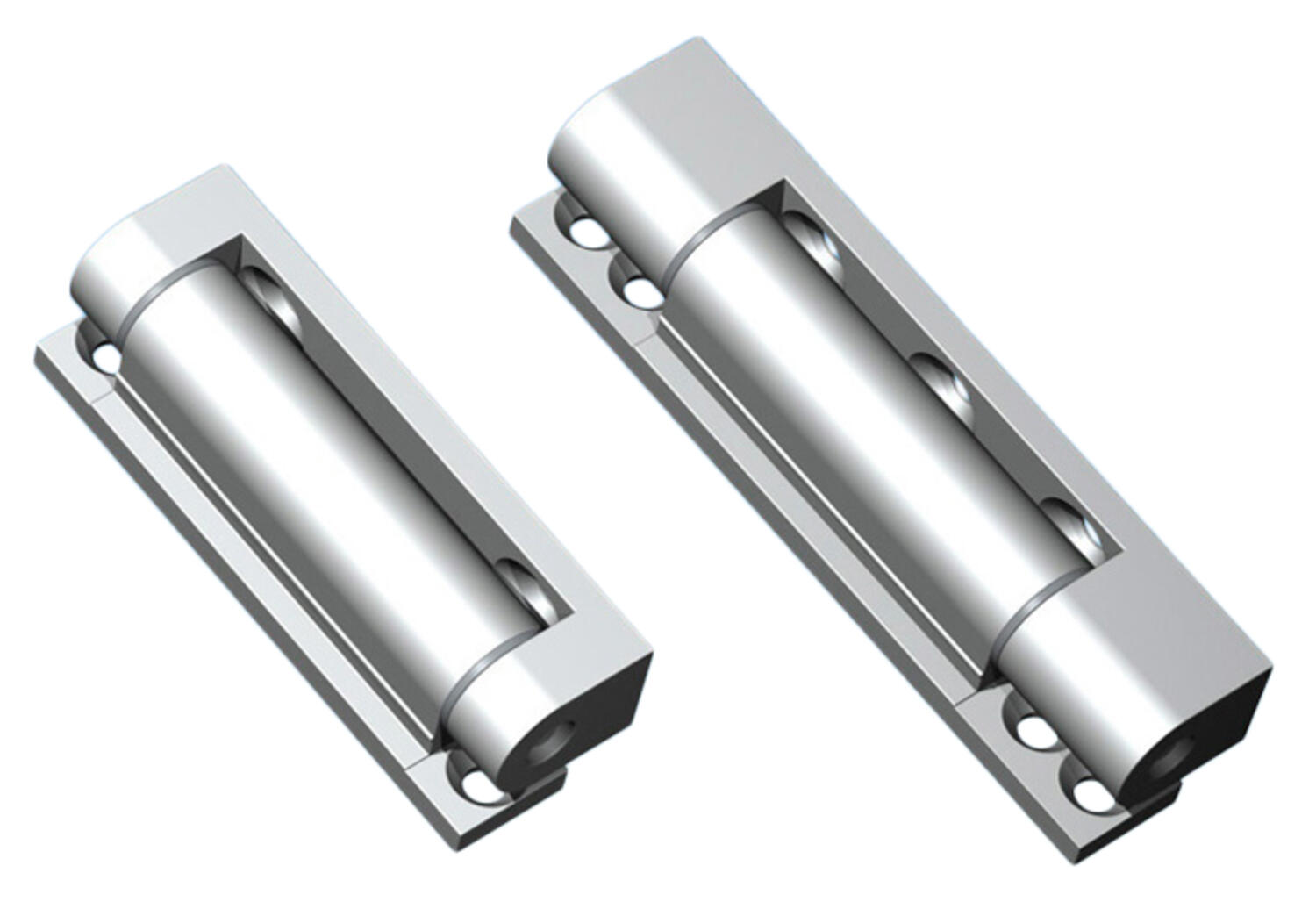

External hinge 180°
Can be mounted universal right or left mounting.
This hinge gives you an opening angle of 180º.
Available as "standard" or with an integrated spring that acts as an automatic door closer.
Â
Material:
Hinge: Aluminum profile, anodized.
Shaft: Stainless steel.
Bushings: Polyamide.

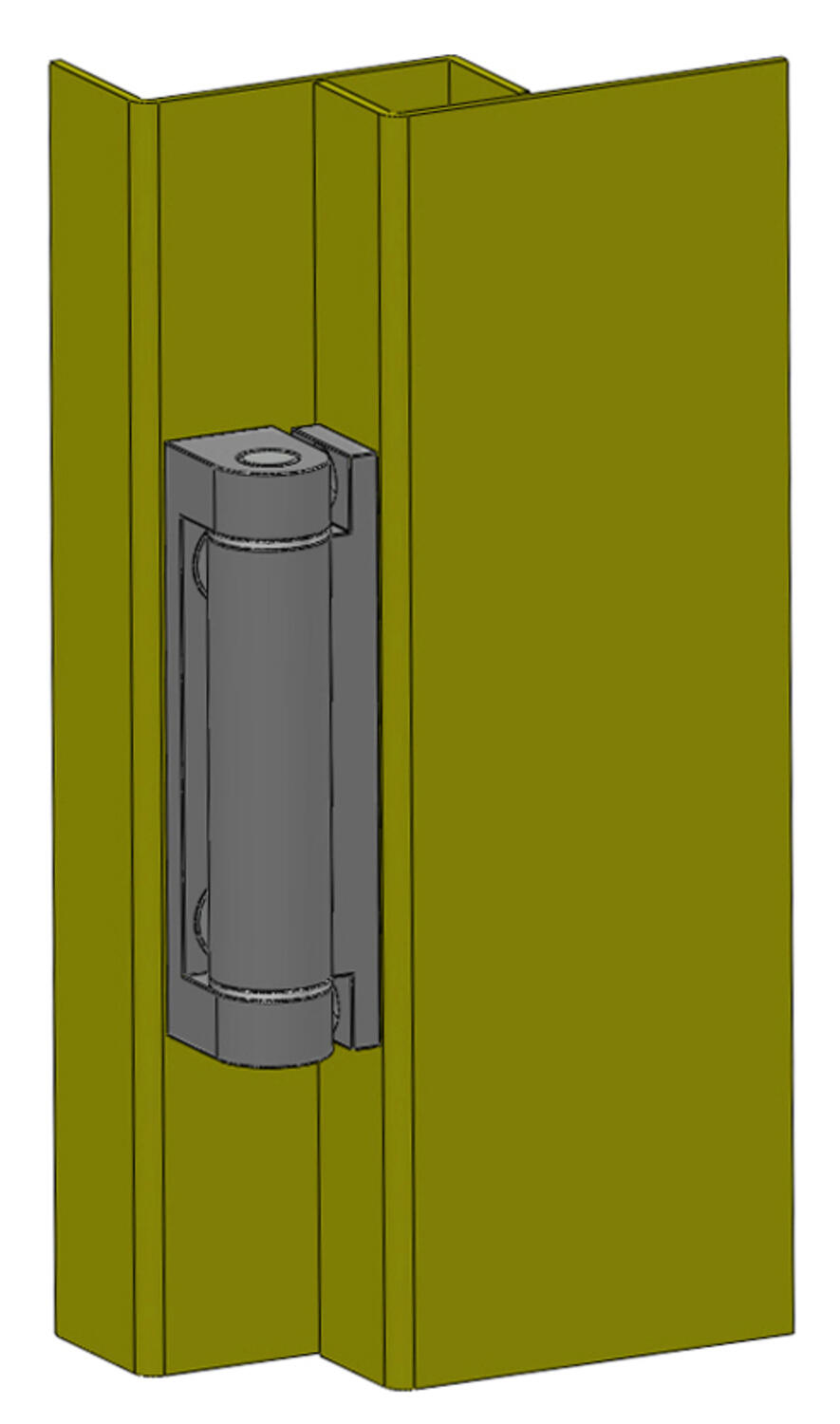

- For external installation of surface door
- Aluminium, stainless steel, polyamide
- Left or right installation
- Spring versions for automatic door closing
Selected variant

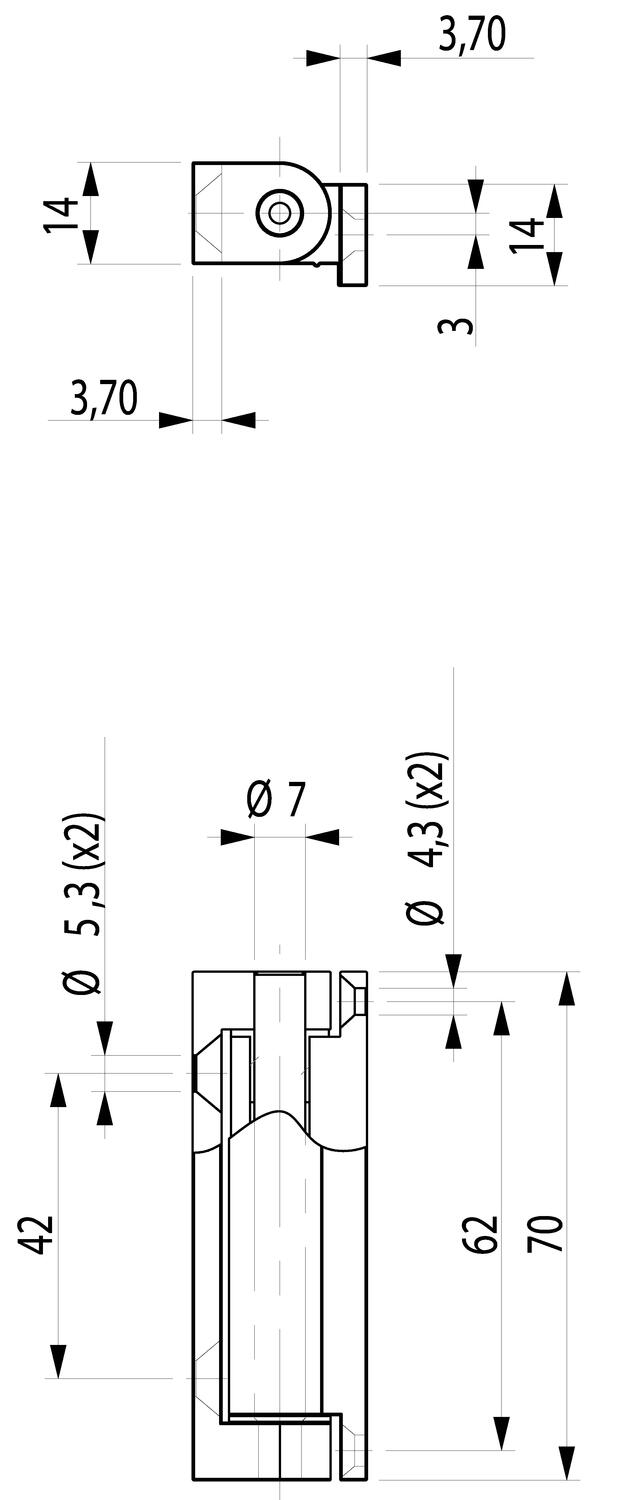

Technical data
| Height | 70 mm |
|---|---|
| Material hinge | Eloxed aluminum |
| Material of shaft | Stainless steel 303 |
| Opening angle | 180 ° |
Product description
Can be mounted universal right or left mounting.
This hinge gives you an opening angle of 180º.
Available as "standard" or with an integrated spring that acts as an automatic door closer.
Â
Material:
Hinge: Aluminum profile, anodized.
Shaft: Stainless steel.
Bushings: Polyamide.
