INDUSTRILÅS

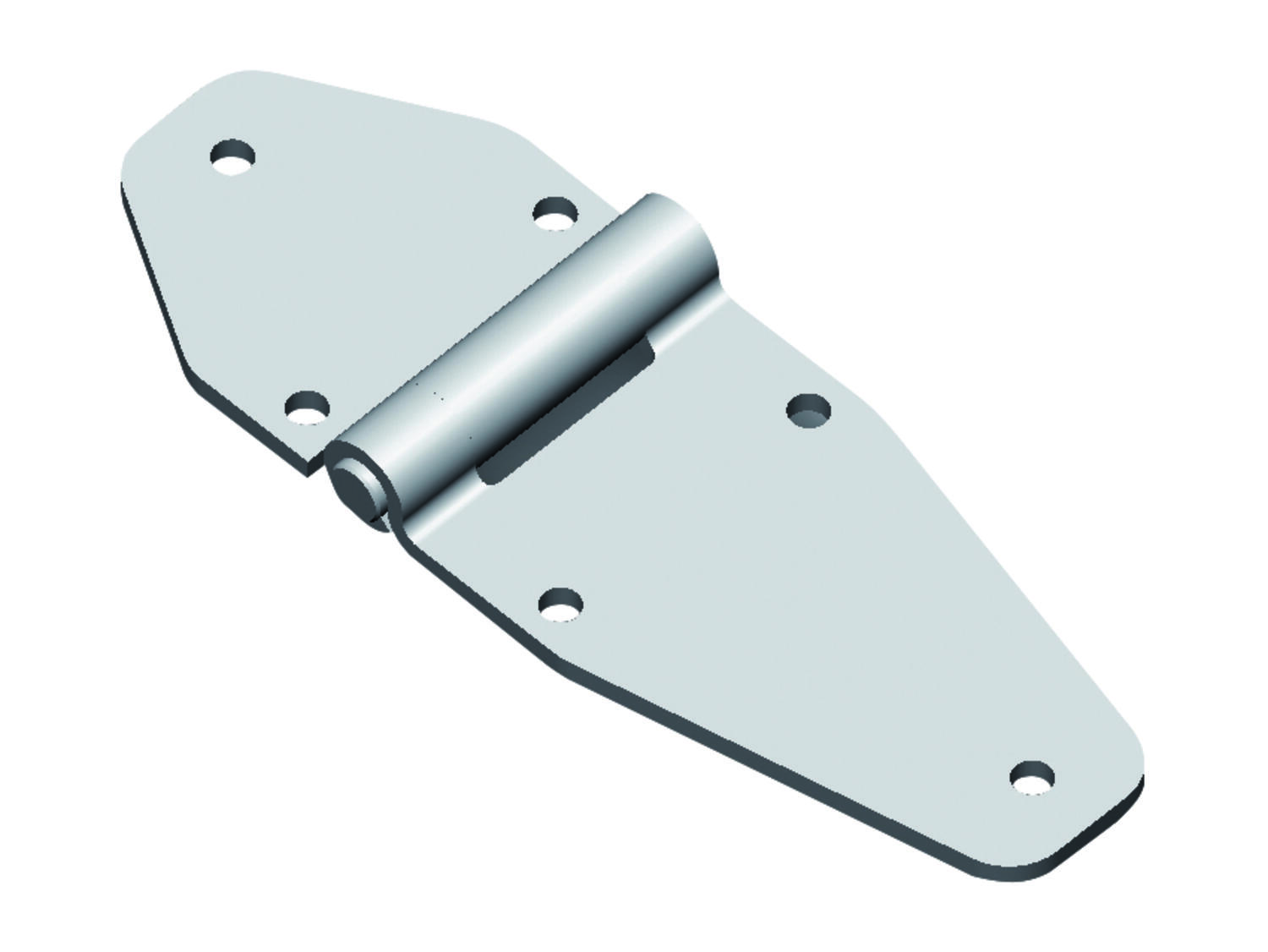

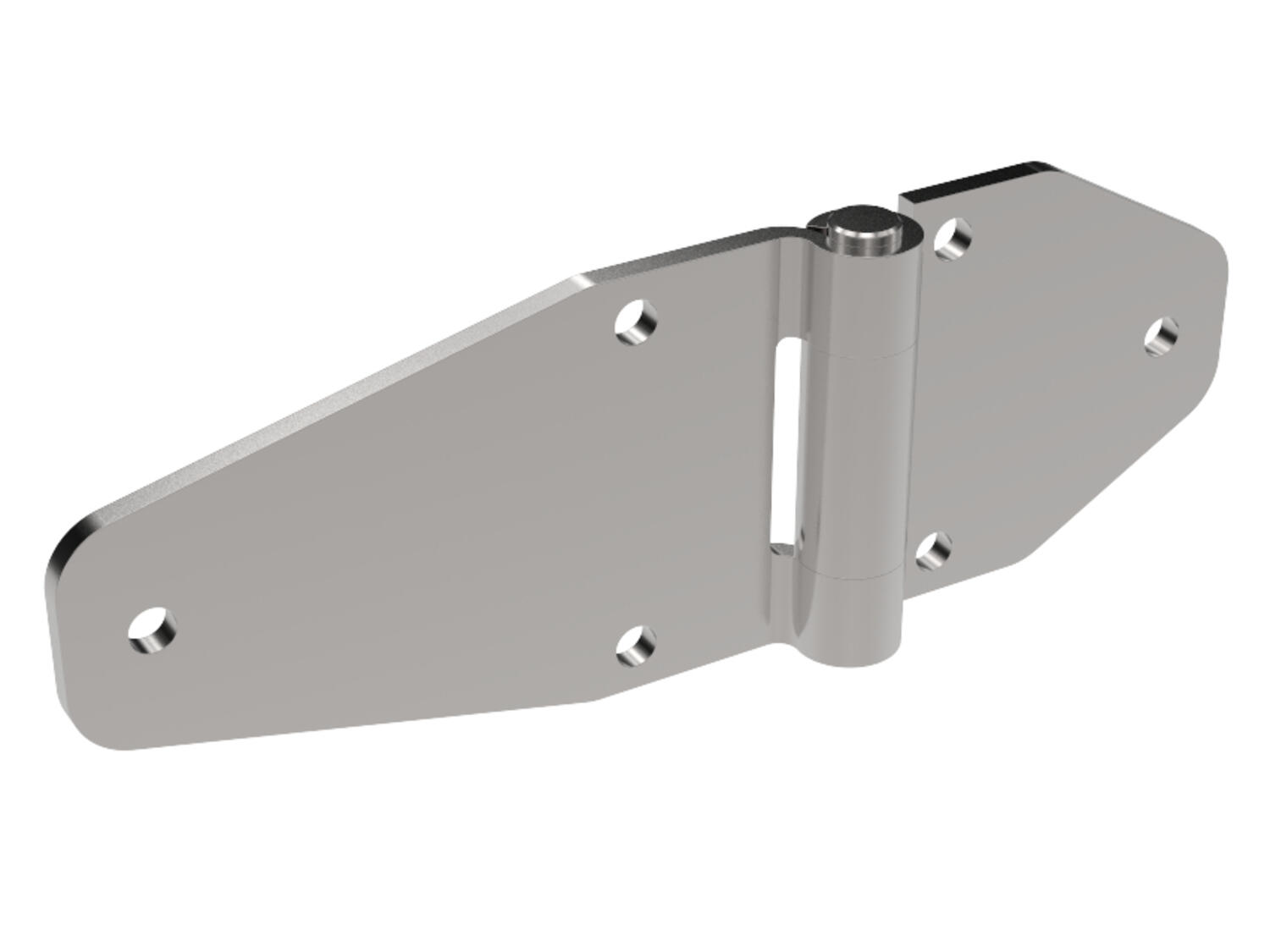

Strong, rolled hinge from Industrilås for mounting with screws or rivets.
This option is ideal for vehicles and provides an opening angle of 180°.
The legs of the hinge are rolled up from the hinge, which means that one surface can be mounted completely flat against the substrate.

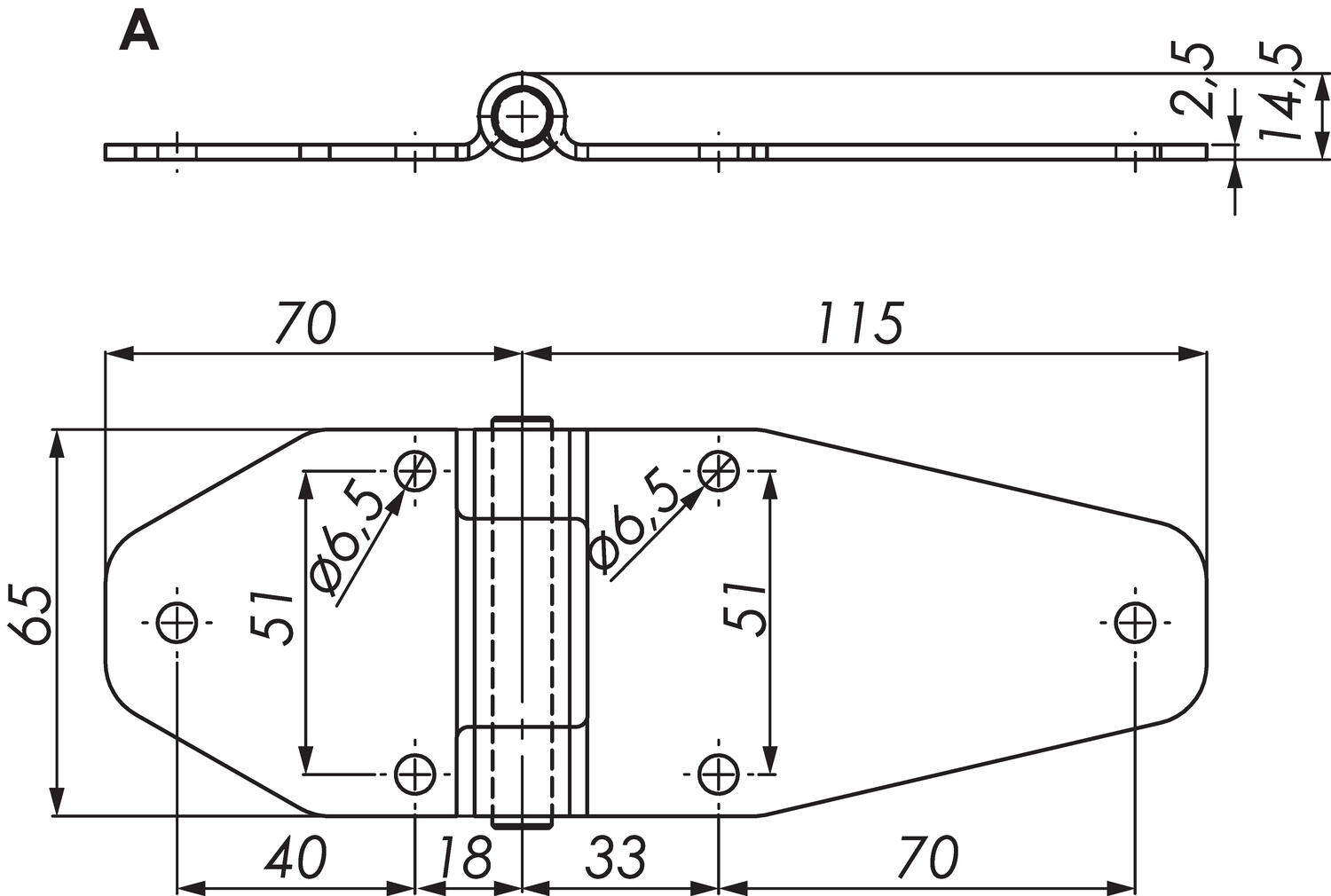

The six mounting holes have a hole diameter of Ø 6.5 mm.
The hinge axis is fixed.
MATERIAL:
Steel, FZB
| Material | Stainless steel AISI 304 |
|---|---|
| Opening angle | 180 ° |
Strong, rolled hinge from Industrilås for mounting with screws or rivets.
This option is ideal for vehicles and provides an opening angle of 180°.
The legs of the hinge are rolled up from the hinge, which means that one surface can be mounted completely flat against the substrate.
The six mounting holes have a hole diameter of Ø 6.5 mm.
The hinge axis is fixed.
MATERIAL:
Steel, FZB
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Material | Price | ||
|---|---|---|---|---|
Heavy duty hinge, 180°, stainless steel, 65x185mm
Art:
323082-01
Copied
|
Stainless steel AISI 304
|
|
||
|
Heavy duty hinge, 180°, steel/zinc plated, 65x185mm
Art:
322182-02
Copied
|
Zinc-plated steel
|
|
Select a variant in the list
