INDUSTRILÅS

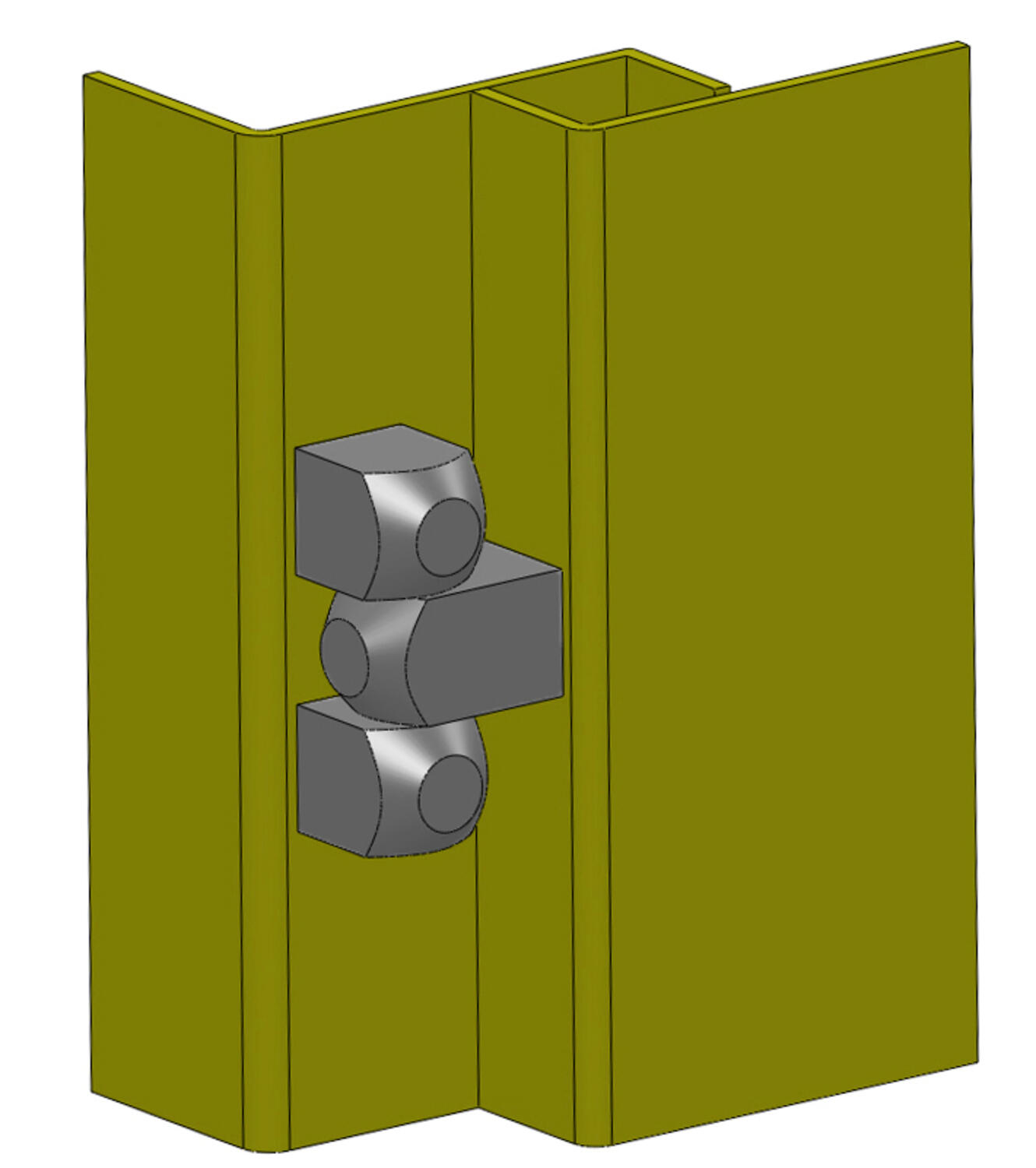

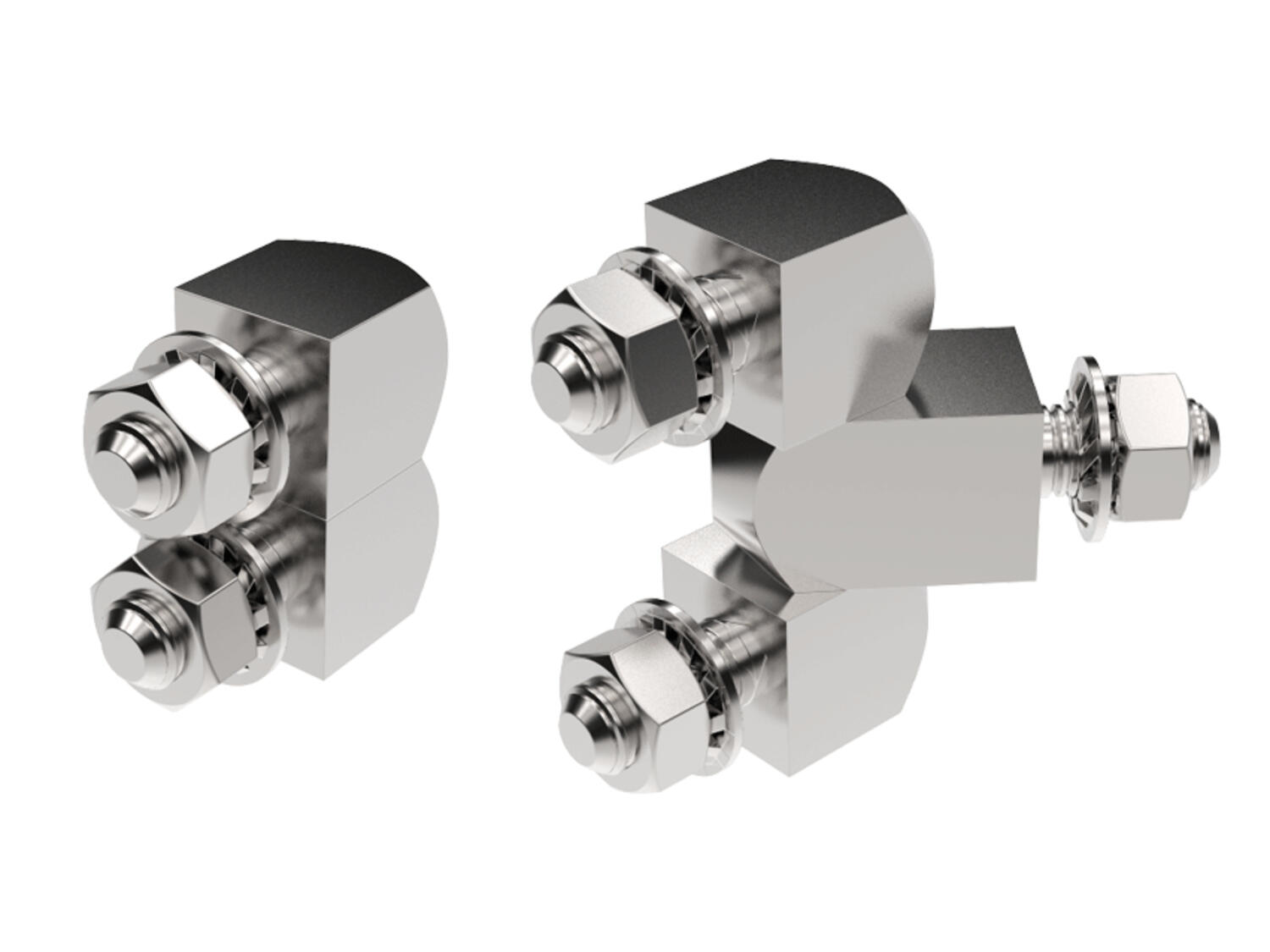

External fixed/lift-off bolt-on hinge 180°
Block hinge from Industrilås for external mounting.
Can be mounted universal right or left mounting.
This hinge provides an opening angle of 180º.

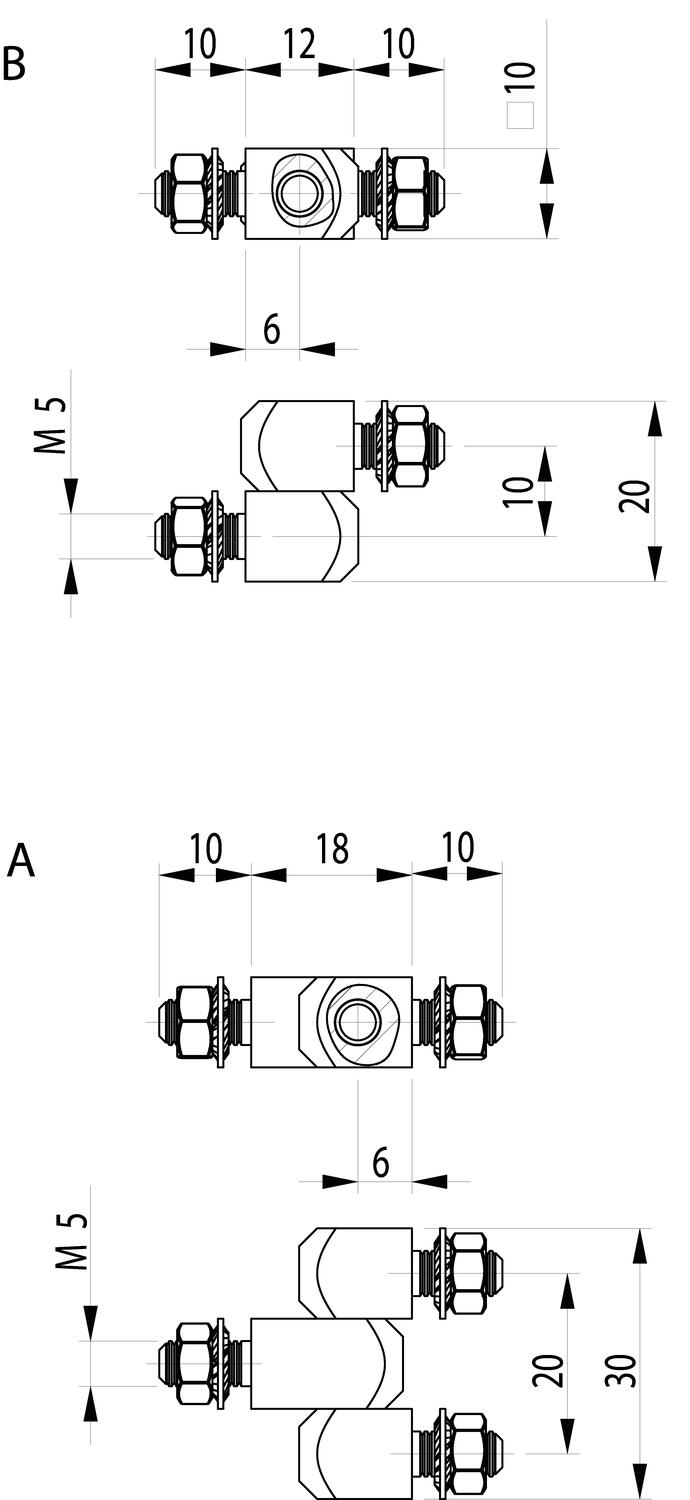

The two-piece version is detachable.
The three-piece version is not removable, i.e. "fixed".
The hinges are delivered unassembled.
M5 nuts and washers for mounting are included.
MATERIAL:
Hinges and M5 nuts: Steel e.g.
Shaft and washer: Brass, FZB
- For external installation
- Steel, brass
- Left or right installation
Selected variant
Technical data
| Material hinge | Zinc-plated steel |
|---|---|
| Material of shaft | Brass |
| Material washer | Brass |
Product description
Block hinge from Industrilås for external mounting.
Can be mounted universal right or left mounting.
This hinge provides an opening angle of 180º.
The two-piece version is detachable.
The three-piece version is not removable, i.e. "fixed".
The hinges are delivered unassembled.
M5 nuts and washers for mounting are included.
MATERIAL:
Hinges and M5 nuts: Steel e.g.
Shaft and washer: Brass, FZB
