INDUSTRILÅS
External bolt-on hinge 180° fixed/lift-off design

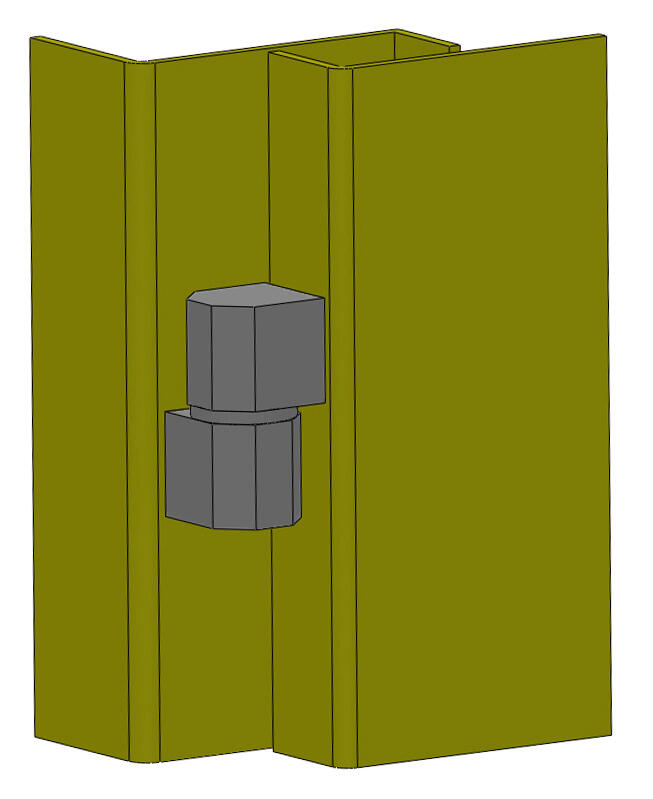

Surface-mounted block hinge from Industrilås for external mounting.
Can be mounted universal right or left mounting.
With this hinge you get an opening angle of 180º.

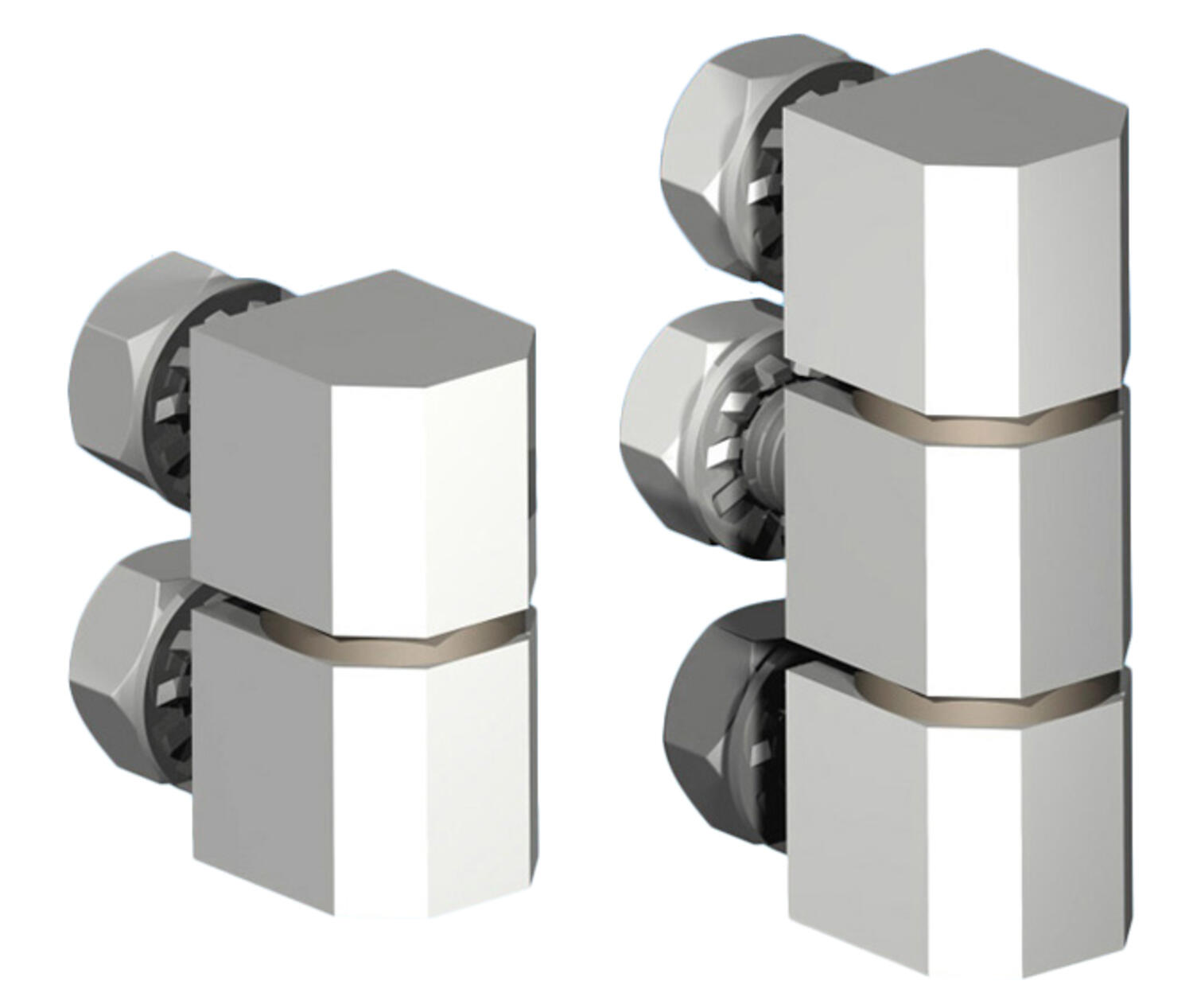

The two-piece version is detachable.
The three-piece version is not removable, i.e. "fixed".

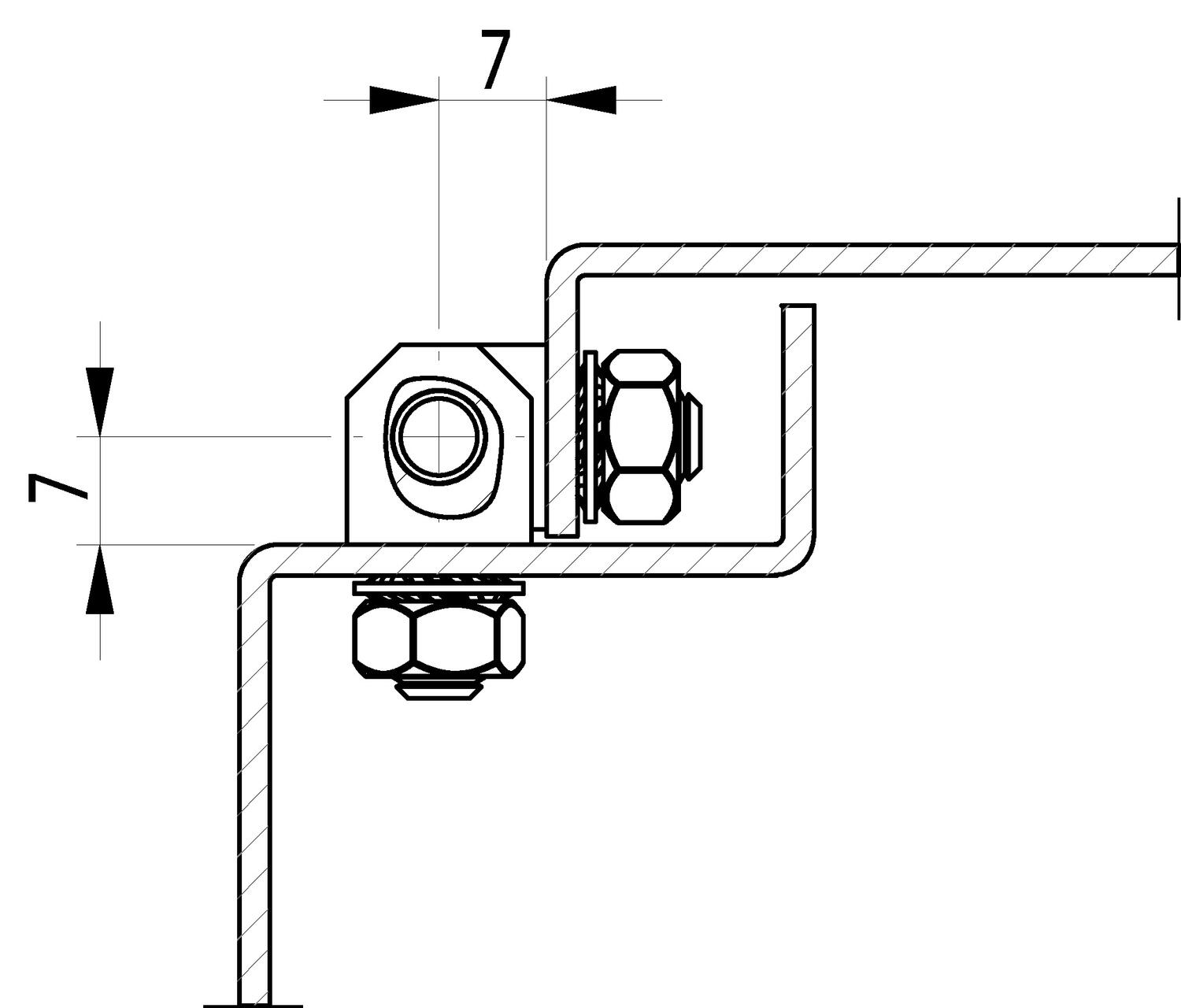

The three-piece version with a middle part is used for a recessed door.
The hinges are delivered unassembled.
M6 nuts and washers for mounting are included.
Also available in stainless steel version
- External installation
- Steel, brass
- Left or right installation
Selected variant
Technical data
| Material | Zinc-plated steel |
|---|---|
| Material of shaft | Brass |
| Material washer | Brass |
| Opening angle | 180 ° |
Product description
Surface-mounted block hinge from Industrilås for external mounting.
Can be mounted universal right or left mounting.
With this hinge you get an opening angle of 180º.
The two-piece version is detachable.
The three-piece version is not removable, i.e. "fixed".
The three-piece version with a middle part is used for a recessed door.
The hinges are delivered unassembled.
M6 nuts and washers for mounting are included.
Also available in stainless steel version
