INDUSTRILÅS

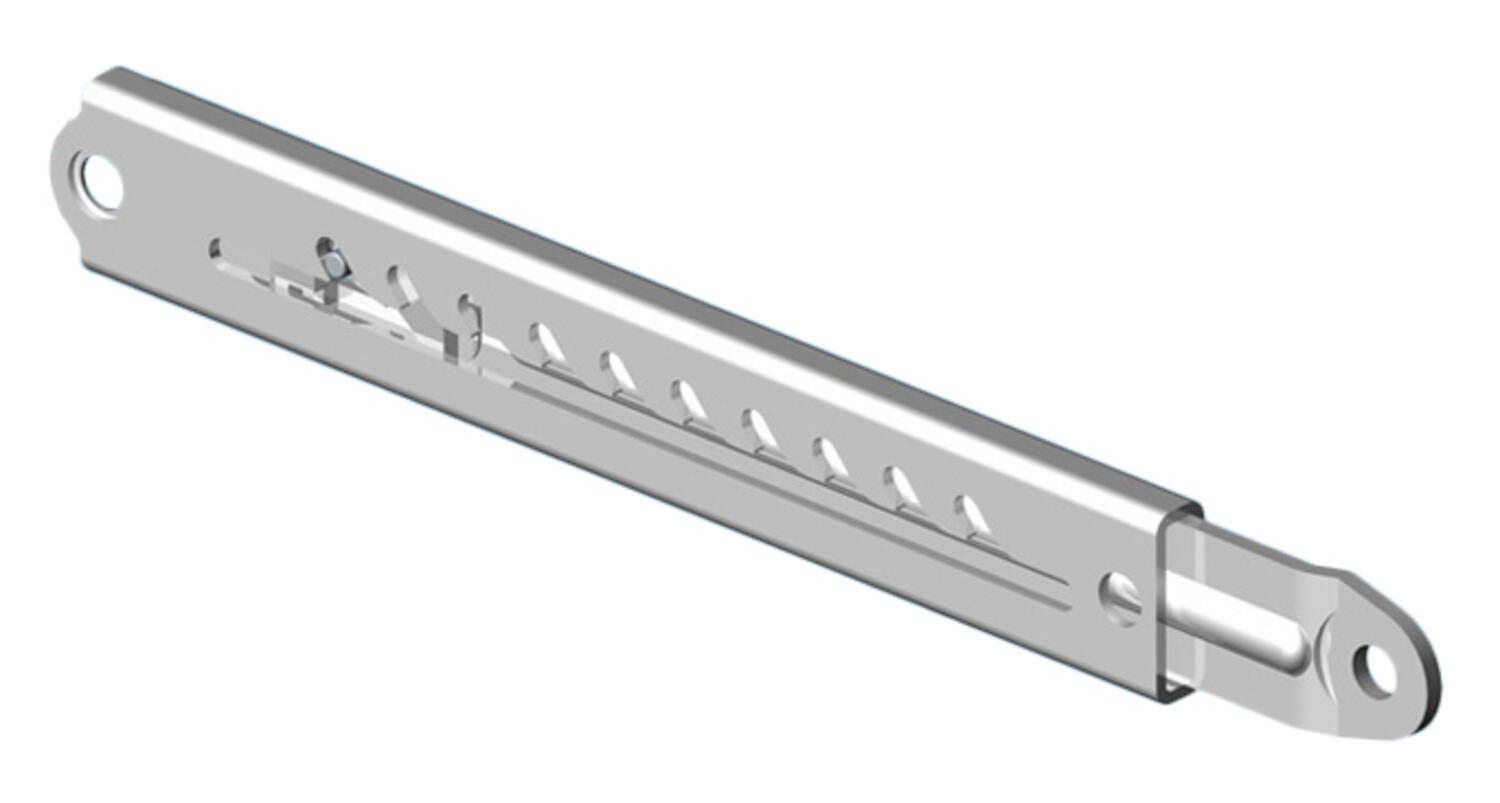

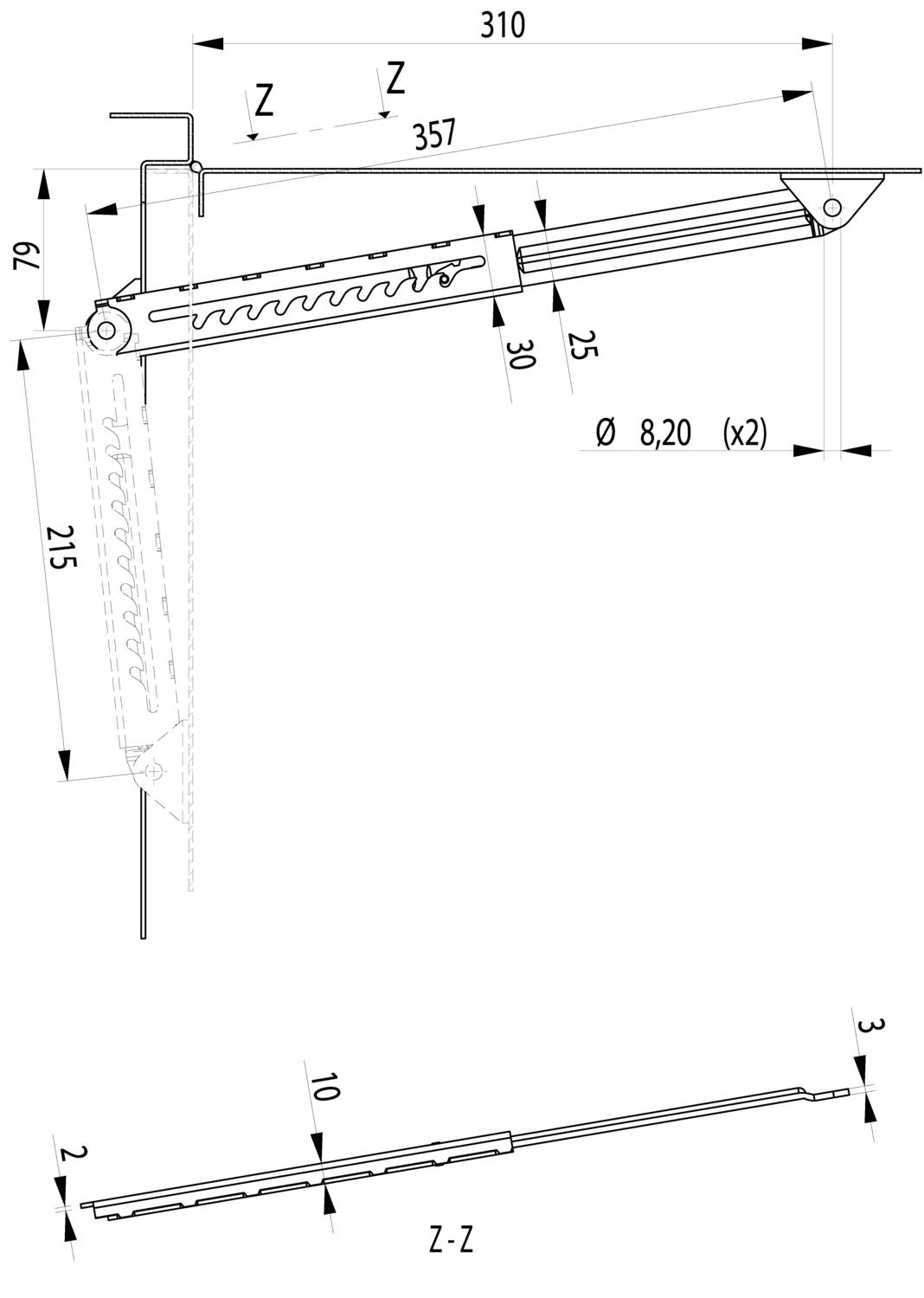

Telescopic door support. The hatch support can hold the hatch or door open in several different positions. To close the door, the door is opened to the maximum position, which releases the latch so that the door support can be pushed together to its closed position. Universal left and right mounting.
Options such as mounting angle or bushings are delivered separately. The bushings are placed in the door support's two fastening holes and reduce friction and protect the door support against wear. The bushings can be used both with and without a mounting bracket.
| Material | Zinc-plated steel |
|---|
Telescopic door support. The hatch support can hold the hatch or door open in several different positions. To close the door, the door is opened to the maximum position, which releases the latch so that the door support can be pushed together to its closed position. Universal left and right mounting.
Options such as mounting angle or bushings are delivered separately. The bushings are placed in the door support's two fastening holes and reduce friction and protect the door support against wear. The bushings can be used both with and without a mounting bracket.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Price | ||
|---|---|---|---|
Telescopic hatch support, steel/zinc plated
Art:
552304
Copied
|
|
||
|
Mounting bracket for hatch support
Art:
55230401
Copied
|
|
||
|
bushing for telescopic hatch support, order 2 per support
Art:
552304-1
Copied
|
|
Select a variant in the list
