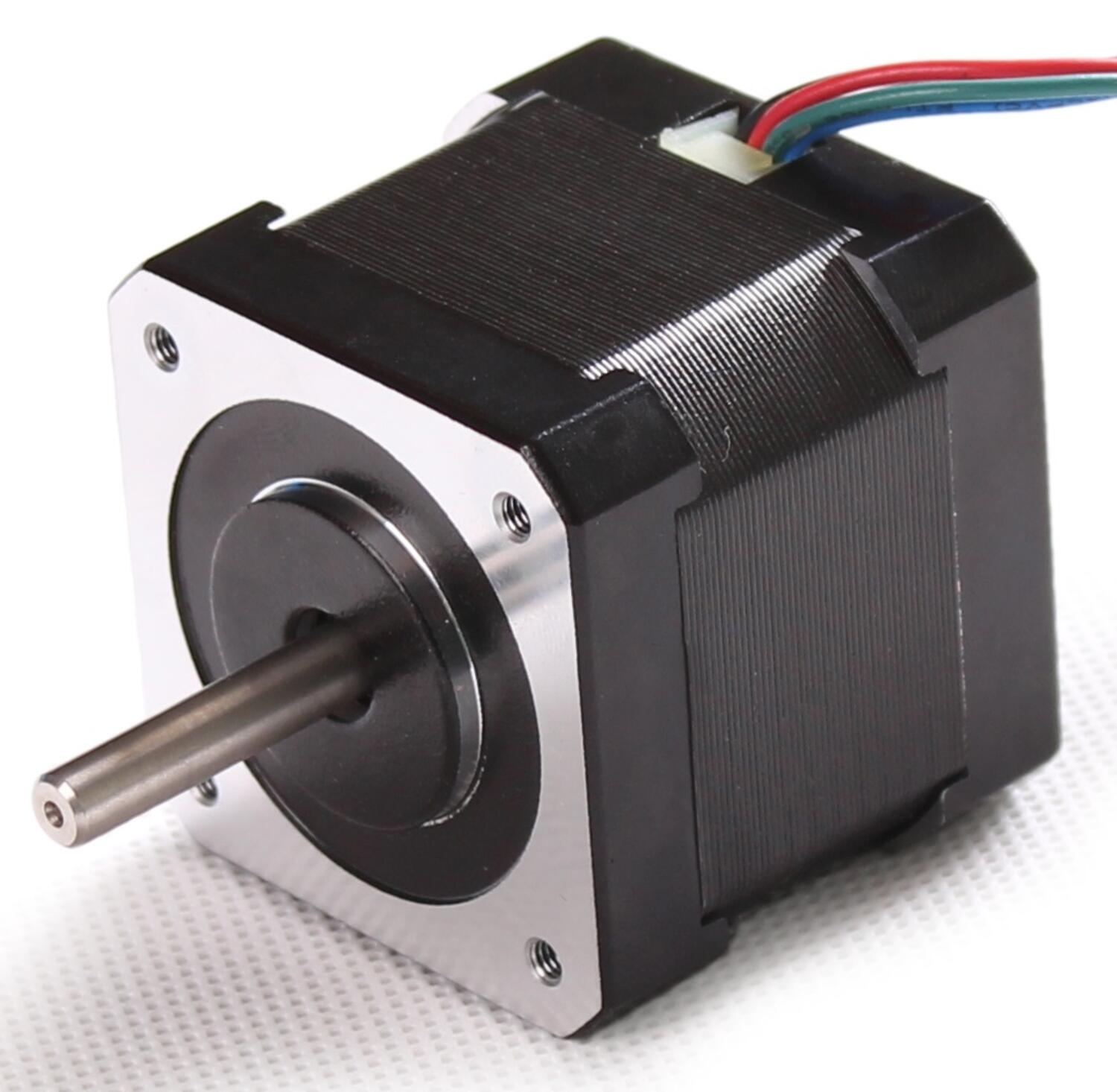

FULLING
Fulling Motor Company is a leading motor manufacturer from Changzhou city in China.
Offering hybrid stepper and brushless DC motors, they have an annual capability in excess of 1.5 million pieces.
Used around the world in many different and varied applications, the Fulling Motor Company is commited to quality and sercvice.
| Front size | 42x42 |
|---|---|
| Holding torque | 0.1667 |
| Inductance | 30 mH |
| Length | 25 mm |
| Moment of inertia | 20 g.cm² |
| Phase current | 0.4 A |
| Resistance | 24 Ω |
| Step angle | 1.8 ° |
| Weight | 0.15 kg |
Fulling Motor Company is a leading motor manufacturer from Changzhou city in China.
Offering hybrid stepper and brushless DC motors, they have an annual capability in excess of 1.5 million pieces.
Used around the world in many different and varied applications, the Fulling Motor Company is commited to quality and sercvice.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Ambient temperature | Axial force | Cable length | Cable number | Front size | Holding torque | Inductance | Insulation class | Insulation resistance | Integrated control | IP class | Length | Moment of inertia | Number of phases | Phase current | Radial force | Resistance | Shaft diameter | Size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

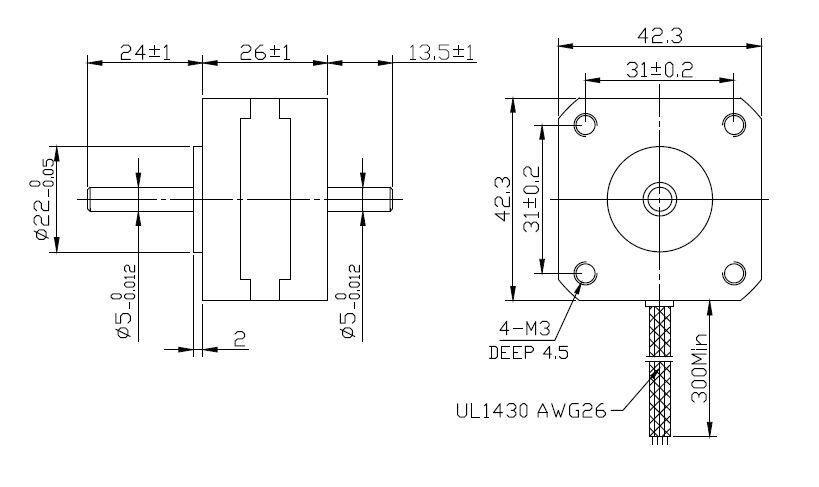

FL42STH25-0404B-UEN prep. for E5 enc.
Art:
FL42STH25-0404UEN
Copied
|
|
|
|
|
42x42
|
0.1667
|
30 mH
|
|
|
|
|
25 mm
|
20 g.cm²
|
|
0.4 A
|
|
24 Ω
|
|
|
0.15 kg
|
| ||
|
FL42STH33-1334B-UEN prep. for E5 enc.
Art:
FL42STH33-1334UEN
Copied
|
|
|
|
|
42x42
|
0.2157
|
2.5 mH
|
|
|
|
|
33 mm
|
35 g.cm²
|
|
1.33 A
|
|
2.1 Ω
|
|
|
0.22 kg
|
| ||
|
FL42STH38-1684B-UEN prep. for E5 enc.
Art:
FL42STH38-1684UEN
Copied
|
|
|
|
|
42x42
|
0.353
|
3.2 mH
|
|
|
|
|
38 mm
|
54 g.cm²
|
|
1.68 A
|
|
1.65 Ω
|
|
|
0.28 kg
|
| ||
|
FL42STH47-1684B-UEN prep. for E5 enc.
Art:
FL42STH47-1684UEN
Copied
|
|
|
|
|
42x42
|
0.4315
|
2.8 mH
|
|
|
|
|
47 mm
|
68 g.cm²
|
|
1.68 A
|
|
1.65 Ω
|
|
|
0.35 kg
|
| ||

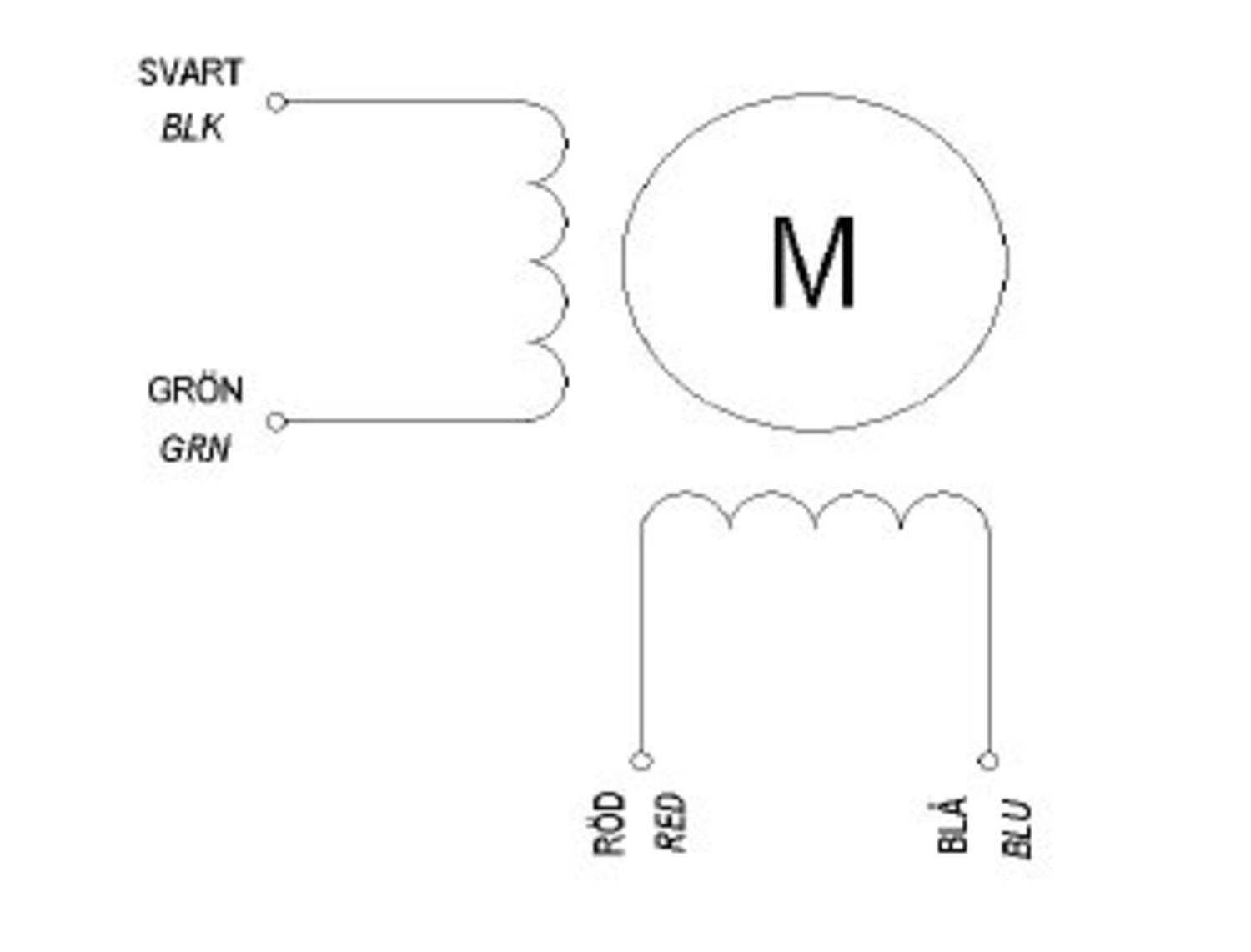

STEP 2PH 1.68A/PH 1.8DEG 4WIRE
Art:
FL42STH47-1684A
Copied
|
od -20°C do +50°C
|
10 N
|
300 mm
|
4
|
42x42 mm
|
0.44
|
2.8 mH
|
B
|
100 MΩ
|
NIE
|
IP30
|
47.5 mm
|
68 g.cm²
|
2
|
1.68 A
|
28 N
|
1.65 Ω
|
5 mm
|
NEMA 17
|
0.35 kg
|
|
Select a variant in the list
