ELECTROMEN

Electromen - EM-366

Brushless motor driver 12-48V, 30/25A, Modbus

  • 12-48Vdc, 25A continuous, 30A peak
  • Open & closed loop (hall sensor feedback) control operation
  • Speed, direction, current limiting, soft start/stop and regen braking
  • Positional version available (SBL)
  • Compact, DIN rail mountable

Selected variant

Available in several variants
ELECTROMEN.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Analogue input 0-5V or +/+/--0-10V or 0-5V or 0-10V
Control type Speed, Braking, Direction, Torque, Soft start / stop
Current setting range 1-60 A
Logic input high >4V = ON
Logic input low <1V = OFF
Mounting DIN rail
Peak current 60
PWM frequency 16kHz
Suitable engine BLDC
Supplier Electromen
Supply voltage 12 V DC, 24 V DC, 36 V DC
Weight 270 g

Downloads

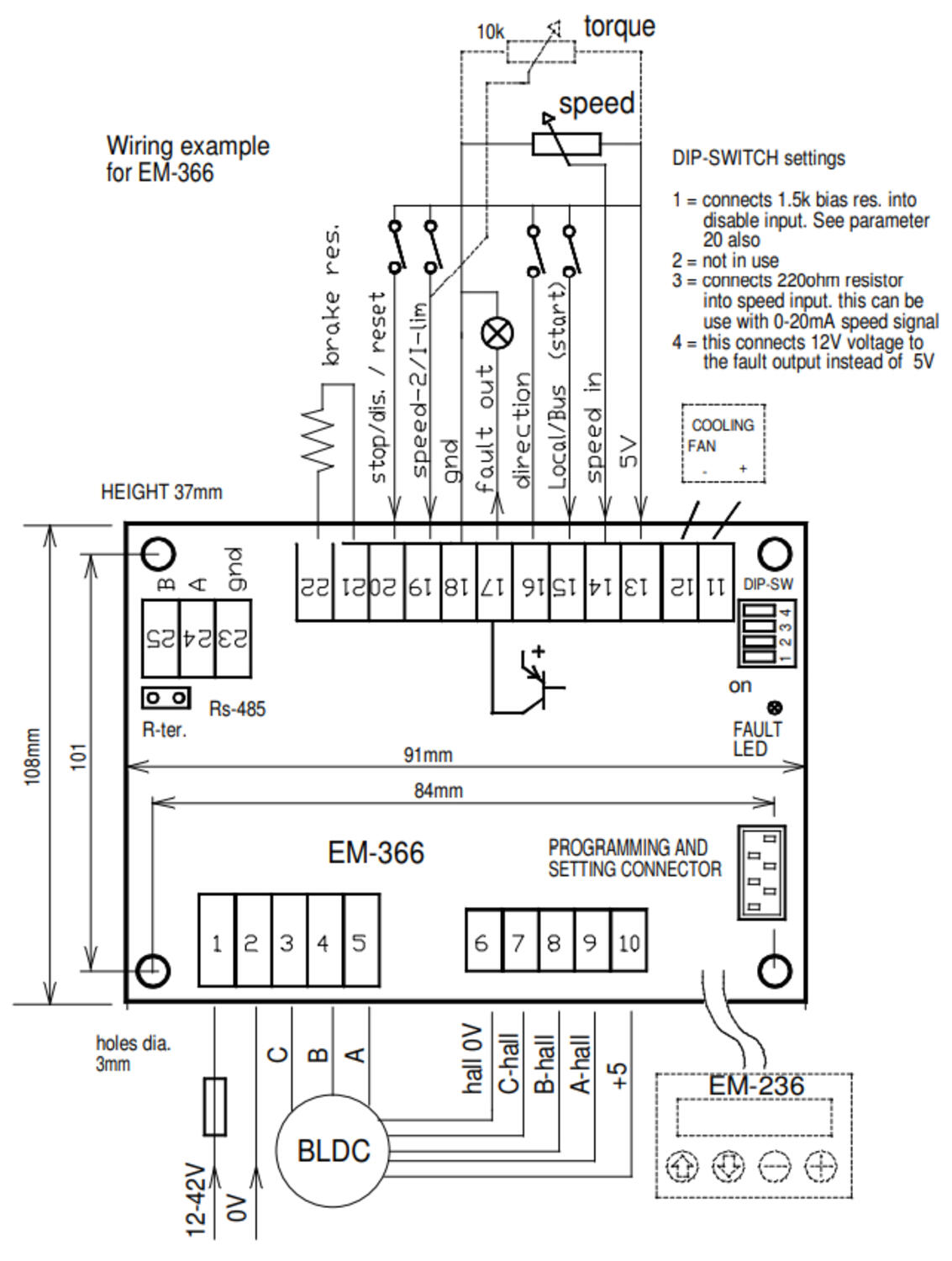

Measurements and connections

Accessories

Parts Control type Price
4Q BLDC drive 30A, 12-48V DC
Art:
EM-366 Copied
Speed, Braking, Direction, Torque, Soft start / stop
4Q BLDC drive 30A, 12-48V DC pos and bus
Art:
EM-366-SBL Copied
Braking, Direction, Position, Soft start / stop, Speed, Torque
