ELECTROMEN
Electromen - EM-185
DC motor 1Q drive 12-24 V dc, 3 A, panel mountable

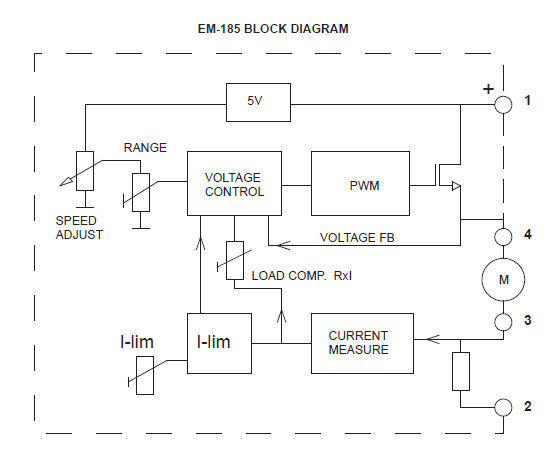

EM-185 is a PWM-based DC-motor driver. The materials and features meet the industrial
environment requirements. The device is CE marked and has been tested through EMC
measurements required by industrial environment. Motor voltage is regulated against supply voltage
changes, and there is also a load compensation (RxI) adjustment. Thanks to these features EM-185
offers good performance in motor speed control applications. The current limit and the rpm range
are adjustable with trimmer potentiometers. The power stage of the device is protected against
short-circuit and overload (over temp.). EM-185 is easy to mount in a 10mm hole in an assembly
panel.
FEATURES:
• 1-quadrant
• Panel mountable
• Small size
• Motor size 5-80W
• Good speed regulation
• Load comp. adjustable RxI
• Adjustable current limit
• EMC tested (CE marked)
• Overload and short-circuit protected
- 12-24Vdc, 3A continuous, 6A peak
- Speed control without losing torque
- Adjustable current limit
- Small size, Panel mountable
Selected variant
Technical data
| 2421_Peak current (A) | 6 |
|---|---|

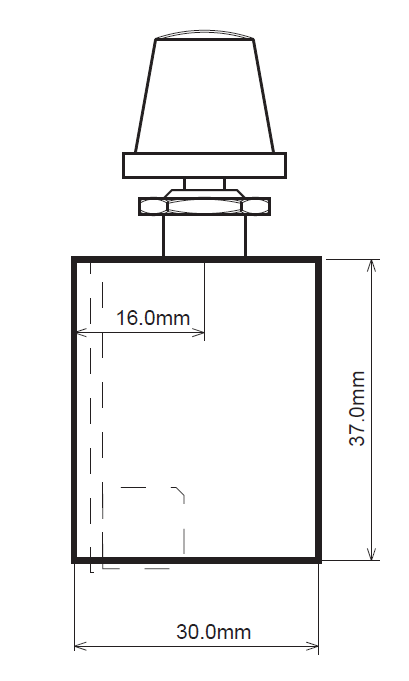

| 5646_Dimensions length x width x height (mm) | 38x30x37mm |
| Control type | Speed, Torque |
| Current setting range | 0.5-6 A |
| Max continuous current | 3 A |
| Mounting | Panel mount |
| Operating temperature | 0°C...+60°C |
| PWM frequency | 25kHz |
|---|---|
| Suitable engine | DC |
| Supplier | Electromen |
| Supply voltage | 12 V DC, 24 V DC |
| Weight | 75 g |
Product description
EM-185 is a PWM-based DC-motor driver. The materials and features meet the industrial
environment requirements. The device is CE marked and has been tested through EMC
measurements required by industrial environment. Motor voltage is regulated against supply voltage
changes, and there is also a load compensation (RxI) adjustment. Thanks to these features EM-185
offers good performance in motor speed control applications. The current limit and the rpm range
are adjustable with trimmer potentiometers. The power stage of the device is protected against
short-circuit and overload (over temp.). EM-185 is easy to mount in a 10mm hole in an assembly
panel.
FEATURES:
• 1-quadrant
• Panel mountable
• Small size
• Motor size 5-80W
• Good speed regulation
• Load comp. adjustable RxI
• Adjustable current limit
• EMC tested (CE marked)
• Overload and short-circuit protected
