Electromen - EM-174
DC motor 2Q drive 12-24 V dc, 8 A
EM-174A motor driver is designed for DC-motor speed control. The unit regulates motor voltage so
non regulated supply voltage is well suited. A load affecting the motor rpm can be compensated with

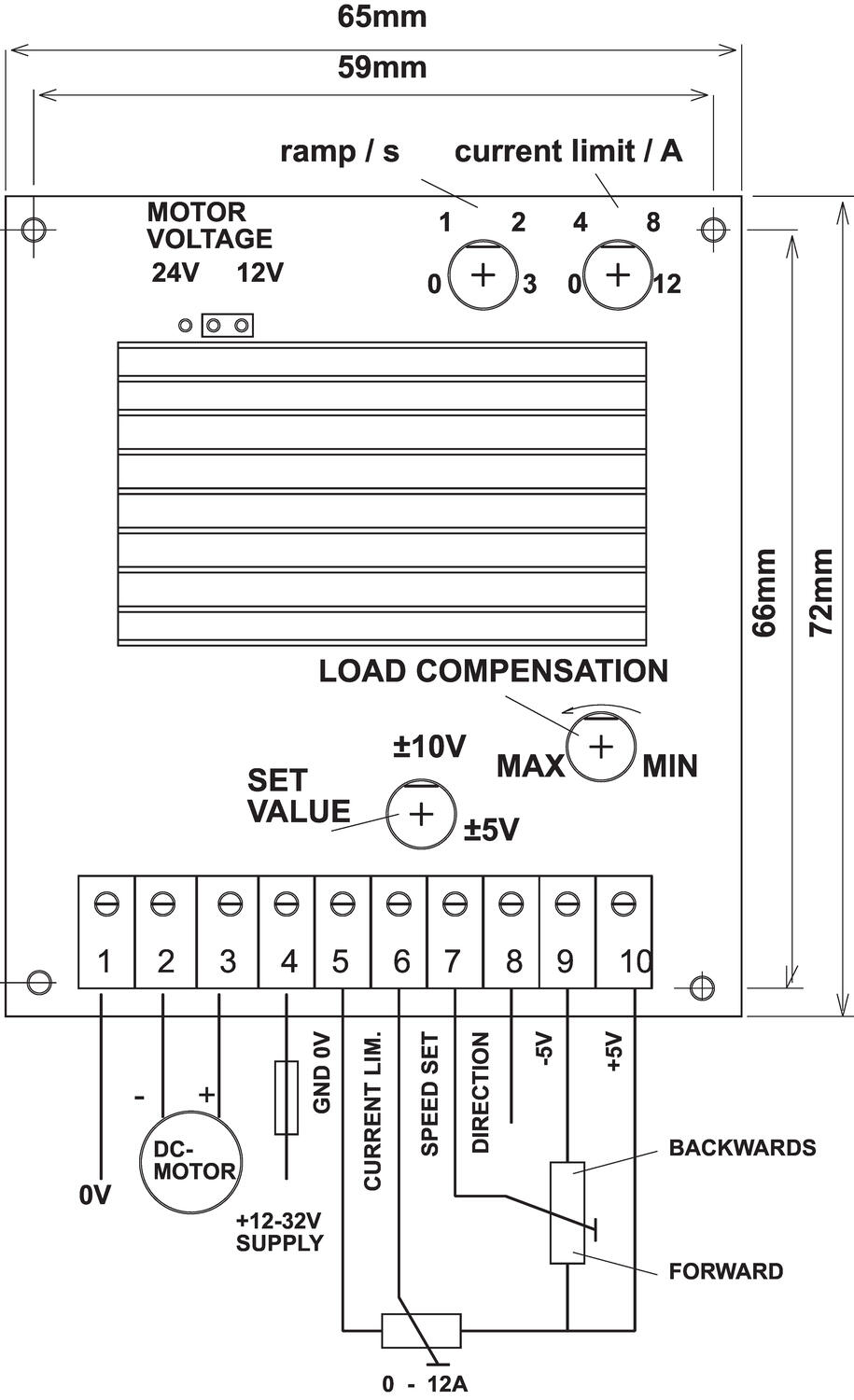

an adjustble load compensation ( RxI ). Potentiometer or direct voltage signal can be used to give
the speed control value. Rotation direction changes when control value turns negative or if control

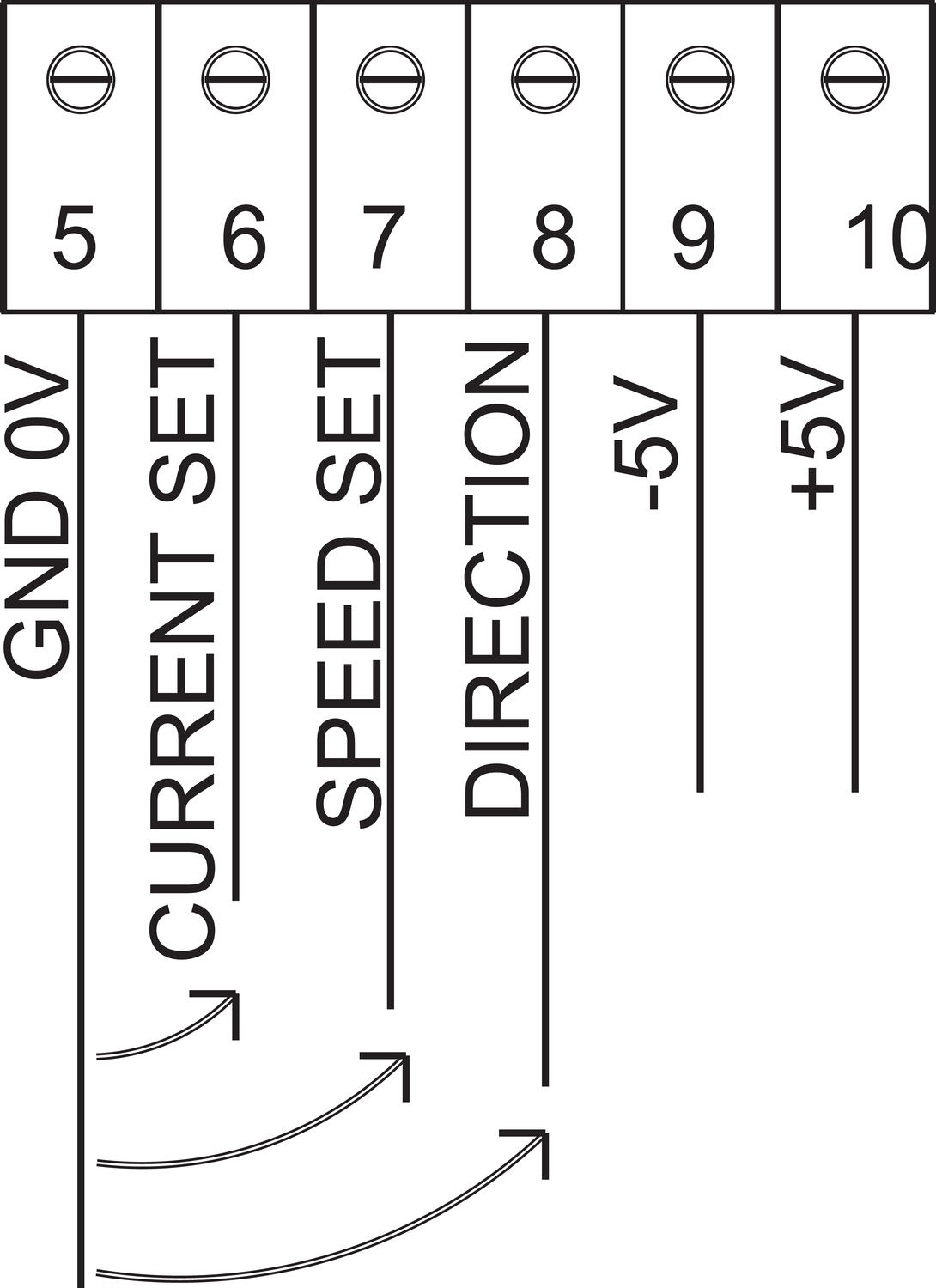

signal is applied to direction input. The unit has reference positive and negative signal for
potentiometer use, in other words potentiometer can also be used to drive both directions, motor
stops at potentiometer middle position. Set value range can be scaled with range trim.
At direction change the controller waits for motor to stop before driving in opposite direction. This
avoids current peaks at direction change. The current limit can be set with a trim or direct voltage
signal to protect the motor and mechanics in jam situations. Startup speed can be limited with so
called ramp, which slowly rises the motor voltage in a desired way. Ramp time is set with a trim.
EM-174A can be optimised for 12 or 24 V supply use.
FEATURES:
• Bidirectional
• No brake
• Controlled direction change
• ± 10 V or 0...10 V control
• Soft start ramp
• Adjustable current limit
• Load compensation
• High efficiency
• High peak loading
• Rail base fittable
- 12-24Vdc, 8A continuous, 12A peak
- Speed and direction control
- Adjustable start ramp and current limit
- Compact, DIN rail mountable
- Symmetrical control ±5V (rev-stop-fwd)
Selected variant
Technical data
| 2053_Current limit (A) | 0,1-12 |
|---|---|
| 2421_Peak current (A) | 12 |
| Control type | Speed, Direction, Torque, Soft start / stop |
| Current setting range | 0-12 A |
| Mounting | DIN rail |
| Operating temperature | -20°C...+70°C |
| PWM frequency | 25kHz |
|---|---|
| Supplier | Electromen |
| Supply voltage | 12 V DC, 24 V DC |
| Weight | 80 g |
Product description
EM-174A motor driver is designed for DC-motor speed control. The unit regulates motor voltage so
non regulated supply voltage is well suited. A load affecting the motor rpm can be compensated with
an adjustble load compensation ( RxI ). Potentiometer or direct voltage signal can be used to give
the speed control value. Rotation direction changes when control value turns negative or if control
signal is applied to direction input. The unit has reference positive and negative signal for
potentiometer use, in other words potentiometer can also be used to drive both directions, motor
stops at potentiometer middle position. Set value range can be scaled with range trim.
At direction change the controller waits for motor to stop before driving in opposite direction. This
avoids current peaks at direction change. The current limit can be set with a trim or direct voltage
signal to protect the motor and mechanics in jam situations. Startup speed can be limited with so
called ramp, which slowly rises the motor voltage in a desired way. Ramp time is set with a trim.
EM-174A can be optimised for 12 or 24 V supply use.
FEATURES:
• Bidirectional
• No brake
• Controlled direction change
• ± 10 V or 0...10 V control
• Soft start ramp
• Adjustable current limit
• Load compensation
• High efficiency
• High peak loading
• Rail base fittable
