NAFSA
NAFSA - ERDI series
The ERDI range has two resting positions, moving from one to another by a polarized signal.
The plunger is held at each position by permanent magnets.
- Dual rest positions held with permanent magnet
- Class E winding (120ºC)
- High starting force

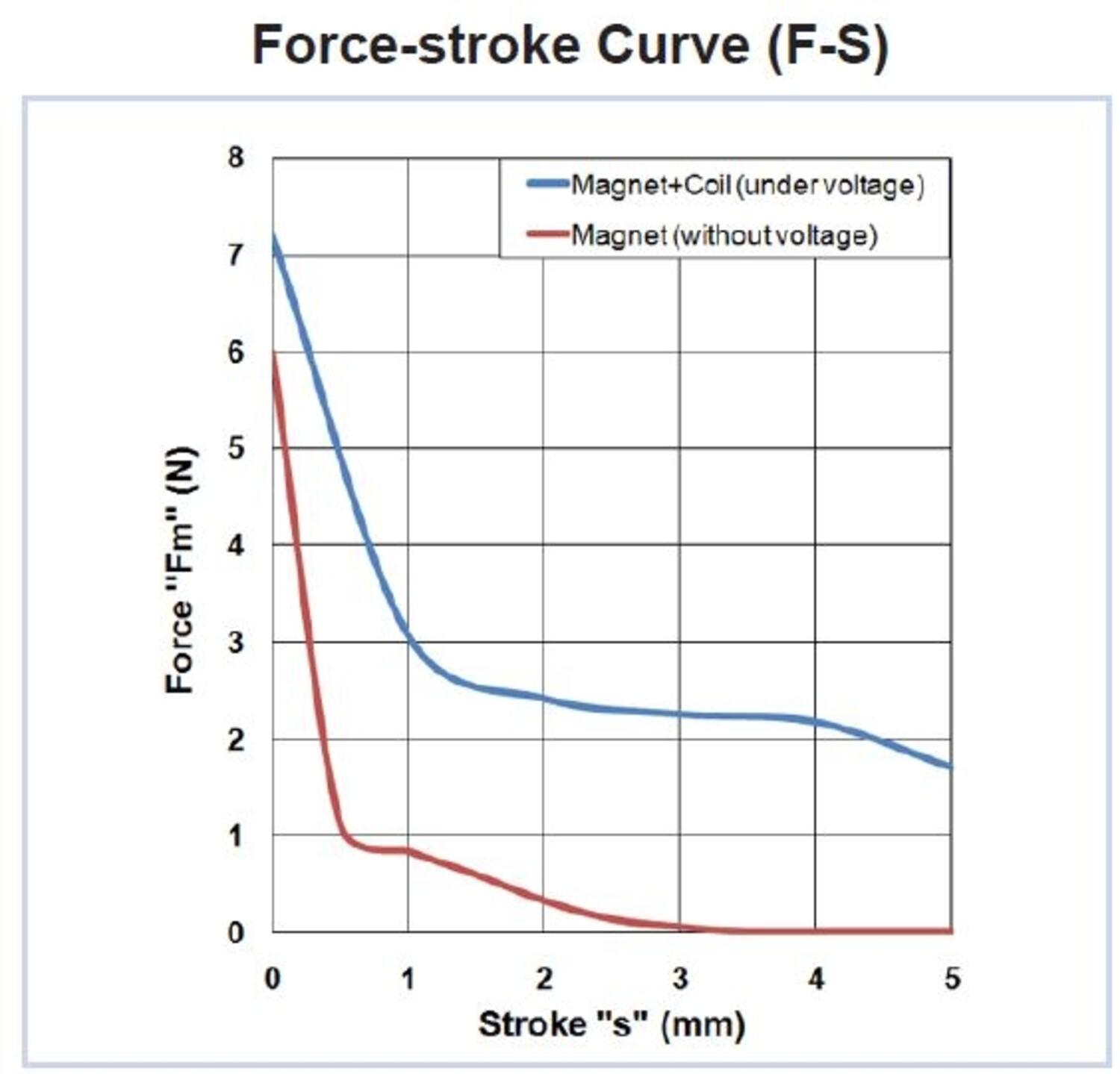

- Up to 24N force
- Customer specific version available
Selected variant
Technical data
| Duty cycle | 33 % |
|---|---|
| Function | push/pull |
| Insulation class | E (120°C) |
| IP class | IP00 |
| Power | 9 W |
| Stroke | 5 mm |
| Total weight | 40 g |
|---|---|
| Voltage dc max | 12 V |
| Voltage dc min | 6 V |
| Voltage type | DC |

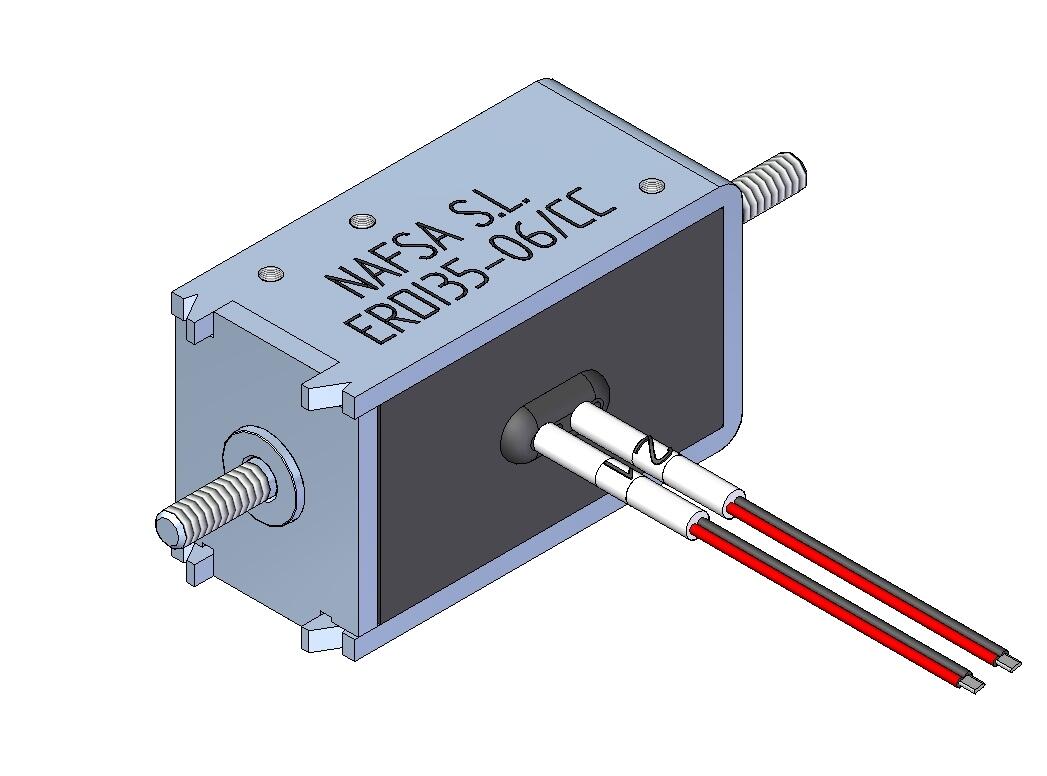

Product description
The ERDI range has two resting positions, moving from one to another by a polarized signal.
The plunger is held at each position by permanent magnets.
