NAFSA
NAFSA - ERD series
The ERD series feature a double coil. One of them with a low resistive value (pulse coil) and the other one with high resistive value (holding coil).
It is used when a 100% duty cycle and a huge force at the begining of the stroke are needed.
Please see PDF below for full details.
- Double coil for 100% duty cycle
- Class B winding (130ºC)
- High starting force

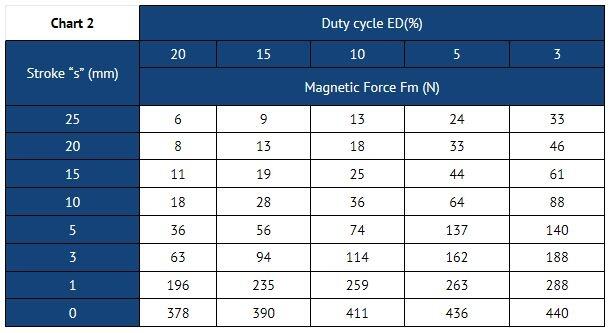

- Up to 440N force
- Customer specific version available
Selected variant
Technical data
| Cycle duration | 180 s |
|---|---|
| Function | pull/push |
| Insulation class | B (130ºC) |
| IP class | IP00 |
| Total weight | 720 g |
| Voltage ac max | 230 V |
| Voltage ac min | 110 V |
|---|---|
| Voltage dc max | 125 V |
| Voltage dc min | 24 V |
| Voltage type | AC, DC |
Product description
The ERD series feature a double coil. One of them with a low resistive value (pulse coil) and the other one with high resistive value (holding coil).
It is used when a 100% duty cycle and a huge force at the begining of the stroke are needed.
Please see PDF below for full details.
