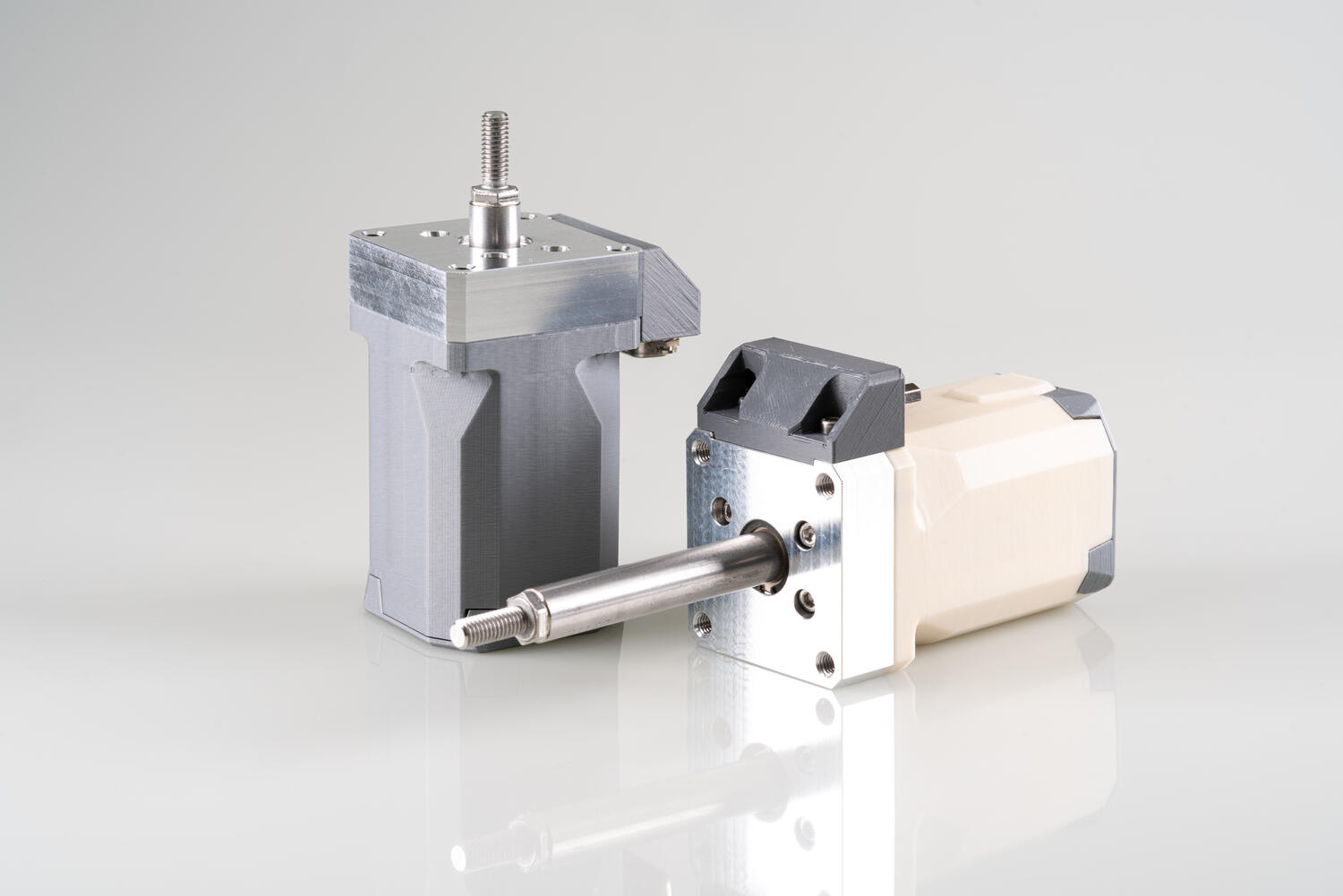

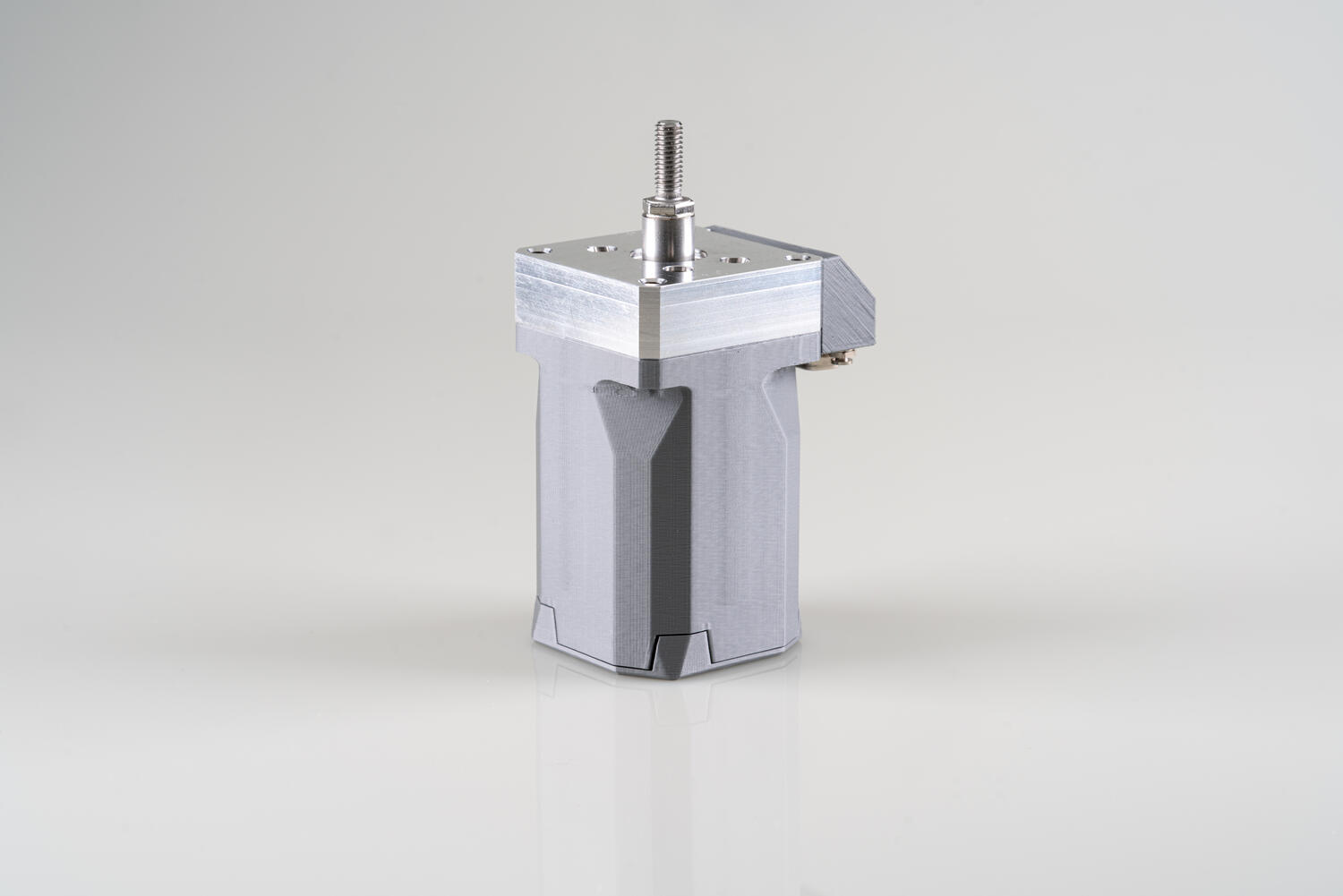

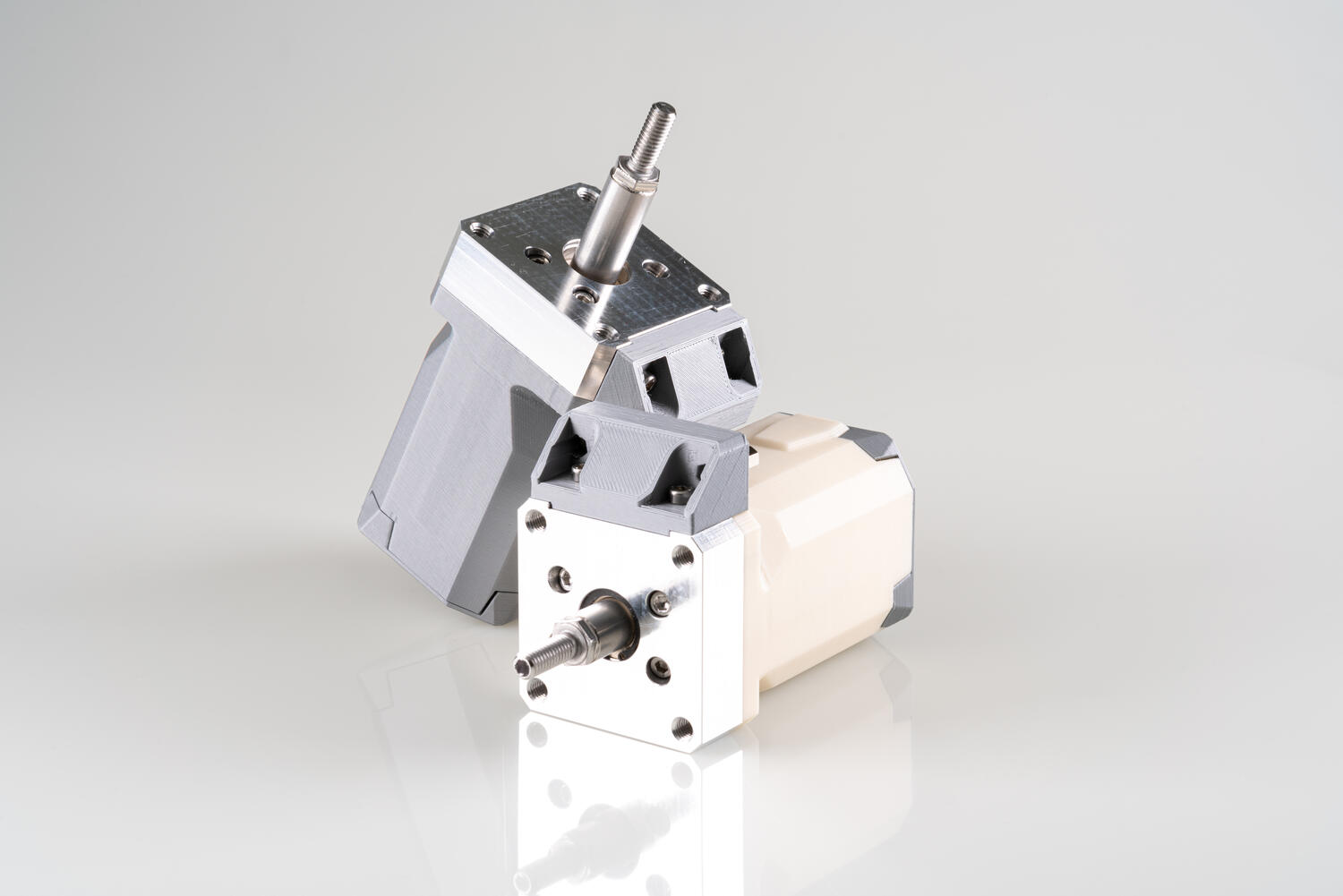

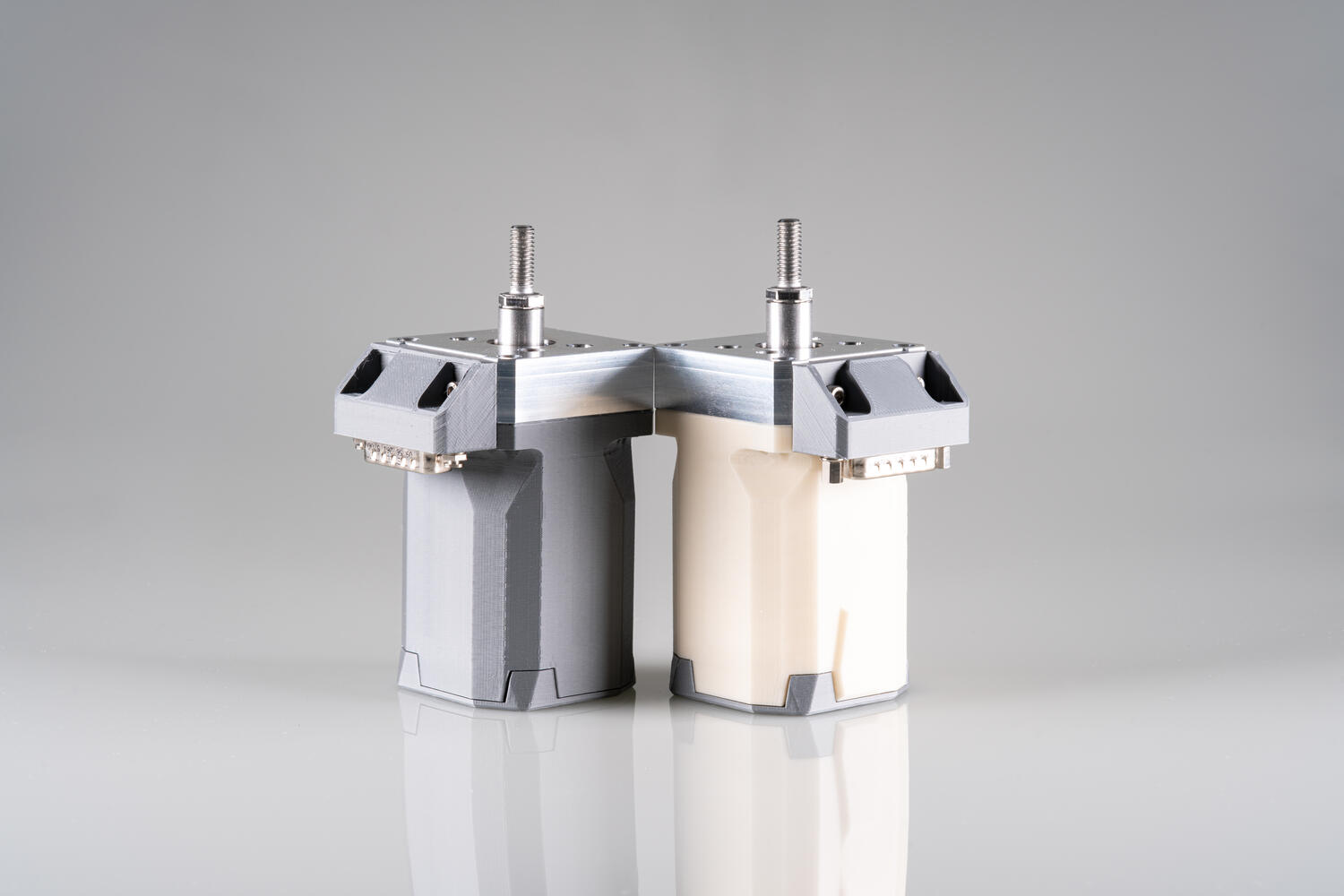

Smela liteECO Actuator

Smela Actuators are one of the most compact alternatives to pneumatic cylinders.



Featuring high force and dynamics with integrated encoders for precise repeatable control, they save up to 80% on instalation space when compared to other electromechanical products.



Controlled with a motion controller enables hugh accuracy with repeatable positioning through configurable motion profiles.



The profiles are set in the motion controller which gives the complete system complete control and allows for central monitoring at any point in the process.





Read more
  • Up to 80% space saving over conventional systems
  • Energy saving - up to 75% over pneumatics
  • Long service life thanks to sealed system and serviceable components
  • Up to 800N of force
  • Up to 1200 mm/s speed

Selected variant

Available in several variants

Selected variant

Technical data

Acceleration 60 m/s²
Backlash 0.02 mm
Max internal temperature rise 90 °C
Max phase current 12 A
Max. speed 1200 mm/s
Maximum force (static) 125 N
Nominal force (good thermal coupling) 62.5 N
Nominal force (poor thermal coupling) 41 N
Nominal phase current (good thermal coupling) 5 A
Nominal phase current (poor thermal coupling) 2.9 A
Nominal voltage 24 to 48 vDC
Operating temperature +5 to +40 °C
Position sensor system incremental, hall, SSI
Positioning time 65 ms
Stroke max 56 mm
Weight 440 g

Product description

Smela Actuators are one of the most compact alternatives to pneumatic cylinders.



Featuring high force and dynamics with integrated encoders for precise repeatable control, they save up to 80% on instalation space when compared to other electromechanical products.



Controlled with a motion controller enables hugh accuracy with repeatable positioning through configurable motion profiles.



The profiles are set in the motion controller which gives the complete system complete control and allows for central monitoring at any point in the process.





Accessories

Parts Acceleration Backlash Max phase current Max. speed Maximum force (static) Nominal force (good thermal coupling) Nominal force (poor thermal coupling) Operating temperature Position sensor system Positioning time Stroke max Price
60 m/s²
0.02 mm
12 A
1200 mm/s
125 N
62.5 N
41 N
+5 to +40 °C
incremental, hall, SSI
65 ms
56 mm
37.5 m/s²
0.02 mm
12 A
750 mm/s
200 N
100 N
66 N
+5 to +40 °C
incremental, hall, SSI
90 ms
56 mm
25 m/s²
0.2 mm
12 A
500 mm/s
300 N
150 N
100 N
+5 to +40°C
incremental, hall, SSI,
125 ms
56 mm
2 m/s²
0.1 mm
6 A
90 mm/s
800 N
500 N
500 N
+5 to +40°C
incremental, hall, SSI
600 ms
46 mm
