SMELA LE Base actuator

Smela DSP driven linear actuator

Compact electric linear actuator offering precise positioning and energy efficiency, suitable for various industrial applications.
  • Compact design – up to 80% space saving
  • IP65-rated
  • Precise positioning with encoder feedback
  • Compatible with any motion controller or bus system

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Downloads

Measurements and connections

Product description

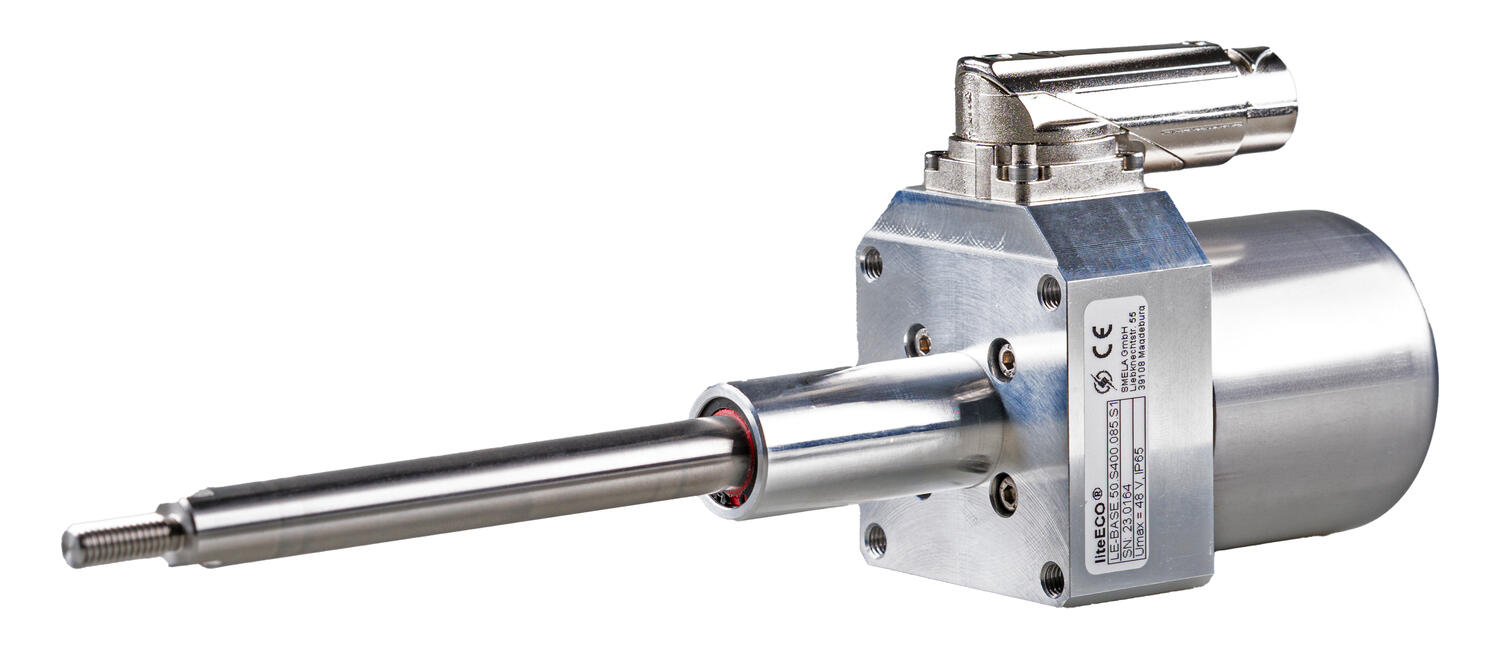

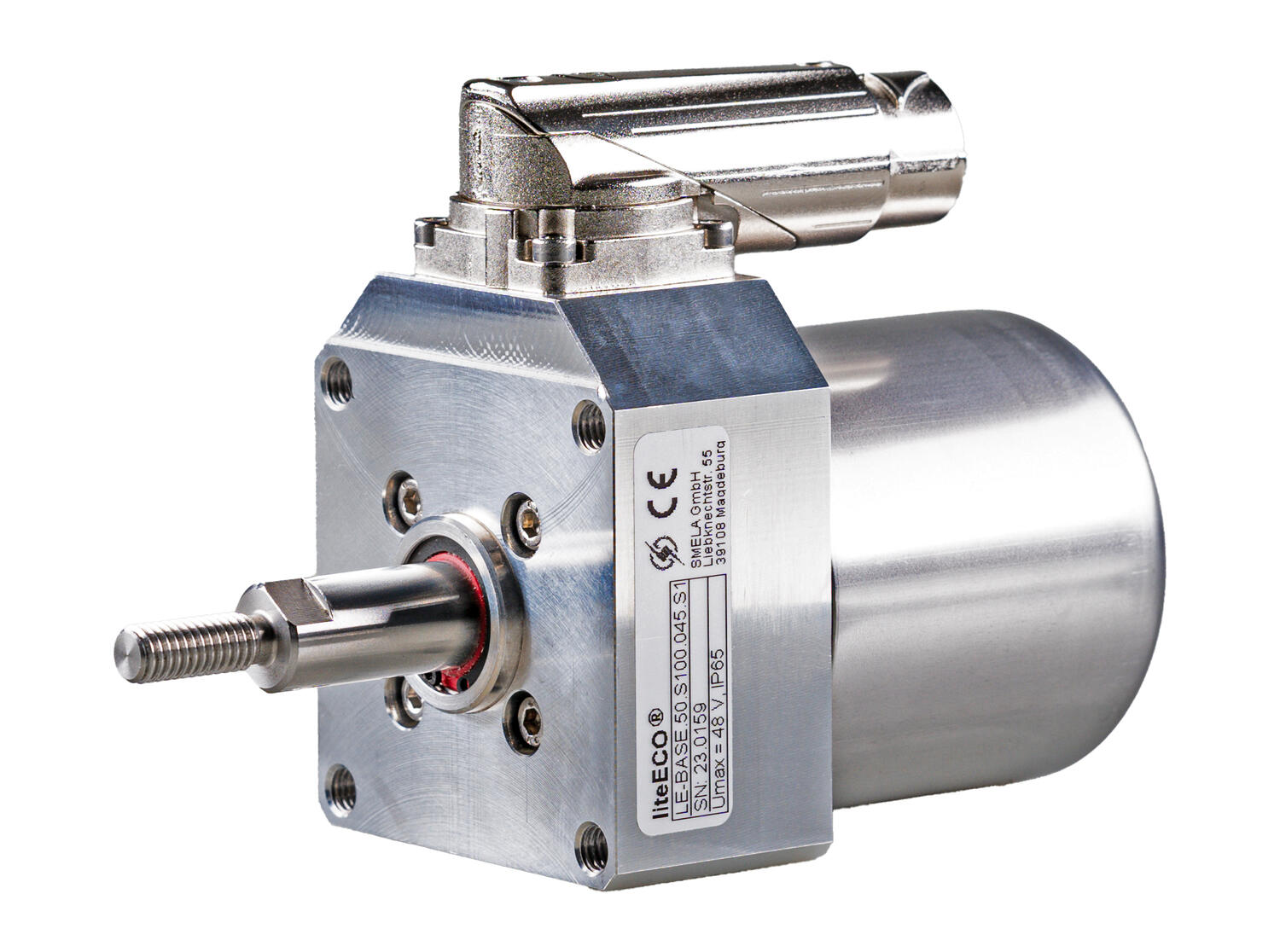

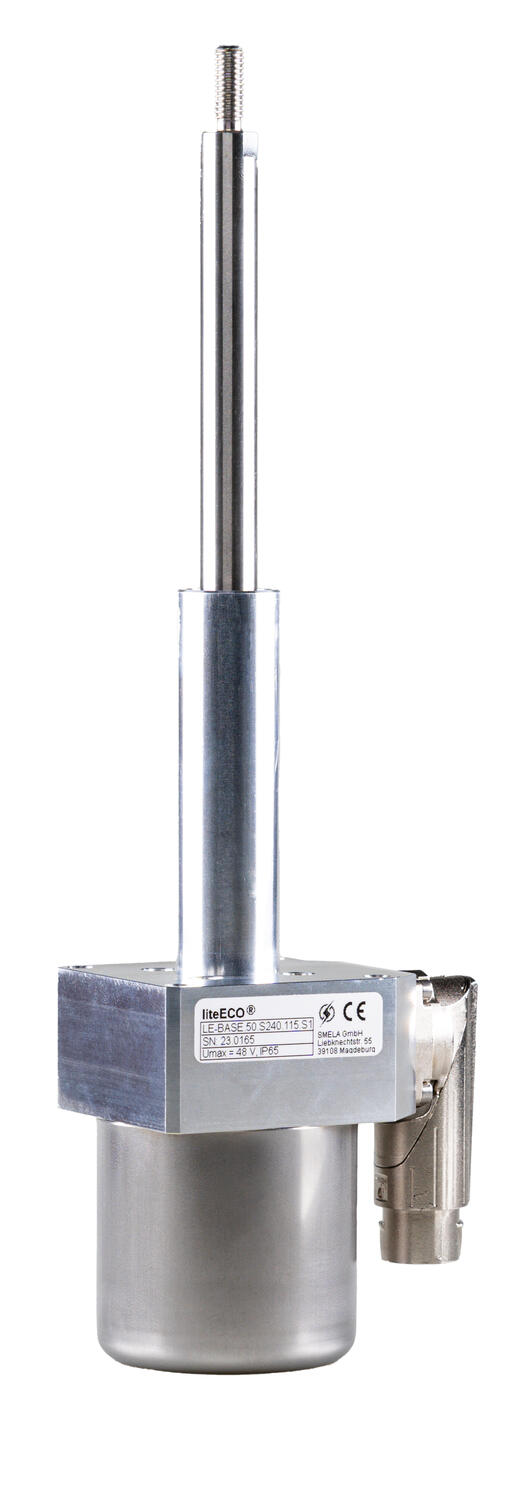

SMELA liteECO® LE-BASE Electric Linear Actuator


The SMELA liteECO® LE-BASE is a compact electric linear actuator designed as a high-performance alternative to pneumatic cylinders. Combining a patented telescopic motor and mechanical arrangement with robust industrial features, the LE-BASE delivers precise positioning, reduced energy consumption and exceptional space savings in machine-building and automation applications.


Suitable for production lines, packaging machinery, assembly systems and handling equipment, the LE-BASE offers flexible stroke lengths of 45 mm, 85 mm and 115 mm, with unrestricted positioning across the full travel range. Its compact design can reduce installation space by up to 80% compared to conventional electric solutions, while consuming significantly less energy than pneumatic alternatives.


Designed for industrial environments, the actuator features IP65 protection, a robust M15 rotating connector with quick-lock system, high-resolution encoder feedback and compatibility with a wide range of motion controllers and fieldbus architectures. With no integrated drive controller, machine builders retain complete freedom when selecting their preferred control platform.


Key Features


Compact electric alternative to pneumatic cylinders

Up to 80% installation space saving

Up to 75% energy reduction compared to pneumatic systems

IP65-rated housing for industrial environments

Available stroke lengths: 45 mm, 85 mm and 115 mm

High-resolution encoder feedback for accurate positioning

Compatible with a wide range of motion controllers and bus systems

Rotatable M15 hybrid connector with quick-release locking system

Optional adapter and swivel flanges for flexible installation


Typical Applications


Packaging machinery

Conveyor and material handling systems

Automated assembly equipment

Production and manufacturing lines

Machine tools and positioning systems
