Actuonix - Miniature stepper actuator S20

The S20 actuators are complete, self-contained linear motion devices.



Several stroke length options allow these to fit a wide variety of applications.



The brushless stepper design makes the S20 the highest precision and longest life actuator available from Actuonix.



Using a bi-polar stepper motor, control can be precise, accurate and continuos through a standard stepper motor drive

Read more
  • Up to 15N force
  • Up to 125mm/s speed
  • From 15mm to 100mm stroke
  • Stepper motor drive with 100% duty cycle
  • Acurate position control

Selected variant

Available in several variants

Selected variant

Technical data

Back drive force 60 N
Closed length (hole to hole) 89.8 mm
Duty cycle 100 %
IP class IP54
Sound level 40 dB

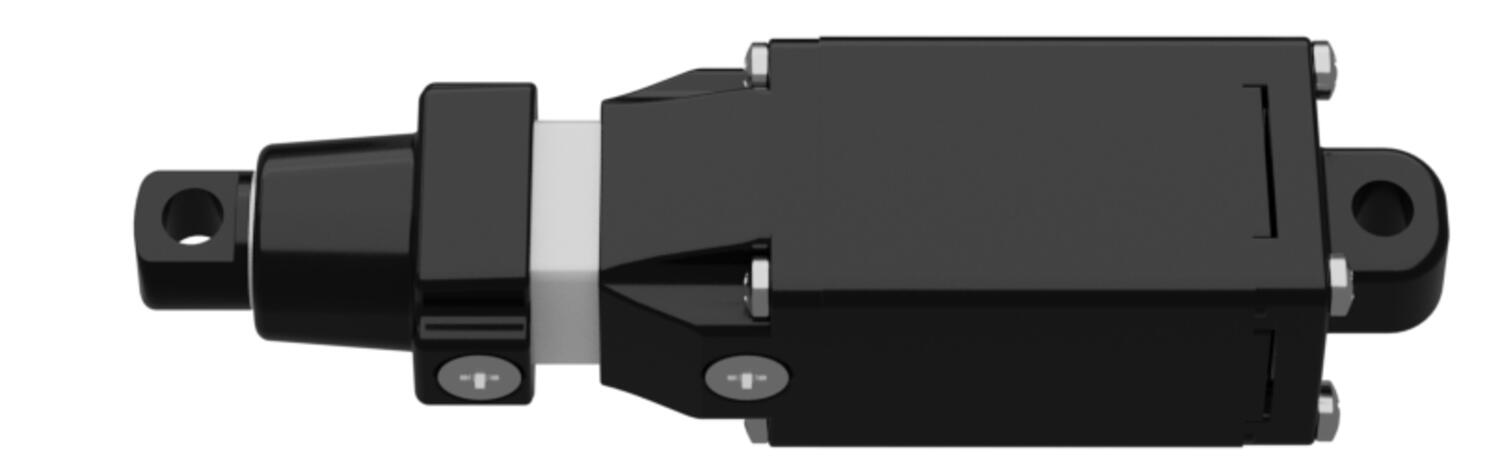

Stroke 15 mm
Temperature operational max 40 °C
Temperature operational min -10 °C
Weight 62 g
Voltage dc 4.2 V

Product description

The S20 actuators are complete, self-contained linear motion devices.



Several stroke length options allow these to fit a wide variety of applications.



The brushless stepper design makes the S20 the highest precision and longest life actuator available from Actuonix.



Using a bi-polar stepper motor, control can be precise, accurate and continuos through a standard stepper motor drive

Accessories

Parts Closed length (hole to hole) Stroke Weight Price
89.8 mm
15 mm
62 g
104.8 mm

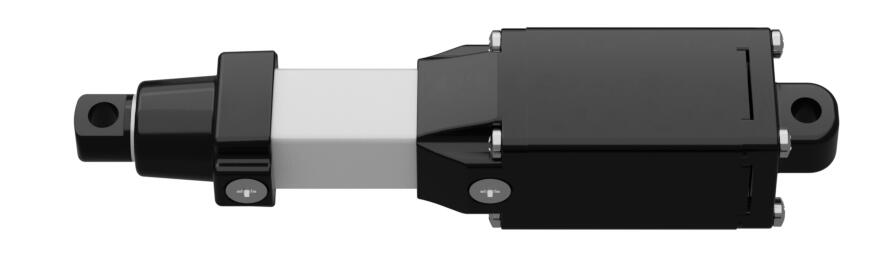

30 mm
64 g
124.8 mm

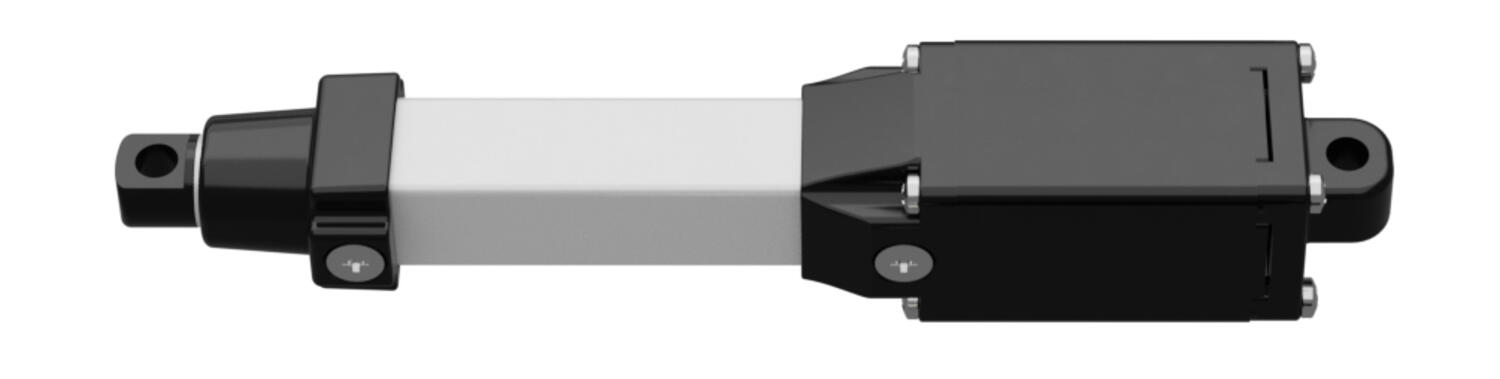

50 mm
70 g
174.8 mm
100 mm
84 g

Selected variant

Select a variant in the list
