Sugatsune

EZS Soft Closing Stay

The Sugatsune EZS-ELAN Lift-Assist Stay is a compact, top-mounted flap door mechanism that combines lift-assist, free-stop positioning between 30°–70°, and soft-close functionality from 20° to fully closed, all within a durable steel and ABS housing. Ideal for overhead storage, it enhances ease of use, requires no torque adjustment, and maximizes internal space without additional hinges or bars.
  • Controls Door Opening and Closing
  • The door can be stopped in a position between 30° and 70°
  • Soft Close From 20°

Selected variant

Available in several variants

Selected variant

Technical data

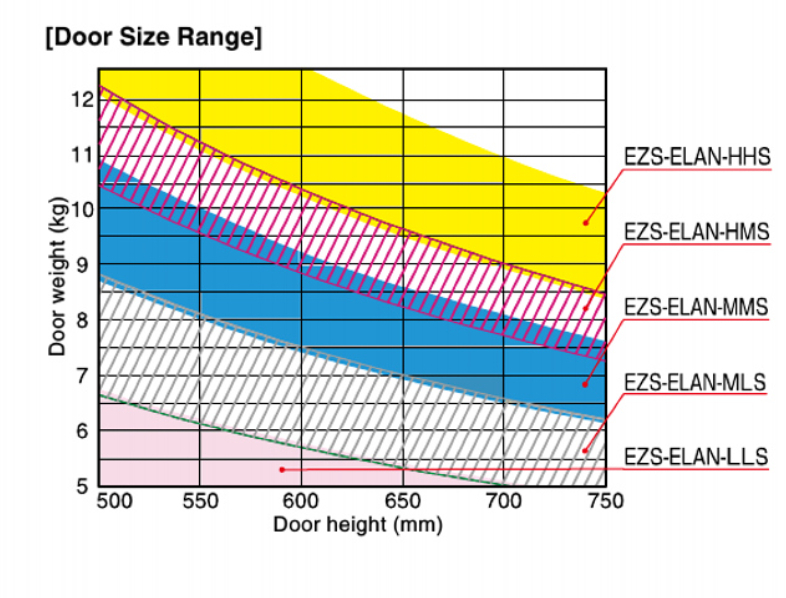

Lifting Power 5550-6930
Material Steel, ABS plastic
Surface finish Nickel/ Light Grey
Weight 2475 g

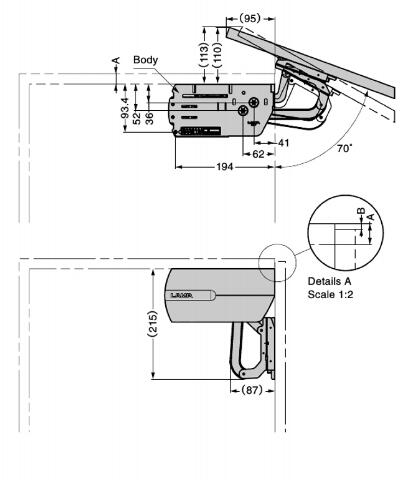

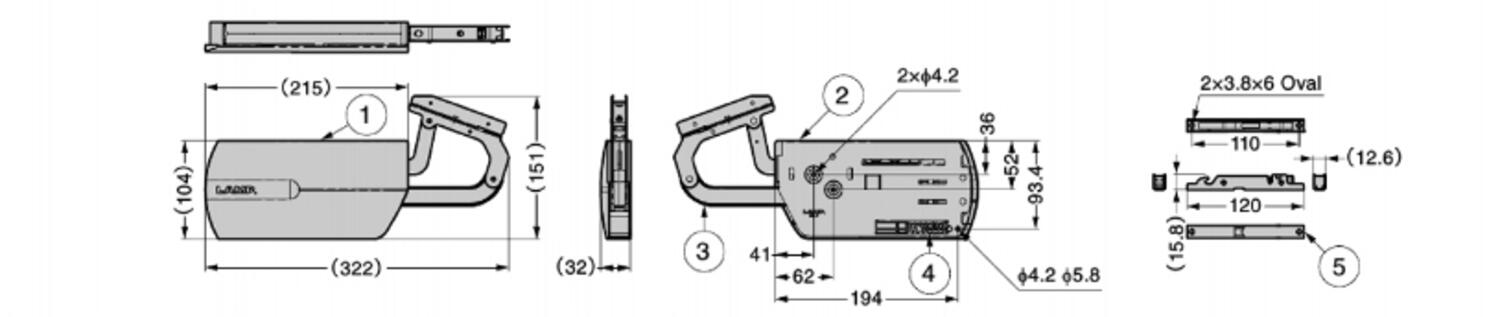

Measurements and connections

Product description

The Sugatsune EZS-ELAN Lift-Assist Stay is a high-performance flap door mechanism designed for upward-opening cabinet doors. It integrates a patented Lapcon system that combines lift-assist, free-stop, and soft-close functionalities. The lift-assist feature reduces the effort needed to open doors, while the free-stop mechanism allows the door to hold at any angle between 30° and 70°, and the soft-close function gently slows the door from 20° to closed, preventing slamming. Constructed from steel and ABS with a nickel finish, the EZS-ELAN is suitable for wooden flap doors and has passed 30,000 open/close cycles in private testing. Its compact design is mounted at the top interior of the cabinet, maximising usable space and eliminating the need for additional hinges or connecting bars.

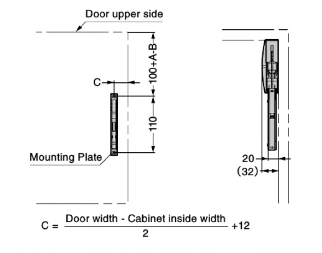

Ideal for residential and commercial cabinetry, the EZS-ELAN enhances user experience with its smooth and controlled door operation. Its straightforward installation involves aligning the body to the cabinet's top interior and snapping it onto the mounting plate, with no torque adjustment required if the door specifications are met. This makes it an excellent choice for overhead storage, and other applications where ease of use and space efficiency are paramount.

Accessories

Related

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Drive wheels AGV's AMR'S
Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

electro pneumatic control box customised bespoke solutions
Case studies

Case Study - Electro Pneumatic Control Box

At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.

Parts Lifting Power Weight Price
5550-6930
2475 g
4700-5600
2431 g
1900-2860
2245 g
2820-3900
2316 g
3850-4950
2387 g

Selected variant

Select a variant in the list
