MOONS'
| Dimension (mm) | 08x17 |
|---|---|
| Nominal speed | 3360 rpm |
| Nominal torque | 0.0006 |
| Output power | 0.3 W |
| Supply voltage | 6,0 V DC |
Coreless Brushed DC Motors have supreme performance, offering highly dynamic power in a very small form compared to convention brushed DC motors. They are easy to control to a high level of precision at all speeds. MOONS’ DC coreless brushed DC motors are available in 13mm, 17mm, and 24mm diameter. The hollow (hence coreless) rotor design has very low rotational inertia compared to conventional brush DC motor design, and as a result, can deliver very high acceleration. Excellent low speed characteristics are also a key feature of the design architecture with no cogging effect present.
These ultra-compact high-performance motors offer speeds of up to 12,900rpm and can be coupled with an optional gearbox can deliver very high torque for its size. An encoder option is available for positional applications.
The miniature size and ultra-performance characteristics of these DC motors lend themselves well to applications in the medical and scientific sectors
Â
Applications
Pipettes
Spectrophotometers
Sample treatment platforms
Precision balances
Micro diaphragm pumps
Analytical and measurement equipment
Â
Determining what motor to use is quite a daunting task. Our Motors experts have developed a guide to show the steps to determine a suitable motor.
Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine. This email takes you through some of the various products we offer for specialist vehicle applications.
AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Dimension (mm) | Nominal speed | Nominal torque | Output power | Supply voltage | Price | ||
|---|---|---|---|---|---|---|---|---|

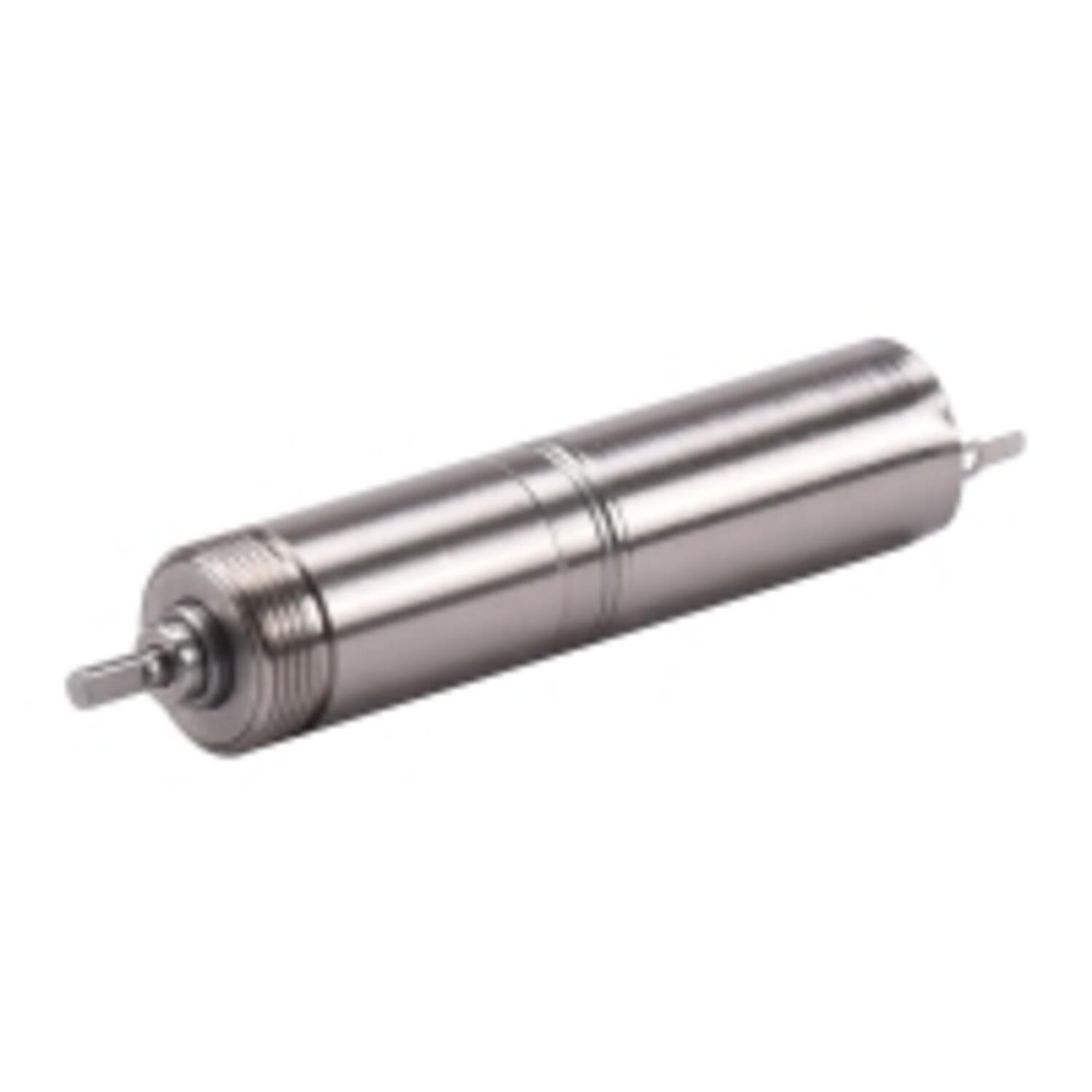

DC Series 08x17mm 0.3W Slotless BLDC Motor 6V
Art:
DCU08017P06
Copied
|
08x17
|
3360 rpm
|
0.0006
|
0.3 W
|
6,0 V DC
|
|
||
|
DC Series 08x17mm Slotless BLDC Motor 12V
Art:
DCU08017P12
Copied
|
08x17
|
5460 rpm
|
0.0006
|
0.3 W
|
12 V
|
|
||

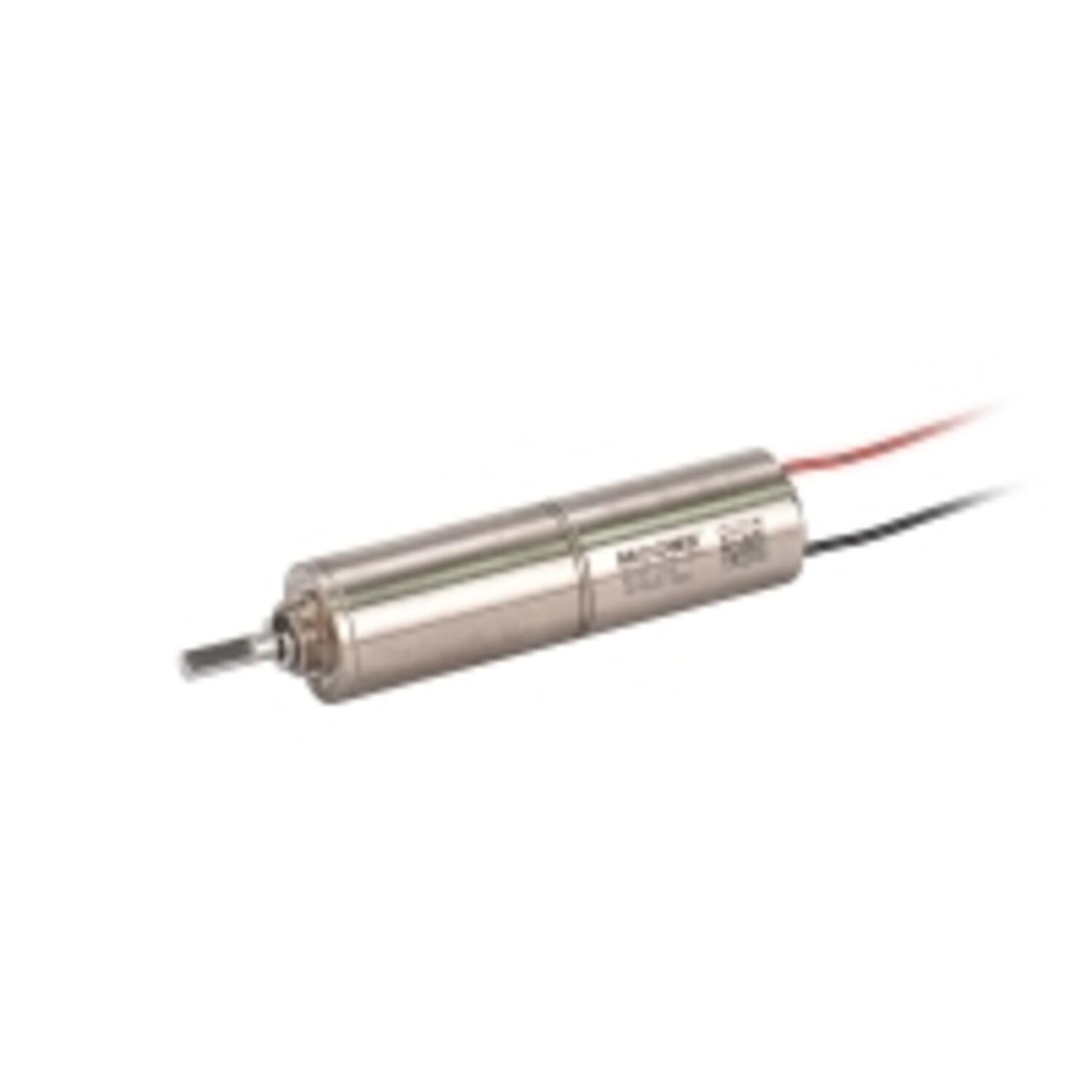

DC Series 10x17mm 0.4W Slotless BLDC Motor 6V
Art:
DCU10017P06
Copied
|
10x17
|
5010 rpm
|
0.0007
|
0.4 W
|
6,0 V DC
|
|
||

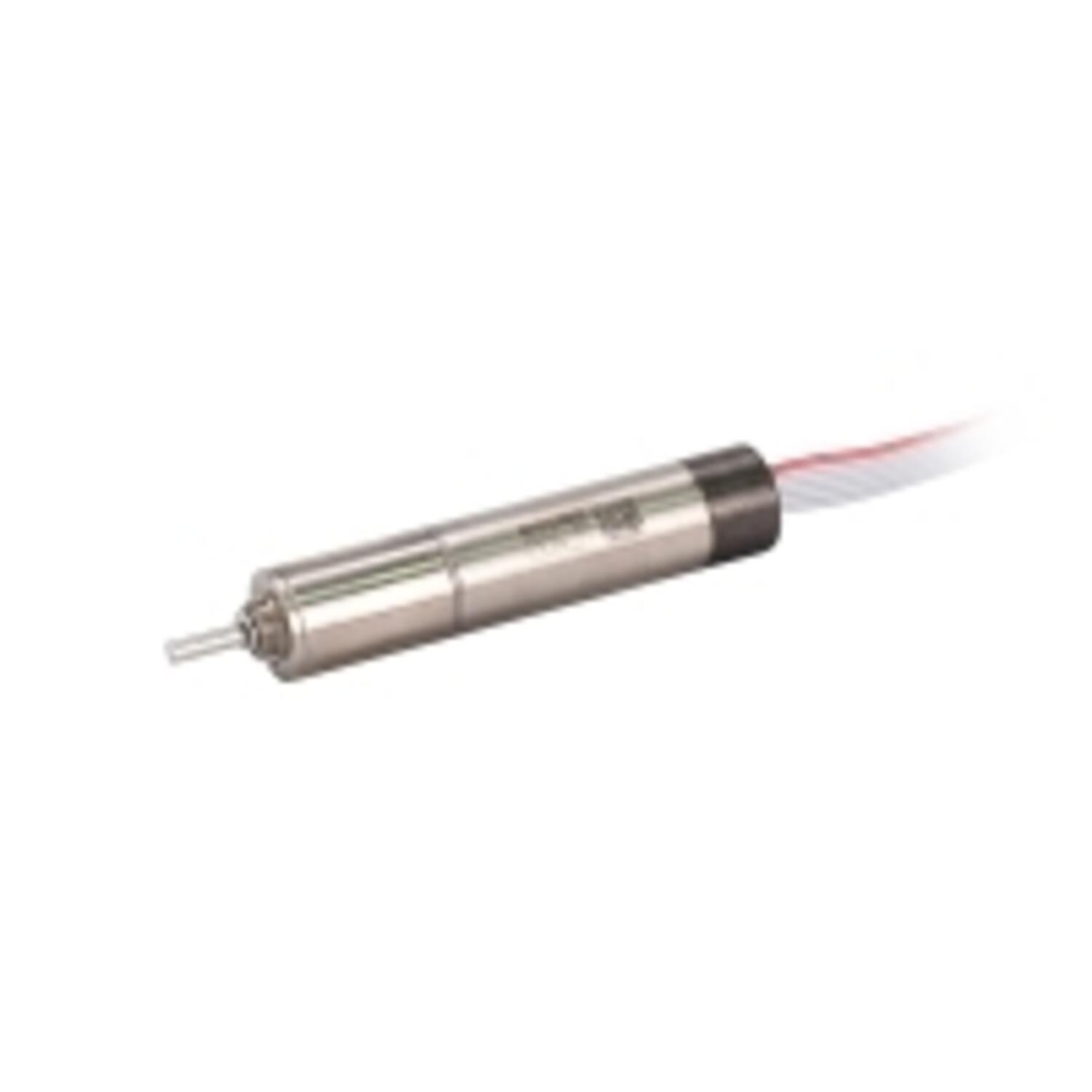

DC Series 10x25mm 1.1W Slotless BLDC Motor 6V
Art:
DCU10025P06
Copied
|
10x25
|
5900 rpm
|
0.0017
|
1.1 W
|
6,0 V DC
|
|
||
|
DC Series 10x25mm Slotless BLDC Motor 12V
Art:
DCU10025P12
Copied
|
10x25
|
6500 rpm
|
0.0016
|
1.1 W
|
12 V
|
|
||
DC Series 13x28mm 2.8W Slotless BLDC Motor 6V
Art:
DCU13028P06
Copied
|
13x28
|
6110 rpm
|
0.0036
|
2.8 W
|
6,0 V DC
|
|
||
|
DC Series 13x28mm Slotless BLDC Motor 12V
Art:
DCU13028P12
Copied
|
13x28
|
7980 rpm
|
0.0034
|
2.8 W
|
12 V
|
|
||
|
DC Series 13x28mm Slotless BLDC Motor 24V
Art:
DCU13028P24
Copied
|
13x28
|
7980 rpm
|
0.0035
|
2.8 W
|
24 V
|
|
||

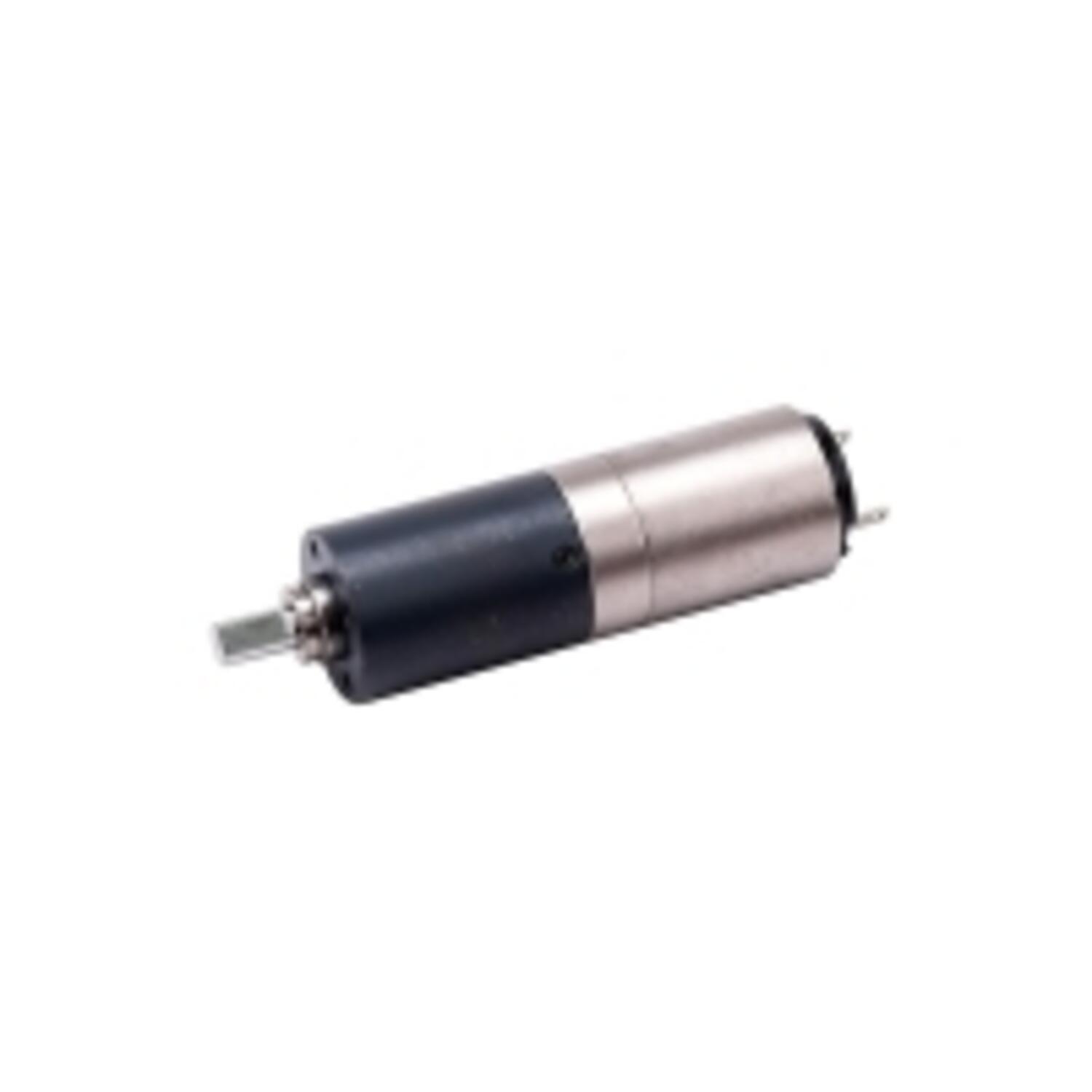

DC Series 16x25mm 2W Slotless BLDC Motor 12V
Art:
DCU16025G12
Copied
|
16x25
|
5680 rpm
|
0.0021
|
2 W
|
12 V
|
|
||
|
DC Series 16x25mm Slotless BLDC Motor 24V
Art:
DCU16025G24
Copied
|
16x25
|
6180 rpm
|
0.0022
|
2 W
|
24 V
|
|
||

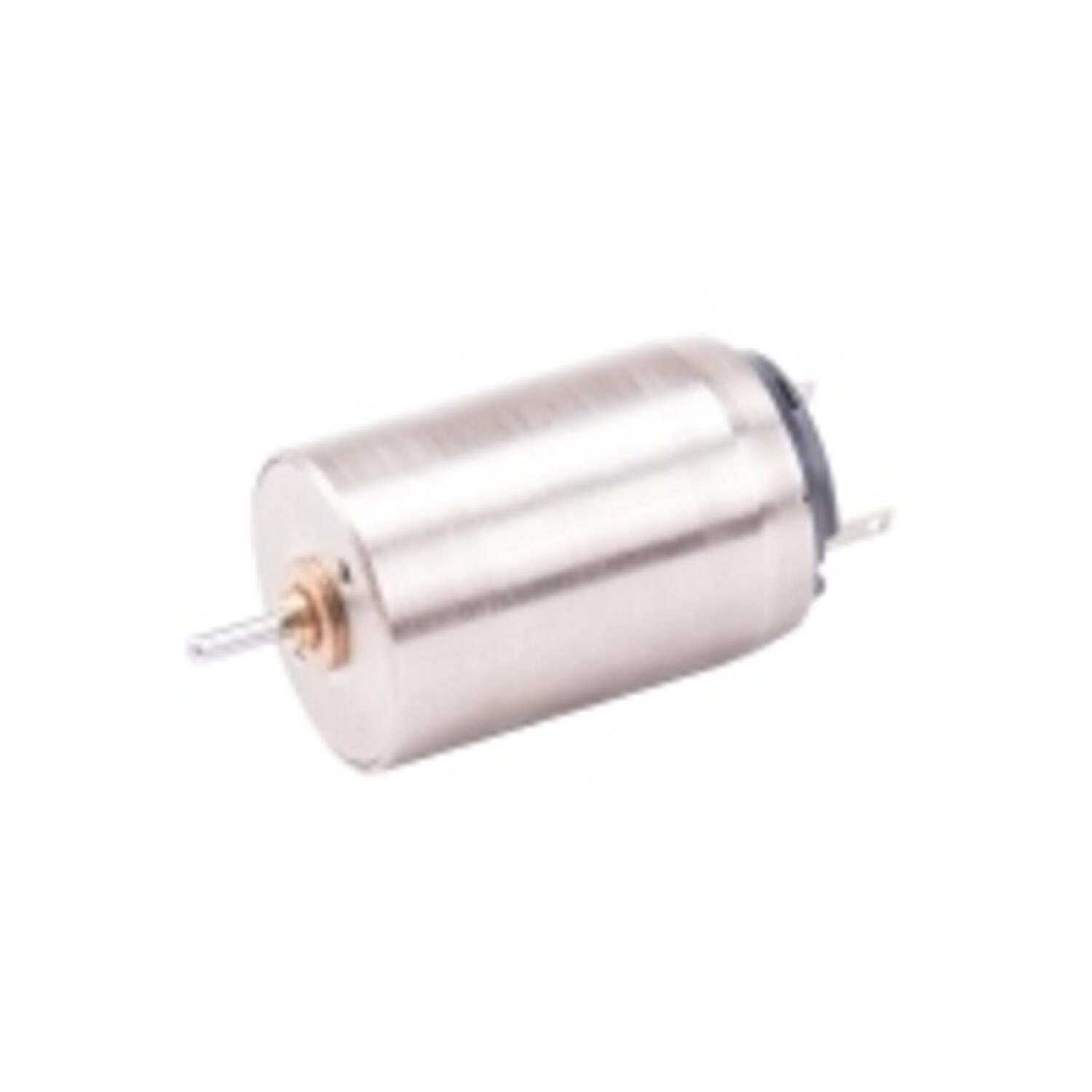

DC Series 17x25mm 3.5W Slotless BLDC Motor 12V
Art:
DCU17025G12
Copied
|
17x25
|
7520 rpm
|
0.0039
|
3.5 W
|
12 V
|
|
||
|
DC Series 17x25mm Slotless BLDC Motor 24V
Art:
DCU17025G24
Copied
|
17x25
|
8620 rpm
|
0.0039
|
3.5 W
|
24 V
|
|
||
DC Series 17x35mm 7.5W Slotless BLDC Motor 12V
Art:
DCU17035G12
Copied
|
17x35
|
7130 rpm
|
0.0073
|
7.5 W
|
12 V
|
|
||
|
DC Series 17x35mm Slotless BLDC Motor 24V
Art:
DCU17035G24
Copied
|
17x35
|
9050 rpm
|
0.0077
|
7.5 W
|
24 V
|
|
||
DC Series 24x32mm 9.5W Slotless BLDC Motor 12V
Art:
DCU24032G12
Copied
|
28x35
|
7550 rpm
|
0.0107
|
9.5 W
|
12 V
|
|
||
|
DC Series 24x32mm Slotless BLDC Motor 24V
Art:
DCU24032G24
Copied
|
28x35
|
7560 rpm
|
0.0119
|
9.5 W
|
24 V
|
|
