MINIMOTOR

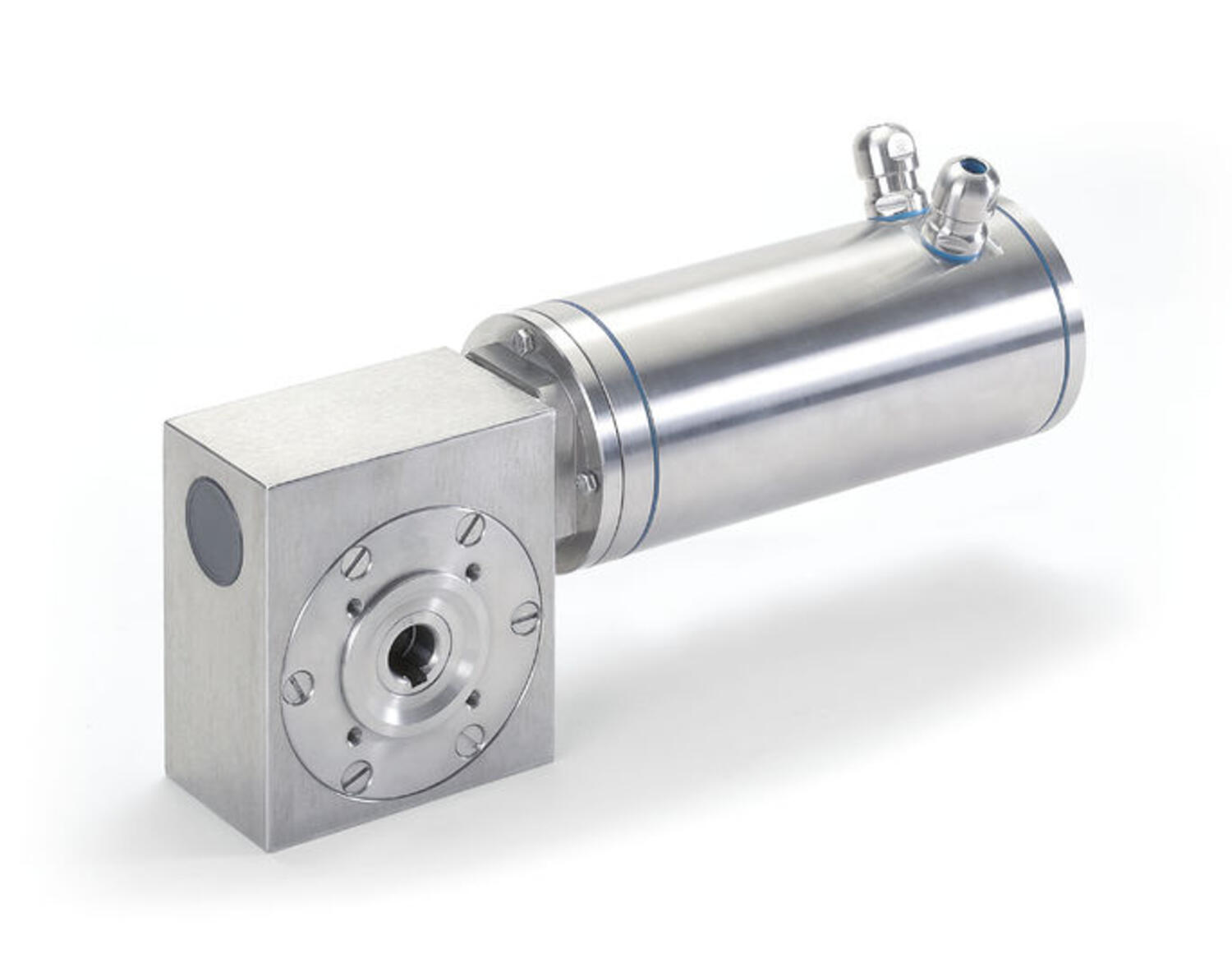

Minimotor XCFSS stainless steel worm gear motor
MOTOR: Brushless three-phase 4-pole motor, totally enclosed. Rotor with NdFeB magnets. Thermal cutoff. Winding Class H. Protection IP69K in compliance with IEC/EN 60529 standards. 2-Pole resolver feedback. Bearings with reduced backlash with special grease and high-temperature rubber seal rings. Easy and quick to clean thanks to the smooth surface design. Power 180 to 345W.
GEAR UNIT: worm gear unit with stainless steel gearcase. 45 mm centre distance. Bronze crown. The worm is made of tempered steel, with ground thread. Seal rings in special high-temperature rubber. Lubrication with special long-lasting oil for use in food aread. (H1).
There are 10 available gear ratios (i), from 7 to 102. Rated torque up to 38.8 Nm.
Version B3 - B14
Designed as per EHEDG hygiene guidelines requirements.
ALWAYS specify application environment.
Â
- IP69K sealing
- Full stainless steel outer parts
- Up to 39Nm rated torque
- Brushless AC motor with resolver feedback
Selected variant
Technical data
| Input voltage ac | 230V 50Hz |
|---|---|
| IP class | IP69K |
| Nominal torque | 3.4 |
| Output power | 180 W |
| Rated current | 1.48 A |
| Rated speed | 429 rpm |
| Ratio | 7:1 |
Downloads
Product description
MOTOR: Brushless three-phase 4-pole motor, totally enclosed. Rotor with NdFeB magnets. Thermal cutoff. Winding Class H. Protection IP69K in compliance with IEC/EN 60529 standards. 2-Pole resolver feedback. Bearings with reduced backlash with special grease and high-temperature rubber seal rings. Easy and quick to clean thanks to the smooth surface design. Power 180 to 345W.
GEAR UNIT: worm gear unit with stainless steel gearcase. 45 mm centre distance. Bronze crown. The worm is made of tempered steel, with ground thread. Seal rings in special high-temperature rubber. Lubrication with special long-lasting oil for use in food aread. (H1).
There are 10 available gear ratios (i), from 7 to 102. Rated torque up to 38.8 Nm.
Version B3 - B14
Designed as per EHEDG hygiene guidelines requirements.
ALWAYS specify application environment.
Â
