MINIMOTOR

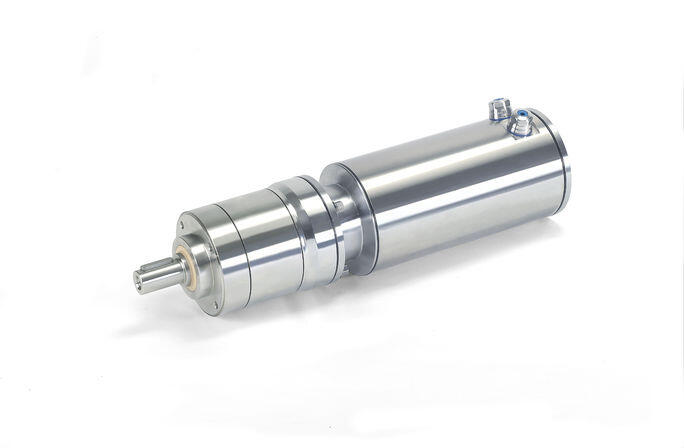

Minimotor - AMSSE110 stainless steel motor with planetary gear box
MOTOR:
Brushless three-phase 4-pole motor, totally enclosed. Rotor with NdFeB magnets. Thermal cutoff. Winding Class H. Protection IP69K in compliance with IEC/EN 60529 standards. 2-Pole resolver feedback. Bearings with reduced backlash with special grease and high-temperature rubber seal rings. Easy and quick to clean thanks to the smooth surface design. Power 740 W.
GEAR UNIT:
Planetary with stainless steel gearcase. Seal rings in special high-temperature rubber. Lubrication with special long-lasting oil for use with foodstuffs (H1). There are 4 available gear ratios with 1 or 2 stages (i), from 5 to 49. Rated torque up to 109.4 Nm.
Designed as per EHEDG hygiene guidelines requirements.
ALWAYS specify application environment
- IP69K sealing
- Full stainless steel outer parts
- Up to 109.4Nm rated torque
- Brushless AC with resolver feedback
Selected variant
Technical data
| Nominal speed | 600 rpm |
|---|---|
| Nominal torque | 11.4 |
| Ratio | 5:1 |
Downloads
Product description
MOTOR:
Brushless three-phase 4-pole motor, totally enclosed. Rotor with NdFeB magnets. Thermal cutoff. Winding Class H. Protection IP69K in compliance with IEC/EN 60529 standards. 2-Pole resolver feedback. Bearings with reduced backlash with special grease and high-temperature rubber seal rings. Easy and quick to clean thanks to the smooth surface design. Power 740 W.
GEAR UNIT:
Planetary with stainless steel gearcase. Seal rings in special high-temperature rubber. Lubrication with special long-lasting oil for use with foodstuffs (H1). There are 4 available gear ratios with 1 or 2 stages (i), from 5 to 49. Rated torque up to 109.4 Nm.
Designed as per EHEDG hygiene guidelines requirements.
ALWAYS specify application environment
