MINIMOTOR

Minimotor - AMSS - stainless steel servo motor

Motor only





Stainless steel brushless servomotor, AMSS series compliant with EHEDguidelines for hygiene.

4-pole sinusoidal brushless motor, closed form in stainless steel with smooth finish.



Rotor with NdFeB magnets. Thermal cutoff. ClassH insulation winding.

IP69K protection in compliance with IEC/EN60529 standards.



2-Pole resolver feedback.

Roller bearings with reduced backlash and special grease for high temperatures.



Please click here for 2D and 3D drawings

Read more
  • Stainless steel IP69K construction
  • Fitted with 2.5m cables
  • Up to 2.35Nm rated torque
  • Models woth gearbox fitted available - see related products

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Input voltage ac 230V 50Hz
IP class IP69K
Nominal speed 3000 rpm
Nominal torque 0.3
Output power 94 W
Rated current 0.67 A
Starting torque 1.5

Downloads

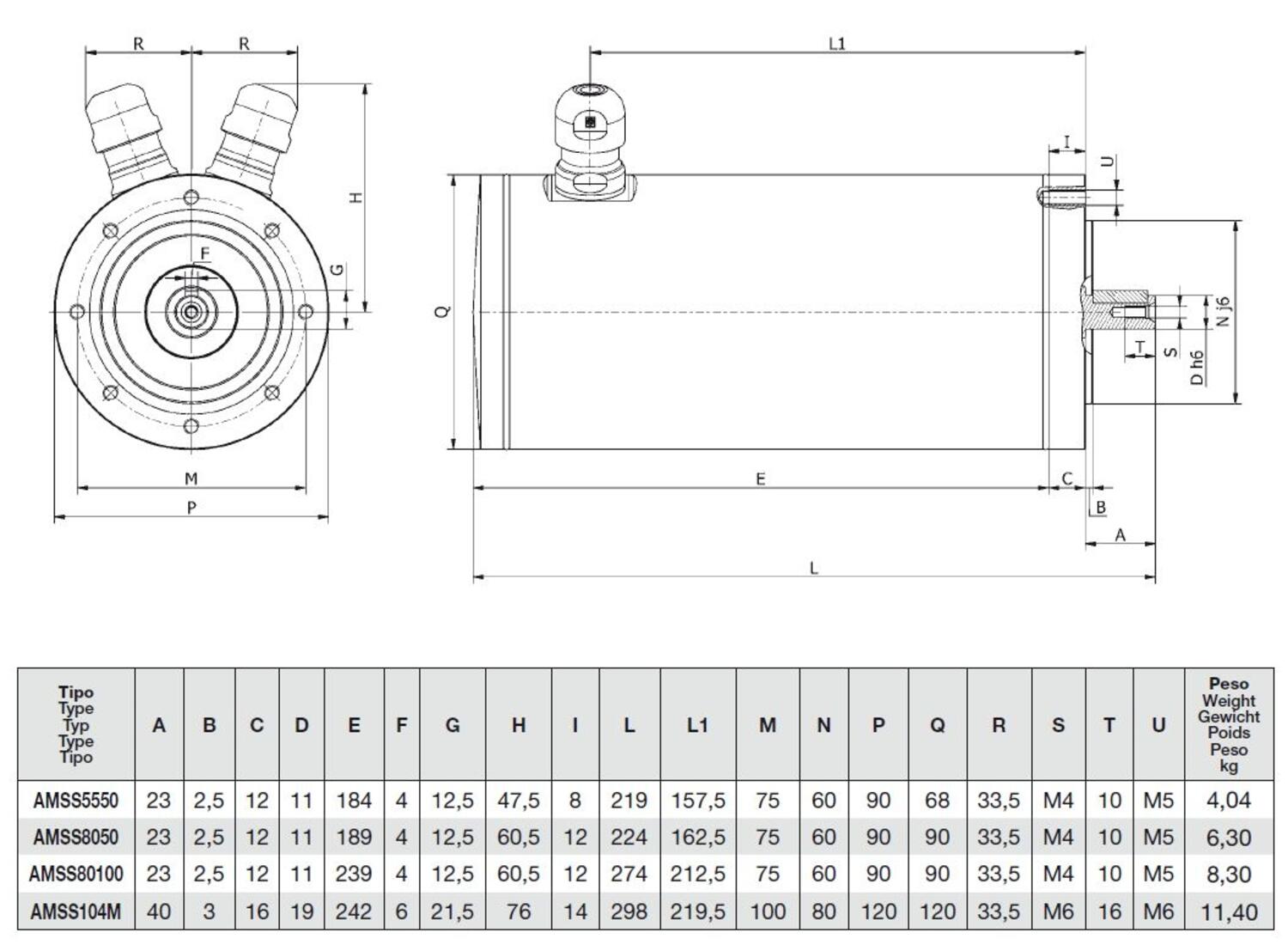

Measurements and connections

Product description

Motor only





Stainless steel brushless servomotor, AMSS series compliant with EHEDguidelines for hygiene.

4-pole sinusoidal brushless motor, closed form in stainless steel with smooth finish.



Rotor with NdFeB magnets. Thermal cutoff. ClassH insulation winding.

IP69K protection in compliance with IEC/EN60529 standards.



2-Pole resolver feedback.

Roller bearings with reduced backlash and special grease for high temperatures.



Please click here for 2D and 3D drawings

Accessories

Related products

Parts Nominal torque Output power Rated current Starting torque Price

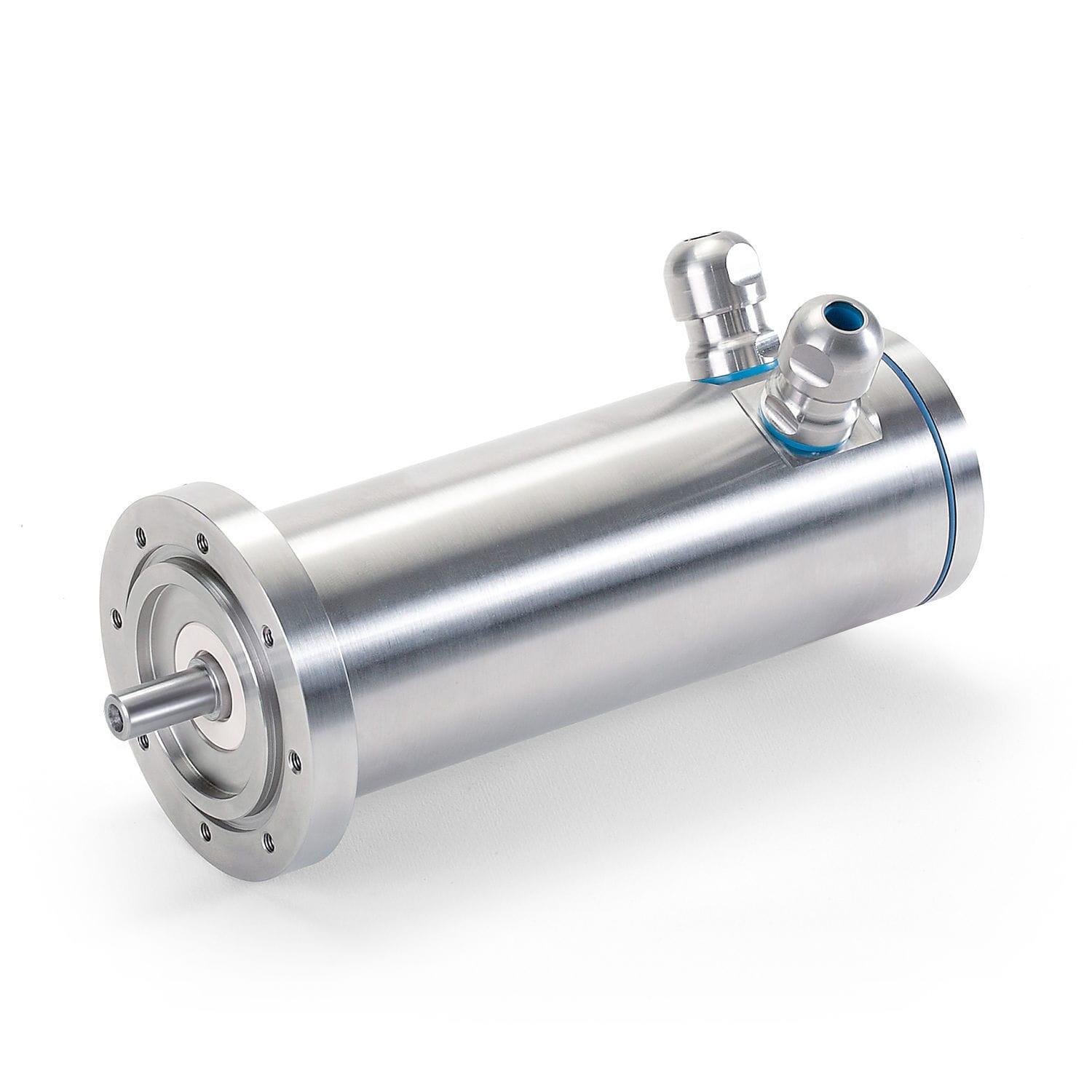

AMSS photo
230V 3000rpm 0.3 Nm
Art:
AMSS 55/50 Copied
0.3
94 W
0.67 A
1.5
AMSS photo
230V 3000rpm 0.58 Nm
Art:
AMSS 80/50 Copied
0.58
180 W
1.48 A
3.6
AMSS photo
230V 3000rpm 1.1 Nm
Art:
AMSS 80/100 Copied
1.1
345 W
2.63 A
6.9
AMSS photo
230V 3000rpm 2.35 Nm
Art:
AMSS 104/M Copied
2.35
740 W
3.18 A
7.1
