Oriental Motor FPW IP67 25W Gearmotor

High torque performance

Oriental Motor FPW IP67 25W Gearmotor with high torque performance, rated torque up to 205Nm, and IP67 protection for water and dust resistance.
  • IP67 as standard
  • Up to 8Nm torque
  • Coated housing and stainless steel shaft
  • 83mm frame size
  • Wide gear ratio range available

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

12371_Rated Torque 8 Nm
12372_Voltage AC Single Phase 230vAC
12373_Starting Torque 7.9 Nm
12374_Capacitor 1.5 µF
Frequency 50 Hz
Output power 25 W
Over load protection Yes
Rated current 0.27 A
Rated speed 15 rpm
Weight 3000 g

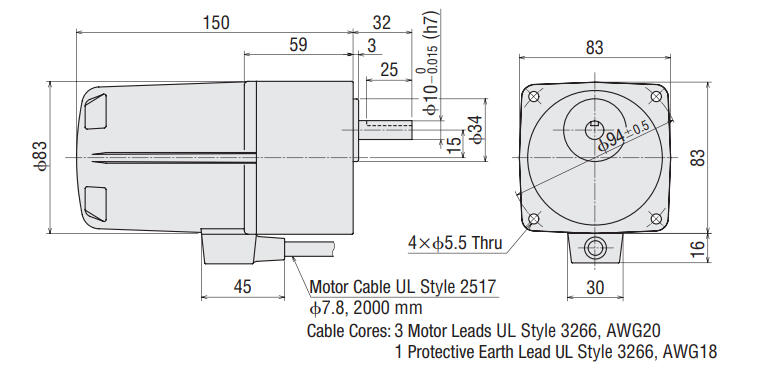

Measurements and connections

Product description


Oriental Motor FPW IP67 25W Gearmotor

The Oriental Motor FPW 25W gearmotor is a compact, washdown-rated AC geared motor designed for reliable operation in wet and hygienic environments.

With an IP67 protection rating, the FPW series provides watertight and dust-resistant performance, making it ideal for applications exposed to water splash, cleaning or washdown processes.

Supplied as a pre-assembled motor and gearhead unit, the FPW simplifies installation while offering a wide range of gear ratios to suit different speed and torque requirements.


Features & Benefits

IP67 protection
Watertight and dust-resistant for washdown applications

25W compact drive solution
Ideal for small conveyors and light-duty automation

Pre-assembled gearmotor
Motor and gearbox supplied as one unit for easy installation

Corrosion-resistant construction
Special coating and stainless steel shaft for durability

Wide gear ratio range (3:1–180:1)
Flexible speed and torque selection


Typical Applications

Food & beverage machinery

Packaging equipment

Washdown conveyors

Hygienic processing environments

Accessories

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

Robotics - An OEM Automatic Solution
Blog

Robotics solutions

Robotics has revolutionised industry, enabling efficiency, higher production capacity and increased safety. For a robot solution to function optimally, the right components are required.

Various motor types from Oriental Motor, Minimotor and Doga - How to select the right motor
Learning hub

How to select the right motor

Determining what motor to use is quite a daunting task. Our Motors experts have developed a guide to show the steps to determine a suitable motor.

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Parts 12371_Rated Torque 12372_Voltage AC 12373_Starting Torque 12374_Capacitor Frequency Rated current Rated speed Price

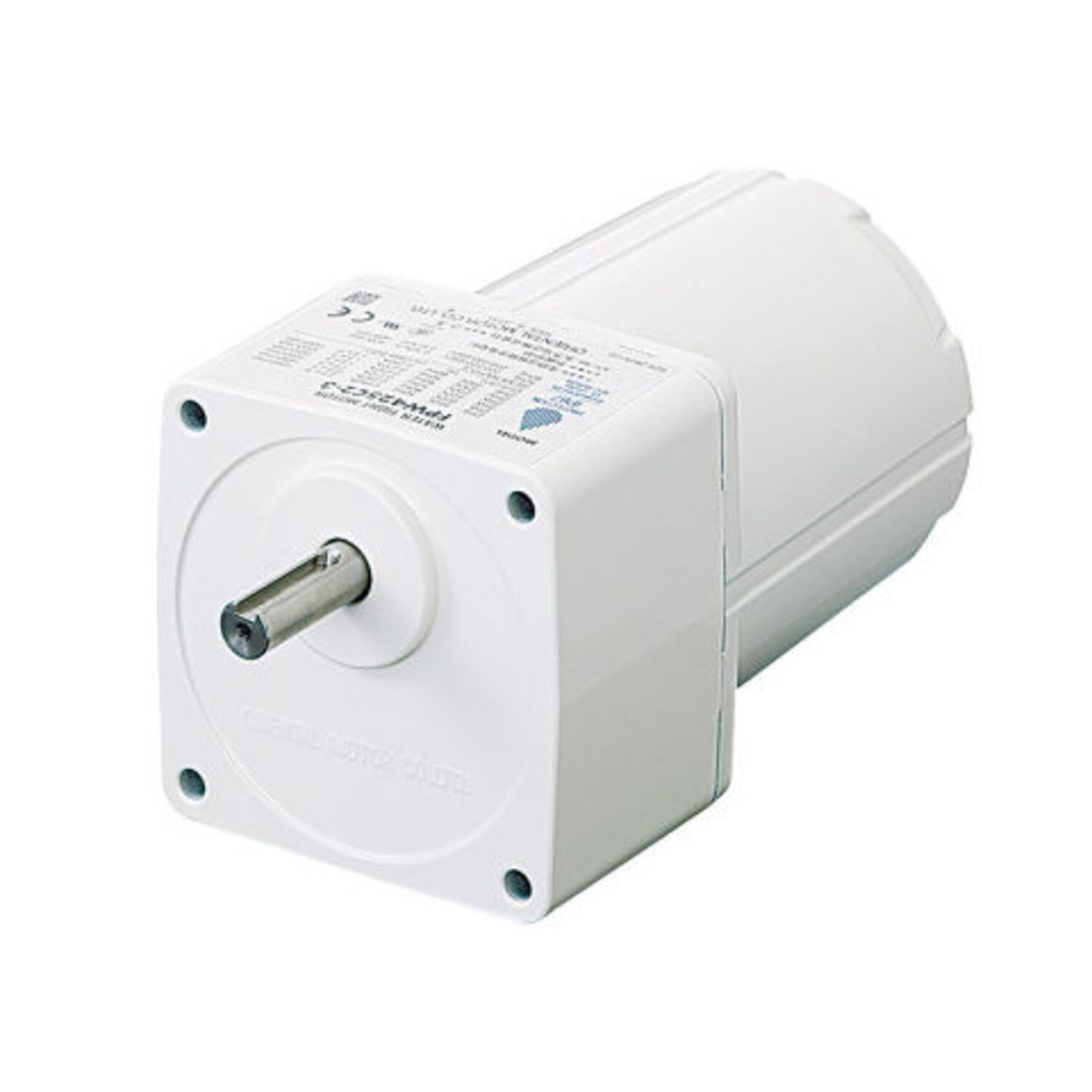

FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 100:1 gearbox
Art:
FPW425C2-100E Copied
8 Nm
Single Phase 230vAC
7.9 Nm
1.5 µF
50 Hz
0.27 A
15 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 120:1 gearbox
Art:
FPW425C2-120E Copied
8 Nm
Single Phase 230vAC
8 Nm
1.5 µF
50 Hz
0.27 A
12.5 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 150:1 gearbox
Art:
FPW425C2-150E Copied
8 Nm
Single Phase 230vAC
8 Nm
1.5 µF
50 Hz
0.27 A
10 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 12.5:1 gearbox
Art:
FPW425C2-12.5E Copied
2.1 Nm
Single Phase 230vAC
1.2 Nm
1.5 µF
50 Hz
0.27 A
120 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 15:1 gearbox
Art:
FPW425C2-15E Copied
2.5 Nm
Single Phase 230vAC
1.5 Nm
1.5 µF
50 Hz
0.27 A
100 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 180:1 gearbox
Art:
FPW425C2-180E Copied
8 Nm
Single Phase 230vAC
8 Nm
1.5 µF
50 Hz
0.27 A
8.3 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 18:1 gearbox
Art:
FPW425C2-18E Copied
3 Nm
Single Phase 230vAC
1.7 Nm
1.5 µF
50 Hz
0.27 A
83 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 25:1 gearbox
Art:
FPW425C2-25E Copied
3.7 Nm
Single Phase 230vAC
2.2 Nm
1.5 µF
50 Hz
0.27 A
60 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 3.6:1 gearbox
Art:
FPW425C2-3.6E Copied
0.6 Nm
Single Phase 230vAC
0.35 Nm
1.5 µF
50 Hz
0.27 A
417 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 30:1 gearbox
Art:
FPW425C2-30E Copied
4.5 Nm
Single Phase 230vAC
2.6 Nm
1.5 µF
50 Hz
0.27 A
50 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 3.6:1 gearbox
Art:
FPW425C2-36E Copied
5.4 Nm
Single Phase 230vAC
3.2 Nm
1.5 µF
50 Hz
0.27 A
42 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 3:1 gearbox
Art:
FPW425C2-3E Copied
0.6 Nm
Single Phase 230vAC
0.29 Nm
1.5 µF
50 Hz
0.27 A
500 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 50:1 gearbox
Art:
FPW425C2-50E Copied
6.8 Nm
Single Phase 230vAC
4 Nm
1.5 µF
50 Hz
0.27 A
30 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 5:1 gearbox
Art:
FPW425C2-5E Copied
0.83 Nm
Single Phase 230vAC
0.49 Nm
1.5 µF
50 Hz
0.27 A
300 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 60:1 gearbox
Art:
FPW425C2-60E Copied
8 Nm
Single Phase 230vAC
4.8 Nm
1.5 µF
50 Hz
0.27 A
25 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 6:1 gearbox
Art:
FPW425C2-6E Copied
1 Nm
Single Phase 230vAC
0.58 Nm
1.5 µF
50 Hz
0.27 A
250 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 7.5:1 gearbox
Art:
FPW425C2-7.5E Copied
1.2 Nm
Single Phase 230vAC
0.73 Nm
1.5 µF
50 Hz
0.27 A
200 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 75:1 gearbox
Art:
FPW425C2-75E Copied
8 Nm
Single Phase 230vAC
5.9 Nm
1.5 µF
50 Hz
0.27 A
20 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 90:1 gearbox
Art:
FPW425C2-90E Copied
8 Nm
Single Phase 230vAC
7.1 Nm
1.5 µF
50 Hz
0.27 A
17 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 1ph, 9:1 gearbox
Art:
FPW425C2-9E Copied
1.5 Nm
Single Phase 230vAC
0.87 Nm
1.5 µF
50 Hz
0.27 A
167 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 100:1 gearbox
Art:
FPW425S2-100 Copied
8 Nm
Three Phase 230vAC
8 Nm
60 Hz
0.22 A
18 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 12.5:1 gearbox
Art:
FPW425S2-12.5 Copied
1.9 Nm
Three Phase 230vAC
1.9 Nm
60 Hz
0.22 A
144 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 120:1 gearbox
Art:
FPW425S2-120 Copied
8 Nm
Three Phase 230vAC
8 Nm
60 Hz
0.22 A
15 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 15:1 gearbox
Art:
FPW425S2-15 Copied
1.9 Nm
Three Phase 230vAC
1.9 Nm
60 Hz
0.22 A
120 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 150:1 gearbox
Art:
FPW425S2-150 Copied
8 Nm
Three Phase 230vAC
8 Nm
60 Hz
0.22 A
15 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 18:1 gearbox
Art:
FPW425S2-18 Copied
2.3 Nm
Three Phase 230vAC
2.3 Nm
60 Hz
0.22 A
100 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 180:1 gearbox
Art:
FPW425S2-180 Copied
8 Nm
Three Phase 230vAC
8 Nm
60 Hz
0.22 A
10 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 25:1 gearbox
Art:
FPW425S2-25 Copied
2.9 Nm
Three Phase 230vAC
2.9 Nm
60 Hz
0.22 A
72 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 3:1 gearbox
Art:
FPW425S2-3 Copied
0.39 Nm
Three Phase 230vAC
0.39 Nm
60 Hz
0.22 A
600 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 3.6:1 gearbox
Art:
FPW425S2-3.6 Copied
0.47 Nm
Three Phase 230vAC
0.47 Nm
60 Hz
0.22 A
500 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 30:1 gearbox
Art:
FPW425S2-30 Copied
3.5 Nm
Three Phase 230vAC
3.5 Nm
60 Hz
0.22 A
60 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 3.6:1 gearbox
Art:
FPW425S2-36 Copied
4.2 Nm
Three Phase 230vAC
4.2 Nm
60 Hz
0.22 A
50 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 5:1 gearbox
Art:
FPW425S2-5 Copied
0.65 Nm
Three Phase 230vAC
0.65 Nm
60 Hz
0.22 A
360 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 50:1 gearbox
Art:
FPW425S2-50 Copied
5.3 Nm
Three Phase 230vAC
5.3 Nm
60 Hz
0.22 A
36 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 6:1 gearbox
Art:
FPW425S2-6 Copied
0.78 Nm
Three Phase 230vAC
0.78 Nm
60 Hz
0.22 A
300 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 60:1 gearbox
Art:
FPW425S2-60 Copied
6.3 Nm
Three Phase 230vAC
6.3 Nm
60 Hz
0.22 A
30 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 7.5:1 gearbox
Art:
FPW425S2-7.5 Copied
0.97 Nm
Three Phase 230vAC
0.97 Nm
60 Hz
0.22 A
240 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 75:1 gearbox
Art:
FPW425S2-75 Copied
7.9 Nm
Three Phase 230vAC
7.9 Nm
60 Hz
0.22 A
24 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 9:1 gearbox
Art:
FPW425S2-9 Copied
1.2 Nm
Three Phase 230vAC
1.2 Nm
60 Hz
0.22 A
200 rpm
FPW Motor image 2.jpg
FPW IP67 geared motor, 25W, 230V 3ph, 90:1 gearbox
Art:
FPW425S2-90 Copied
8 Nm
Three Phase 230vAC
8 Nm
60 Hz
0.22 A
20 rpm
