MINIMOTOR

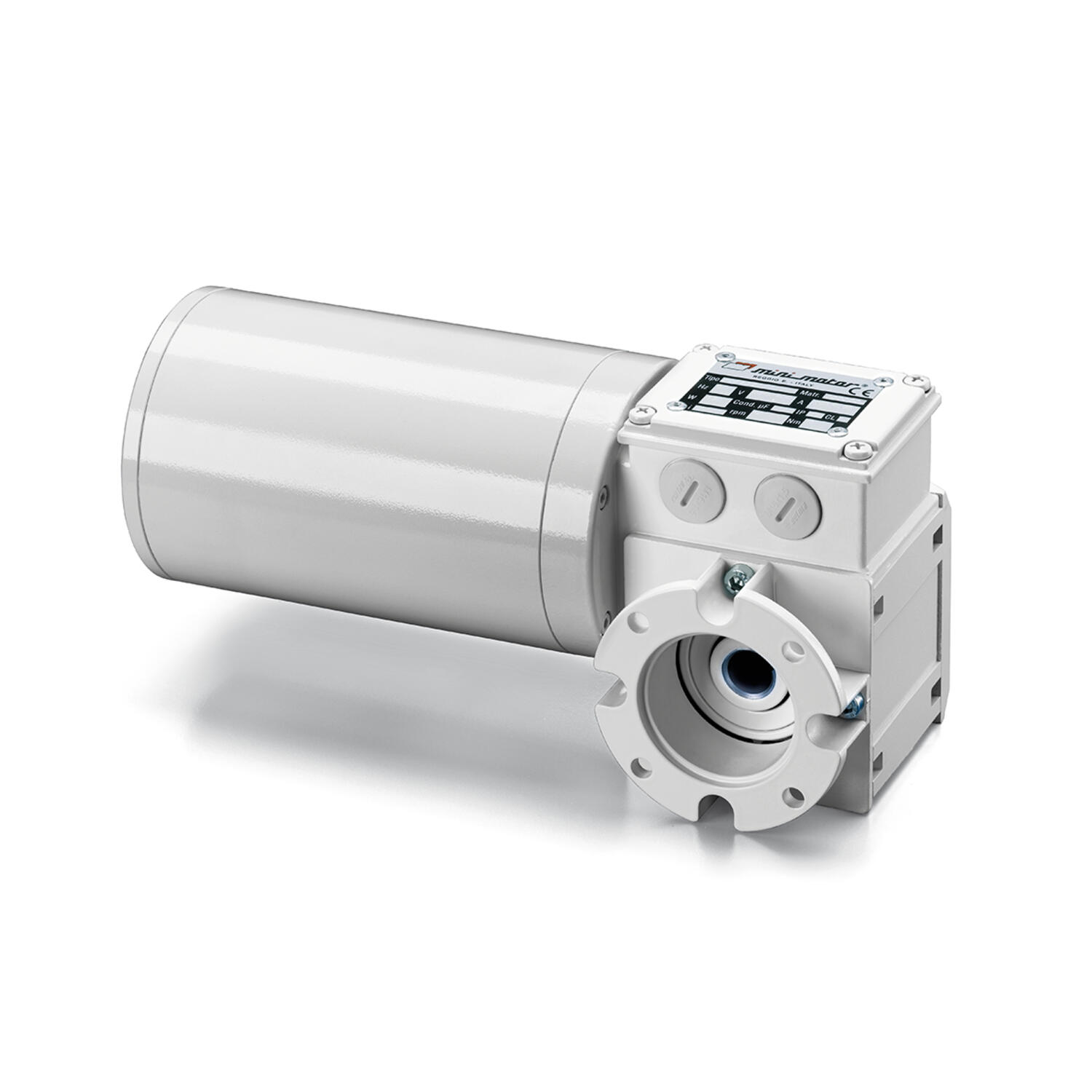

Minimotor PCF worm gear motors
WORM GEARED MOTOR
Â
White epoxy coating for incerased protection against chemicals and harsh working enviroments.
IP67 rated with no external fan.
Â
MOTOR: Asynchronous three-phase motor with 2 poles, totally Class H winding in accordance with CEI EN 60034-1.
Â
GEAR UNIT: With die-cast aluminium casing. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with thread rotating on ball and roller bearings. Output shaft in stainless steel on request
Â
Lubrication with special long-lasting oil. Sealing rings made in special white rubber for high temperatures.
Rated torque from 2.9 to 18 Nm. Version B3 or B5. B5/S left version - B5/D right version.
Â

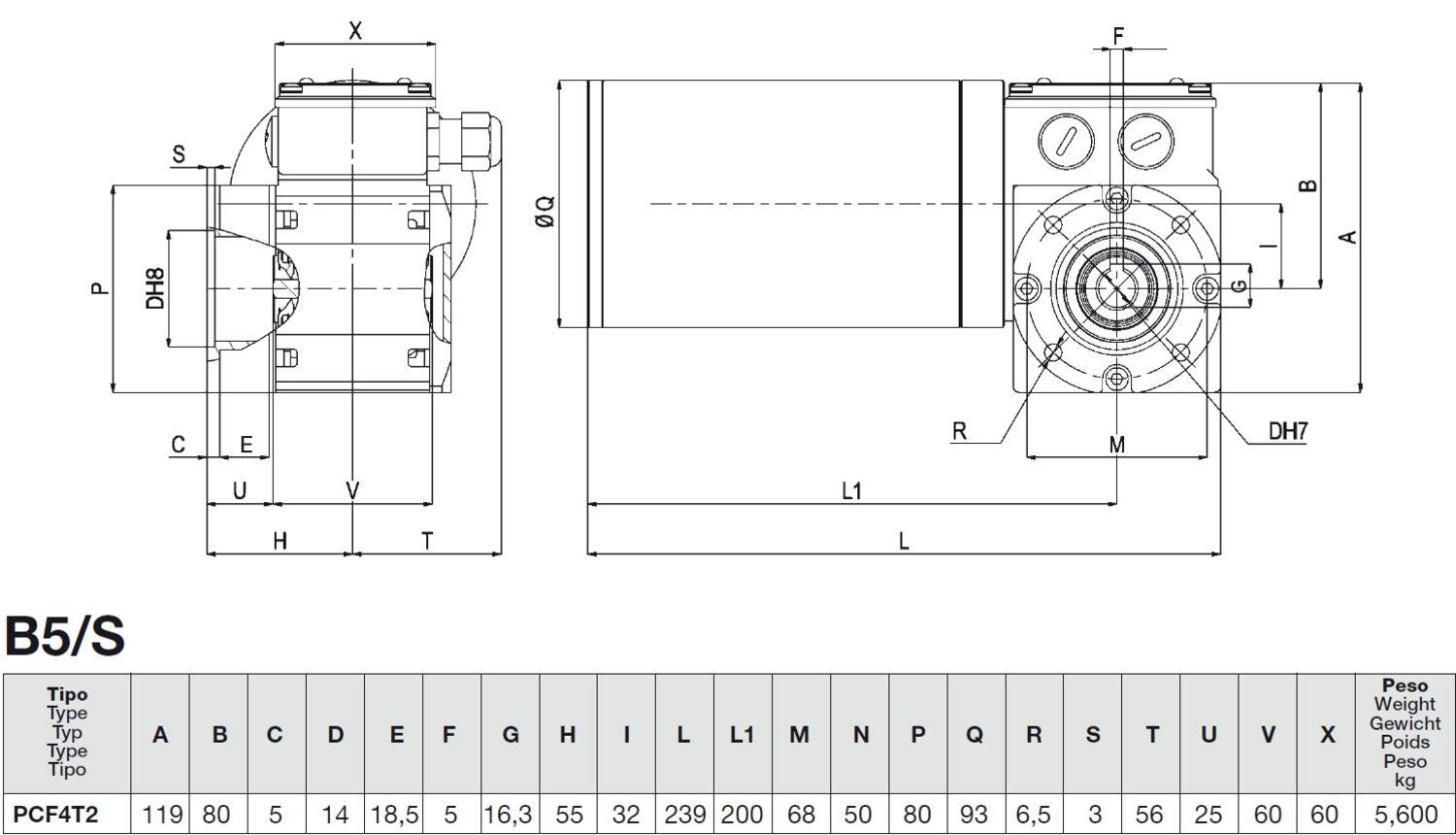

Please click here for 2D and 3D drawings
Â
- For clean enviroments
- IP67 as standard
- Up to 20Nm rated torque
- Minimal dirt trap points
- Epoxy coated with no external fan
Selected variant
Technical data
| 4967_Rated current (A) | 0.65Δ/0.38Y |
|---|---|
| Input voltage ac | 230Δ/400Y |
| IP class | IP67 |
| Nominal speed | 40 rpm |
| Nominal torque | 17 |
| Output power | 130 W |
| Ratio | 70:1 |
Downloads
Product description
WORM GEARED MOTOR
Â
White epoxy coating for incerased protection against chemicals and harsh working enviroments.
IP67 rated with no external fan.
Â
MOTOR: Asynchronous three-phase motor with 2 poles, totally Class H winding in accordance with CEI EN 60034-1.
Â
GEAR UNIT: With die-cast aluminium casing. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with thread rotating on ball and roller bearings. Output shaft in stainless steel on request
Â
Lubrication with special long-lasting oil. Sealing rings made in special white rubber for high temperatures.
Rated torque from 2.9 to 18 Nm. Version B3 or B5. B5/S left version - B5/D right version.
Â
Please click here for 2D and 3D drawings
Â
