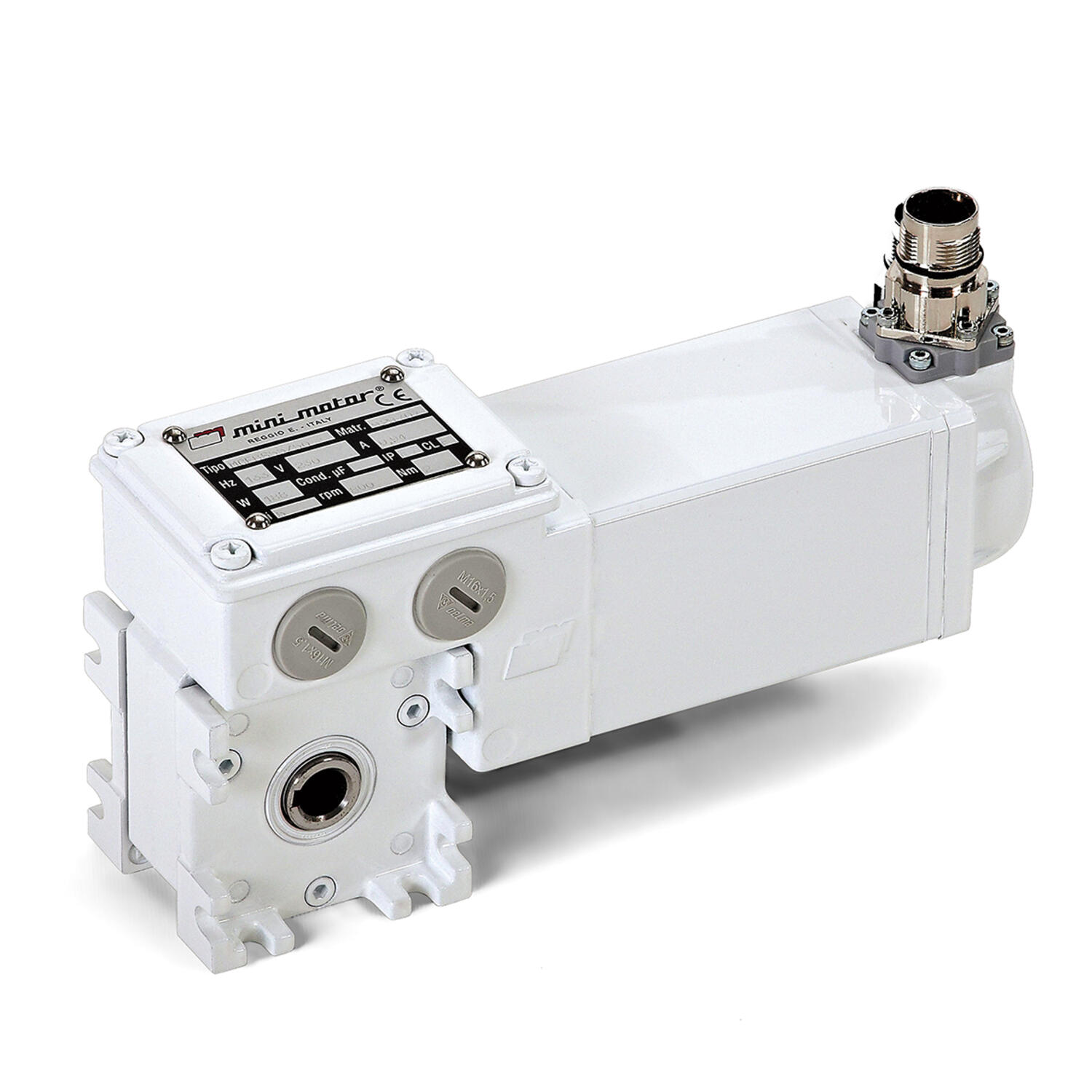

Minimotor MCFBS worm gear motor

White epoxy coating for incerased protection against chemicals and harsh working enviroments.

IP67 rated with no external fan.



MOTOR: 4 poles sinusoidal brushless motor, totally enclosed. Rotor with NdFeB magnets.Safety circuit breaker. Class H winding in accordance with CEI EN 60034-1. IP67 standard protection in accordance with CEI EN 60529. Feedback with 2 pole resolver. Reduced clearance bearings with special grease for high temperatures.



GEARUNIT: with die-cast aluminium casing. Centre distance 26 mm. CARO bronze ring, 120÷160 HB hardness. Worm gear in hardened steel with grinding thread rotating on ball and roller bearings, output shaft in stainless steel on request.



Lubrication with special long-lasting oil. Sealing rings made in special rubber for high temperatures. 10 gear ratios (i) available, from 5 to 80. Rated torque 9 Nm. Version B3 or B5. B5/S left version - B5/D right version.

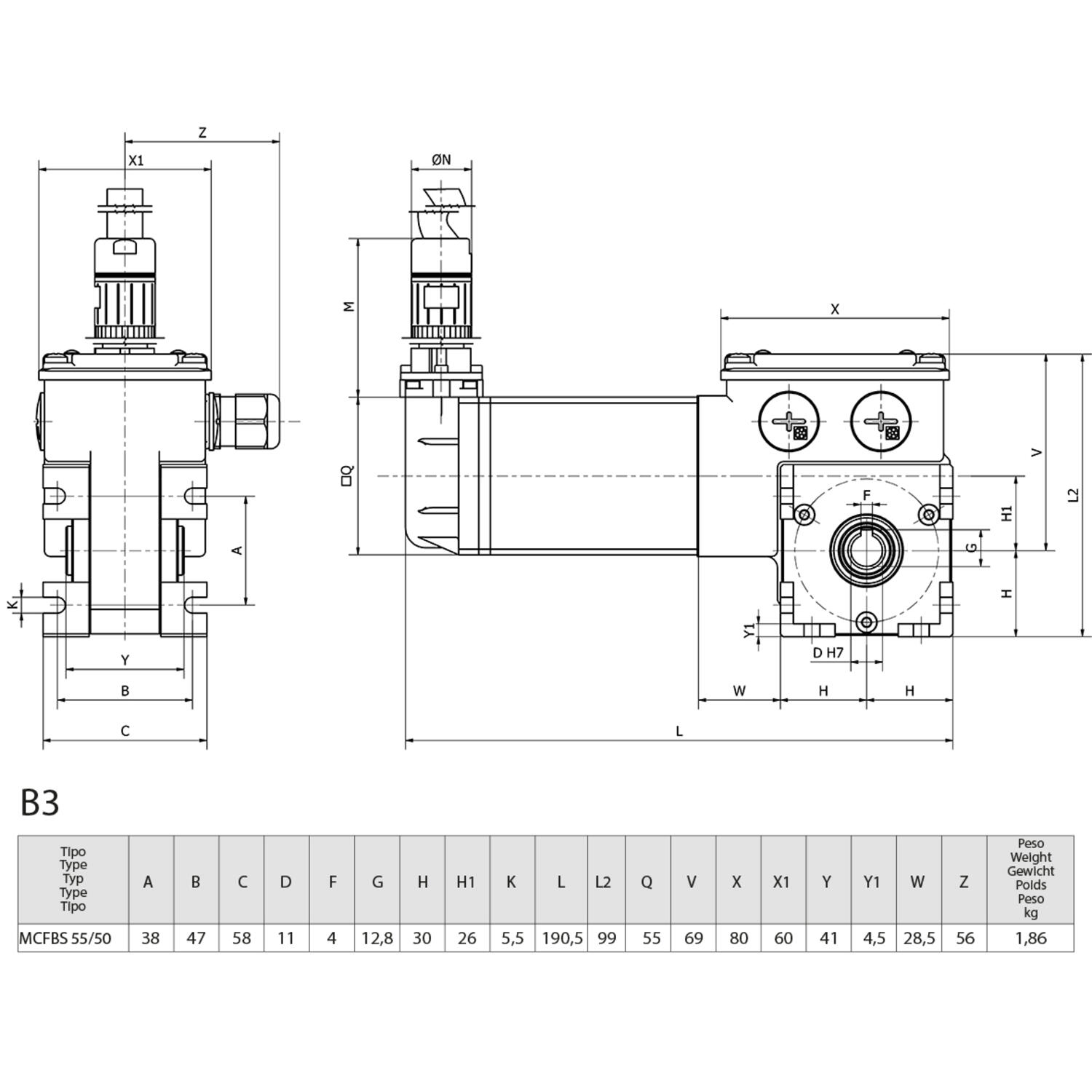

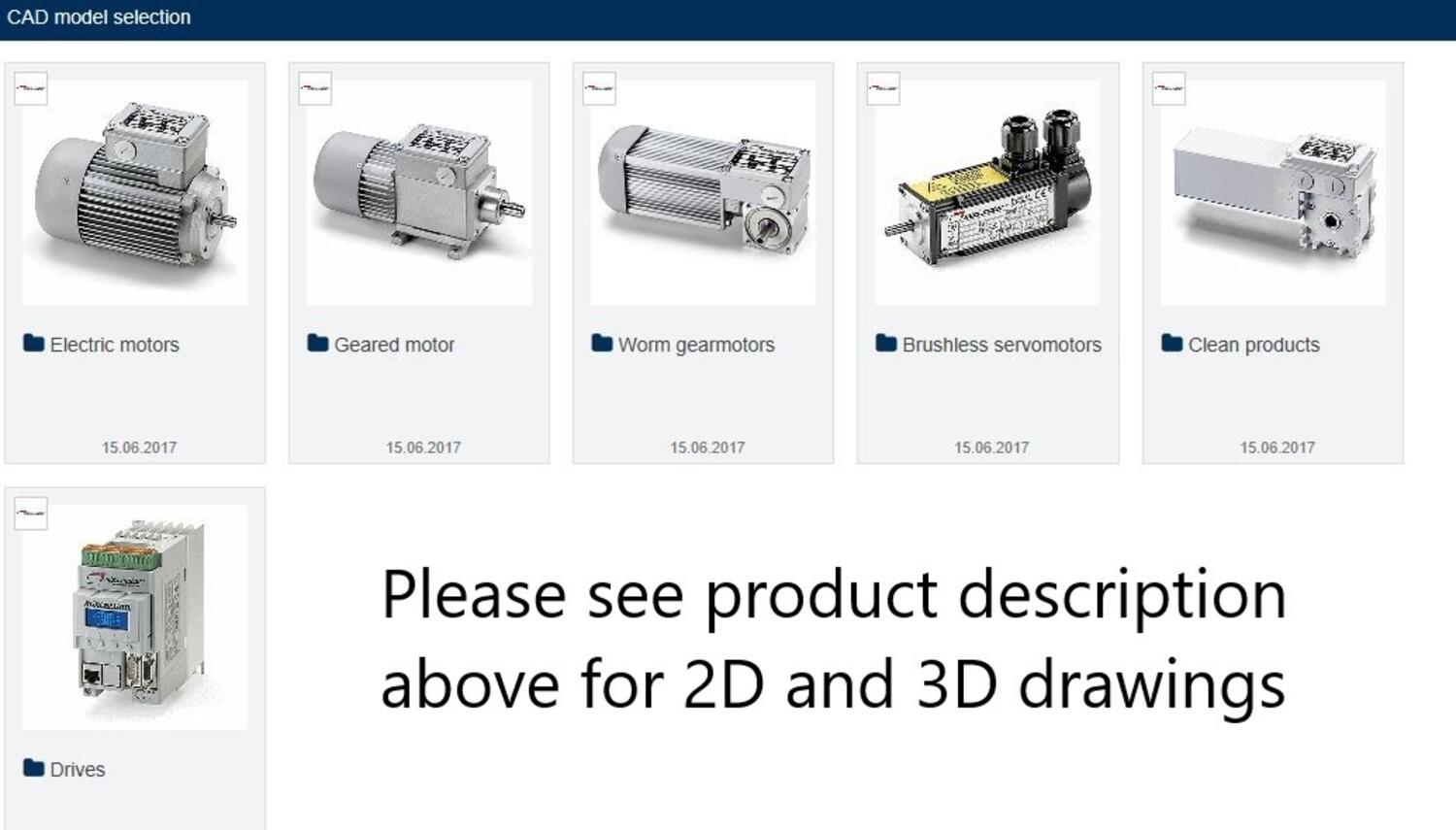

Please click here for 2D and 3D drawings



Read more
  • For clean enviroments
  • IP67 as standard
  • Up to 13Nm rated torque
  • 4 pole brushless motor
  • Fitted with sealed connector

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Nominal speed 300 rpm
Nominal torque 2.8
Ratio 10:1

Downloads

Measurements and connections

Product description

White epoxy coating for incerased protection against chemicals and harsh working enviroments.

IP67 rated with no external fan.



MOTOR: 4 poles sinusoidal brushless motor, totally enclosed. Rotor with NdFeB magnets.Safety circuit breaker. Class H winding in accordance with CEI EN 60034-1. IP67 standard protection in accordance with CEI EN 60529. Feedback with 2 pole resolver. Reduced clearance bearings with special grease for high temperatures.



GEARUNIT: with die-cast aluminium casing. Centre distance 26 mm. CARO bronze ring, 120÷160 HB hardness. Worm gear in hardened steel with grinding thread rotating on ball and roller bearings, output shaft in stainless steel on request.



Lubrication with special long-lasting oil. Sealing rings made in special rubber for high temperatures. 10 gear ratios (i) available, from 5 to 80. Rated torque 9 Nm. Version B3 or B5. B5/S left version - B5/D right version.



Please click here for 2D and 3D drawings



Accessories

Related products

Parts Nominal speed Nominal torque Ratio Price
Minimotor MCFBS worm gear motor
230V 300rpm 2.8 Nm B3 mount
Art:
MCFBS 55/50-10 B3 Copied
300 rpm
2.8
10:1
Minimotor MCFBS worm gear motor
230V 300rpm 2.8 Nm B5 mount
Art:
MCFBS 55/50-10 B5 Copied
300 rpm
2.8
10:1
Minimotor MCFBS worm gear motor
230V 200rpm 4.1 Nm B3 mount
Art:
MCFBS 55/50-15 B3 Copied
200 rpm
4.4
15:1
Minimotor MCFBS worm gear motor
230V 200rpm 4.1 Nm B5 mount
Art:
MCFBS 55/50-15 B5 Copied
200 rpm
4.1
15:1
Minimotor MCFBS worm gear motor
230V 150rpm 5 Nm B3 mount
Art:
MCFBS 55/50-20 B3 Copied
150 rpm
5
20:1
Minimotor MCFBS worm gear motor
230V 150rpm 5 Nm B5 mount
Art:
MCFBS 55/50-20 B5 Copied
150 rpm
5
20:1
Minimotor MCFBS worm gear motor
230V 100rpm 7 Nm B3 mount
Art:
MCFBS 55/50-30 B3 Copied
100 rpm
7
30:1
Minimotor MCFBS worm gear motor
230V 100rpm 7 Nm B5 mount
Art:
MCFBS 55/50-30 B5 Copied
100 rpm
7
30:1
Minimotor MCFBS worm gear motor
230V 75rpm 8.7 Nm B3 mount
Art:
MCFBS 55/50-40 B3 Copied
75 rpm
8.7
40:1
Minimotor MCFBS worm gear motor
230V 75rpm 8.7 Nm B5 mount
Art:
MCFBS 55/50-40 B5 Copied
75 rpm
8.7
40:1
Minimotor MCFBS worm gear motor
230V 600rpm 1.5 Nm B3 mount
Art:
MCFBS 55/50-5 B3 Copied
600 rpm
1.5
5:1
Minimotor MCFBS worm gear motor
230V 600rpm 1.5 Nm B5 mount
Art:
MCFBS 55/50-5 B5 Copied
600 rpm
1.5
5:1
Minimotor MCFBS worm gear motor
230V 50rpm 9 Nm B3 mount
Art:
MCFBS 55/50-60 B3 Copied
50 rpm
9
60:1
Minimotor MCFBS worm gear motor
230V 50rpm 9 Nm B5 mount
Art:
MCFBS 55/50-60 B5 Copied
50 rpm
9
60:1
Minimotor MCFBS worm gear motor
230V 400rpm 2.2 Nm B3 mount
Art:
MCFBS 55/50-7.5 B3 Copied
400 rpm
2.2
7.5:1
Minimotor MCFBS worm gear motor
230V 400rpm 2.2 Nm B5 mount
Art:
MCFBS 55/50-7.5 B5 Copied
400 rpm
2.2
7.5:1
Minimotor MCFBS worm gear motor
230V 43rpm 9 Nm B3 mount
Art:
MCFBS 55/50-70 B3 Copied
43 rpm
9
70:1
Minimotor MCFBS worm gear motor
230V 43rpm 9 Nm B5 mount
Art:
MCFBS 55/50-70 B5 Copied
43 rpm
9
70:1
Minimotor MCFBS worm gear motor
230V 37.5rpm 9 Nm B3 mount
Art:
MCFBS 55/50-80 B3 Copied
37.5 rpm
9
80:1
Minimotor MCFBS worm gear motor
230V 37.5rpm 9 Nm B5 mount
Art:
MCFBS 55/50-80 B5 Copied
37.5 rpm
9
80:1
Minimotor MCFBS worm gear motor
230V 600rpm 2 Nm B3 mount
Art:
MCFBS 55/100-5 B3 Copied
600 rpm
2
5:1
Minimotor MCFBS worm gear motor
230V 400rpm 3 Nm B3 mount
Art:
MCFBS 55/100-7.5 B3 Copied
400 rpm
3
7.5:1
Minimotor MCFBS worm gear motor
230V 300rpm 3.9 Nm B3 mount
Art:
MCFBS 55/100-10 B3 Copied
300 rpm
3.9
10:1
Minimotor MCFBS worm gear motor
230V 200rpm 5.7 Nm B3 mount
Art:
MCFBS 55/100-15 B3 Copied
200 rpm
5.7
15:1
Minimotor MCFBS worm gear motor
230V 150rpm 7 Nm B3 mount
Art:
MCFBS 55/100-20 B3 Copied
150 rpm
7
20:1
Minimotor MCFBS worm gear motor
230V 100rpm 9.6 Nm B3 mount
Art:
MCFBS 55/100-30 B3 Copied
100 rpm
9.6
30:1
Minimotor MCFBS worm gear motor
230V 75rpm 12 Nm B3 mount
Art:
MCFBS 55/100-40 B3 Copied
75 rpm
12
40:1
Minimotor MCFBS worm gear motor
230V 600rpm 2 Nm B5 mount
Art:
MCFBS 55/100-5 B5 Copied
600 rpm
2
5:1
Minimotor MCFBS worm gear motor
230V 400rpm 3 Nm B5 mount
Art:
MCFBS 55/100-7.5 B5 Copied
400 rpm
3
7.5:1
Minimotor MCFBS worm gear motor
230V 300rpm 3.9 Nm B5 mount
Art:
MCFBS 55/100-10 B5 Copied
300 rpm
3.9
10:1
Minimotor MCFBS worm gear motor
230V 200rpm 5.7 Nm B5 mount
Art:
MCFBS 55/100-15 B5 Copied
200 rpm
5.7
15:1
Minimotor MCFBS worm gear motor
230V 150rpm 7 Nm B5 mount
Art:
MCFBS 55/100-20 B5 Copied
150 rpm
7
20:1
Minimotor MCFBS worm gear motor
230V 100rpm 9.6 Nm B5 mount
Art:
MCFBS 55/100-30 B5 Copied
100 rpm
9.6
30:1
Minimotor MCFBS worm gear motor
230V 75rpm 12 Nm B5 mount
Art:
MCFBS 55/100-40 B5 Copied
75 rpm
12
40:1
