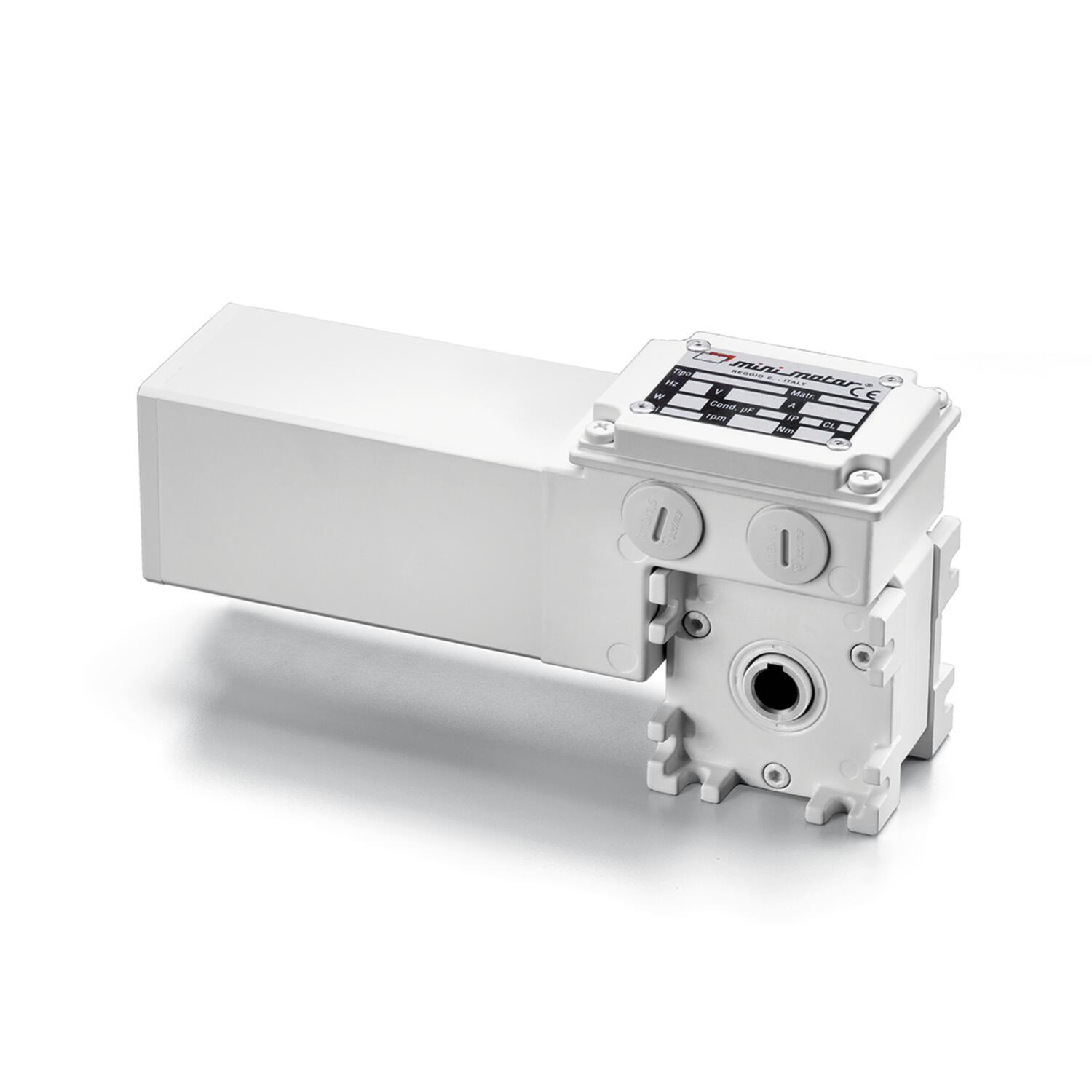

Minimotor MCF worm gear motor

WORM GEARED MOTOR



White epoxy coating for incerased protection against chemicals and harsh working enviroments.

IP67 rated with no external fan.



MOTOR: Asynchronous three-phase motor with 2 poles, totally Class H winding in accordance with CEI EN 60034-1.



GEAR UNIT: With die-cast aluminium casing. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with thread rotating on ball and roller bearings. Output shaft in stainless steel on request



Lubrication with special long-lasting oil. Sealing rings made in special white rubber for high temperatures.

Rated torque from 0,8 to 5 Nm. Version B3 or B5. B5/S left version - B5/D right version.



The standard MCE version is also available with IP67 called MCEF

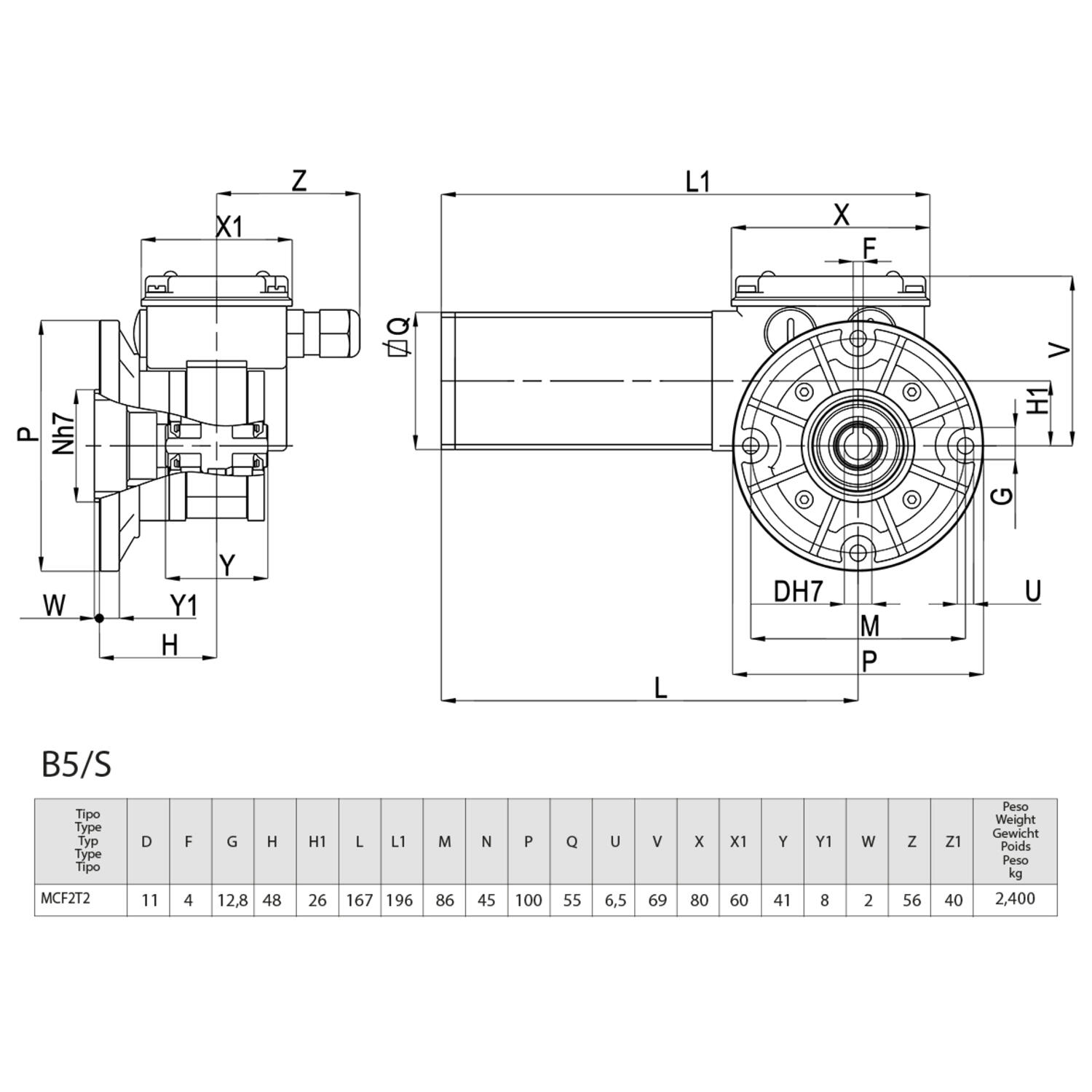

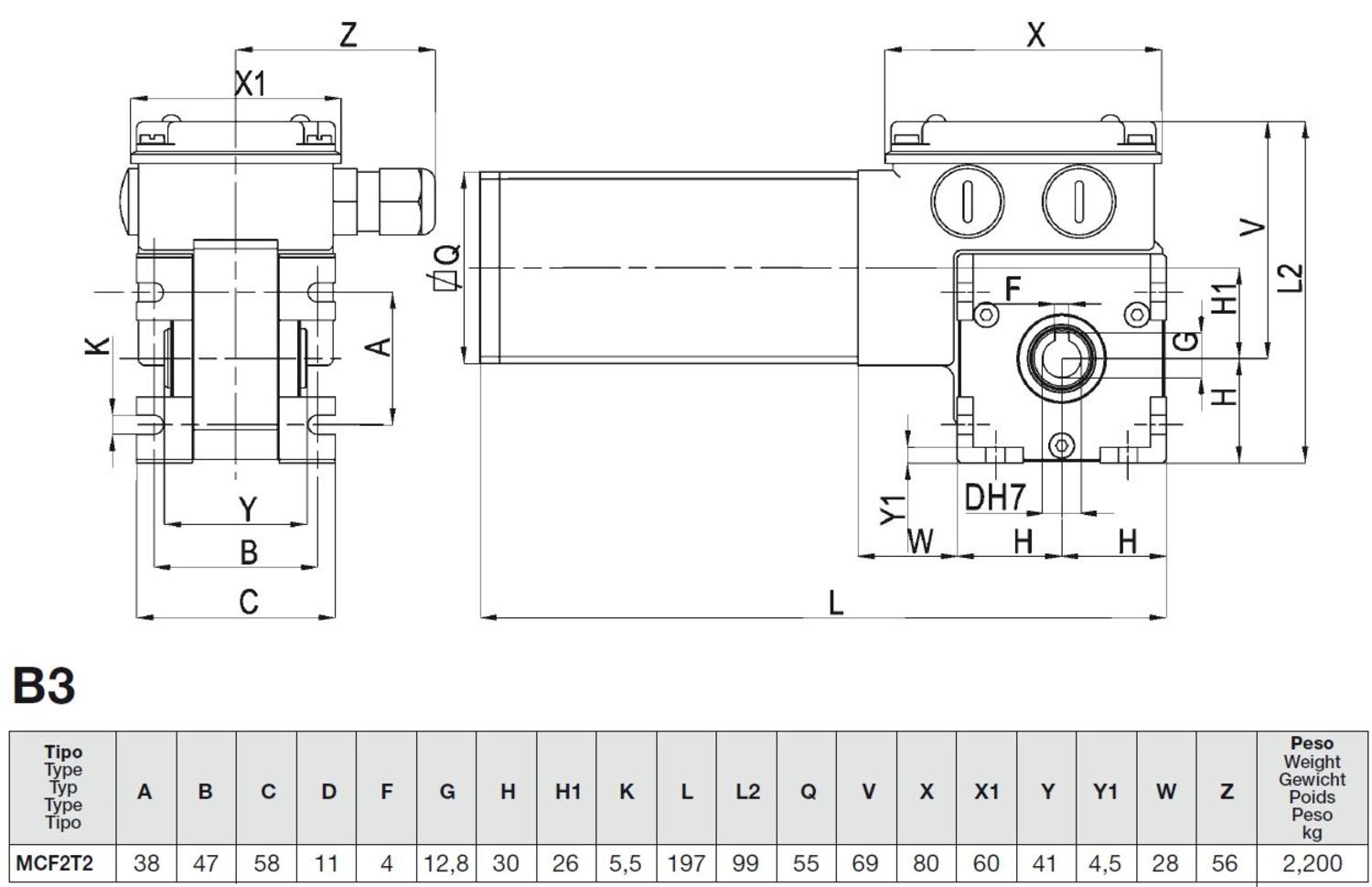

Please click here for 2D and 3D drawings



Read more
  • For clean enviroments
  • IP67 as standard
  • Up to 6.4Nm rated torque
  • Minimal dirt trap points
  • Epoxy coated with no external fan

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Input voltage ac 230Δ/400Y
IP class IP67
Nominal speed 280 rpm
Nominal torque 1
Output power 31 W
Rated current 0.30Δ/0.17Y
Ratio 10:1

Downloads

Measurements and connections

Product description

WORM GEARED MOTOR



White epoxy coating for incerased protection against chemicals and harsh working enviroments.

IP67 rated with no external fan.



MOTOR: Asynchronous three-phase motor with 2 poles, totally Class H winding in accordance with CEI EN 60034-1.



GEAR UNIT: With die-cast aluminium casing. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with thread rotating on ball and roller bearings. Output shaft in stainless steel on request



Lubrication with special long-lasting oil. Sealing rings made in special white rubber for high temperatures.

Rated torque from 0,8 to 5 Nm. Version B3 or B5. B5/S left version - B5/D right version.



The standard MCE version is also available with IP67 called MCEF



Please click here for 2D and 3D drawings



Accessories

Related products

Parts Nominal speed Nominal torque Ratio Price
Minimotor MCF worm gear motor
230/400V 3 ph 280rpm 1 Nm B3 mount
Art:
MCF2T2-10 B3 Copied
280 rpm
1
10:1
Minimotor MCF worm gear motor
230/400V 3 ph 280rpm 1 Nm B5 mount
Art:
MCF2T2-10 B5 Copied
280 rpm
1
10:1
Minimotor MCF worm gear motor
230/400V 3 ph 186rpm 1.5 Nm B3 mount
Art:
MCF2T2-15 B3 Copied
186 rpm
1.5
15:1
Minimotor MCF worm gear motor
230/400V 3 ph 186rpm 1.5 Nm B5 mount
Art:
MCF2T2-15 B5 Copied
186 rpm
1.5
15:1
Minimotor MCF worm gear motor
230/400V 3 ph 140rpm 1.8 Nm B3 mount
Art:
MCF2T2-20 B3 Copied
140 rpm
1.8
20:1
Minimotor MCF worm gear motor
230/400V 3 ph 140rpm 1.8 Nm B5 mount
Art:
MCF2T2-20 B5 Copied
140 rpm
1.8
20:1
Minimotor MCF worm gear motor
230/400V 3 ph 93rpm 2.5 Nm B3 mount
Art:
MCF2T2-30 B3 Copied
93 rpm
2.5
30:1
Minimotor MCF worm gear motor
230/400V 3 ph 93rpm 2.5 Nm B5 mount
Art:
MCF2T2-30 B5 Copied
93 rpm
2.5
30:1
Minimotor MCF worm gear motor
230/400V 3 ph 70rpm 3.2 Nm B3 mount
Art:
MCF2T2-40 B3 Copied
70 rpm
3.2
40:1
Minimotor MCF worm gear motor
230/400V 3 ph 70rpm 3.2 Nm B5 mount
Art:
MCF2T2-40 B5 Copied
70 rpm
3.2
40:1
Minimotor MCF worm gear motor
230/400V 3 ph 560rpm 0.5 Nm B3 mount
Art:
MCF2T2-5 B3 Copied
560 rpm
0.5
5:1
Minimotor MCF worm gear motor
230/400V 3 ph 560rpm 0.5 Nm B5 mount
Art:
MCF2T2-5 B5 Copied
560 rpm
0.5
5:1
Minimotor MCF worm gear motor
230/400V 3 ph 46rpm 4.5 Nm B3 mount
Art:
MCF2T2-60 B3 Copied
46 rpm
4.5
60:1
Minimotor MCF worm gear motor
230/400V 3 ph 46rpm 4.5 Nm B5 mount
Art:
MCF2T2-60 B5 Copied
46 rpm
4.5
60:1
Minimotor MCF worm gear motor
230/400V 3 ph 373rpm 0.8 Nm B3 mount
Art:
MCF2T2-7.5 B3 Copied
373 rpm
0.8
7.5:1
Minimotor MCF worm gear motor
230/400V 3 ph 373rpm 0.8 Nm B5 mount
Art:
MCF2T2-7.5 B5 Copied
373 rpm
0.8
7.5:1
Minimotor MCF worm gear motor
230/400V 3 ph 40rpm 4.8 Nm B3 mount
Art:
MCF2T2-70 B3 Copied
40 rpm
4.8
70:1
Minimotor MCF worm gear motor
230/400V 3 ph 40rpm 4.8 Nm B5 mount
Art:
MCF2T2-70 B5 Copied
40 rpm
4.8
70:1
Minimotor MCF worm gear motor
230/400V 3 ph 35rpm 5 Nm B3 mount
Art:
MCF2T2-80 B3 Copied
35 rpm
5
80:1
Minimotor MCF worm gear motor
230/400V 3 ph 35rpm 5 Nm B5 mount
Art:
MCF2T2-80 B5 Copied
35 rpm
5
80:1
