MINIMOTOR
Minimotor ACF coaxial gear motors
COAXIAL GEARED MOTOR
Â
White epoxy coating for incerased protection against chemicals and harsh working enviroments.
IP67 rated with no external fan.
Â
MOTOR: Asynchronous three-phase motor with 2 poles, totally Class H winding in accordance with CEI EN 60034-1. .
Â
GEAR UNIT: With casing in die-cast aluminium. Case-hardened and hardened bearings, output shaft in stainless steel on request. Lubrication with long-lasting oil (not toxic).
Â
15 gear ratios (i) available, from 7,4 to 441,9. Rated torque from 0,8 to 5 Nm. Version B3 or B5.
Â
The standard ACE version is also available with IP67 called ACEF
Â

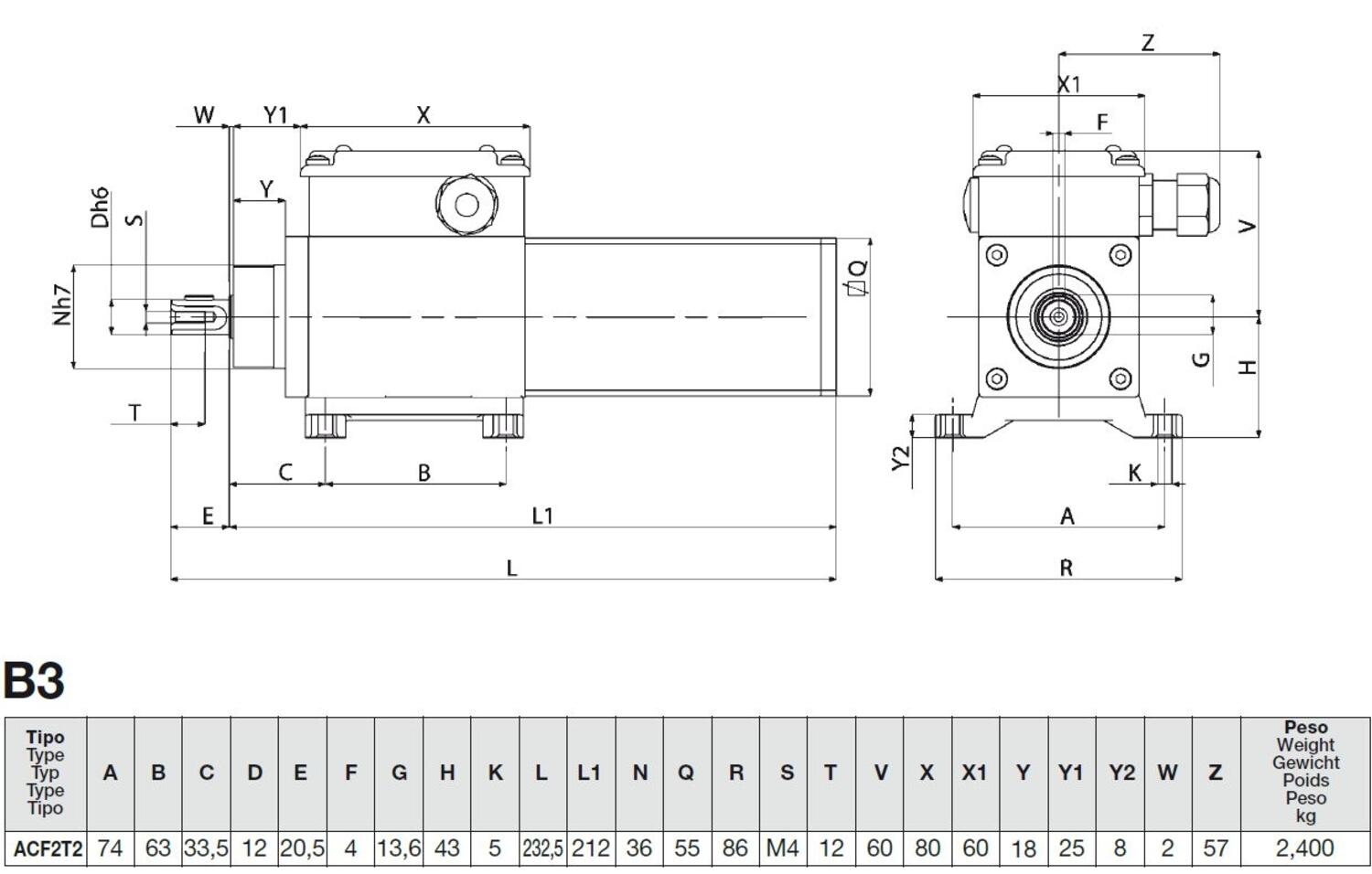

Please click here for 2D and 3D drawings
Â
- For clean enviroments
- IP67 as standard
- Up to 5Nm rated torque
- Minimal dirt trap points
- Epoxy coated with no external fan
Selected variant
Technical data
| 4967_Rated current (A) | 0.30Δ/0.17Y |
|---|---|
| Input voltage ac | 230Δ/400Y |
| IP class | IP67 |
| Nominal speed | 11.4 rpm |
| Nominal torque | 5 |
| Output power | 31 W |
| Ratio | 245.5:1 |
Product description
COAXIAL GEARED MOTOR
Â
White epoxy coating for incerased protection against chemicals and harsh working enviroments.
IP67 rated with no external fan.
Â
MOTOR: Asynchronous three-phase motor with 2 poles, totally Class H winding in accordance with CEI EN 60034-1. .
Â
GEAR UNIT: With casing in die-cast aluminium. Case-hardened and hardened bearings, output shaft in stainless steel on request. Lubrication with long-lasting oil (not toxic).
Â
15 gear ratios (i) available, from 7,4 to 441,9. Rated torque from 0,8 to 5 Nm. Version B3 or B5.
Â
The standard ACE version is also available with IP67 called ACEF
Â
Please click here for 2D and 3D drawings
Â
