MINIMOTOR
Minimotor - PCCE worm gear motor with planetary reduction
High quality, designed from the ground up to IP65 rated compact gear motor.
Â
Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.
Â
Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery
Â
MOTOR: Direct current with permanent magnets, totally enclosed without external ventilation. Class F winding. 12 or 24 Vdc power supply. Absorbed power 230 W. IP65 protection according to CEI EN 60529
GEAR UNIT: Die-cast aluminium casing in the first reduction stage, with worm screw and steel casing in the second planetary stage, with three internal planetary gears. CARO bronze ring, hardness 120-160 HB. Hardened steel screws with ground threads rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 33.25 to 475. Rated torque 81 Nm. Version B3 or B5. B5/S left version - B5/D right version
Â
- 12 or 24VDC
- 75 to 150W delivered power
- Up to 82Nm rated torque

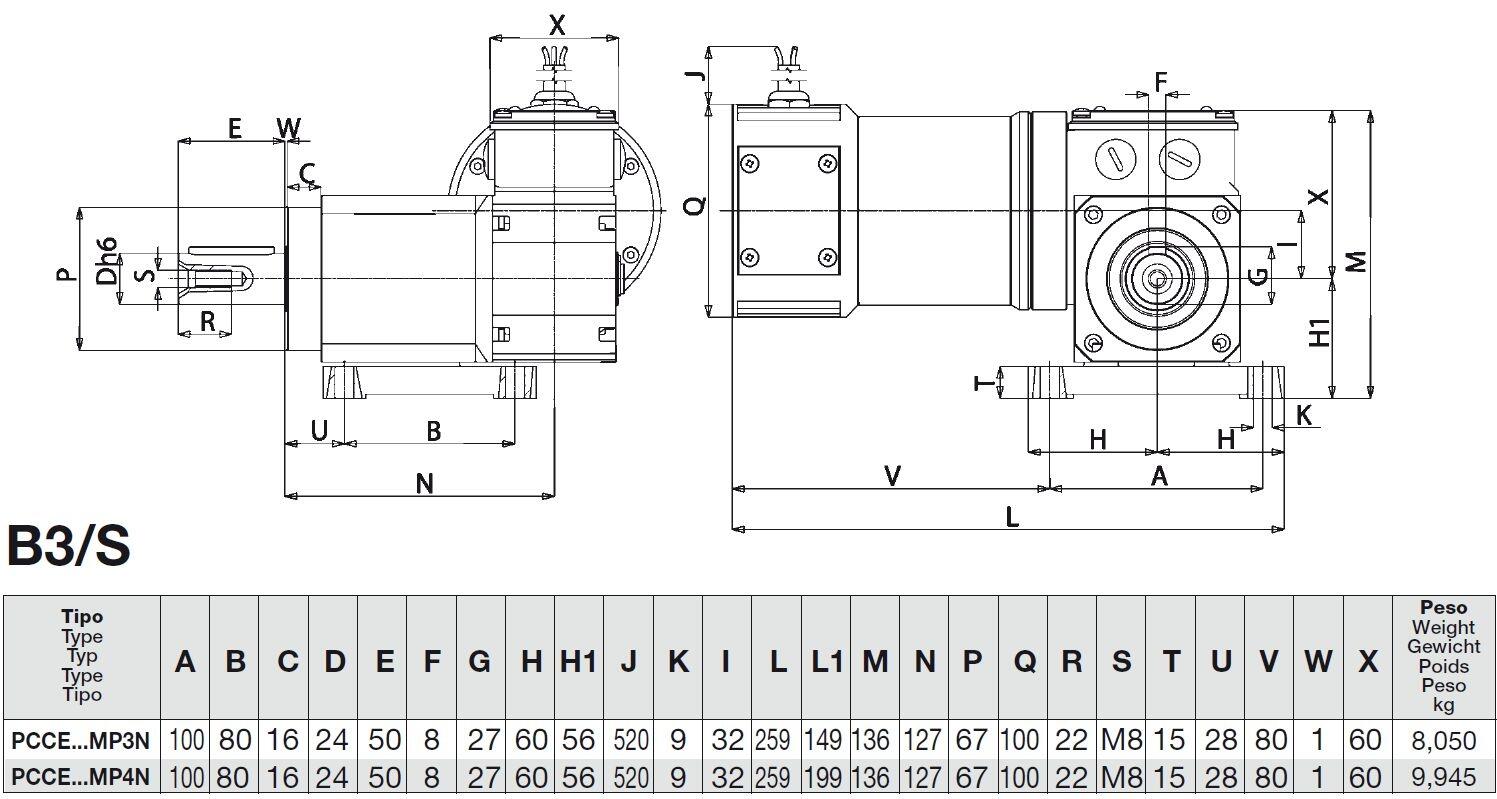

- B3 foot or B5 flange mounting
- IP65 as standard
Selected variant
Technical data
| Input voltage dc | 12V |
|---|---|
| IP class | IP65 |
| Nominal speed | 84 rpm |
| Nominal torque | 7,7 |
| Output power | 75 W |
| Rated current | 9.6A |
| Ratio | 33.25:1 |
Product description
High quality, designed from the ground up to IP65 rated compact gear motor.
Â
Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.
Â
Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery
Â
MOTOR: Direct current with permanent magnets, totally enclosed without external ventilation. Class F winding. 12 or 24 Vdc power supply. Absorbed power 230 W. IP65 protection according to CEI EN 60529
GEAR UNIT: Die-cast aluminium casing in the first reduction stage, with worm screw and steel casing in the second planetary stage, with three internal planetary gears. CARO bronze ring, hardness 120-160 HB. Hardened steel screws with ground threads rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 33.25 to 475. Rated torque 81 Nm. Version B3 or B5. B5/S left version - B5/D right version
Â
