DOGA - 269 Series
DC motor only, planetary option

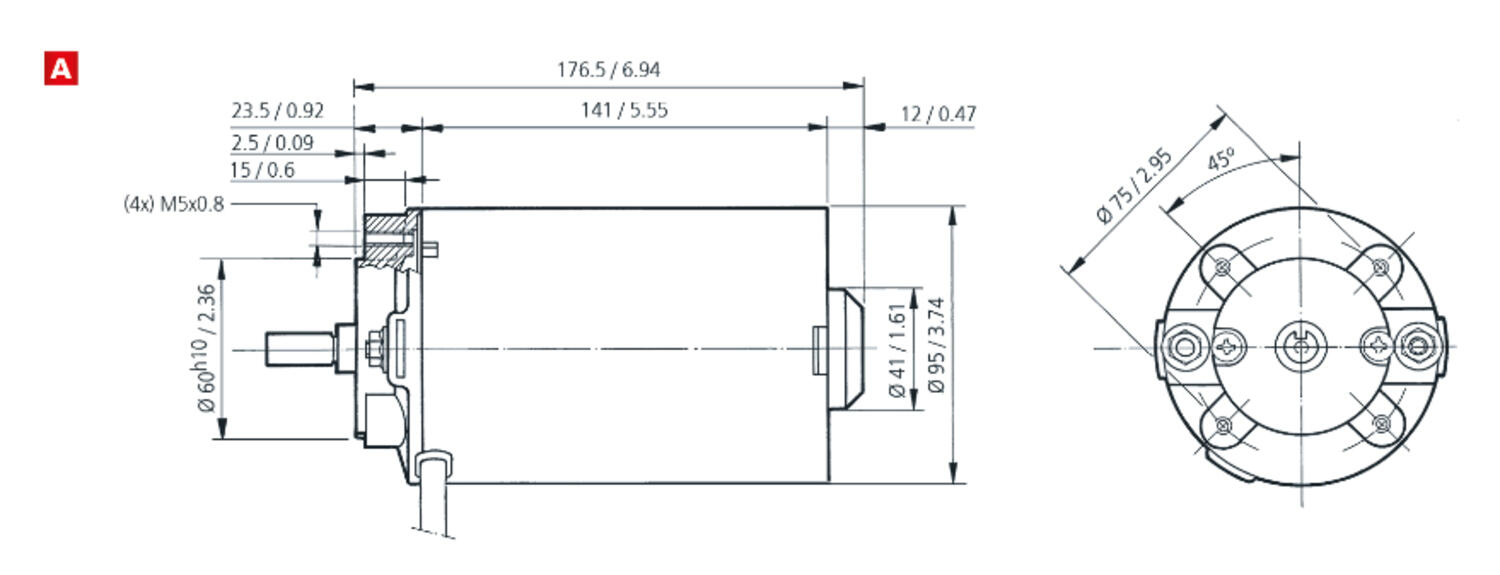

The DOGA 269 series is a range of 95m diameter permanent magnet DC motors that are developed for a compact, low noise and cost-effective solution to suit many industrial applications. IP53 is standard, with an EMC filter option.
Â
VOLTAGE: 12 / 24Vdc supply - ideally suited to battery powered and mobile applications.
Â
TORQUE: >0.8Nm nominal, >4.0Nm starting – a good choice for applications requiring high start-up power.
Â
SPEED: 675 - 3000rpm options.
Â
For modest quantities DOGA can offer product customisation to better suit the individual needs of the customer and application. Adaptations can include changes to the output shaft, supply voltage, cabling/connectors and motor windings.
Â
Typical applications include:
Agriculture
Building access
Care aid
Medical
Office equipment
Marine
General industrial automation
Â
- 12-24Vdc
- Up to 0.8 Nm
- Up to 3000rpm
- 95mm diameter
- High starting torque
Selected variant

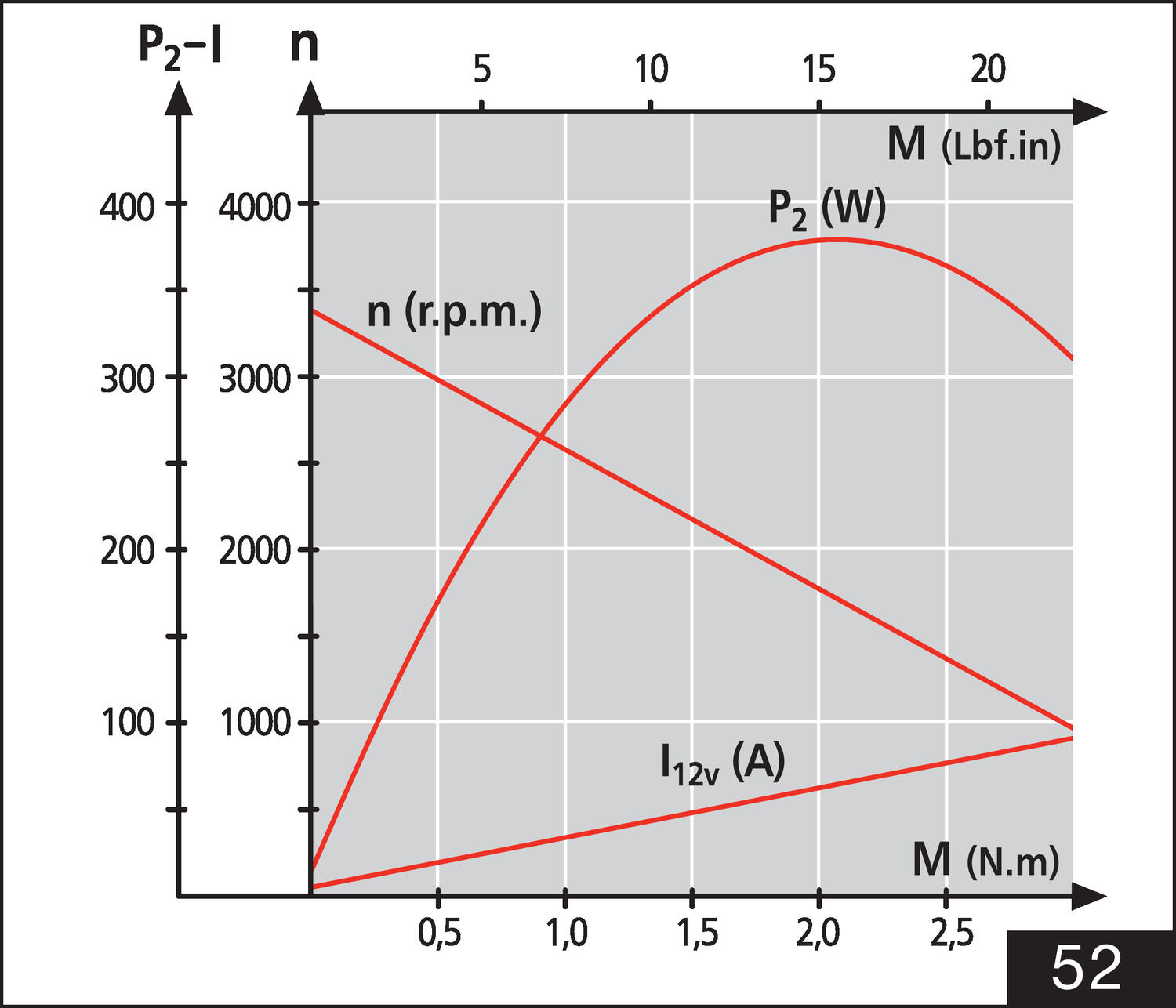

Technical data
| Current max | 140 A |
|---|---|
| EMC filter | No |
| IP class | IP53 |
| Max. torque | 4 |
| Nominal current | 20 A |
| Nominal speed | 3000 rpm |
| Nominal torque | 0.5 |
|---|---|

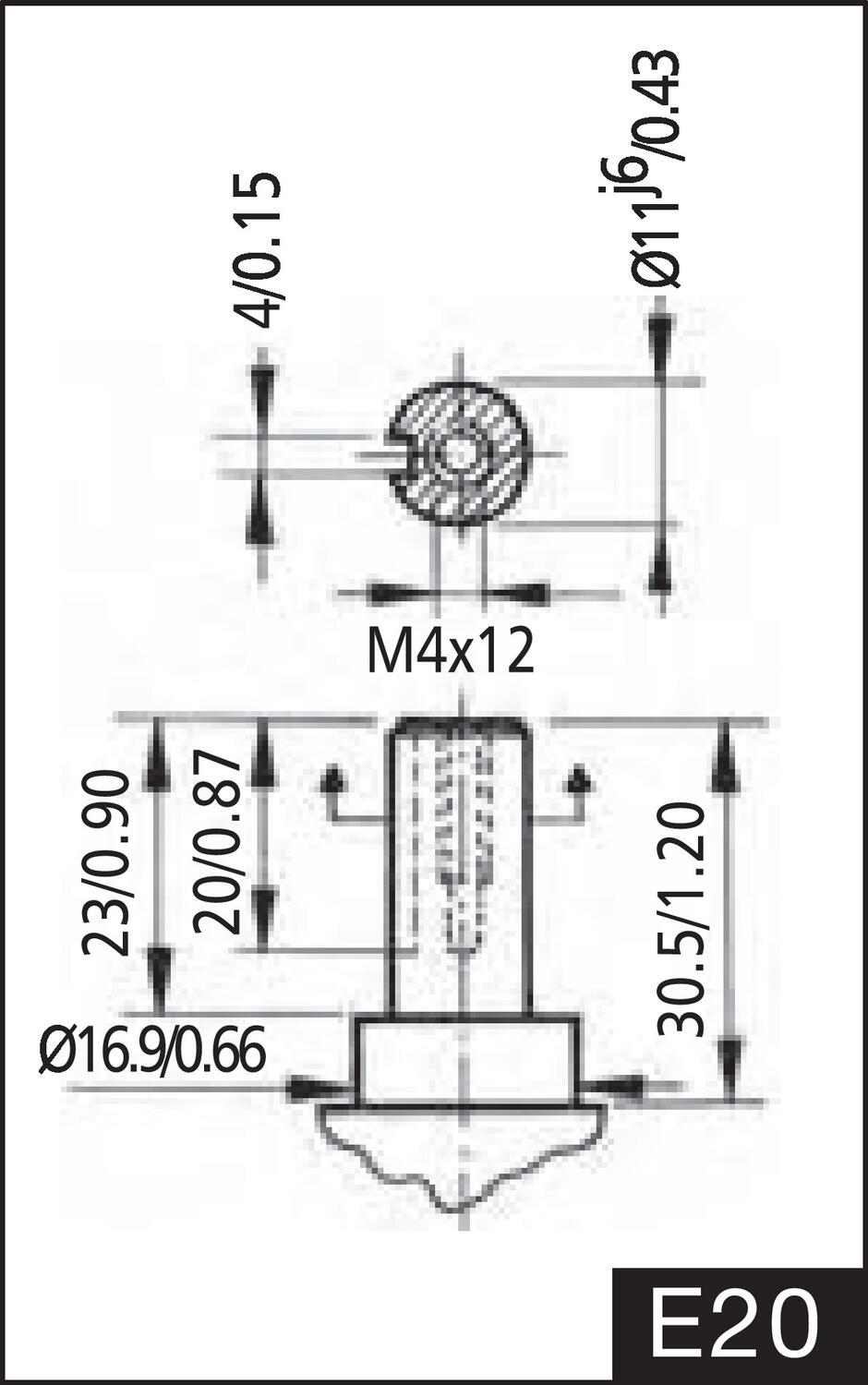

| Shaft diameter | 11 mm |
| Supply voltage | 12 V DC |
| Weight | 3.8 kg |
Downloads
Product description
The DOGA 269 series is a range of 95m diameter permanent magnet DC motors that are developed for a compact, low noise and cost-effective solution to suit many industrial applications. IP53 is standard, with an EMC filter option.
Â
VOLTAGE: 12 / 24Vdc supply - ideally suited to battery powered and mobile applications.
Â
TORQUE: >0.8Nm nominal, >4.0Nm starting – a good choice for applications requiring high start-up power.
Â
SPEED: 675 - 3000rpm options.
Â
For modest quantities DOGA can offer product customisation to better suit the individual needs of the customer and application. Adaptations can include changes to the output shaft, supply voltage, cabling/connectors and motor windings.
Â
Typical applications include:
Agriculture
Building access
Care aid
Medical
Office equipment
Marine
General industrial automation
Â
