DOGA
DOGA - 169 Series
DC motor only, planetary option
The DOGA 169 series is a range of 79m diameter permanent magnet DC motors that are developed for a compact, low noise and cost-effective solution to suit many industrial applications. IP40 is standard, with an EMC filter option.
Â
VOLTAGE: 12 / 24Vdc supply - ideally suited to battery powered and mobile applications.
Â
TORQUE: >0.4Nm nominal, >2.2Nm starting – a good choice for applications requiring high start-up power.
Â
SPEED: 1500 - 4600rpm options.
Â
For modest quantities DOGA can offer product customisation to better suit the individual needs of the customer and application. Adaptations can include changes to the output shaft, supply voltage, cabling/connectors and motor windings.
Â
Typical applications include:
Â
Agriculture
Building access
Care aid
Medical
Office equipment
Marine
General industrial automation
Â
Â
Â
- 12-24Vdc
- Up to 0.4Nm
- Up to 4600rpm

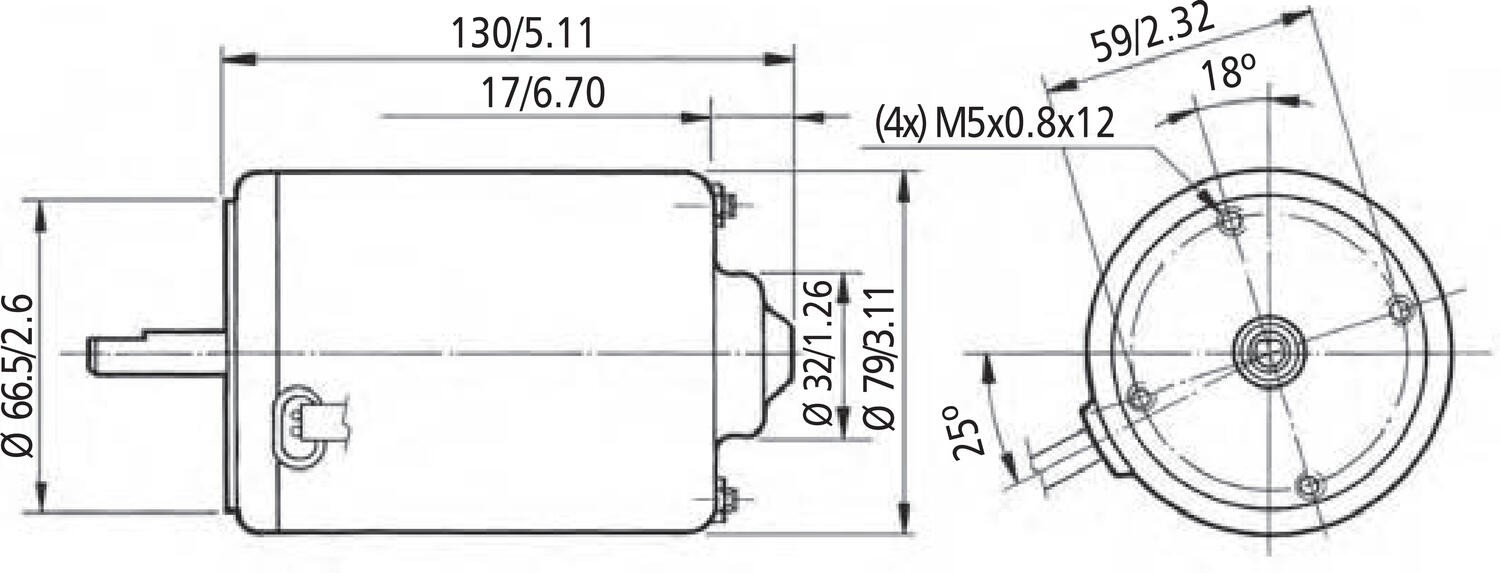

- 79mm diameter
- High starting torque
Selected variant

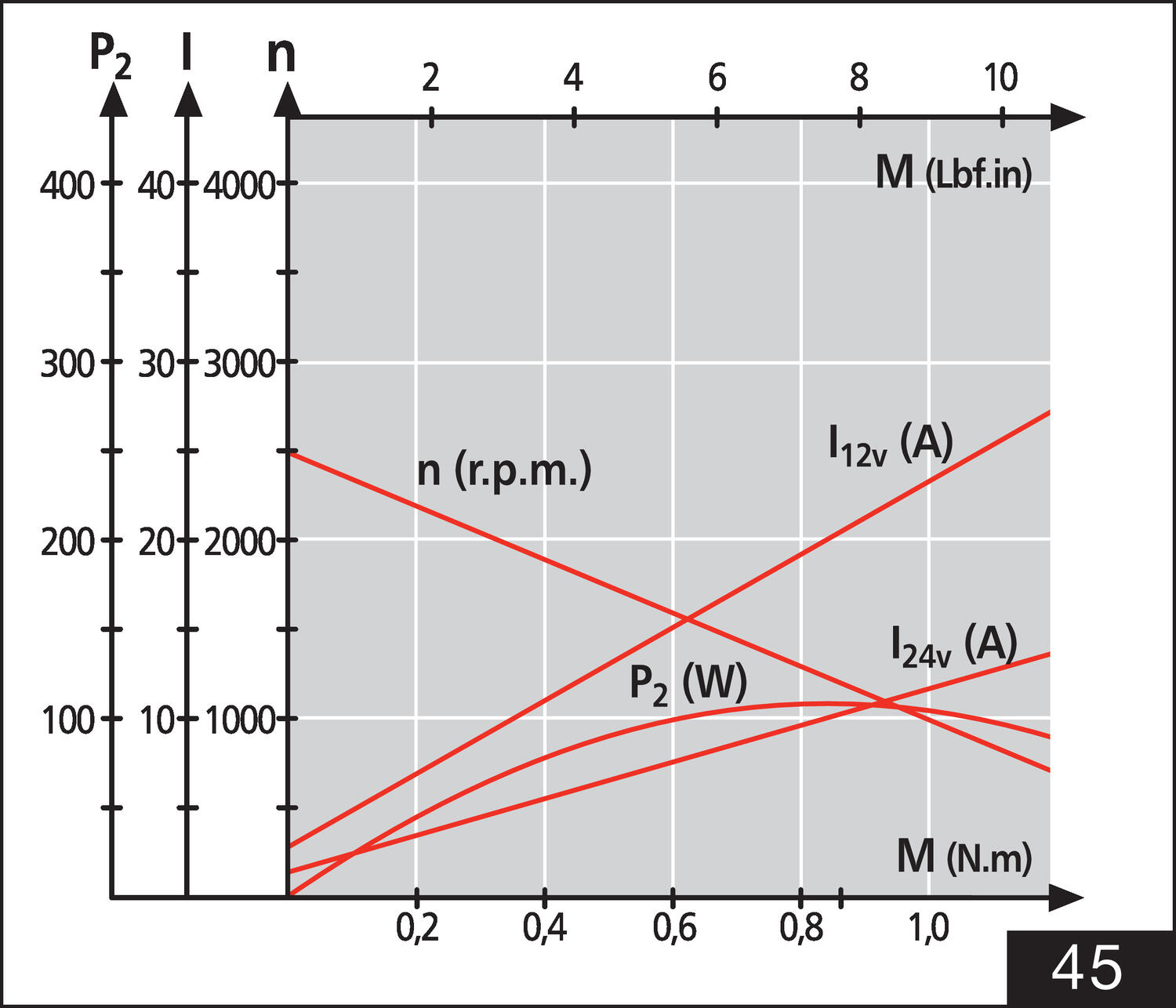

Technical data
| Current max | 46 A |
|---|---|
| EMC filter | No |
| IP class | IP53 |
| Max. torque | 2 |
| Nominal current | 11 A |
| Nominal speed | 1900 rpm |
| Nominal torque | 0.4 |
|---|---|

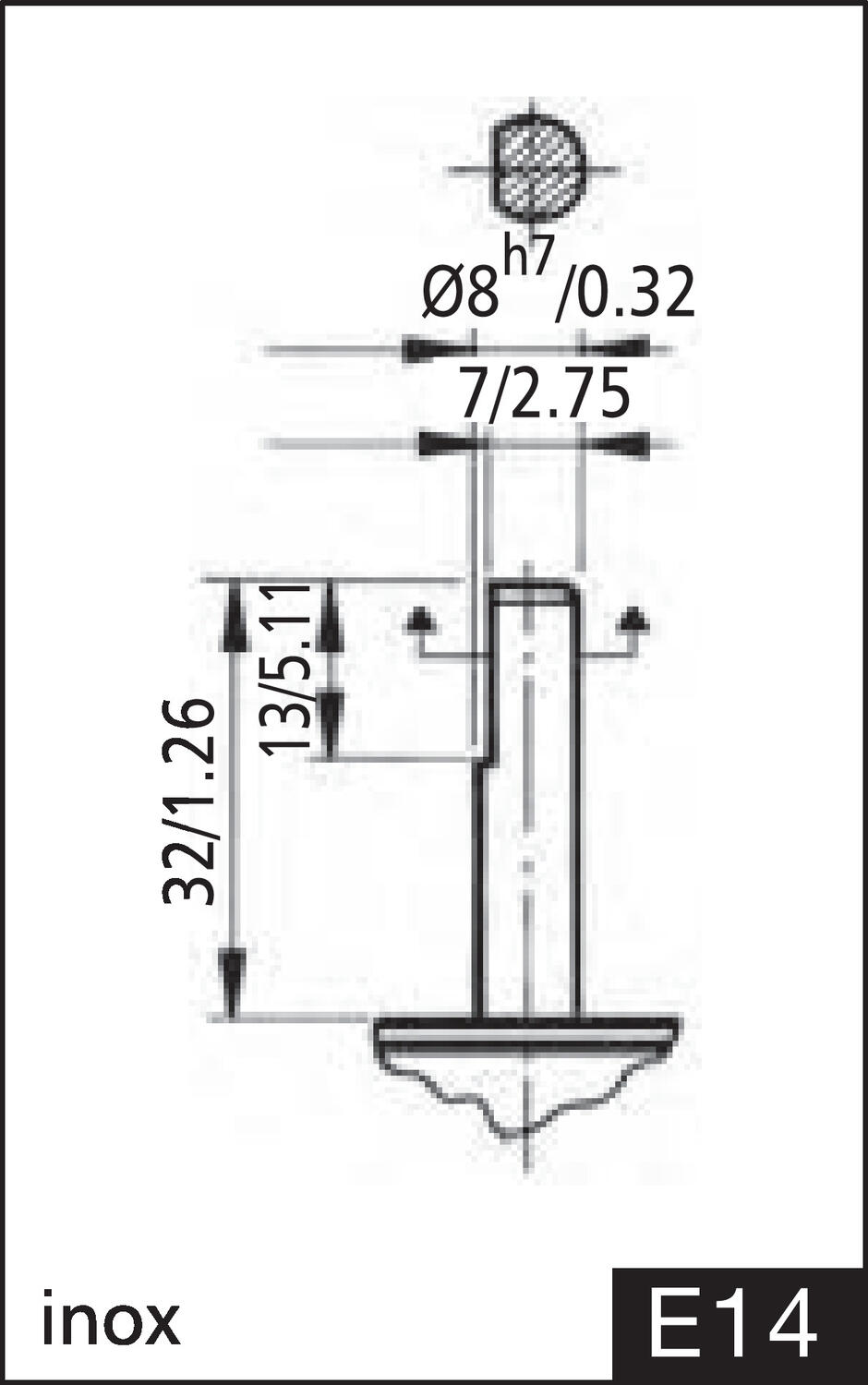

| Shaft diameter | 8 mm |
| Supply voltage | 12 V DC |
| Weight | 2 kg |
Downloads
Product description
The DOGA 169 series is a range of 79m diameter permanent magnet DC motors that are developed for a compact, low noise and cost-effective solution to suit many industrial applications. IP40 is standard, with an EMC filter option.
Â
VOLTAGE: 12 / 24Vdc supply - ideally suited to battery powered and mobile applications.
Â
TORQUE: >0.4Nm nominal, >2.2Nm starting – a good choice for applications requiring high start-up power.
Â
SPEED: 1500 - 4600rpm options.
Â
For modest quantities DOGA can offer product customisation to better suit the individual needs of the customer and application. Adaptations can include changes to the output shaft, supply voltage, cabling/connectors and motor windings.
Â
Typical applications include:
Â
Agriculture
Building access
Care aid
Medical
Office equipment
Marine
General industrial automation
Â
Â
Â
