DOGA

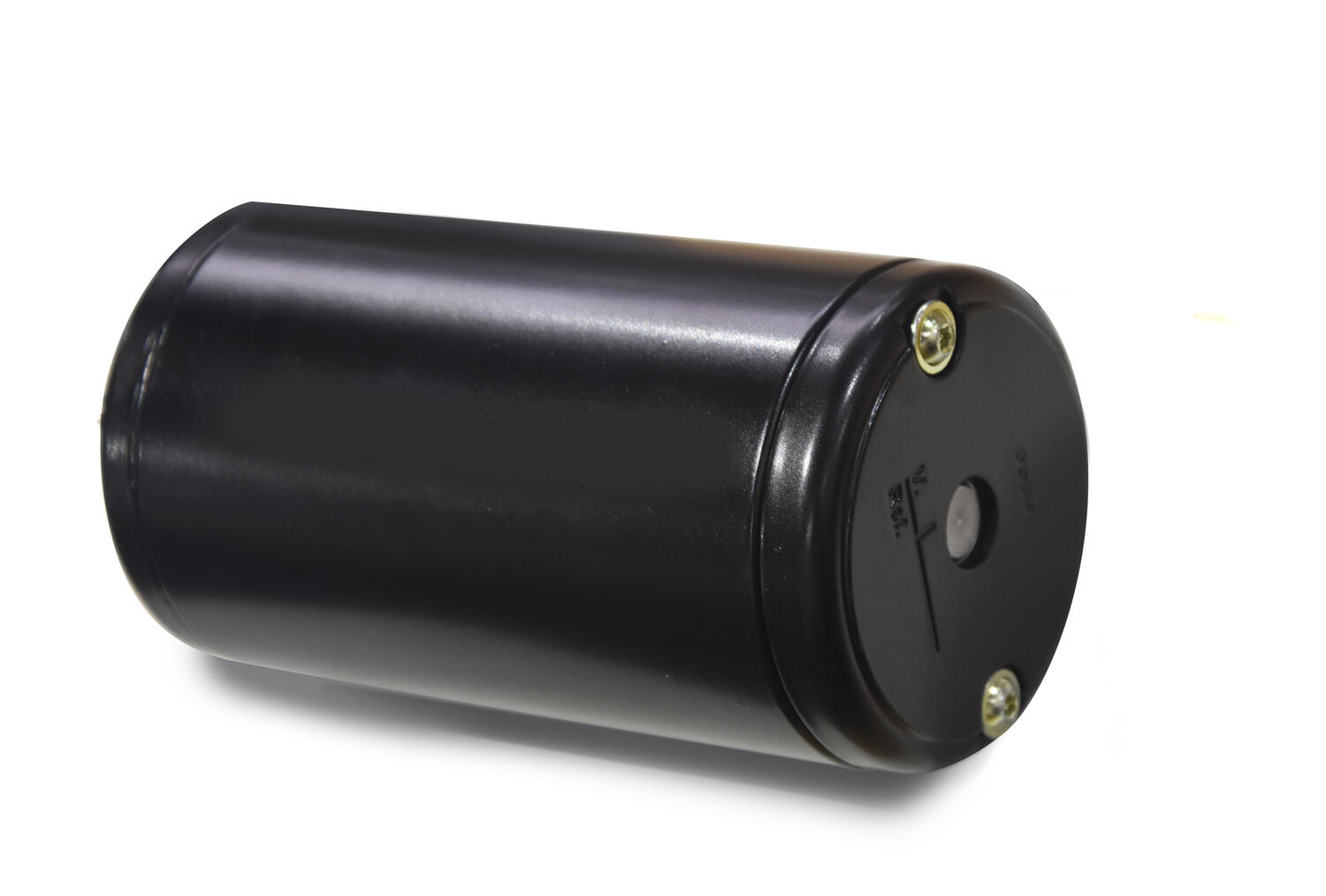

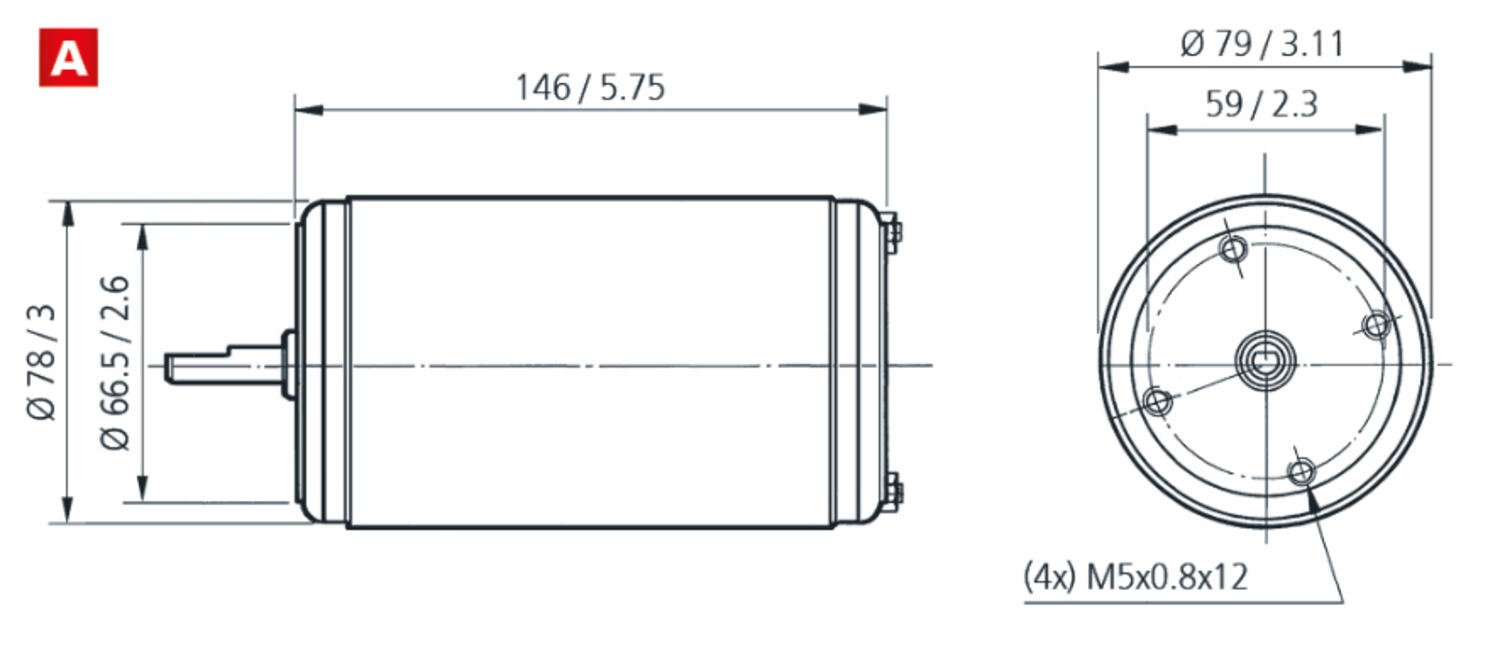

The DOGA 168 series is a range of 79mm diameter permanent magnet DC motors that are developed for a compact, low noise and cost-effective solution to suit many industrial applications. IP40 is standard, with an EMC filter option.
Â
VOLTAGE: 12 / 24Vdc supply - ideally suited to battery powered and mobile applications.
Â
TORQUE: >0.75Nm nominal, >3.0Nm starting – a good choice for applications requiring high start-up power.
Â
SPEED: 750 - 3000rpm options.
Â
For modest quantities DOGA can offer product customisation to better suit the individual needs of the customer and application. Adaptations can include changes to the output shaft, supply voltage, cabling/connectors and motor windings.
Â
Typical applications include:
Â
Agriculture
Building access
Care aid
Medical
Office equipment
Marine
General industrial automation
Â
| Current max | 64 A |
|---|---|
| EMC filter | No |
| IP class | IP40 |
| Max. torque | 3 |
| Nominal current | 14 A |
| Nominal speed | 1900 rpm |
| Nominal torque | 0.5 |
|---|---|
| Shaft diameter | 8 mm |
| Supply voltage | 12 V DC |
| Weight | 2.6 kg |
The DOGA 168 series is a range of 79mm diameter permanent magnet DC motors that are developed for a compact, low noise and cost-effective solution to suit many industrial applications. IP40 is standard, with an EMC filter option.
Â
VOLTAGE: 12 / 24Vdc supply - ideally suited to battery powered and mobile applications.
Â
TORQUE: >0.75Nm nominal, >3.0Nm starting – a good choice for applications requiring high start-up power.
Â
SPEED: 750 - 3000rpm options.
Â
For modest quantities DOGA can offer product customisation to better suit the individual needs of the customer and application. Adaptations can include changes to the output shaft, supply voltage, cabling/connectors and motor windings.
Â
Typical applications include:
Â
Agriculture
Building access
Care aid
Medical
Office equipment
Marine
General industrial automation
Â
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Current max | EMC filter | Max. torque | Nominal current | Nominal speed | Nominal torque | Shaft diameter | Supply voltage | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

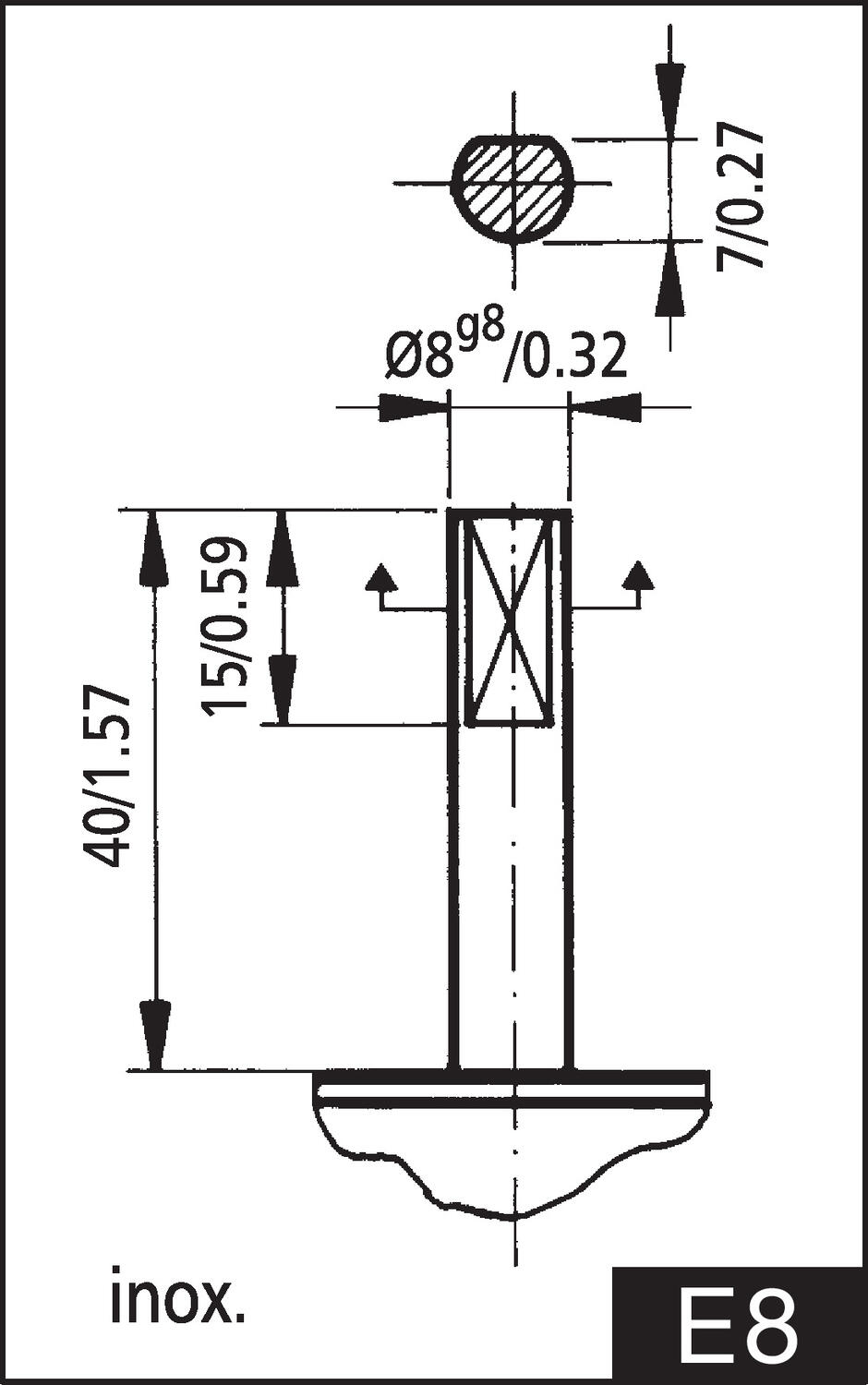

Motor 12 V dc, 0.5 Nm, 1900 rpm, 14 A, shaft E8
Art:
168.4105.20.04
Copied
|
64 A
|
No
|
3
|
14 A
|
1900 rpm
|
0.5
|
8 mm
|
12 V DC
|
|
||
|
Motor 24 V dc, 0.5 Nm, 1900 rpm, 7 A, shaft E8
Art:
168.4105.30.04
Copied
|
32 A
|
No
|
3
|
7 A
|
1900 rpm
|
0.5
|
8 mm
|
24 V DC
|
|
||
|
Motor 12 V dc, 0.45 Nm, 2800 rpm, 19 A, shaft E9
Art:
168.4108.20.04
Copied
|
100 A
|
No
|
3
|
19 A
|
2800 rpm
|
0.45
|
8 mm
|
12 V DC
|
|
||
|
Motor 24 V dc, 0.45 Nm, 2800 rpm, 10 A, shaft E9
Art:
168.4108.30.04
Copied
|
52 A
|
No
|
3
|
10 A
|
2800 rpm
|
0.45
|
8 mm
|
24 V DC
|
|
||
|
Motor 12 V dc, 0.75 Nm, 1000 rpm, 11 A, shaft E11
Art:
168.4111.20.04
Copied
|
36 A
|
No
|
2.8
|
11 A
|
1000 rpm
|
0.75
|
8 mm
|
12 V DC
|
|
||
|
Motor 24 V dc, 0.75 Nm, 1000 rpm, 5.5 A, shaft E11
Art:
168.4111.30.04
Copied
|
18 A
|
No
|
2.8
|
5.5 A
|
1000 rpm
|
0.75
|
8 mm
|
24 V DC
|
|
||
|
Motor 12 V dc, 0.7 Nm, 1500 rpm, 14 A, shaft E12
Art:
168.4112.20.04
Copied
|
56 A
|
No
|
3
|
14 A
|
1500 rpm
|
0.7
|
12 mm
|
12 V DC
|
|
||
|
Motor 24 V dc, 0.7 Nm, 1500 rpm, 7 A, shaft E12
Art:
168.4112.30.04
Copied
|
28 A
|
No
|
3
|
7 A
|
1500 rpm
|
0.7
|
12 mm
|
24 V DC
|
|
||
|
Motor 24 V dc, 0.5 Nm, 3000 rpm, 11 A, shaft E13/E41
Art:
168.4115.30.04
Copied
|
70 A
|
No
|
3
|
11 A
|
3000 rpm
|
0.5
|
11 mm
|
24 V DC
|
|
||
|
Motor 12 V dc, 0.5 Nm, 1900 rpm, 14 A, shaft E8
Art:
168.4116.20.04
Copied
|
64 A
|
No
|
3
|
14 A
|
1900 rpm
|
0.5
|
8 mm
|
12 V DC
|
|
||
|
Motor 24 V dc, 0.5 Nm, 1900 rpm, 7 A, shaft E8
Art:
168.4116.30.04
Copied
|
32 A
|
No
|
3
|
7 A
|
1900 rpm
|
0.5
|
8 mm
|
24 V DC
|
|
||
|
Motor 24 V dc, 0.5 Nm, 3000 rpm, 11 A, EMC filter
Art:
168.4121.30.04E
Copied
|
70 A
|
Yes
|
3
|
11 A
|
3000 rpm
|
0.5
|
8 mm
|
24 V DC
|
|
||
|
Motor 24 V dc, 0.75 Nm, 1000 rpm, 5.5 A, shaft E13/E41
Art:
168.4122.30.04
Copied
|
18 A
|
No
|
2.8
|
5.5 A
|
1000 rpm
|
0.75
|
11 mm
|
24 V DC
|
|
||
|
Motor 12 V dc, 0.5 Nm, 2100 rpm, 16 A, shaft E13/E41
Art:
168.4123.20.04
Copied
|
76 A
|
No
|
3
|
16 A
|
2100 rpm
|
0.5
|
11 mm
|
12 V DC
|
|
||
|
Motor 24 V dc, 0.5 Nm, 2100 rpm, 8 A, shaft E13/E41
Art:
168.4123.30.04
Copied
|
38 A
|
No
|
3
|
8 A
|
2100 rpm
|
0.5
|
11 mm
|
24 V DC
|
|
||
|
Motor 24 V dc, 0.3 Nm, 750 rpm, 1.5 A, shaft E59
Art:
168.4134.30.04
Copied
|
7 A
|
No
|
1.5
|
1.5 A
|
750 rpm
|
0.3
|
12 mm
|
24 V DC
|
|
||
|
Motor 24 V dc, 0.75 Nm, 1000 rpm, 5.5 A, EMC filter
Art:
168.4136.30.00E
Copied
|
18 A
|
Yes
|
2.8
|
5.5 A
|
1000 rpm
|
0.75
|
11 mm
|
24 V DC
|
|
Select a variant in the list
