DOGA - 162 Series

DC motor only, planetary option

The DOGA 162 series is a range of 60mm diameter permanent magnet DC motors that are developed for a compact, low noise and cost-effective solution to suit many industrial applications. IP53 is standard, with an EMC filter option.

VOLTAGE: 12 / 24Vdc supply - ideally suited to battery powered and mobile applications.

TORQUE: >0.2Nm nominal, >1.0Nm starting – a good choice for applications requiring high start-up power.

SPEED: 1500 - 3000rpm options.

For modest quantities DOGA can offer product customisation to better suit the individual needs of the customer and application. Adaptations can include changes to the output shaft, supply voltage, cabling/connectors and motor windings.

Typical applications include:

Agriculture

Building access

Care aid

Medical

Office equipment

Marine

General industrial automation

12-24Vdc
Up to 0.2Nm
Up to 3000rpm
60mm diameter
High starting torque

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

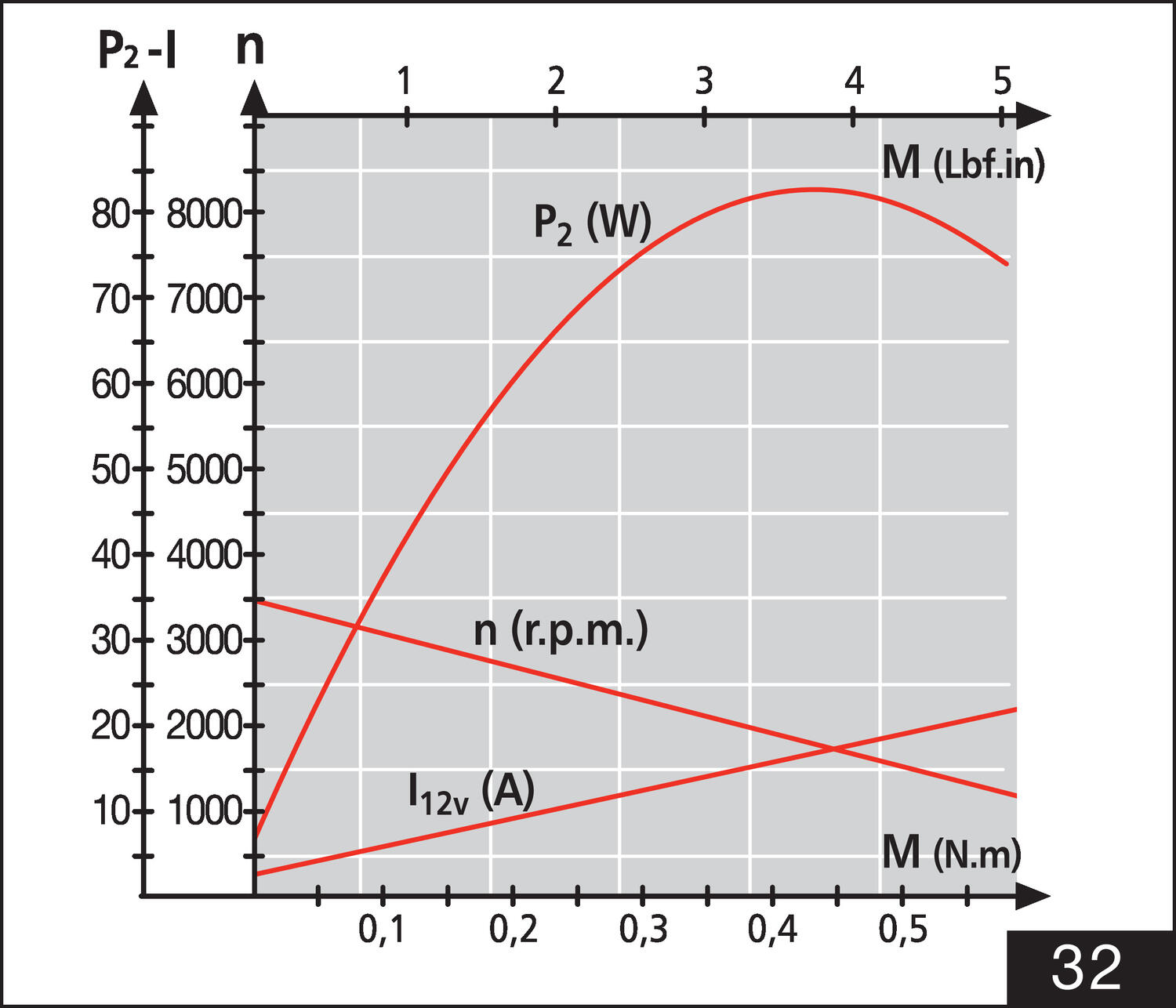

Technical data

Current max	33 A
EMC filter	No
IP class	IP53
Max. torque	1
Nominal current	7.5 A
Nominal speed	2800 rpm

Nominal torque	0.18
Shaft diameter	8 mm
Supply voltage	12 V DC
Weight	1.1 kg

Downloads

Measurements and connections

Product description

The DOGA 162 series is a range of 60mm diameter permanent magnet DC motors that are developed for a compact, low noise and cost-effective solution to suit many industrial applications. IP53 is standard, with an EMC filter option.

VOLTAGE: 12 / 24Vdc supply - ideally suited to battery powered and mobile applications.

TORQUE: >0.2Nm nominal, >1.0Nm starting – a good choice for applications requiring high start-up power.

SPEED: 1500 - 3000rpm options.

For modest quantities DOGA can offer product customisation to better suit the individual needs of the customer and application. Adaptations can include changes to the output shaft, supply voltage, cabling/connectors and motor windings.

Typical applications include:

Agriculture

Building access

Care aid

Medical

Office equipment

Marine

General industrial automation

Accessories

	Parts	Current max	EMC filter	IP class	Max. torque	Nominal current	Nominal speed	Nominal torque	Shaft diameter	Supply voltage	Price
	Motor 12 V dc, 0.18 Nm, 2800 rpm, 7.5 A, shaft E2 Art: 162.4101.20.00 Copied	33 A	No	IP53	1	7.5 A	2800 rpm	0.18	8 mm	12 V DC
	Motor 24 V dc, 0.2 Nm, 3000 rpm, 4 A, shaft E2 Art: 162.4101.30.00 Copied	18 A	No	IP53	1	4 A	3000 rpm	0.2	8 mm	24 V DC
	Motor 12 V dc, 0.2 Nm, 2000 rpm, 6 A, shaft E2 Art: 162.4102.20.00 Copied	24 A	No	IP53	1	6 A	2000 rpm	0.2	8 mm	12 V DC
	Motor 24 V dc, 0.2 Nm, 2000 rpm, 3 A, shaft E2 Art: 162.4102.30.00 Copied	12 A	No	IP53	1	3 A	2000 rpm	0.2	8 mm	24 V DC
	Motor 12 V dc, 0.18 Nm, 2800 rpm, 7.5 A, shaft E4 Art: 162.4106.20.00 Copied	33 A	No	IP53	1	7.5 A	2800 rpm	0.18	8 mm	12 V DC
	Motor 24 V dc, 0.2 Nm, 3000 rpm, 4 A, shaft E4 Art: 162.4106.30.00 Copied	18 A	No	IP53	1	4 A	3000 rpm	0.2	8 mm	24 V DC
	Motor 24 V dc, 0.2 Nm, 2000 rpm, 3 A, EMC filter Art: 162.4107.30.00E Copied	12 A	Yes	IP53	1	3 A	2000 rpm	0.2	8 mm	24 V DC
	Motor 12 V dc, 0.18 Nm, 1500 rpm, 5 A, shaft E2 Art: 162.4108.20.00 Copied	17 A	No	IP53	0.8	5 A	1500 rpm	0.18	8 mm	12 V DC
	Motor 24 V dc, 0.18 Nm, 1500 rpm, 2.5 A, shaft E2 Art: 162.4108.30.00 Copied	8.5 A	No	IP53	0.8	2.5 A	1500 rpm	0.18	8 mm	24 V DC
	Motor 24 V dc, 0.18 Nm, 1500 rpm, 2.5 A, shaft E38 Art: 162.4109.30.00 Copied	8.5 A	No	IP53	0.8	2.5 A	1500 rpm	0.18	7 mm	24 V DC
	Motor 48 V dc, 0.18 Nm, 1500 rpm, 1.3 A, shaft E38 Art: 162.4109.50.00 Copied	4.5 A	No	IP53	0.8	1.3 A	1500 rpm	0.18	7 mm	48 V DC
	Motor 24 V dc, 0.12 Nm, 3000 rpm, 2.5 A, EMC filter Art: 162.4113.30.00 Copied	15 A	Yes	IP40	1	2.5 A	3000 rpm	0.12	8 mm	24 V DC
	Motor 24 V dc, 0.2 Nm, 3000 rpm, 4 A, shaft E58/E57 Art: 162.4116.30.00 Copied	18 A	No	IP40	1	4 A	3000 rpm	0.2	8 mm	24 V DC
