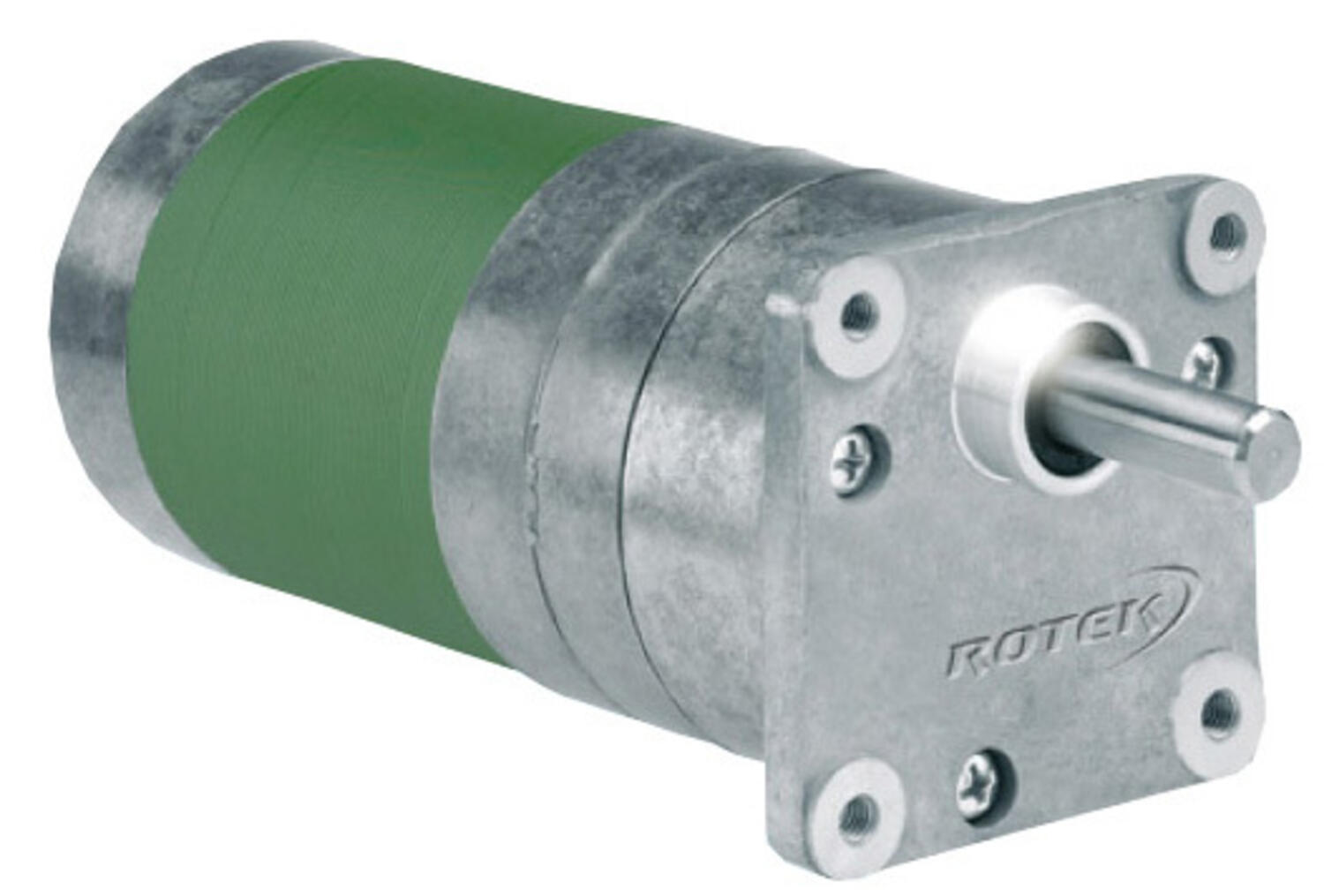

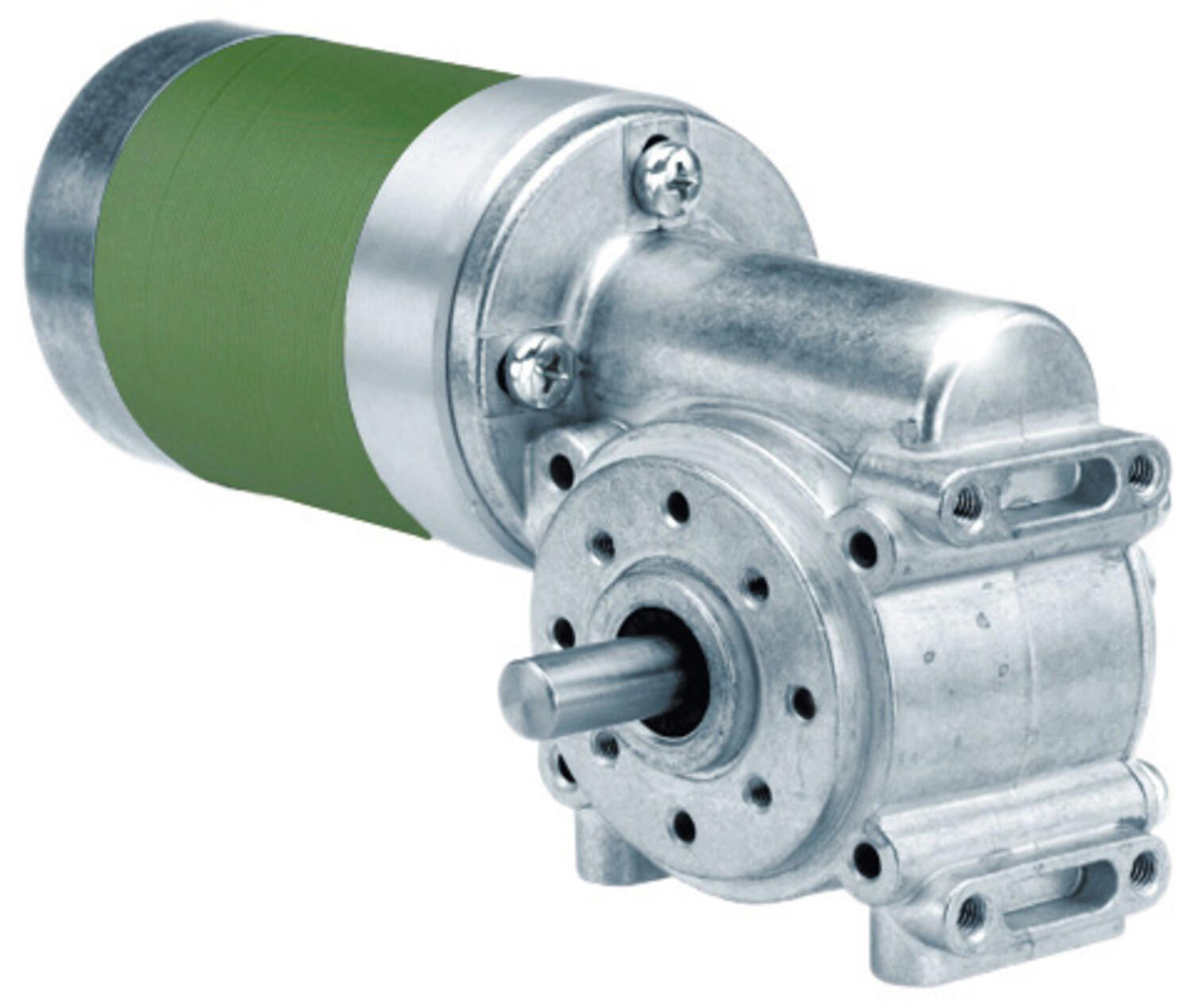

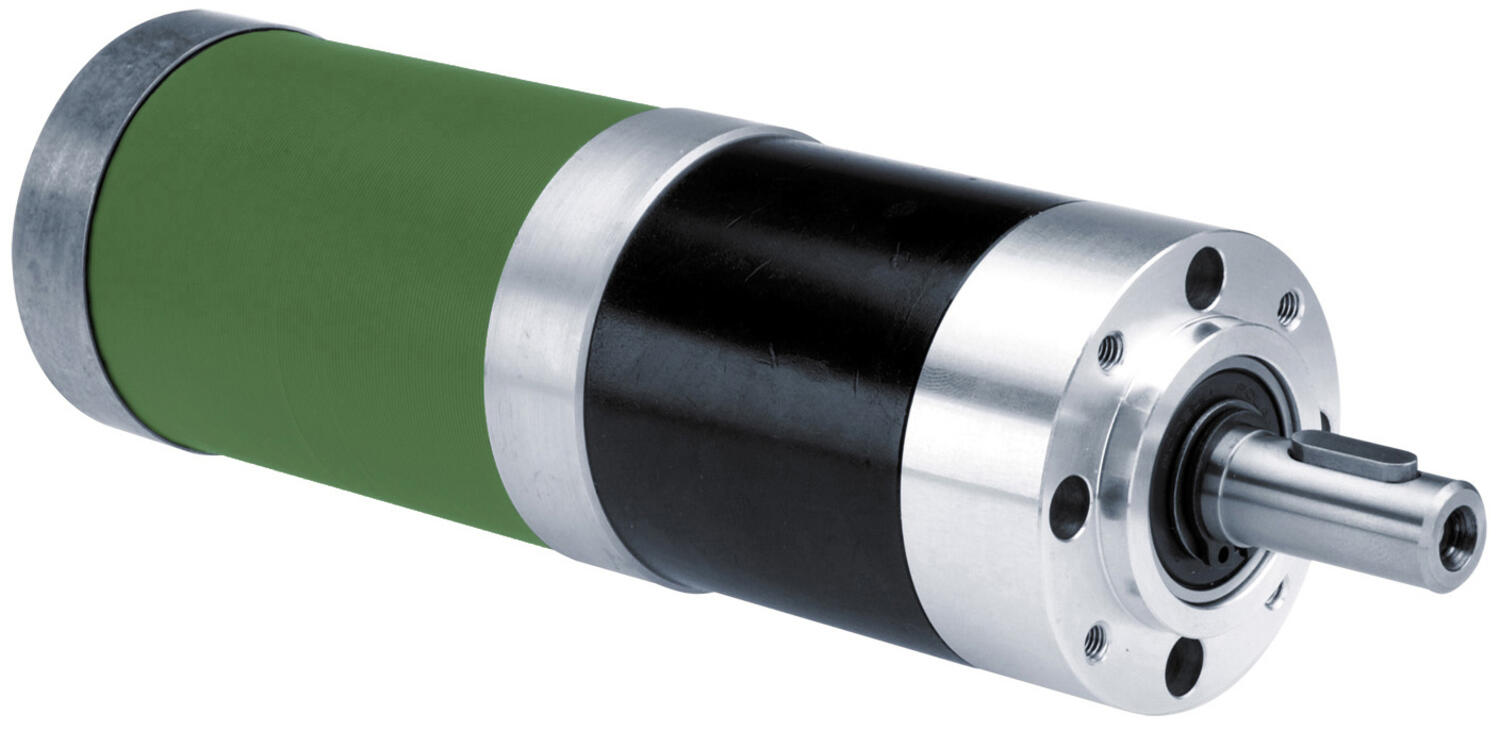

Rotek - Rosync AC motor
COMPACT MOTORS FOR DEMANDING APPLICATIONS
ROSYNC - Extremely compact and efficient
ROSYNC motors offer maximum performance coupled with low power consumption. The secret of their great efficiency lies in the GreenDrive Technology they employ. The patented stator geometry and ultra-modern magnetic materials used ensure outstanding efficiency.
> as a single-phase AC motor up to 75%
> as a three-phase AC motor up to more than 90%
These properties are particularly important where long running periods are required, for instance in conveyor belts. The high performance-to-size ratio makes them ideal for use where space is limited.
ROSYNC motors meet today’s demands for efficient use of energy and won the regional
environment award. In comparison with conventional single-phase synchronous motors they offer up to 40% more output power. As a three-phase motor they even offer up to 3 times more performance for the same size. This translates as maximum performance and efficiency for an astonishingly good price.
The speed depends only on the mains frequency, and is not influenced by voltage or load fluctuations. This constant speed is a big advantage in applications where a constant volume flow is desirable, or where a defined distance has to be covered within a specific time.
- 1→3 phase, 24V→400Vac, 50/60Hz, 20→85W, 12→54Ncm, 1500→1800rpm
- 65mm Ø
- Constant speed
- Short start-up and stopping times
- Extremely compact and efficient (up to 90%)
Selected variant
Technical data
| Capacitor | 120 μF |
|---|---|
| Current | 1250/1300 mA |
| Diameter | 65 mm |
| Frequency | 50/60 Hz |
| Input | 30/31 VA |
| Insulation class | F 155°C |
| IP class | IP40, IP55 |
| Output | 20/22 W |
|---|---|
| Rated torque | 13/12 Ncm |
| Shaft diameter | 5 mm |
| Speed | 1500/1800 rpm |
| Supply voltage | 0.13 V DC |
| Supply voltage options | 24 V AC |
Downloads
Product description
COMPACT MOTORS FOR DEMANDING APPLICATIONS
ROSYNC - Extremely compact and efficient
ROSYNC motors offer maximum performance coupled with low power consumption. The secret of their great efficiency lies in the GreenDrive Technology they employ. The patented stator geometry and ultra-modern magnetic materials used ensure outstanding efficiency.
> as a single-phase AC motor up to 75%
> as a three-phase AC motor up to more than 90%
These properties are particularly important where long running periods are required, for instance in conveyor belts. The high performance-to-size ratio makes them ideal for use where space is limited.
ROSYNC motors meet today’s demands for efficient use of energy and won the regional
environment award. In comparison with conventional single-phase synchronous motors they offer up to 40% more output power. As a three-phase motor they even offer up to 3 times more performance for the same size. This translates as maximum performance and efficiency for an astonishingly good price.
The speed depends only on the mains frequency, and is not influenced by voltage or load fluctuations. This constant speed is a big advantage in applications where a constant volume flow is desirable, or where a defined distance has to be covered within a specific time.
