MINIMOTOR

Minimotor - ACE - coaxial gear motor with further planetary reduction

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F. IP65 protection according to CEI EN 60529.



GEAR UNIT: first stage with die-cast aluminium case, second stage in steel. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long life oil. Sealing rings made in special rubber for high temperatures. 15 gear ratios (i) available, from 37 to 2209.5. Rated torque 23.5 Nm. Version B3 or B5.



Please click here for 2D and 3D drawings



Read more
  • Single or thee phase versions
  • 10 to 74W delivered power
  • Up to 23.5Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

4967_Rated current (A) 0.19Δ / 0.11YA
Input voltage ac 230Δ / 400Y
Nominal speed 0.6 rpm
Output power 10 W
Rated torque 23.5Nm
Ratio 2209.5:1

Downloads

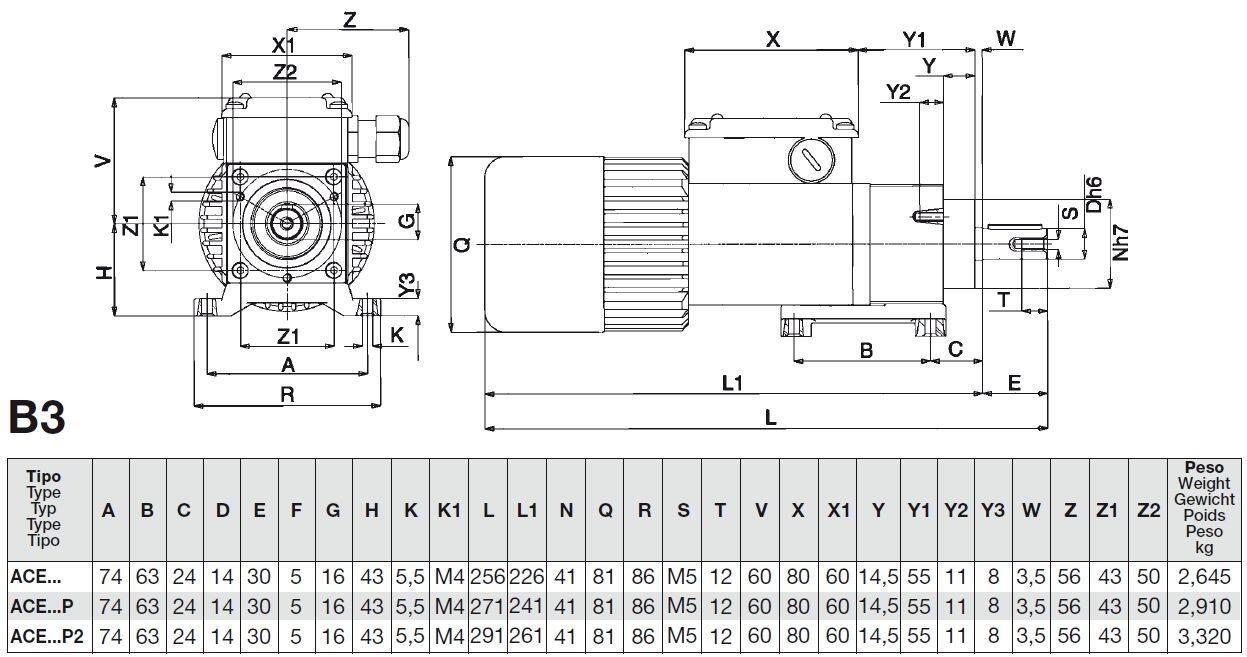

Measurements and connections

Product description

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F. IP65 protection according to CEI EN 60529.



GEAR UNIT: first stage with die-cast aluminium case, second stage in steel. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long life oil. Sealing rings made in special rubber for high temperatures. 15 gear ratios (i) available, from 37 to 2209.5. Rated torque 23.5 Nm. Version B3 or B5.



Please click here for 2D and 3D drawings



Accessories

Related

Various motor types from Oriental Motor, Minimotor and Doga - How to select the right motor
Learning hub

How to select the right motor

Determining what motor to use is quite a daunting task. Our Motors experts have developed a guide to show the steps to determine a suitable motor.

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Drive wheels AGV's AMR'S
Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

Parts 4967_Rated current (A) Capacitor Input voltage ac Nominal speed Output power Rated torque Ratio Price
ACCE picture
230/400V 3 ph 0.6rpm 23.5Nm B3 mount
Art:
ACE66TB3-0.6 Copied
0.19Δ / 0.11YA
230Δ / 400Y
0.6 rpm
10 W
23.5Nm
2209.5:1
ACCE picture
230/400V 3 ph 0.6rpm 23.5Nm B5 mount
Art:
ACE66TB5-0.6 Copied
0.19Δ / 0.11YA
230Δ / 400Y
0.6 rpm
10 W
23.5Nm
2209.5:1
ACCE picture
230/400V 3 ph 0.8rpm 23.5Nm B3 mount
Art:
ACE66TB3-0.8 Copied
0.19Δ / 0.11YA
230Δ / 400Y
0.8 rpm
10 W
23.5Nm
1687.5:1
ACCE picture
230/400V 3 ph 0.8rpm 23.5Nm B5 mount
Art:
ACE66TB5-0.8 Copied
0.19Δ / 0.11YA
230Δ / 400Y
0.8 rpm
10 W
23.5Nm
1687.5:1
ACCE picture
230/400V 3 ph 1.1rpm 23.5Nm B3 mount
Art:
ACE66TB3-1.1 Copied
0.19Δ / 0.11YA
230Δ / 400Y
1.1 rpm
10 W
23.5Nm
1227.5:1
ACCE picture
230/400V 3 ph 1.1rpm 23.5Nm B5 mount
Art:
ACE66TB5-1,1 Copied
0.19Δ / 0.11YA
230Δ / 400Y
1.1 rpm
10 W
23.5Nm
1227.5:1
ACCE picture
230/400V 3 ph 1.2rpm 23.5Nm B3 mount
Art:
ACE72TB3-1.2 Copied
0.22Δ / 0.13YA
230Δ / 400Y
1.2 rpm
19 W
23.5Nm
2209.5:1
ACCE picture
230/400V 3 ph 1.2rpm 23.5Nm B5 mount
Art:
ACE72TB5-1.2 Copied
0.22Δ / 0.13YA
230Δ / 400Y
1.2 rpm
19 W
23.5Nm
2209.5:1
ACCE picture
230/400V 3 ph 1.5rpm 23.5Nm B3 mount
Art:
ACE66TB3-1.5 Copied
0.19Δ / 0.11YA
230Δ / 400Y
1.5 rpm
10 W
23.5Nm
920.5:1
ACCE picture
230/400V 3 ph 1.5rpm 23.5Nm B3 mount
Art:
ACE72TB3-1.6 Copied
0.22Δ / 0.13YA
230Δ / 400Y
1.6 rpm
19 W
23.5Nm
1687.5:1
ACCE picture
230/400V 3 ph 1.5rpm 23.5Nm B5 mount
Art:
ACE66TB5-1.5 Copied
0.19Δ / 0.11YA
230Δ / 400Y
1.5 rpm
10 W
23.5Nm
920.5:1
ACCE picture
230/400V 3 ph 1.5rpm 23.5Nm B5 mount
Art:
ACE72TB5-1.6 Copied
0.22Δ / 0.13YA
230Δ / 400Y
1.6 rpm
19 W
23.5Nm
1687.5:1
ACCE picture
230/400V 3 ph 1.9rpm 23.5Nm B3 mount
Art:
ACE66TB3-1.9 Copied
0.19Δ / 0.11YA
230Δ / 400Y
1.9 rpm
10 W
23.5Nm
703.1:1
ACCE picture
230/400V 3 ph 1.9rpm 23.5Nm B5 mount
Art:
ACE66TB5-1.9 Copied
0.19Δ / 0.11YA
230Δ / 400Y
1.9 rpm
10 W
23.5Nm
703:1
ACCE picture
230/400V 3 ph 11.4rpm 13.6Nm B3 mount
Art:
ACE110PTB3-11.4 Copied
0.25Δ / 0.14YA
230Δ / 400Y
11.4 rpm
14 W
13.6Nm
122.1:1
ACCE picture
230/400V 3 ph 11.4rpm 13.6Nm B3 mount
Art:
ACE145P2TB3-11.4 Copied
0.32Δ / 0.18YA
230Δ / 400Y
11.4 rpm
18 W
13.6Nm
122.1:1
ACCE picture
230/400V 3 ph 11.4rpm 13.6Nm B5 mount
Art:
ACE110PTB5-11.4 Copied
0.25Δ / 0.14YA
230Δ / 400Y
11.4 rpm
14 W
13.6Nm
122.1:1
ACCE picture
230/400V 3 ph 11.4rpm 13.6Nm B5 mount
Art:
ACE145P2TB5-11.4 Copied
0.32Δ / 0.18YA
230Δ / 400Y
11.4 rpm
18 W
13.6Nm
122.1:1
ACCE picture
230/400V 3 ph 11.4rpm 7.8Nm B3 mount
Art:
ACE66TB3-11.4 Copied
0.19Δ / 0.11YA
230Δ / 400Y
11.4 rpm
10 W
7.8Nm
122.1:1
ACCE picture
230/400V 3 ph 11.4rpm 7.8Nm B5 mount
Art:
ACE66TB5-11.4 Copied
0.19Δ / 0.11YA
230Δ / 400Y
11.4 rpm
10 W
7.8Nm
122.1:1
ACCE picture
230/400V 3 ph 13rpm 11.9Nm B3 mount
Art:
ACE72TB3-13 Copied
0.22Δ / 0.13YA
230Δ / 400Y
13 rpm
19 W
11.9Nm
213:1
ACCE picture
230/400V 3 ph 13rpm 11.9Nm B5 mount
Art:
ACE72TB5-13 Copied
0.22Δ / 0.13YA
230Δ / 400Y
13 rpm
19 W
11.9Nm
213:1
ACCE picture
230/400V 3 ph 13rpm 23.5Nm B3 mount
Art:
ACE244PTB3-13 Copied
0.52Δ / 0.30YA
230Δ / 400Y
13 rpm
49 W
23.5Nm
213:1
ACCE picture
230/400V 3 ph 13rpm 23.5Nm B5 mount
Art:
ACE244PTB5-13 Copied
0.52Δ / 0.30YA
230Δ / 400Y
13 rpm
49 W
23.5Nm
213:1
ACCE picture
230/400V 3 ph 15.7rpm 5.6Nm B3 mount
Art:
ACE66TB3-15.7 Copied
0.19Δ / 0.11YA
230Δ / 400Y
15.7 rpm
10 W
5.6Nm
88.8:1
ACCE picture
230/400V 3 ph 15.7rpm 5.6Nm B5 mount
Art:
ACE66TB5-15.7 Copied
0.19Δ / 0.11YA
230Δ / 400Y
15.7 rpm
10 W
5.6Nm
88.8:1
ACCE picture
230/400V 3 ph 15.7rpm 7.8Nm B3 mount
Art:
ACE110PTB3-15.7 Copied
0.25Δ / 0.14YA
230Δ / 400Y
15.7 rpm
14 W
7.8Nm
88.8:1
ACCE picture
230/400V 3 ph 15.7rpm 7.8Nm B5 mount
Art:
ACE110PTB5-15.7 Copied
0.25Δ / 0.14YA
230Δ / 400Y
15.7 rpm
14 W
7.8Nm
88.8:1
ACCE picture
230/400V 3 ph 15.7rpm 9.9Nm B3 mount
Art:
ACE145P2TB3-15.7 Copied
0.32Δ / 0.18YA
230Δ / 400Y
15.7 rpm
18 W
9.9Nm
88.8:1
ACCE picture
230/400V 3 ph 15.7rpm 9.9Nm B5 mount
Art:
ACE145P2TB5-15.7 Copied
0.32Δ / 0.18YA
230Δ / 400Y
15.7 rpm
18 W
9.9Nm
88.8:1
ACCE picture
230/400V 3 ph 17.5rpm 23Nm B3 mount
Art:
ACE244PTB3-17.5 Copied
0.52Δ / 0.30YA
230Δ / 400Y
17.5 rpm
49 W
23Nm
159.8:1
ACCE picture
230/400V 3 ph 17.5rpm 23Nm B5 mount
Art:
ACE244PTB5-17.5 Copied
0.52Δ / 0.30YA
230Δ / 400Y
17.5 rpm
49 W
23Nm
159.8:1
ACCE picture
230/400V 3 ph 17.5rpm 8.9Nm B3 mount
Art:
ACE72TB3-17.5 Copied
0.22Δ / 0.13YA
230Δ / 400Y
17.5 rpm
19 W
8.9Nm
159.8:1
ACCE picture
230/400V 3 ph 17.5rpm 8.9Nm B5 mount
Art:
ACE72TB5-17.5 Copied
0.22Δ / 0.13YA
230Δ / 400Y
17.5 rpm
19 W
8.9Nm
159.8:1
ACCE picture
230/400V 3 ph 2.2rpm 23.5Nm B3 mount
Art:
ACE72TB3-2.2 Copied
0.22Δ / 0.13YA
230Δ / 400Y
2.2 rpm
19 W
23.5Nm
1227.5:1
ACCE picture
230/400V 3 ph 2.2rpm 23.5Nm B5 mount
Art:
ACE72TB5-2.2 Copied
0.22Δ / 0.13YA
230Δ / 400Y
2.2 rpm
19 W
23.5Nm
1227.5:1
ACCE picture
230/400V 3 ph 2.7rpm 23.5Nm B3 mount
Art:
ACE66TB3-2.7 Copied
0.19Δ / 0.11YA
230Δ / 400Y
2.7 rpm
10 W
23.5Nm
511.4:1
ACCE picture
230/400V 3 ph 2.7rpm 23.5Nm B5 mount
Art:
ACE66TB5-2.7 Copied
0.19Δ / 0.11YA
230Δ / 400Y
2.7 rpm
10 W
23.5Nm
511.4:1
ACCE picture
230/400V 3 ph 21rpm 4.2Nm B3 mount
Art:
ACE66TB3-21 Copied
0.19Δ / 0.11YA
230Δ / 400Y
21 rpm
10 W
4.2Nm
66.6:1
ACCE picture
230/400V 3 ph 21rpm 4.2Nm B5 mount
Art:
ACE66TB5-21 Copied
0.19Δ / 0.11YA
230Δ / 400Y
21 rpm
10 W
4.2Nm
66.6:1
ACCE picture
230/400V 3 ph 21rpm 5.8Nm B3 mount
Art:
ACE110PTB3-21 Copied
0.25Δ / 0.14YA
230Δ / 400Y
21 rpm
14 W
5.8Nm
66.6:1
ACCE picture
230/400V 3 ph 21rpm 5.8Nm B5 mount
Art:
ACE110PTB5-21 Copied
0.25Δ / 0.14YA
230Δ / 400Y
21 rpm
14 W
5.8Nm
66.6:1
ACCE picture
230/400V 3 ph 21rpm 7.4Nm B3 mount
Art:
ACE145P2TB3-21 Copied
0.32Δ / 0.18YA
230Δ / 400Y
21 rpm
18 W
7.4Nm
66.6:1
ACCE picture
230/400V 3 ph 21rpm 7.4Nm B5 mount
Art:
ACE145P2TB5-21 Copied
0.32Δ / 0.18YA
230Δ / 400Y
21 rpm
18 W
7.4Nm
66.6:1
ACCE picture
230/400V 3 ph 22.9rpm 17.5Nm B3 mount
Art:
ACE244PTB3-22.9 Copied
0.52Δ / 0.30YA
230Δ / 400Y
22.9 rpm
49 W
17.5Nm
122.1:1
ACCE picture
230/400V 3 ph 22.9rpm 17.5Nm B5 mount
Art:
ACE244PTB5-22.9 Copied
0.52Δ / 0.30YA
230Δ / 400Y
22.9 rpm
49 W
17.5Nm
122.1:1
ACCE picture
230/400V 3 ph 22.9rpm 23.5Nm B3 mount
Art:
ACE320P2TB3-22.9 Copied
0.62Δ / 0.36YA
230Δ / 400Y
22.9 rpm
74 W
23.5Nm
122.1:1
ACCE picture
230/400V 3 ph 22.9rpm 23.5Nm B5 mount
Art:
ACE320P2TB5-22.9 Copied
0.62Δ / 0.36YA
230Δ / 400Y
22.9 rpm
74 W
23.5Nm
122.1:1
ACCE picture
230/400V 3 ph 22.9rpm 6.8Nm B3 mount
Art:
ACE72TB3-22.9 Copied
0.22Δ / 0.13YA
230Δ / 400Y
22.9 rpm
19 W
6.8Nm
122.1:1
ACCE picture
230/400V 3 ph 22.9rpm 6.8Nm B5 mount
Art:
ACE72TB5-22.9 Copied
0.22Δ / 0.13YA
230Δ / 400Y
22.9 rpm
19 W
6.8Nm
122.1:1
ACCE picture
230/400V 3 ph 27.5rpm 3.2Nm B3 mount
Art:
ACE66TB3-27.5 Copied
0.19Δ / 0.11YA
230Δ / 400Y
27.5 rpm
10 W
3.2Nm
50.8:1
ACCE picture
230/400V 3 ph 27.5rpm 3.2Nm B5 mount
Art:
ACE66TB5-27.5 Copied
0.19Δ / 0.11YA
230Δ / 400Y
27.5 rpm
10 W
3.2Nm
50.8:1
ACCE picture
230/400V 3 ph 27.5rpm 4.4Nm B3 mount
Art:
ACE110PTB3-27.5 Copied
0.25Δ / 0.14YA
230Δ / 400Y
27.5 rpm
14 W
4.4Nm
50.8:1
ACCE picture
230/400V 3 ph 27.5rpm 4.4Nm B5 mount
Art:
ACE110PTB5-27.5 Copied
0.25Δ / 0.14YA
230Δ / 400Y
27.5 rpm
14 W
4.4Nm
50.8:1
ACCE picture
230/400V 3 ph 27.5rpm 5.6Nm B3 mount
Art:
ACE145P2TB3-27.5 Copied
0.32Δ / 0.18YA
230Δ / 400Y
27.5 rpm
18 W
5.6Nm
50.8:1
ACCE picture
230/400V 3 ph 27.5rpm 5.6Nm B5 mount
Art:
ACE145P2TB5-27.5 Copied
0.32Δ / 0.18YA
230Δ / 400Y
27.5 rpm
18 W
5.6Nm
50.8:1
ACCE picture
230/400V 3 ph 3.6rpm 23.5Nm B3 mount
Art:
ACE66TB3-3.6 Copied
0.19Δ / 0.11YA
230Δ / 400Y
3.6 rpm
10 W
23.5Nm
383.6:1
ACCE picture
230/400V 3 ph 3.6rpm 23.5Nm B5 mount
Art:
ACE66TB5-3.6 Copied
0.19Δ / 0.11YA
230Δ / 400Y
3.6 rpm
10 W
23.5Nm
383.6:1
ACCE picture
230/400V 3 ph 3.9rpm 23.5Nm B3 mount
Art:
ACE72TB3-3.9 Copied
0.22Δ / 0.13YA
230Δ / 400Y
3.9 rpm
19 W
23.5Nm
703.1:1
ACCE picture
230/400V 3 ph 3.9rpm 23.5Nm B5 mount
Art:
ACE72TB5-3.9 Copied
0.22Δ / 0.13YA
230Δ / 400Y
3.9 rpm
19 W
23.5Nm
703.1:1
ACCE picture
230/400V 3 ph 31.5rpm 12.7Nm B3 mount
Art:
ACE244PTB3-31.5 Copied
0.52Δ / 0.30YA
230Δ / 400Y
31.5 rpm
49 W
12.7Nm
88.8:1
ACCE picture
230/400V 3 ph 31.5rpm 12.7Nm B5 mount
Art:
ACE244PTB5-31.5 Copied
0.52Δ / 0.30YA
230Δ / 400Y
31.5 rpm
49 W
12.7Nm
88.8:1
ACCE picture
230/400V 3 ph 31.5rpm 19.1Nm B3 mount
Art:
ACE320P2TB3-31.5 Copied
0.62Δ / 0.36YA
230Δ / 400Y
31.5 rpm
74 W
19.1Nm
88.8:1
ACCE picture
230/400V 3 ph 31.5rpm 19.1Nm B5 mount
Art:
ACE320P2TB5-31.5 Copied
0.62Δ / 0.36YA
230Δ / 400Y
31.5 rpm
74 W
19.1Nm
88.8:1
ACCE picture
230/400V 3 ph 31.5rpm 4.9Nm B3 mount
Art:
ACE72TB3-31.5 Copied
0.22Δ / 0.13YA
230Δ / 400Y
31.5 rpm
19 W
4.9Nm
88.1:1
ACCE picture
230/400V 3 ph 31.5rpm 4.9Nm B5 mount
Art:
ACE72TB5-31.5 Copied
0.22Δ / 0.13YA
230Δ / 400Y
31.5 rpm
19 W
4.9Nm
88.8:1
ACCE picture
230/400V 3 ph 37.5rpm 2.3Nm B3 mount
Art:
ACE66TB3-37.5 Copied
0.19Δ / 0.11YA
230Δ / 400Y
37.5 rpm
10 W
2.3Nm
37:1
ACCE picture
230/400V 3 ph 37.5rpm 2.3Nm B5 mount
Art:
ACE66TB5-37.5 Copied
0.19Δ / 0.11YA
230Δ / 400Y
37.5 rpm
10 W
2.3Nm
37:1
ACCE picture
230/400V 3 ph 37.5rpm 3.2Nm B3 mount
Art:
ACE110PTB3-37.5 Copied
0.25Δ / 0.14YA
230Δ / 400Y
37.5 rpm
14 W
3.2Nm
37:1
ACCE picture
230/400V 3 ph 37.5rpm 3.2Nm B5 mount
Art:
ACE110PTB5-37.5 Copied
0.25Δ / 0.14YA
230Δ / 400Y
37.5 rpm
14 W
3.2Nm
37:1
ACCE picture
230/400V 3 ph 37.5rpm 4.1Nm B3 mount
Art:
ACE145P2TB3-37.5 Copied
0.32Δ / 0.18YA
230Δ / 400Y
37.5 rpm
18 W
4.1Nm
37:1
ACCE picture
230/400V 3 ph 37.5rpm 4.1Nm B5 mount
Art:
ACE145P2TB5-37.5 Copied
0.32Δ / 0.18YA
230Δ / 400Y
37.5 rpm
18 W
4.1Nm
37:1
ACCE picture
230/400V 3 ph 3rpm 23.5Nm B3 mount
Art:
ACE72TB3-3 Copied
0.22Δ / 0.13YA
230Δ / 400Y
3 rpm
19 W
23.5Nm
900.5:1
ACCE picture
230/400V 3 ph 3rpm 23.5Nm B5 mount
Art:
ACE72TB5-3 Copied
0.22Δ / 0.13YA
230Δ / 400Y
3 rpm
19 W
23.5Nm
900.5:1
ACCE picture
230/400V 3 ph 4.7rpm 18.7Nm B3 mount
Art:
ACE66TB3-4.7 Copied
0.19Δ / 0.11YA
230Δ / 400Y
4.7 rpm
10 W
18.7Nm
293:1
ACCE picture
230/400V 3 ph 4.7rpm 18.7Nm B5 mount
Art:
ACE66TB5-4,7 Copied
0.19Δ / 0.11YA
230Δ / 400Y
4.7 rpm
10 W
18.7Nm
293:1
ACCE picture
230/400V 3 ph 42rpm 14.3Nm B3 mount
Art:
ACE320P2TB3-42 Copied
0.62Δ / 0.36YA
230Δ / 400Y
42 rpm
74 W
14.3Nm
66.6:1
ACCE picture
230/400V 3 ph 42rpm 14.3Nm B5 mount
Art:
ACE320P2TB5-42 Copied
0.62Δ / 0.36YA
230Δ / 400Y
42 rpm
74 W
14.3Nm
66.6:1
ACCE picture
230/400V 3 ph 42rpm 3.7Nm B3 mount
Art:
ACE72TB3-42 Copied
0.22Δ / 0.13YA
230Δ / 400Y
42 rpm
19 W
3.7Nm
66.6:1
ACCE picture
230/400V 3 ph 42rpm 3.7Nm B5 mount
Art:
ACE72TB5-42 Copied
0.22Δ / 0.13YA
230Δ / 400Y
42 rpm
19 W
3.7Nm
66.6:1
ACCE picture
230/400V 3 ph 42rpm 9.5Nm B3 mount
Art:
ACE244PTB3-42 Copied
0.52Δ / 0.30YA
230Δ / 400Y
42 rpm
49 W
9.5Nm
66.6:1
ACCE picture
230/400V 3 ph 42rpm 9.5Nm B5 mount
Art:
ACE244PTB5-42 Copied
0.52Δ / 0.30YA
230Δ / 400Y
42 rpm
49 W
9.5Nm
66.6:1
ACCE picture
230/400V 3 ph 5.4rpm 23.5Nm B3 mount
Art:
ACE72TB3-5.4 Copied
0.22Δ / 0.13YA
230Δ / 400Y
5.4 rpm
19 W
23.5Nm
511.4:1
ACCE picture
230/400V 3 ph 5.4rpm 23.5Nm B5 mount
Art:
ACE72TB5-5.4 Copied
0.22Δ / 0.13YA
230Δ / 400Y
5.4 rpm
19 W
23.5Nm
511.4:1
ACCE picture
230/400V 3 ph 55rpm 10.9Nm B3 mount
Art:
ACE320P2TB3-55 Copied
0.62Δ / 0.36YA
230Δ / 400Y
55 rpm
74 W
10.9Nm
50.8:1
ACCE picture
230/400V 3 ph 55rpm 10.9Nm B5 mount
Art:
ACE320P2TB5-55 Copied
0.62Δ / 0.36YA
230Δ / 400Y
55 rpm
74 W
10.9Nm
50.8:1
ACCE picture
230/400V 3 ph 55rpm 2.8Nm B3 mount
Art:
ACE72TB3-55 Copied
0.22Δ / 0.13YA
230Δ / 400Y
55 rpm
19 W
2.8Nm
50.8:1
ACCE picture
230/400V 3 ph 55rpm 2.8Nm B5 mount
Art:
ACE72TB5-55 Copied
0.22Δ / 0.13YA
230Δ / 400Y
55 rpm
19 W
2.8Nm
50.8:1
ACCE picture
230/400V 3 ph 55rpm 7.3Nm B3 mount
Art:
ACE244PTB3-55 Copied
0.52Δ / 0.30YA
230Δ / 400Y
55 rpm
49 W
7.3Nm
50.8:1
ACCE picture
230/400V 3 ph 55rpm 7.3Nm B5 mount
Art:
ACE244PTB5-55 Copied
0.52Δ / 0.30YA
230Δ / 400Y
55 rpm
49 W
7.3Nm
50.8:1
ACCE picture
230/400V 3 ph 6.5rpm 13.6Nm B3 mount
Art:
ACE66TB3-6.5 Copied
0.19Δ / 0.11YA
230Δ / 400Y
6.5 rpm
10 W
13.6Nm
213:1
ACCE picture
230/400V 3 ph 6.5rpm 13.6Nm B5 mount
Art:
ACE66TB5-6.5 Copied
0.19Δ / 0.11YA
230Δ / 400Y
6.5 rpm
10 W
13.6Nm
213:1
ACCE picture
230/400V 3 ph 6.5rpm 18.7Nm B3 mount
Art:
ACE110PTB3-6.5 Copied
0.25Δ / 0.14YA
230Δ / 400Y
6.5 rpm
14 W
18.7Nm
213:1
ACCE picture
230/400V 3 ph 6.5rpm 18.7Nm B5 mount
Art:
ACE110PTB5-6.5 Copied
0.25Δ / 0.14YA
230Δ / 400Y
6.5 rpm
14 W
18.7Nm
213:1
ACCE picture
230/400V 3 ph 6.5rpm 23.5Nm B3 mount
Art:
ACE145P2TB3-6.5 Copied
0.32Δ / 0.18YA
230Δ / 400Y
6.5 rpm
18 W
23.5Nm
213:1
ACCE picture
230/400V 3 ph 7.2rpm 21.4Nm B3 mount
Art:
ACE72TB3-7.2 Copied
0.22Δ / 0.13YA
230Δ / 400Y
7.2 rpm
19 W
21.4Nm
383.6:1
ACCE picture
230/400V 3 ph 7.2rpm 21.4Nm B5 mount
Art:
ACE72TB5-7.2 Copied
0.22Δ / 0.13YA
230Δ / 400Y
7.2 rpm
19 W
21.4Nm
383.6:1
ACCE picture
230/400V 3 ph 75rpm 2Nm B3 mount
Art:
ACE72TB3-75 Copied
0.22Δ / 0.13YA
230Δ / 400Y
75 rpm
19 W
2Nm
37:1
ACCE picture
230/400V 3 ph 75rpm 2Nm B5 mount
Art:
ACE72TB5-75 Copied
0.22Δ / 0.13YA
230Δ / 400Y
75 rpm
19 W
2Nm
37:1
ACCE picture
230/400V 3 ph 75rpm 5.3Nm B3 mount
Art:
ACE244PTB3-75 Copied
0.52Δ / 0.30YA
230Δ / 400Y
75 rpm
49 W
5.3Nm
37:1
ACCE picture
230/400V 3 ph 75rpm 5.3Nm B5 mount
Art:
ACE244PTB5-75 Copied
0.52Δ / 0.30YA
230Δ / 400Y
75 rpm
49 W
5.3Nm
37:1
ACCE picture
230/400V 3 ph 75rpm 7.9Nm B3 mount
Art:
ACE320P2TB3-75 Copied
0.62Δ / 0.36YA
230Δ / 400Y
75 rpm
74 W
7.9Nm
37:1
ACCE picture
230/400V 3 ph 75rpm 7.9Nm B5 mount
Art:
ACE320P2TB5-75 Copied
0.62Δ / 0.36YA
230Δ / 400Y
75 rpm
74 W
7.9Nm
37:1
ACCE picture
230/400V 3 ph 8.7rpm 10.2Nm B3 mount
Art:
ACE66TB3-8.7 Copied
0.19Δ / 0.11YA
230Δ / 400Y
8.7 rpm
10 W
10.2Nm
159.8:1
ACCE picture
230/400V 3 ph 8.7rpm 10.2Nm B5 mount
Art:
ACE66TB5-8.7 Copied
0.19Δ / 0.11YA
230Δ / 400Y
8.7 rpm
10 W
10.2Nm
159.8:1
ACCE picture
230/400V 3 ph 8.7rpm 14Nm B3 mount
Art:
ACE110PTB3-8.7 Copied
0.25Δ / 0.14YA
230Δ / 400Y
8.7 rpm
14 W
14Nm
159.8:1
ACCE picture
230/400V 3 ph 8.7rpm 14Nm B5 mount
Art:
ACE110PTB5-8.7 Copied
0.25Δ / 0.14YA
230Δ / 400Y
8.7 rpm
14 W
14Nm
159.8:1
ACCE picture
230/400V 3 ph 8.7rpm 17.9Nm B3 mount
Art:
ACE145P2TB3-8.7 Copied
0.32Δ / 0.18YA
230Δ / 400Y
8.7 rpm
18 W
17.9Nm
159.8:1
ACCE picture
230/400V 3 ph 8.7rpm 17.9Nm B5 mount
Art:
ACE145P2TB5-8.7 Copied
0.32Δ / 0.18YA
230Δ / 400Y
8.7 rpm
18 W
17.9Nm
159.8:1
ACCE picture
230/400V 3 ph 9.5rpm 16.4Nm B3 mount
Art:
ACE72TB3-9,5 Copied
0.22Δ / 0.13YA
230Δ / 400Y
9.5 rpm
19 W
16.4Nm
293:1
ACCE picture
230/400V 3 ph 9.5rpm 16.4Nm B5 mount
Art:
ACE72TB5-9.5 Copied
0.22Δ / 0.13YA
230Δ / 400Y
9.5 rpm
19 W
16.4Nm
293:1
ACCE picture
230V 1 ph 0.6rpm 23.5Nm B3 mount
Art:
ACE44B3-0.6 Copied
0.26A
3.15μF
230V
0.6 rpm
11 W
23.5Nm
2209.5:1
ACCE picture
230V 1 ph 0.6rpm 23.5Nm B5 mount
Art:
ACE44B5-0.6 Copied
0.26A
3.15μF
230V
0.6 rpm
11 W
23.5Nm
2209.5:1
ACCE picture
230V 1 ph 0.8rpm 23.5Nm B3 mount
Art:
ACE44B3-0.8 Copied
0.26A
3.15μF
230V
0.8 rpm
11 W
23.5Nm
1687.5:1
ACCE picture
230V 1 ph 0.8rpm 23.5Nm B5 mount
Art:
ACE44B5-0.8 Copied
0.26A
3.15μF
230V
0.8 rpm
11 W
23.5Nm
1687.5:1
ACCE picture
230V 1 ph 1.1rpm 23.5Nm B3 mount
Art:
ACE44B3-1.1 Copied
0.26A
3.15μF
230V
1.1 rpm
11 W
23.5Nm
1227.5:1
ACCE picture
230V 1 ph 1.1rpm 23.5Nm B5 mount
Art:
ACE44B5-1.1 Copied
0.26A
3.15μF
230V
1.1 rpm
11 W
23.5Nm
1227.5:1
ACCE picture
230V 1 ph 1.2rpm 23.5Nm B3 mount
Art:
ACE66B3-1.2 Copied
0.34A
2.5μF
230V
1.2 rpm
27 W
23.5Nm
2209.5:1
ACCE picture
230V 1 ph 1.2rpm 23.5Nm B5 mount
Art:
ACE66B5-1.2 Copied
0.34A
2.5μF
230V
1.2 rpm
27 W
23.5Nm
2209.5:1
ACCE picture
230V 1 ph 1.5rpm 23.5Nm B3 mount
Art:
ACE44B3-1.5 Copied
0.26A
3.15μF
230V
1.5 rpm
11 W
23.5Nm
920.5:1
ACCE picture
230V 1 ph 1.5rpm 23.5Nm B5 mount
Art:
ACE44B5-1.5 Copied
0.26A
3.15μF
230V
1.5 rpm
11 W
23.5Nm
920.5:1
ACCE picture
230V 1 ph 1.6rpm 23.5Nm B3 mount
Art:
ACE66B3-1.6 Copied
0.34A
2.5μF
230V
1.6 rpm
27 W
23.5Nm
1687.5:1
ACCE picture
230V 1 ph 1.6rpm 23.5Nm B5 mount
Art:
ACE66B5-1.6 Copied
0.34A
2.5μF
230V
1.6 rpm
27 W
23.5Nm
1687.5:1
ACCE picture
230V 1 ph 1.9rpm 23.5Nm B3 mount
Art:
ACE44B3-1.9 Copied
0.26A
3.15μF
230V
1.9 rpm
11 W
23.5Nm
703:1
ACCE picture
230V 1 ph 1.9rpm 23.5Nm B5 mount
Art:
ACE44B5-1.9 Copied
0.26A
3.15μF
230V
1.9 rpm
11 W
23.5Nm
703:1
ACCE picture
230V 1 ph 11.4rpm 11.7Nm B3 mount
Art:
ACE80PB3-11.4 Copied
0.33A
4μF
230V
11.4 rpm
15 W
11.7Nm
122.1:1
ACCE picture
230V 1 ph 11.4rpm 11.7Nm B5 mount
Art:
ACE80PB5-11.4 Copied
0.33A
4μF
230V
11.4 rpm
15 W
11.7Nm
122.1:1
ACCE picture
230V 1 ph 11.4rpm 11.7Nm B5 mount
Art:
ACE80PB5-6.5 Copied
0.33A
4μF
230V
6.5 rpm
15 W
11.7Nm
213:1
ACCE picture
230V 1 ph 11.4rpm 14.6Nm B3 mount
Art:
ACE110P2B3-11.4 Copied
0.41A
5μF
230V
11.4 rpm
19 W
14.6Nm
122.1:1
ACCE picture
230V 1 ph 11.4rpm 14.6Nm B5 mount
Art:
ACE110P2B5-11.4 Copied
0.41A
5μF
230V
11.4 rpm
19 W
14.6Nm
122.1:1
ACCE picture
230V 1 ph 11.4rpm 8.7Nm B3 mount
Art:
ACE44B3-11.4 Copied
0.26A
3.15μF
230V
11.4 rpm
11 W
8.7Nm
122.1:1
ACCE picture
230V 1 ph 11.4rpm 8.7Nm B5 mount
Art:
ACE44B5-11.4 Copied
0.26A
3.15μF
230V
11.4 rpm
11 W
8.7Nm
122.1:1
ACCE picture
230V 1 ph 13rpm 17Nm B3 mount
Art:
ACE66B3-13 Copied
0.34A
2.5μF
230V
13 rpm
27 W
17Nm
213:1
ACCE picture
230V 1 ph 13rpm 17Nm B5 mount
Art:
ACE66B5-13 Copied
0.34A
2.5μF
230V
13 rpm
27 W
17Nm
213:1
ACCE picture
230V 1 ph 13rpm 22.1Nm B3 mount
Art:
ACE100PB3-13 Copied
0.41A
3.15μF
230V
13 rpm
35 W
22.1Nm
213:1
ACCE picture
230V 1 ph 13rpm 22.1Nm B5 mount
Art:
ACE100PB5-13 Copied
0.41A
3.15μF
230V
13 rpm
35 W
22.1Nm
213:1
ACCE picture
230V 1 ph 15.7rpm 10.6Nm B3 mount
Art:
ACE110P2B3-15.7 Copied
0.41A
5μF
230V
15.7 rpm
19 W
10.6Nm
88.8:1
ACCE picture
230V 1 ph 15.7rpm 10.6Nm B5 mount
Art:
ACE110P2B5-15.7 Copied
0.41A
5μF
230V
15.7 rpm
19 W
10.6Nm
88.8:1
ACCE picture
230V 1 ph 15.7rpm 6.3Nm B3 mount
Art:
ACE44B3-15.7 Copied
0.26A
3.15μF
230V
15.7 rpm
11 W
6.3Nm
88.8:1
ACCE picture
230V 1 ph 15.7rpm 6.3Nm B5 mount
Art:
ACE44B5-15.7 Copied
0.26A
3.15μF
230V
15.7 rpm
11 W
6.3Nm
88.8:1
ACCE picture
230V 1 ph 15.7rpm 8.5Nm B3 mount
Art:
ACE80PB3-15.7 Copied
0.33A
4μF
230V
15.7 rpm
15 W
8.5Nm
88.8:1
ACCE picture
230V 1 ph 15.7rpm 8.5Nm B5 mount
Art:
ACE80PB5-15.7 Copied
0.33A
4μF
230V
15.7 rpm
15 W
8.5Nm
88.8:1
ACCE picture
230V 1 ph 17.5rpm 12.7Nm B3 mount
Art:
ACE66B3-17.5 Copied
0.34A
2.5μF
230V
17.5 rpm
27 W
12.7Nm
159.6:1
ACCE picture
230V 1 ph 17.5rpm 12.7Nm B5 mount
Art:
ACE66B5-17.5 Copied
0.34A
2.5μF
230V
17.5 rpm
27 W
12.7Nm
159.6:1
ACCE picture
230V 1 ph 17.5rpm 16.8Nm B3 mount
Art:
ACE100PB3-17.5 Copied
0.41A
3.15μF
230V
17.5 rpm
35 W
16.8Nm
159.8:1
ACCE picture
230V 1 ph 17.5rpm 16.8Nm B5 mount
Art:
ACE100PB5-17.5 Copied
0.41A
3.15μF
230V
17.5 rpm
35 W
16.8Nm
159.8:1
ACCE picture
230V 1 ph 17.5rpm 23.5Nm B3 mount
Art:
ACE160P2B3-17.5 Copied
0.54A
4μF
230V
17.5 rpm
60 W
23.5Nm
159.8:1
ACCE picture
230V 1 ph 17.5rpm 23.5Nm B5 mount
Art:
ACE160P2B5-17.5 Copied
0.54A
4μF
230V
17.5 rpm
60 W
23.5Nm
159.8:1
ACCE picture
230V 1 ph 2.2rpm 23.5Nm B3 mount
Art:
ACE66B3-2.2 Copied
0.34A
2.5μF
230V
2.2 rpm
27 W
23.5Nm
1227.5:1
ACCE picture
230V 1 ph 2.2rpm 23.5Nm B5 mount
Art:
ACE66B5-2.2 Copied
0.34A
2.5μF
230V
2.2 rpm
27 W
23.5Nm
1227.5:1
ACCE picture
230V 1 ph 2.7rpm 23.5Nm B3 mount
Art:
ACE44B3-2.7 Copied
0.26A
3.15μF
230V
2.7 rpm
11 W
23.5Nm
511.4:1
ACCE picture
230V 1 ph 2.7rpm 23.5Nm B5 mount
Art:
ACE44B5-2.7 Copied
0.26A
3.15μF
230V
2.7 rpm
11 W
23.5Nm
511.4:1
ACCE picture
230V 1 ph 21rpm 4.7Nm B3 mount
Art:
ACE44B3-21 Copied
0.26A
3.15μF
230V
21 rpm
11 W
4.7Nm
66.6:1
ACCE picture
230V 1 ph 21rpm 4.7Nm B5 mount
Art:
ACE44B5-21 Copied
0.26A
3.15μF
230V
21 rpm
11 W
4.7Nm
66.6:1
ACCE picture
230V 1 ph 21rpm 6.3Nm B3 mount
Art:
ACE80PB3-21 Copied
0.33A
4μF
230V
21 rpm
15 W
6.3Nm
66.6:1
ACCE picture
230V 1 ph 21rpm 6.3Nm B5 mount
Art:
ACE80PB5-21 Copied
0.33A
4μF
230V
21 rpm
15 W
6.3Nm
66.6:1
ACCE picture
230V 1 ph 21rpm 7.9Nm B3 mount
Art:
ACE110P2B3-21 Copied
0.41A
5μF
230V
21 rpm
19 W
7.9Nm
66.6:1
ACCE picture
230V 1 ph 21rpm 7.9Nm B5 mount
Art:
ACE110P2B5-21 Copied
0.41A
5μF
230V
21 rpm
19 W
7.9Nm
66.6:1
ACCE picture
230V 1 ph 22.9rpm 12.7Nm B3 mount
Art:
ACE100PB3-22.9 Copied
0.41A
3.15μF
230V
22.9 rpm
35 W
12.7Nm
122.1:1
ACCE picture
230V 1 ph 22.9rpm 12.7Nm B5 mount
Art:
ACE100PB5-22.9 Copied
0.41A
3.15μF
230V
22.9 rpm
35 W
12.7Nm
122.1:1
ACCE picture
230V 1 ph 22.9rpm 21.4Nm B3 mount
Art:
ACE160P2B3-22.9 Copied
0.54A
4μF
230V
22.9 rpm
60 W
21.4Nm
122.1:1
ACCE picture
230V 1 ph 22.9rpm 21.4Nm B5 mount
Art:
ACE160P2B5-22.9 Copied
0.54A
4μF
230V
22.9 rpm
60 W
21.4Nm
122.1:1
ACCE picture
230V 1 ph 22.9rpm 9.7Nm B3 mount
Art:
ACE66B3-22.9 Copied
0.34A
2.5μF
230V
22.9 rpm
27 W
9.7Nm
122.1:1
ACCE picture
230V 1 ph 22.9rpm 9.7Nm B5 mount
Art:
ACE66B5-22.9 Copied
0.34A
2.5μF
230V
22.9 rpm
27 W
9.7Nm
122.1:1
ACCE picture
230V 1 ph 27.5rpm 3.6Nm B3 mount
Art:
ACE44B3-27.5 Copied
0.26A
3.15μF
230V
27.5 rpm
11 W
3.6Nm
50.8:1
ACCE picture
230V 1 ph 27.5rpm 3.6Nm B5 mount
Art:
ACE44B5-27.5 Copied
0.26A
3.15μF
230V
27.5 rpm
11 W
3.6Nm
50.8:1
ACCE picture
230V 1 ph 27.5rpm 4.8Nm B3 mount
Art:
ACE80PB3-27.5 Copied
0.33A
4μF
230V
27.5 rpm
15 W
4.8Nm
50.8:1
ACCE picture
230V 1 ph 27.5rpm 4.8Nm B5 mount
Art:
ACE80PB5-27.5 Copied
0.33A
4μF
230V
27.5 rpm
15 W
4.8Nm
50.8:1
ACCE picture
230V 1 ph 27.5rpm 6.1Nm B3 mount
Art:
ACE110P2B3-27.5 Copied
0.41A
5μF
230V
27.5 rpm
19 W
6.1Nm
50.8:1
ACCE picture
230V 1 ph 27.5rpm 6.1Nm B5 mount
Art:
ACE110P2B5-27.5 Copied
0.41A
5μF
230V
27.5 rpm
19 W
6.1Nm
50.8:1
ACCE picture
230V 1 ph 3.6rpm 23.5Nm B3 mount
Art:
ACE44B3-3.6 Copied
0.26A
3.15μF
230V
3.6 rpm
11 W
23.5Nm
383.6:1
ACCE picture
230V 1 ph 3.6rpm 23.5Nm B5 mount
Art:
ACE44B5-3.6 Copied
0.26A
3.15μF
230V
3.6 rpm
11 W
23.5Nm
383.6:1
ACCE picture
230V 1 ph 3.9rpm 23.5Nm B3 mount
Art:
ACE66B3-3.9 Copied
0.34A
2.5μF
230V
3.9 rpm
27 W
23.5Nm
703:1
ACCE picture
230V 1 ph 3.9rpm 23.5Nm B5 mount
Art:
ACE66B5-3.9 Copied
0.34A
2.5μF
230V
3.9 rpm
27 W
23.5Nm
703:1
ACCE picture
230V 1 ph 31.5rpm 15.6Nm B3 mount
Art:
ACE160P2B3-31.5 Copied
0.54A
4μF
230V
31.5 rpm
60 W
15.6Nm
88.8:1
ACCE picture
230V 1 ph 31.5rpm 15.6Nm B5 mount
Art:
ACE160P2B5-31.5 Copied
0.54A
4μF
230V
31.5 rpm
60 W
15.6Nm
88.8:1
ACCE picture
230V 1 ph 31.5rpm 7.1Nm B3 mount
Art:
ACE66B3-31.5 Copied
0.34A
2.5μF
230V
31.5 rpm
27 W
7.1Nm
88.8:1
ACCE picture
230V 1 ph 31.5rpm 7.1Nm B5 mount
Art:
ACE66B5-31.5 Copied
0.34A
2.5μF
230V
31.5 rpm
27 W
7.1Nm
88.8:1
ACCE picture
230V 1 ph 31.5rpm 9.2Nm B3 mount
Art:
ACE100PB3-31.5 Copied
0.41A
3.15μF
230V
31.5 rpm
35 W
9.2Nm
88.8:1
ACCE picture
230V 1 ph 31.5rpm 9.2Nm B5 mount
Art:
ACE100PB5-31.5 Copied
0.41A
3.15μF
230V
31.5 rpm
35 W
9.2Nm
88.8:1
ACCE picture
230V 1 ph 37.5rpm 2.5Nm B3 mount
Art:
ACE44B3-37.5 Copied
0.26A
3.15μF
230V
37.5 rpm
11 W
2.5Nm
37:1
ACCE picture
230V 1 ph 37.5rpm 2.5Nm B5 mount
Art:
ACE44B5-37.5 Copied
0.26A
3.15μF
230V
37.5 rpm
11 W
2.5Nm
37:1
ACCE picture
230V 1 ph 37.5rpm 4.4Nm B3 mount
Art:
ACE110P2B3-37.5 Copied
0.41A
5μF
230V
37.5 rpm
19 W
4.4Nm
37:1
ACCE picture
230V 1 ph 37.5rpm 4.4Nm B5 mount
Art:
ACE110P2B5-37.5 Copied
0.41A
5μF
230V
37.5 rpm
19 W
4.4Nm
37:1
ACCE picture
230V 1 ph 3rpm 23.5Nm B3 mount
Art:
ACE66B3-3 Copied
0.34A
2.5μF
230V
3 rpm
27 W
23.5Nm
920.5:1
ACCE picture
230V 1 ph 3rpm 23.5Nm B5 mount
Art:
ACE66B5-3 Copied
0.34A
2.5μF
230V
3 rpm
27 W
23.5Nm
920.5:1
ACCE picture
230V 1 ph 4.7rpm 21.1Nm B3 mount
Art:
ACE44B3-4.7 Copied
0.26A
3.15μF
230V
4.7 rpm
11 W
21.1Nm
293:1
ACCE picture
230V 1 ph 4.7rpm 21.1Nm B5 mount
Art:
ACE44B5-4.7 Copied
0.26A
3.15μF
230V
4.7 rpm
11 W
21.1Nm
293:1
ACCE picture
230V 1 ph 42rpm 11.7Nm B3 mount
Art:
ACE160P2B3-42 Copied
0.54A
4μF
230V
42 rpm
60 W
11.7Nm
66.6:1
ACCE picture
230V 1 ph 42rpm 11.7Nm B5 mount
Art:
ACE160P2B5-42 Copied
0.54A
4μF
230V
42 rpm
60 W
11.7Nm
66.6:1
ACCE picture
230V 1 ph 42rpm 5.3Nm B3 mount
Art:
ACE66B3-42 Copied
0.34A
2.5μF
230V
42 rpm
27 W
5.3Nm
66.6:1
ACCE picture
230V 1 ph 42rpm 5.3Nm B5 mount
Art:
ACE66B5-42 Copied
0.34A
2.5μF
230V
42 rpm
27 W
5.3Nm
66.6:1
ACCE picture
230V 1 ph 42rpm 6.9Nm B3 mount
Art:
ACE100PB3-42 Copied
0.41A
3.15μF
230V
42 rpm
35 W
6.9Nm
66.6:1
ACCE picture
230V 1 ph 42rpm 6.9Nm B5 mount
Art:
ACE100PB5-42 Copied
0.41A
3.15μF
230V
42 rpm
35 W
6.9Nm
66.6:1
ACCE picture
230V 1 ph 5.4rpm 23.5Nm B3 mount
Art:
ACE66B3-5.4 Copied
0.34A
2.5μF
230V
5.4 rpm
27 W
23.5Nm
511.4:1
ACCE picture
230V 1 ph 5.4rpm 23.5Nm B5 mount
Art:
ACE66B5-5.4 Copied
0.34A
2.5μF
230V
5.4 rpm
27 W
23.5Nm
511.4:1
ACCE picture
230V 1 ph 55rpm 4Nm B5 mount
Art:
ACE66B5-55 Copied
0.34A
2.5μF
230V
55 rpm
27 W
4Nm
50.8:1
ACCE picture
230V 1 ph 55rpm 5.2Nm B3 mount
Art:
ACE100PB3-55 Copied
0.41A
3.15μF
230V
55 rpm
35 W
5.2Nm
50.8:1
ACCE picture
230V 1 ph 55rpm 5.2Nm B5 mount
Art:
ACE100PB5-55 Copied
0.41A
3.15μF
230V
55 rpm
35 W
5.2Nm
50.8:1
ACCE picture
230V 1 ph 55rpm 8.9Nm B3 mount
Art:
ACE160P2B3-55 Copied
0.54A
4μF
230V
55 rpm
60 W
8.9Nm
50.8:1
ACCE picture
230V 1 ph 55rpm 8.9Nm B5 mount
Art:
ACE160P2B5-55 Copied
0.54A
4μF
230V
55 rpm
60 W
8.9Nm
50.8:1
ACCE picture
230V 1 ph 6.5rpm 15.3Nm B3 mount
Art:
ACE44B3-6.5 Copied
0.26A
3.15μF
230V
6.5 rpm
11 W
15.3Nm
213:1
ACCE picture
230V 1 ph 6.5rpm 15.3Nm B5 mount
Art:
ACE44B5-6.5 Copied
0.26A
3.15μF
230V
6.5 rpm
11 W
15.3Nm
213:1
ACCE picture
230V 1 ph 6.5rpm 20.4Nm B3 mount
Art:
ACE80PB3-6.5 Copied
0.33A
4μF
230V
6.5 rpm
15 W
20.4Nm
213:1
ACCE picture
230V 1 ph 6.5rpm 20.4Nm B5 mount
Art:
ACE80PB5-37.5 Copied
0.33A
4μF
230V
37.5 rpm
15 W
20.4Nm
37:1
ACCE picture
230V 1 ph 7.2rpm 23.5Nm B3 mount
Art:
ACE66B3-.7.2 Copied
0.34A
2.5μF
230V
7.2 rpm
27 W
23.5Nm
383.6:1
ACCE picture
230V 1 ph 7.2rpm 23.5Nm B5 mount
Art:
ACE66B5-7.2 Copied
0.34A
2.5μF
230V
7.2 rpm
27 W
23.5Nm
383.6:1
ACCE picture
230V 1 ph 75rpm 2.9Nm B3 mount
Art:
ACE66B3-75 Copied
0.34A
2.5μF
230V
75 rpm
27 W
2.9Nm
37:1
ACCE picture
230V 1 ph 75rpm 2.9Nm B5 mount
Art:
ACE66B5-75 Copied
0.34A
2.5μF
230V
75 rpm
27 W
2.9Nm
37:1
ACCE picture
230V 1 ph 75rpm 2Nm B3 mount
Art:
ACE100PB3-75 Copied
0.41A
3.15μF
230V
75 rpm
35 W
2Nm
37:1
ACCE picture
230V 1 ph 75rpm 2Nm B5 mount
Art:
ACE100PB5-75 Copied
0.41A
3.15μF
230V
75 rpm
35 W
2Nm
37:1
ACCE picture
230V 1 ph 75rpm 6.5Nm B3 mount
Art:
ACE160P2B3-75 Copied
0.54A
4μF
230V
75 rpm
60 W
6.5Nm
37:1
ACCE picture
230V 1 ph 75rpm 6.5Nm B5 mount
Art:
ACE160P2B5-75 Copied
0.54A
4μF
230V
75 rpm
60 W
6.5Nm
37:1
ACCE picture
230V 1 ph 8.7rpm 11.5Nm B3 mount
Art:
ACE44B3-8.7 Copied
0.26A
3.15μF
230V
8.7 rpm
11 W
11.5Nm
159.8:1
ACCE picture
230V 1 ph 8.7rpm 11.5Nm B5 mount
Art:
ACE44B5-8.7 Copied
0.26A
3.15μF
230V
8.7 rpm
11 W
11.5Nm
159.8:1
ACCE picture
230V 1 ph 8.7rpm 15.3Nm B3 mount
Art:
ACE80PB3-8.7 Copied
0.33A
4μF
230V
8.7 rpm
15 W
15.3Nm
159.8:1
ACCE picture
230V 1 ph 8.7rpm 15.3Nm B5 mount
Art:
ACE80PB5-8.7 Copied
0.33A
4μF
230V
8.7 rpm
15 W
15.3Nm
159.8:1
ACCE picture
230V 1 ph 8.7rpm 19.1Nm B3 mount
Art:
ACE110P2B3-8.7 Copied
0.41A
5μF
230V
8.7 rpm
19 W
19.1Nm
159.8:1
ACCE picture
230V 1 ph 8.7rpm 19.1Nm B5 mount
Art:
ACE110P2B5-8.7 Copied
0.41A
5μF
230V
8.7 rpm
19 W
19.1Nm
159.8:1
ACCE picture
230V 1 ph 9.5rpm 23.4Nm B3 mount
Art:
ACE66B3-9.5 Copied
0.34A
2.5μF
230V
9.5 rpm
27 W
23.4Nm
293:1
ACCE picture
230V 1 ph 9.5rpm 23.4Nm B5 mount
Art:
ACE66B5-9.5 Copied
0.34A
2.5μF
230V
9.5 rpm
27 W
23.4Nm
293:1

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
