Smart Cameras
Zebra Machine Vision & Barcode Reading Solutions
Industrial Barcode Readers, Smart Cameras and Vision Software
Zebra’s machine vision and fixed industrial scanning range helps manufacturers improve traceability, automate inspection and strengthen quality control. From 1D and 2D barcode reading to OCR, label verification, defect detection, AI inspection and multi-camera vision systems, Zebra provides scalable solutions for industrial automation.
OEM Automatic supports UK customers with product selection, application guidance, demonstrations and advice on the right combination of Zebra reader, smart camera, software, lighting, lens and processing hardware.
Speak to a Zebra Vision Specialist | Request a Demonstration | Send Us Your Application
Email us now: [email protected]
Zebra Product Range
FS Series Fixed Industrial Scanners
For 1D/2D barcode reading, direct part mark reading, production traceability, logistics scanning and PLC-connected identification applications.
VS Series Smart Cameras
All-in-one smart cameras for barcode reading, presence checks, OCR, label inspection, assembly verification and basic defect detection.
Iris GTX Smart Cameras
Edge-based smart cameras for higher-resolution inspection, deep learning inference, classification, measurement, object location and advanced quality control.
4Sight Vision Controllers
Industrial vision controllers for multi-camera inspection, high-speed processing, deep learning, robot guidance and complex automated inspection systems.
Aurora Machine Vision Software
Zebra Aurora software supports device configuration, smart-camera applications, visual flowchart programming, deep learning and code-level machine vision development. It includes Aurora Focus, Aurora Design Assistant, Aurora Vision Studio, Aurora Vision Deep Learning and Aurora Imaging Library.
Typical Applications
- Barcode reading and production traceability
- Direct part mark reading and serialisation
- OCR, OCV and label verification
- Presence, position and assembly checks
- Defect detection, measurement and classification
- Robot guidance and multi-camera inspection
Why Buy from OEM Automatic?
Choosing the right machine vision solution depends on code size, working distance, object movement, lighting, optics, communications and the installation environment. OEM Automatic’s UK machine vision team can help review your application, recommend suitable Zebra products and support feasibility discussions or demonstrations.
Need help selecting a Zebra barcode reader, smart camera or vision system? Speak to OEM Automatic’s machine vision specialists for product advice, demonstrations and application support. Email the vision team.
Zebra FS10 Code Reader
- Advanced Imaging Technology: PRZM Intelligent Imaging captures multiple images with varying settings for high performance and read rates
- High-Performance Specifications: 1.0 MP CMOS sensor (1280x800) captures images at 60 fps for rapid barcode capture
- Robust Environmental Protection: IP65-rated aluminum housing protects against dust, water, chemicals, and oils in harsh industrial settings
- Versatile Connectivity: USB 2.0 High-Speed Type-C connector ensures seamless integration with workstations, laptops, and tablets
- Comprehensive Decode Range: Supports barcode symbologies with decode ranges of 2 to 24 inches for 20 mil Code 128, ideal for inventory and fulfillment
Zebra FS20 Code Reader
- User-Friendly: Intuitive interface for easy navigation and quick deployment
- Versatile Scanning: Supports 1D, 2D, DPM barcodes, and OCR
- High Performance: 60 FPS capture with IP65/IP67 ratings for durability
- Upgradeable: Easily add features via software licenses
- IP Rating: IP65 and IP67 for enhanced protection against dust and water.
Zebra FS40 Code Reader
- High Performance Data Capture: The FS40 features Zebra’s PRZM Intelligent Imaging technology for reliable first-time data capture of 1D, 2D, and DPM barcodes, even on challenging surfacest
- Easy Setup and Operation: With Auto-Tune and Zebra Aurora software, the FS40 is easy to set up and deploy, offering quick image adjustments and simplified management of barcode scanning and machine vision functions
- Flexibility and Future-Proofing: The FS40 supports a wide range of symbologies and can be upgraded through software licenses for faster barcode capture or machine vision capabilities
- Integrated and Customizable Lighting: The scanner includes powerful, integrated lighting options—red, white, blue, or infrared—for capturing high-quality images, eliminating the need for external lighting
- Rugged Design: Built for industrial environments, the FS40 has an IP65/IP67 rating, is resistant to dust and water, and operates reliably in harsh conditions
Zebra FS42 Code Reader
- Integrated focus and lighting
- 2.3 Megapixel Resolution
- 3.0 μm Pixels
- 60 fps
Zebra FS70 Code Reader
- Easy Setup: The FS70 features Auto-Tune for automatic setup, ensuring consistent and reliable read rates with just one button press
- IoT Ready: It can send images to Zebra Savanna or other cloud services, facilitating compliance with industry regulations without the need for server management
- Power Options: Supports Power-over-Ethernet (PoE) for reduced setup complexity, and can also be powered via a standard 24V DC supply or USB-C
- Customizable Scanning: The FS70 supports various external C-mount lenses and lighting solutions, allowing for flexibility in addressing complex application requirements
- Robust Performance: With an operating temperature range of 32°F to 113°F and environmental sealing rated at IP65 and IP67, the FS70 is designed for durability in industrial settings

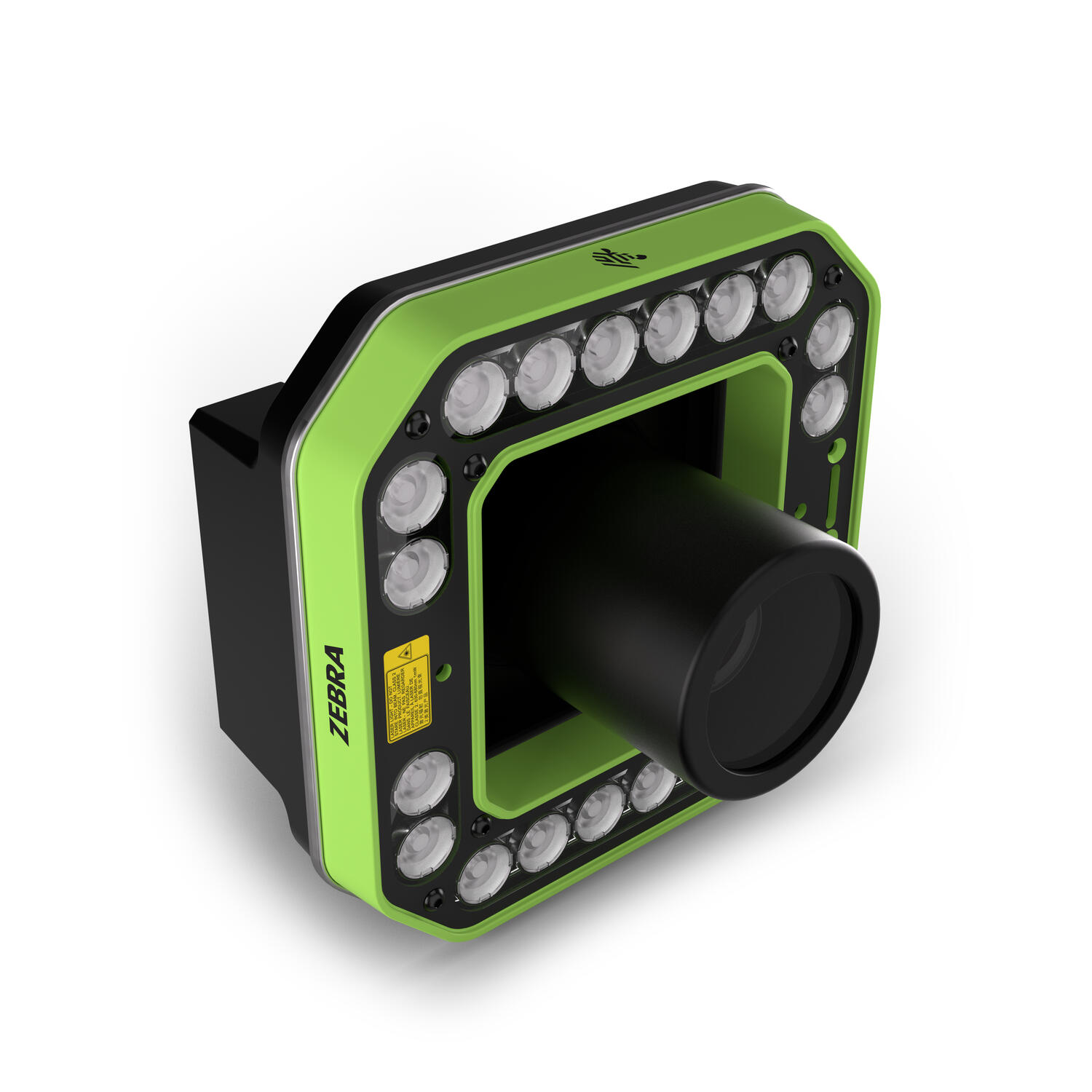

Zebra FS80 Code Reader
- Decoding of both 1D and 2D barcodes
- Can read barcodes in many conditions including damaged codes and codes on device screens
- Adjustable optics and illumination
Zebra VS20 Smart Camera
- User-Friendly Interface: Intuitive design with built-in tutorials for easy use.
- Superior Data Capture: PRZM technology ensures fast, reliable barcode capture for enhanced efficiency.
- ImagePerfect Feature: Captures multiple images of an item with varying settings for improved quality and read rates.
- Modular Architecture: Users can choose essential Machine Vision tools at purchase and upgrade later via software licenses for future adaptability.
- IP Rating: IP65 and IP67 for enhanced protection against dust and water.

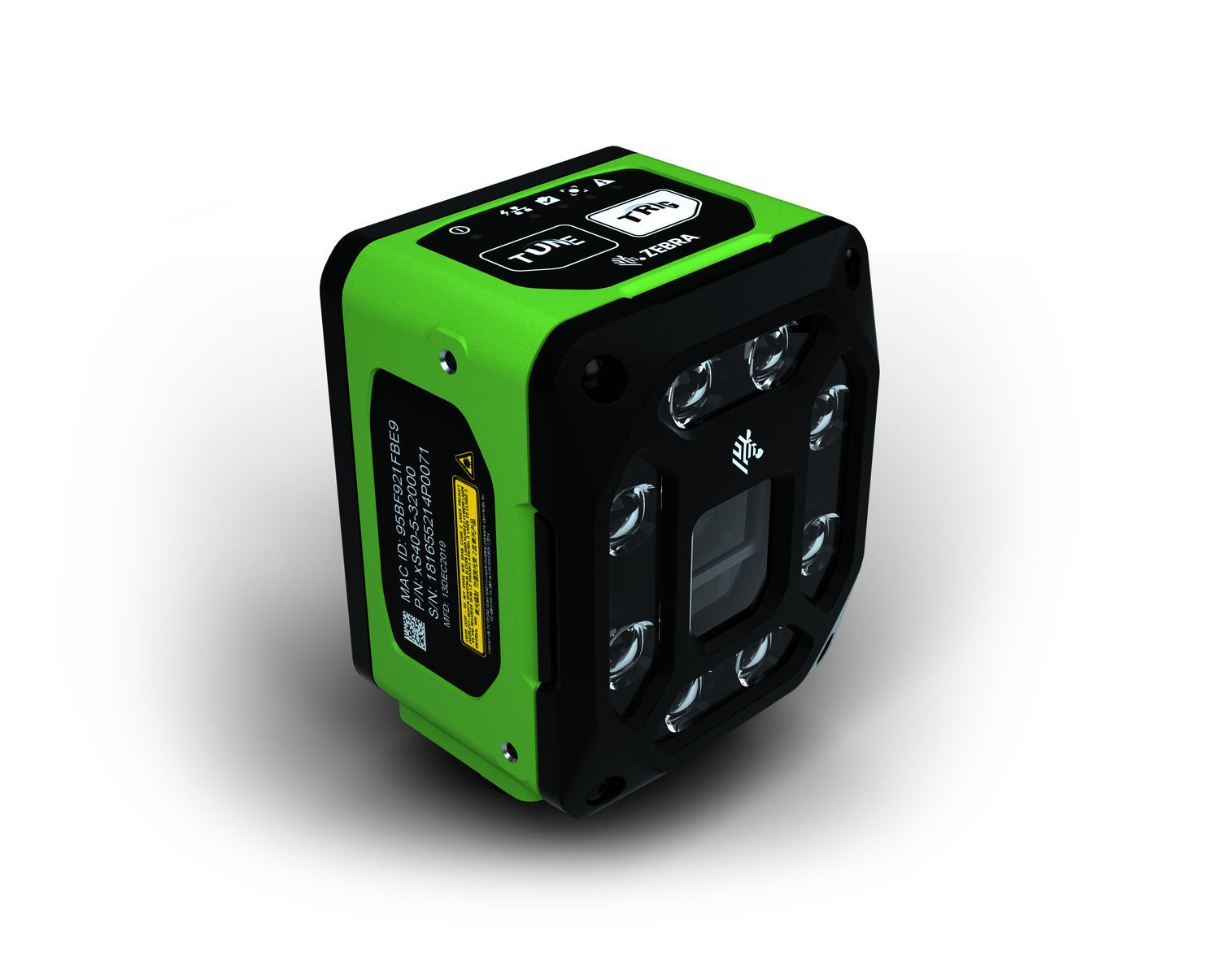

Zebra VS40 Smart Camera
- Ease of Setup with Auto-Tune: The VS40 offers a one-button Auto-Tune feature that simplifies setup, optimizing image quality for reliable inspections straight out of the box
- IoT and Cloud-Ready: Equipped to send data to Zebra’s Savanna™ cloud service, the VS40 supports compliance and image storage without requiring local server infrastructure
- Power Over Ethernet (PoE): The device can be powered via Ethernet, reducing setup complexity and removing the need for additional power supplies
- Integrated with Zebra Aurora: Managed by Zebra Aurora software, the VS40 allows users to control multiple machine vision and industrial scanner devices through a single platform, offering tools for experts and guidance for beginners
- Advanced Lighting and Optics: Featuring integrated, customizable lighting options (such as red, blue, and infrared LEDs) and a rugged, industrial-grade design, the VS40 achieves high-quality imaging suitable for challenging environments
Zebra VS70 Smart Camera
- Complete Customization with C-Mount Lens Support: The VS70 supports any C-mount external lens, allowing users to select specialized lenses for unique inspection needs
- Zebra Aurora Software Integration: Managed through Zebra Aurora, the VS70 provides a unified interface for setup, deployment, and operation, suitable for users of all experience levels
- Power Over Ethernet (PoE) Capability: PoE simplifies installation by powering the device over the network cable, reducing the need for separate power sources and making deployment easier
- Zebra Aurora Software Integration: Managed through Zebra Aurora, the VS70 provides a unified interface for setup, deployment, and operation, suitable for users of all experience levels with features like built-in tutorials and an intuitive interface
- ImagePerfect+ Technology for Precise Inspections: The VS70 captures up to 16 images in one trigger, each with unique settings, ensuring high-quality images for accurate inspections even in complex lighting or object positioning scenarios
Zebra NS42 Smart Camera
- Catches errors early
- Easy to set up
- Reliable and long lasting
- Status indicators and operator feedback
Zebra Iris GTX smart camera
- High-Performance Processing: Powered by an Intel Atom x6000 series processor, supporting fast, high-resolution image capture with deep learning capabilities for complex visual inspections
- Rugged Industrial Design: Compact, IP67-rated housing and robust M12 connectors make it suitable for demanding environments with dust, moisture, and extreme conditions
- Integrated Autofocus and Lighting Control: Features a Corning Varioptic auto-focus lens and LED lighting intensity control, allowing software-based adjustments to streamline setup and maintenance
- Comprehensive Connectivity: Equipped with Gigabit Ethernet, USB ports, VGA output, and real-time digital I/Os for seamless integration within automation systems
- User-Friendly Vision Software: Aurora Design Assistant provides a flowchart-based interface, enabling fast application development without coding for efficient machine vision deployment
Datasensing P3X Series Smart Camera
The Datasensing P3x Series smart cameras feature 5MP resolution, color and monochrome options and compatibility with P2x accessories. They are twice as fast as the P2x series
- qHD (960 x 540) 2MP (1920 x 1080) and 5MP(2560 x 1936) resolution imager available in Mono & Colour
- Micro-video (6, 8, 12.5 and 17.5 mm) or C-Mount
- -10 to 50 °C / 14 to 122 °F operating temperature, IP65/67 rating
- Powered by IMPACT software
- Add-on licenses to run even the most advanced Datasensing algorithms
Datasensing P2x series smart camera
The Datasensing P2x smart camera offers precise vision-guided robotics with advanced pattern matching and easy installation. Its compact design simplifies maintenance for industrial inspection
- qHD (960x540) or 2MP (1920x1080) resolutions
- Interchangable lenses(upto 7.5mm), illuminators(36 or 14LED) and filters
- Mono or colour CMOS image sensors
- Rotating connectors
- Powered by IMPACT software
