KOWA
Kowa's JC5M2 lens series is perfect for high-end applications that require the use of 5 megapixel cameras. With a fast F-stop, locking screws, and a compact design, these lenses provide a good value between price and performance. The JC5M2 lenses are compact, lightweight, and have a fast F-stop of F1.4.
| 5156_Pixel size min (µm) | 3.5 |
|---|---|
| Aperture range max (f) | 1.4 |
| Aperture range min | 16 |
| Distortion | -0.06 |
| Filter | 30.5 |
| Focal length | 12.5 mm |
| Focus distance min | 100 mm |
|---|---|
| Lens barrel | C-Mount |
| Resolution max | 5 MP |
| Sensor size max | 2/3" |
Kowa's JC5M2 lens series is perfect for high-end applications that require the use of 5 megapixel cameras. With a fast F-stop, locking screws, and a compact design, these lenses provide a good value between price and performance. The JC5M2 lenses are compact, lightweight, and have a fast F-stop of F1.4.
OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.
A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Aperture range max (f) | Distortion | Focal length | Focus distance min | Price | ||
|---|---|---|---|---|---|---|---|
5Megapixel, 12.5mm, F1.4, C-mount, manual iris
Art:
LM12JC5M2
Copied
|
1.4
|
-0.06
|
12.5 mm
|
100 mm
|
|
||
5Megapixel, 16mm, F1.4, C-mount, manual iris
Art:
LM16JC5M2
Copied
|
1.4
|
0.03
|
16 mm
|
100 mm
|
|
||
2/3", FL: 25mm, C-Mount, 3.5µm
Art:
LM25JC5M2
Copied
|
1.6
|
-0.01
|
25 mm
|
100 mm
|
|
||

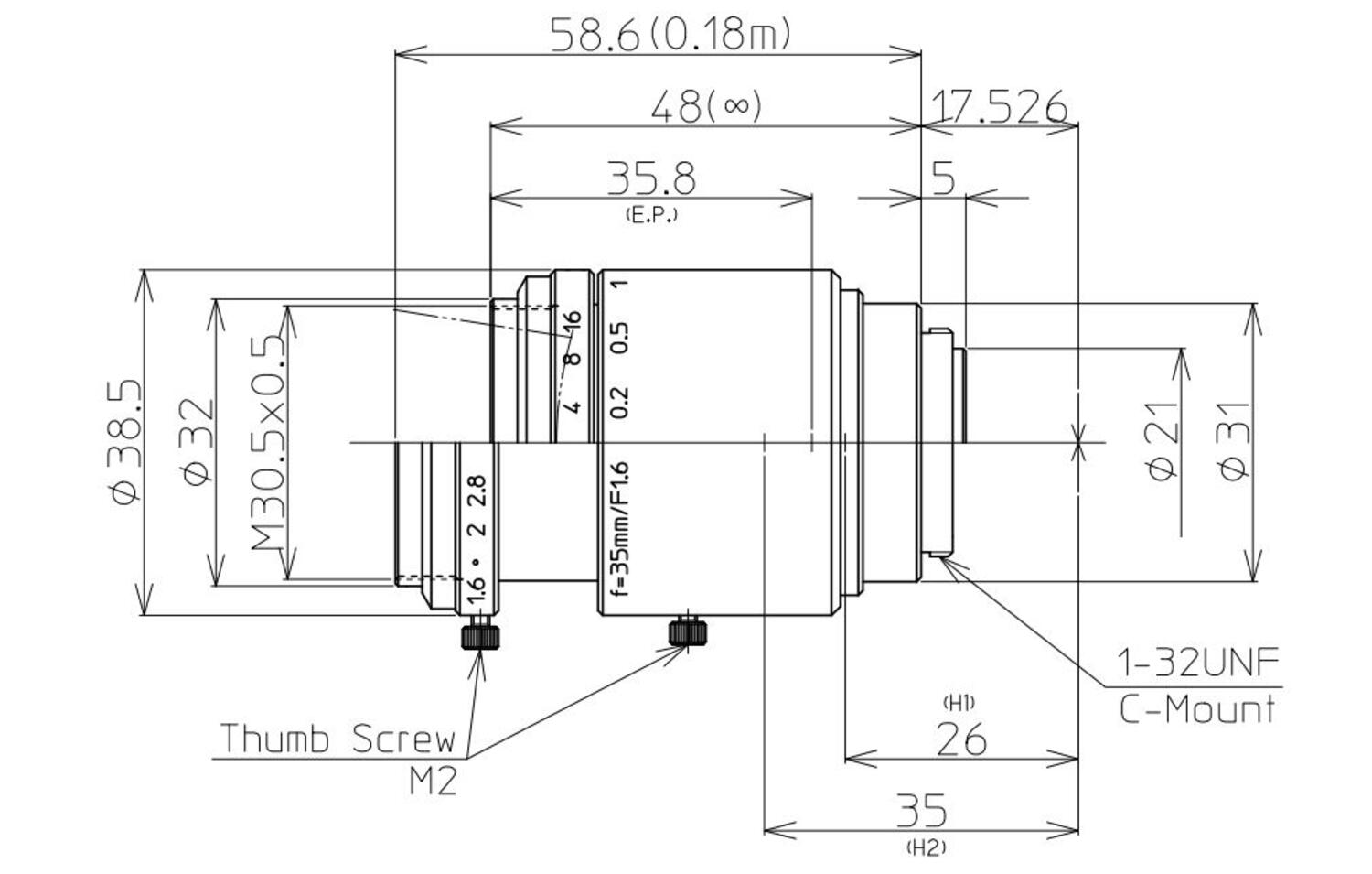

2/3", FL: 35mm, C-Mount, 3.5µm
Art:
LM35JC5M2
Copied
|
1.6
|
-0.03
|
35 mm
|
180 mm
|
|
Select a variant in the list
