BASLER
| Aperture range max (f) | 2.4 |
|---|---|
| Aperture range min | 16 |
| Focal length | 8 mm |
| Focus distance min | 100 mm |
| Iris | Manual iris |
| Lens Barrel | C-Mount |
| Pixel size min | 3.45 µm |
|---|---|
| Resolution max | 5 MP |
| Sensor size max | 2/3" |
| Type of lens | Fixed |
| Weight | 89.5 g |
Basler 2/3" Premium Fixed Focal Lenses are high-quality optics designed to maximise the performance of 2/3-inch image sensors, supporting resolutions up to 5 megapixels. These lenses offer fixed focal lengths ranging from 6 mm to 75 mm, with advanced optical designs that minimise distortion and chromatic aberrations, delivering sharp, high-contrast images from edge to edge. Featuring precision-engineered C-mount housings, manual iris control, and locking screws for both focus and aperture, they ensure stable and repeatable imaging in dynamic industrial environments. Their compact size and lightweight construction make them ideal for integration into space-constrained machine vision systems.
These premium lenses are well-suited for demanding applications such as electronics inspection, measurement systems, and high-speed production line monitoring. Their high resolution and optical clarity enable accurate defect detection and dimensional analysis in sectors like automotive, semiconductor, and medical device manufacturing. Additionally, their robust mechanical design ensures reliable performance in harsh environments where vibrations or temperature shifts could impact lesser optics. Whether used in static inspection setups or dynamic robotic systems, Basler 2/3" Premium Fixed Focal Lenses provide consistent, high-quality imaging essential for precision-focused machine vision tasks.
OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.
A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Aperture range max (f) | Focal length | Focus distance min | Weight | Price | ||
|---|---|---|---|---|---|---|---|

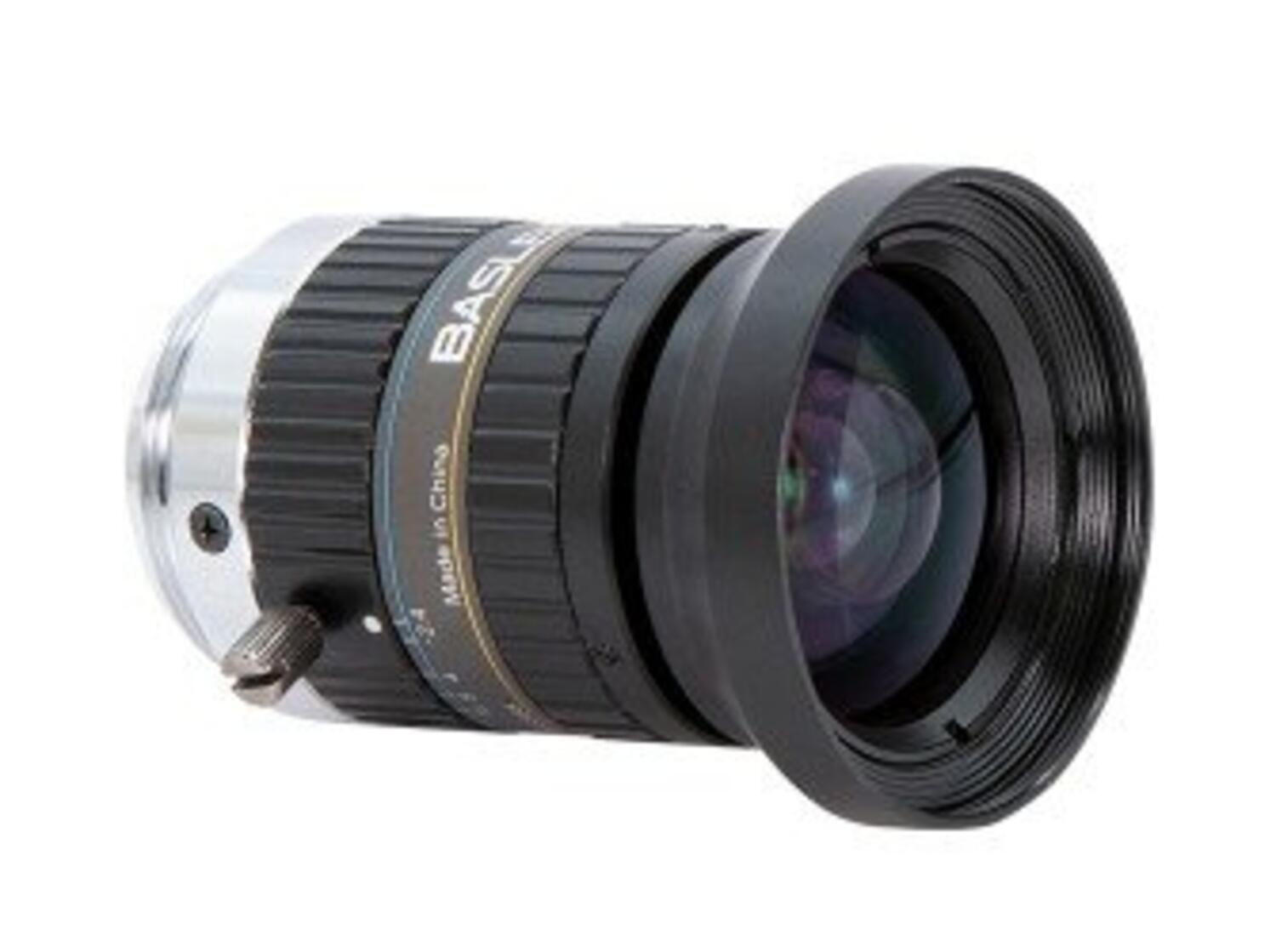

C23-0824-5M, 8mm, 2/3", C-Mount, 5MP
Art:
2200000568
Copied
|
2.4
|
8 mm
|
100 mm
|
89.5 g
|
|
||

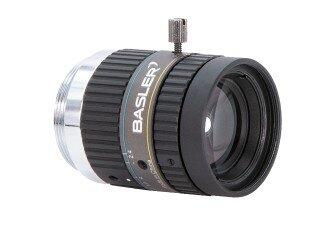

C23-1224-5M, 12mm, 2/3", C-Mount, 5MP
Art:
2200000569
Copied
|
2.4
|
12 mm
|
100 mm
|
71.1 g
|
|
||

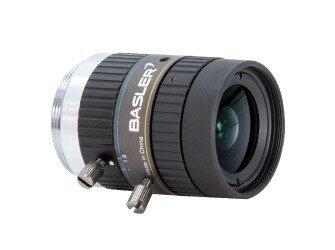

C23-1620-5M, 16mm, 2/3", C-Mount, 5MP
Art:
2200000570
Copied
|
2
|
16 mm
|
200 mm
|
74.4 g
|
|
||

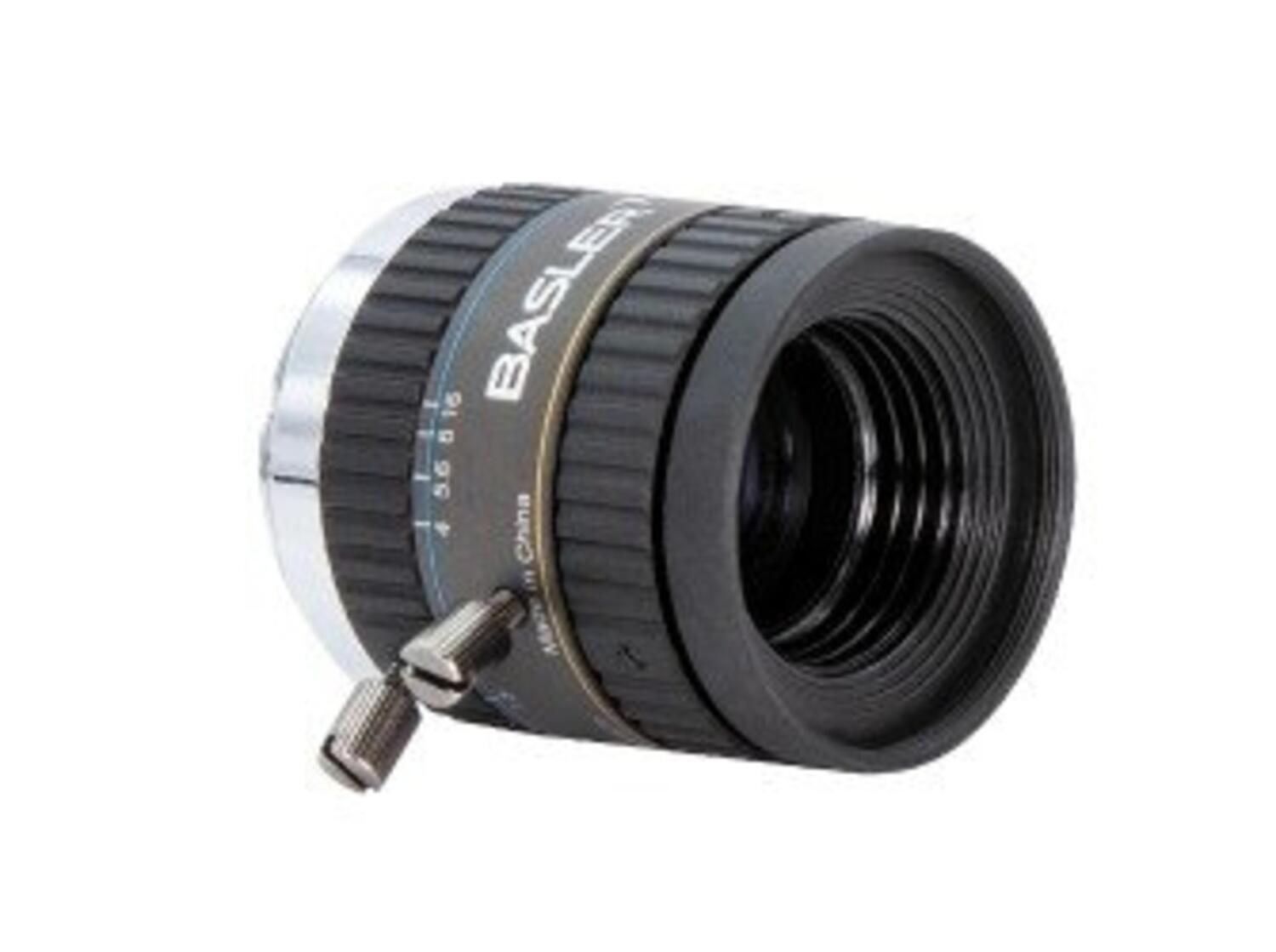

C23-2518-5M, 25mm, 2/3", C-Mount, 5MP
Art:
2200000571
Copied
|
1.8
|
25 mm
|
200 mm
|
62 g
|
|
||

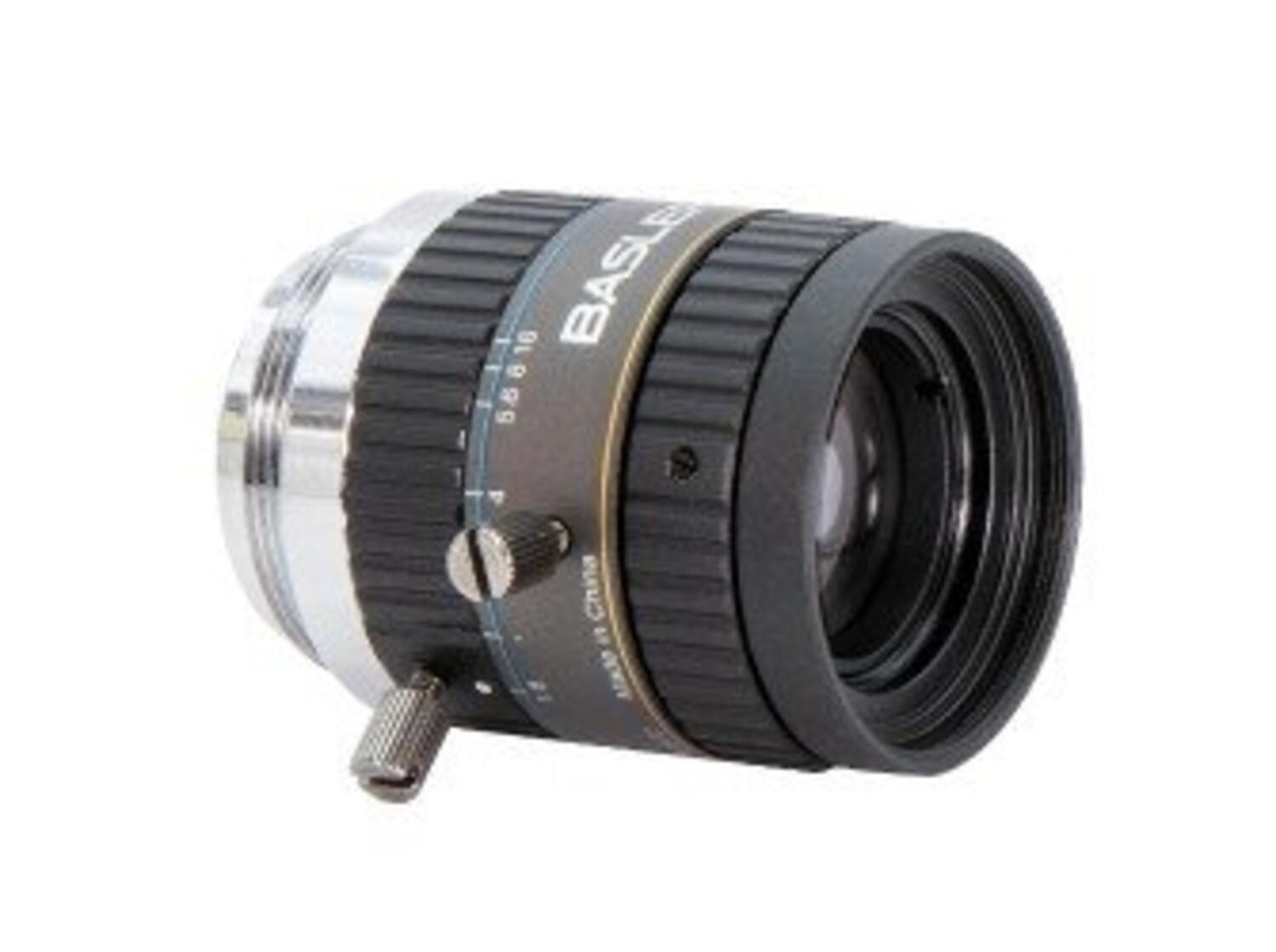

C23-3520-5M, 35mm, 2/3", C-Mount, 5MP
Art:
2200000572
Copied
|
2
|
35 mm
|
200 mm
|
71 g
|
|
||

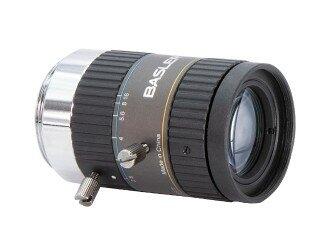

C23-5028-5M, 50mm, 2/3", C-Mount, 5MP
Art:
2200000573
Copied
|
2.8
|
50 mm
|
400 mm
|
83.7 g
|
|
Select a variant in the list
