| Aperture range max (f) | 1.4 |
|---|---|
| Aperture range min | 16 |
| Diameter | 39 mm |
| Distortion | 0.5 |
| Filter | 37 |
| Focal length | 8 mm |
| Focus | Manual |
| Focus distance min | 100 mm |
| Iris | Manual iris |
|---|---|
| Lens Barrel | C-Mount |
| Pixel size min | 4.2 µm |
| Resolution max | 3 MP |
| Sensor size max | 2/3" |
| Type of lens | Standard |
| Weight | 0.22 kg |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Aperture range max (f) | Diameter | Distortion | Filter | Focal length | Focus distance min | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|

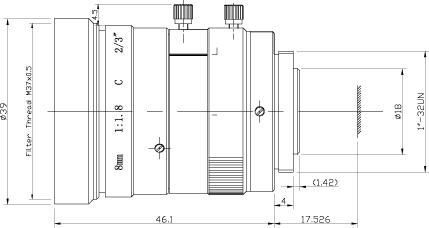

Lens C 8mm F1.8 2/3" Azure
Art:
AZURE-0818M3M
Copied
|
1.4
|
39 mm
|
0.5
|
37
|
8 mm
|
100 mm
|
0.22 kg
|
| ||

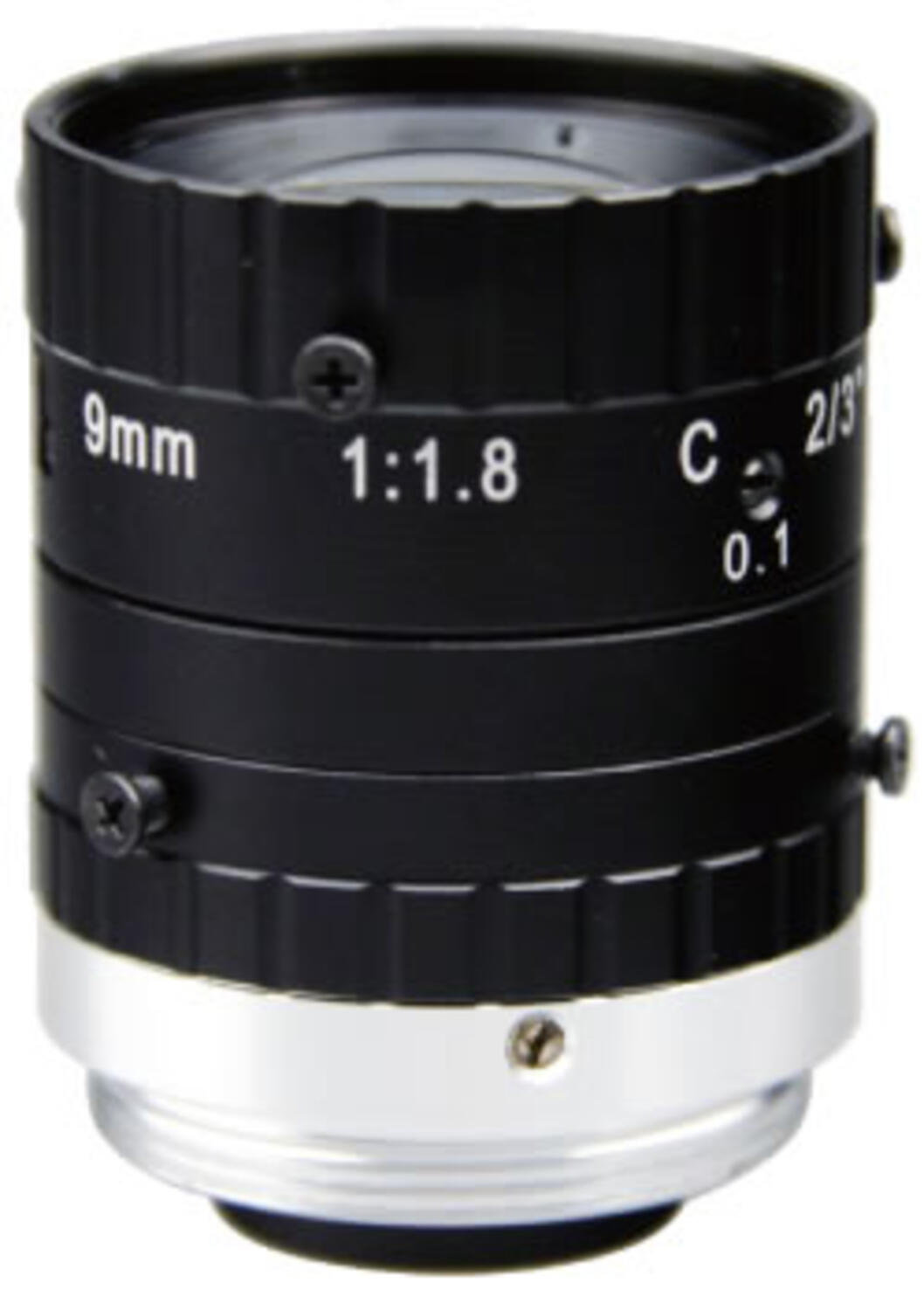

Lens C 9mm F1.8 2/3" Azure
Art:
AZURE-0918M3M
Copied
|
1.8
|
29 mm
|
-0.5
|
27
|
9 mm
|
100 mm
|
0.063 kg
|
| ||
Lens C 12mm F1.8 2/3" Azure
Art:
AZURE-1218M3M
Copied
|
1.8
|
29 mm
|
-0.3
|
27
|
12 mm
|
100 mm
|
0.073 kg
|
| ||

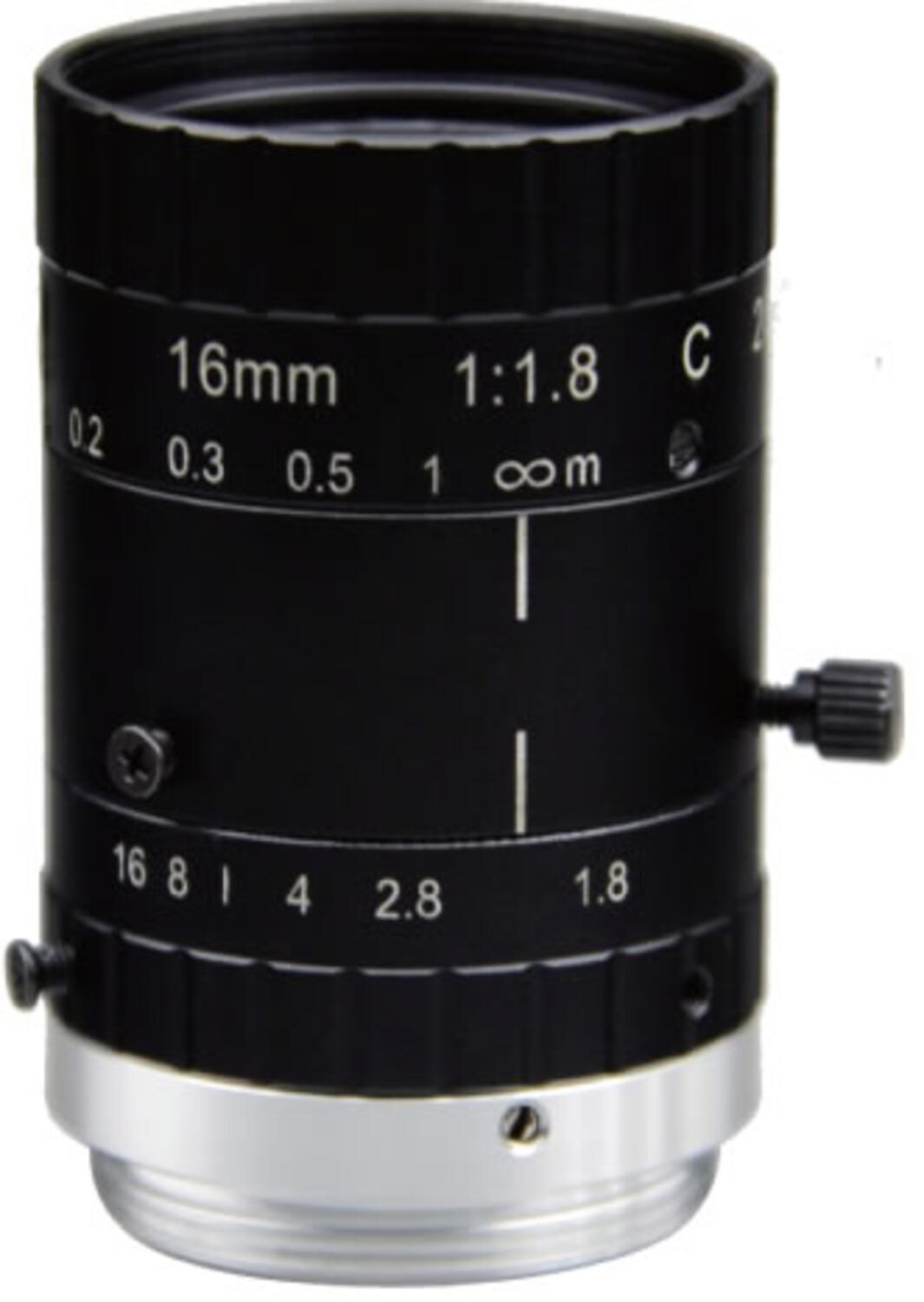

Lens C 16mm F1.8 2/3" Azure
Art:
AZURE-1618M3M
Copied
|
1.8
|
29 mm
|
-0.3
|
27
|
16 mm
|
100 mm
|
0.071 kg
|
| ||

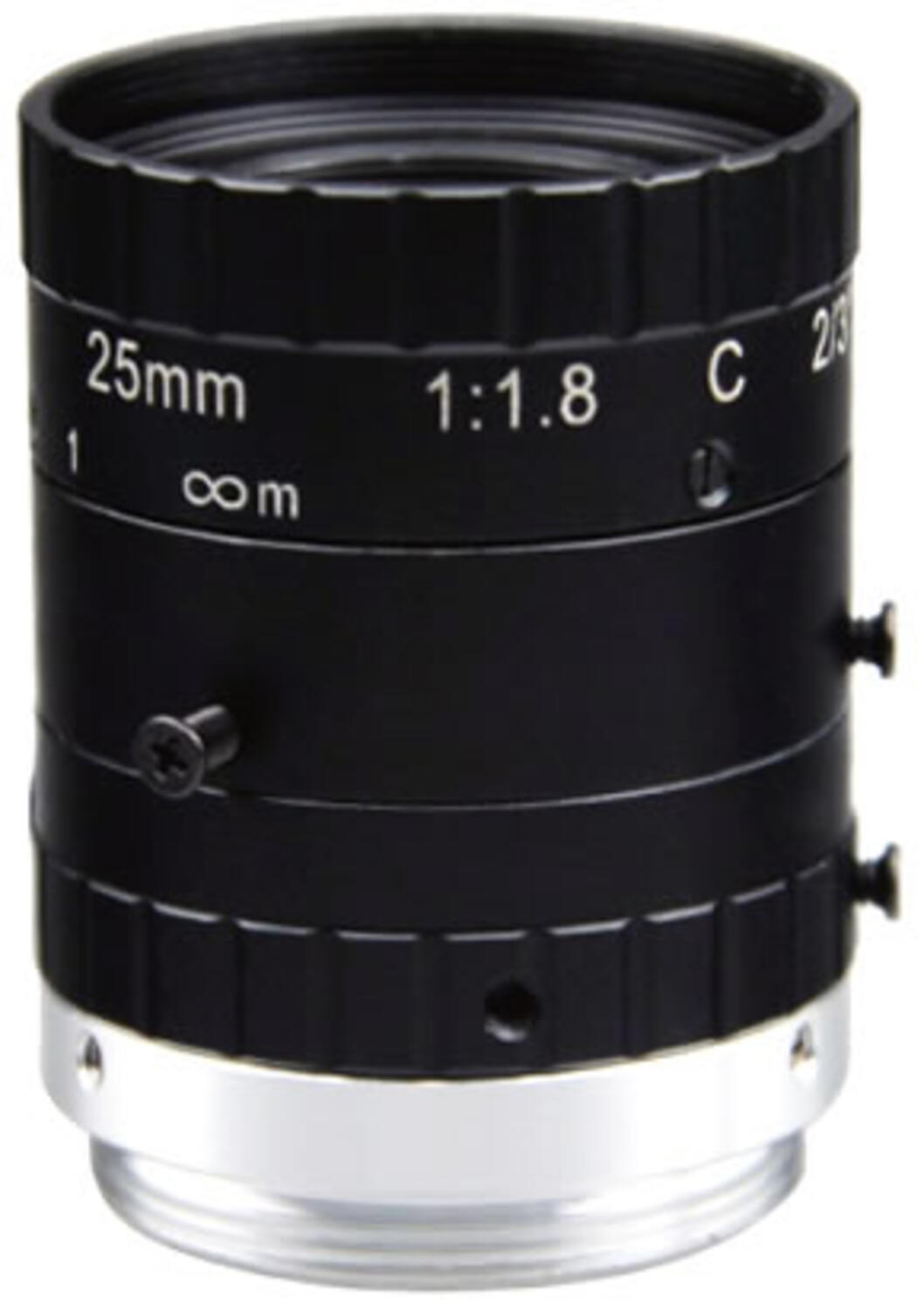

Lens C 25mm F1.8 2/3" Azure
Art:
AZURE-2518M3M
Copied
|
1.8
|
29 mm
|
-0.1
|
27
|
25 mm
|
150 mm
|
0.0605 kg
|
| ||
Lens C 35mm F1.8 2/3" Azure
Art:
AZURE-3518M3M
Copied
|
1.8
|
29 mm
|
0.1
|
27
|
35 mm
|
250 mm
|
0.071 kg
|
| ||
Lens C 50mm F1.8 2/3" Azure
Art:
AZURE-5018M3M
Copied
|
1.8
|
29 mm
|
-0.1
|
27
|
50 mm
|
500 mm
|
0.06 kg
|
|
Select a variant in the list
