| Aperture range max (f) | 1.4 |
|---|---|
| Aperture range min | 32 |
| Distortion | -1.6 |
| Filter | 52 |
| Focal length | 4 mm |
| Focus | Manual |
| Focus distance min | 100 mm |
| Iris | Manual iris |
| Lens Barrel | C-Mount |
|---|---|
| Pixel size min | 3.3 µm |
| Resolution max | 5 MP |
| Sensor size max | 1/2" |
| Type of lens | Standard |
| Weight | 0.142 kg |
OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.
A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Aperture range max (f) | Distortion | Filter | Focal length | Focus distance min | Sensor size max | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|

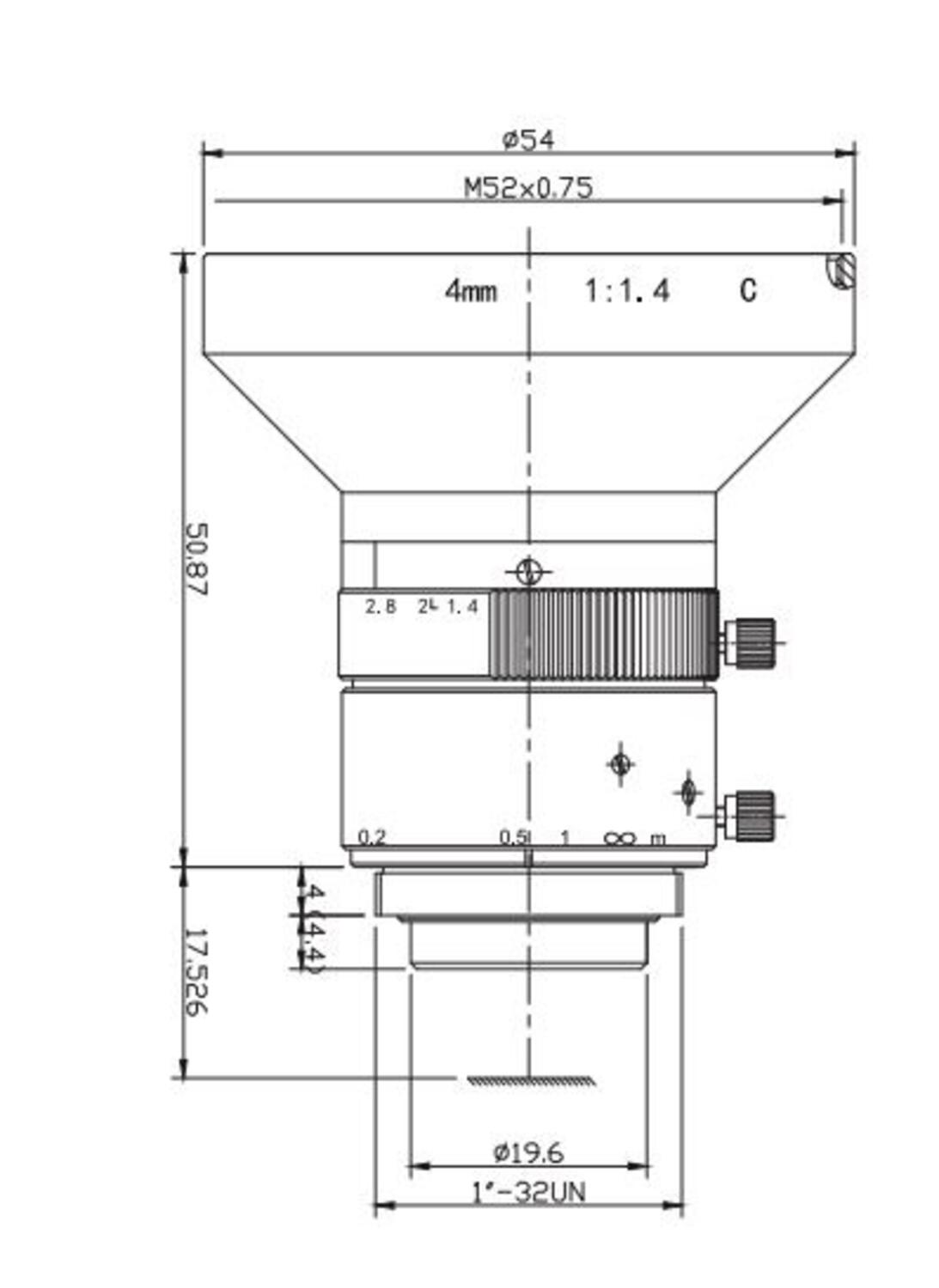

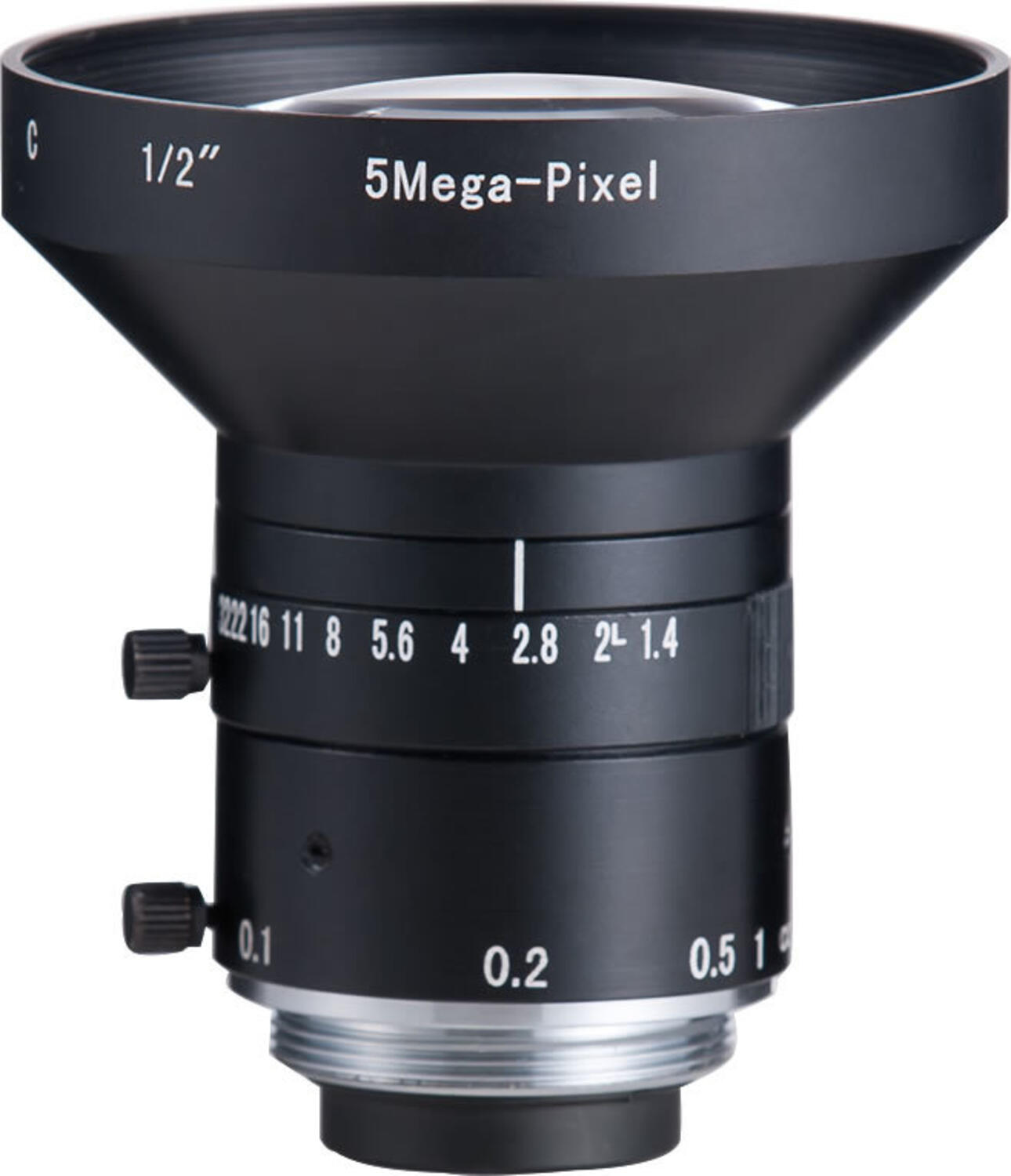

5MP man focus lens, 4mm 1/2, C mount, F1.4, man iris
Art:
AZURE-0414M5M
Copied
|
1.4
|
-1.6
|
52
|
4 mm
|
100 mm
|
1/2"
|
0.142 kg
|
|
||
|

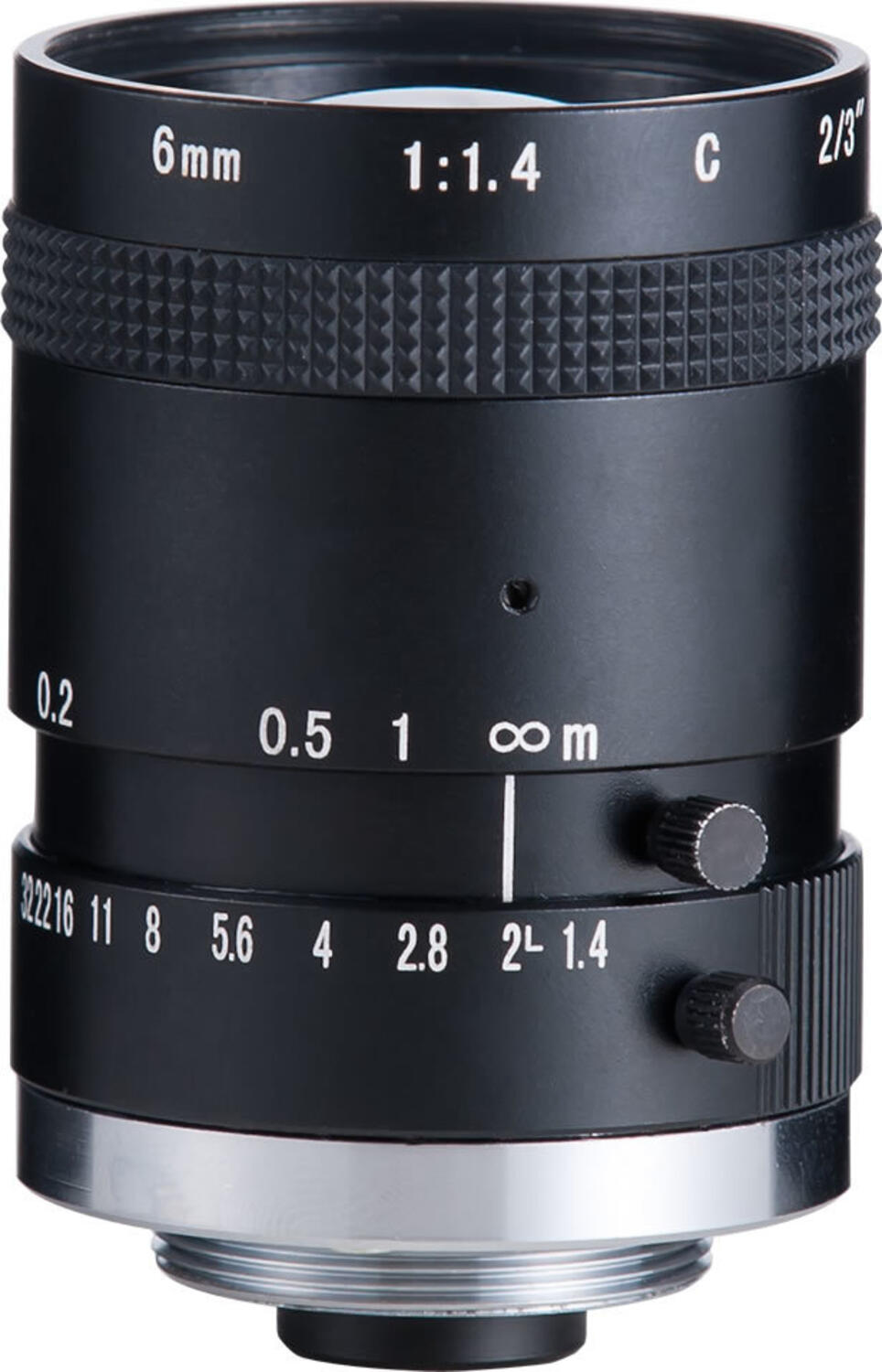

5MP man focus lens, 6mm 1/2, C mount, F1.4, man iris
Art:
AZURE-0614M5M
Copied
|
1.4
|
-1
|
35.5
|
6 mm
|
50 mm
|
1/2"
|
0.14 kg
|
|
||
|

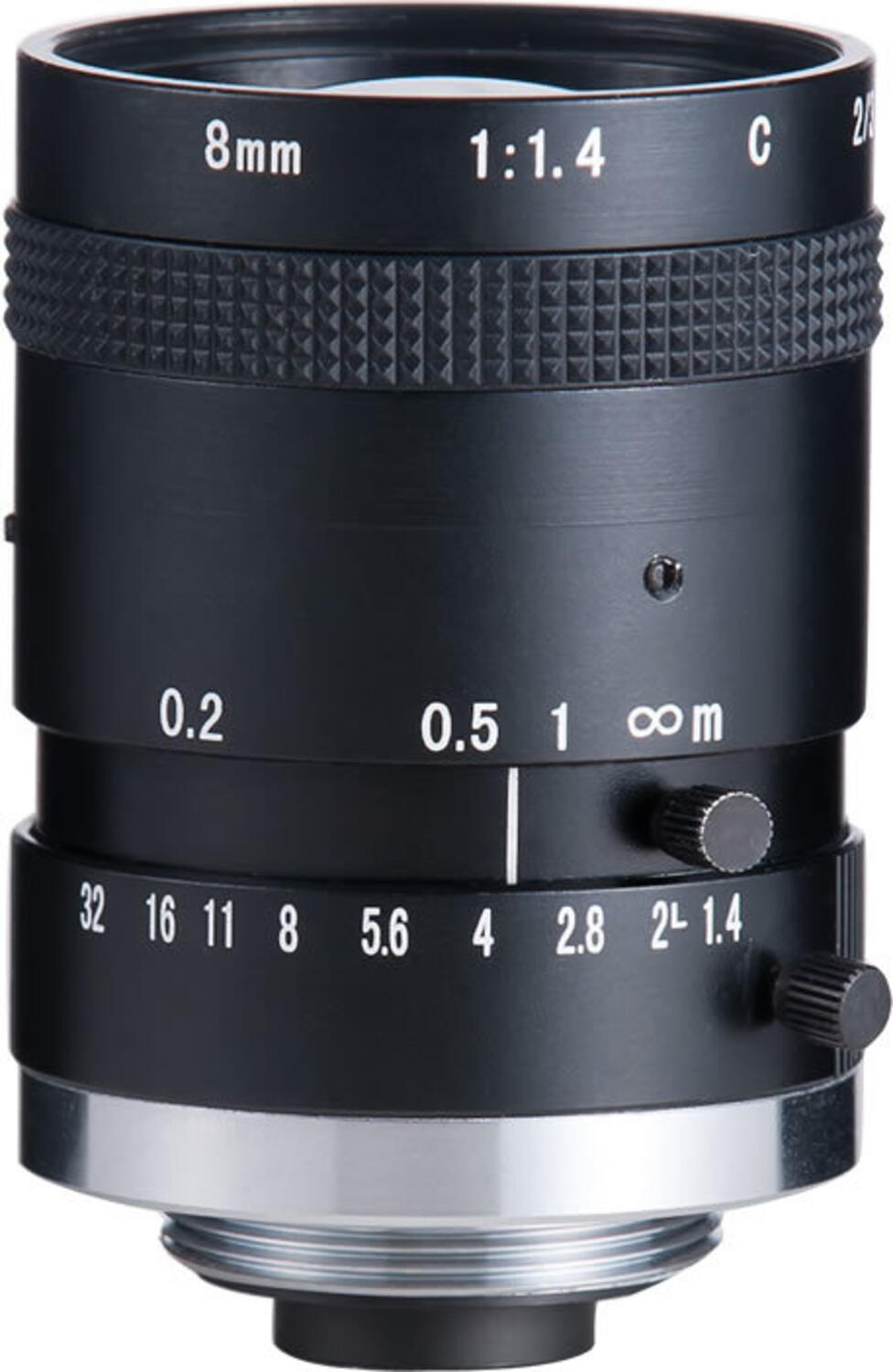

5MP man focus lens, 8mm 2/3, C mount, F1.4, man iris
Art:
AZURE-0814M5M
Copied
|
1.4
|
-1
|
35.5
|
8 mm
|
100 mm
|
2/3"
|
0.156 kg
|
|
||
|
5MP man focus lens, 12mm 2/3, C mount, F1.4, man iris
Art:
AZURE-1214M5M
Copied
|
1.4
|
-0.2
|
35.5
|
12 mm
|
100 mm
|
2/3"
|
0.15 kg
|
|
||
|

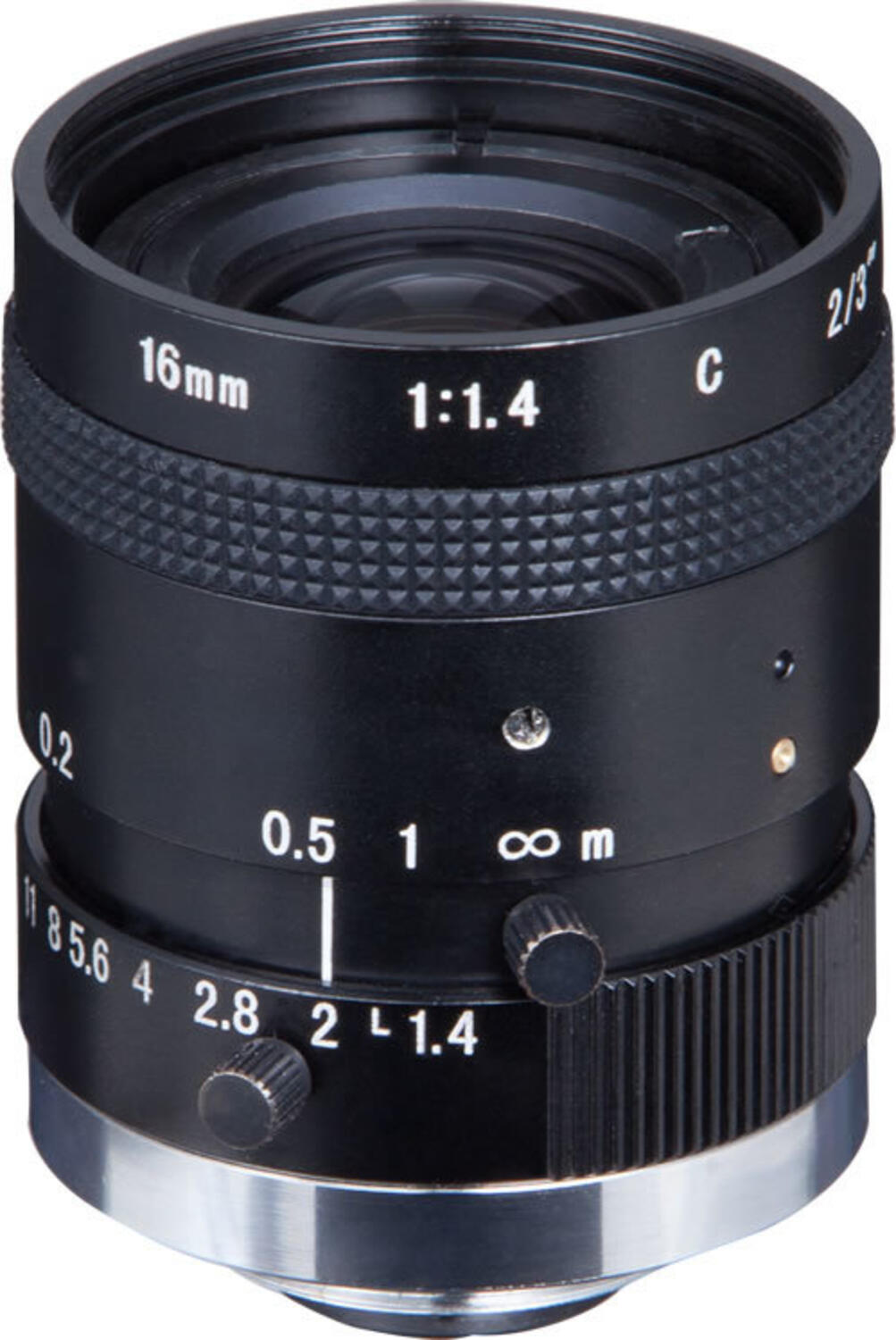

5MP man focus lens, 16mm 2/3, C mount, F1.4, man iris
Art:
AZURE-1614M5M
Copied
|
1.4
|
0.2
|
35.5
|
16 mm
|
200 mm
|
2/3"
|
0.139 kg
|
|
||
|
5MP man focus lens, 25mm 2/3, C mount, F1.4, man iris
Art:
AZURE-2514M5M
Copied
|
1.4
|
-0.1
|
35.5
|
25 mm
|
300 mm
|
2/3"
|
0.11 kg
|
|
||
|

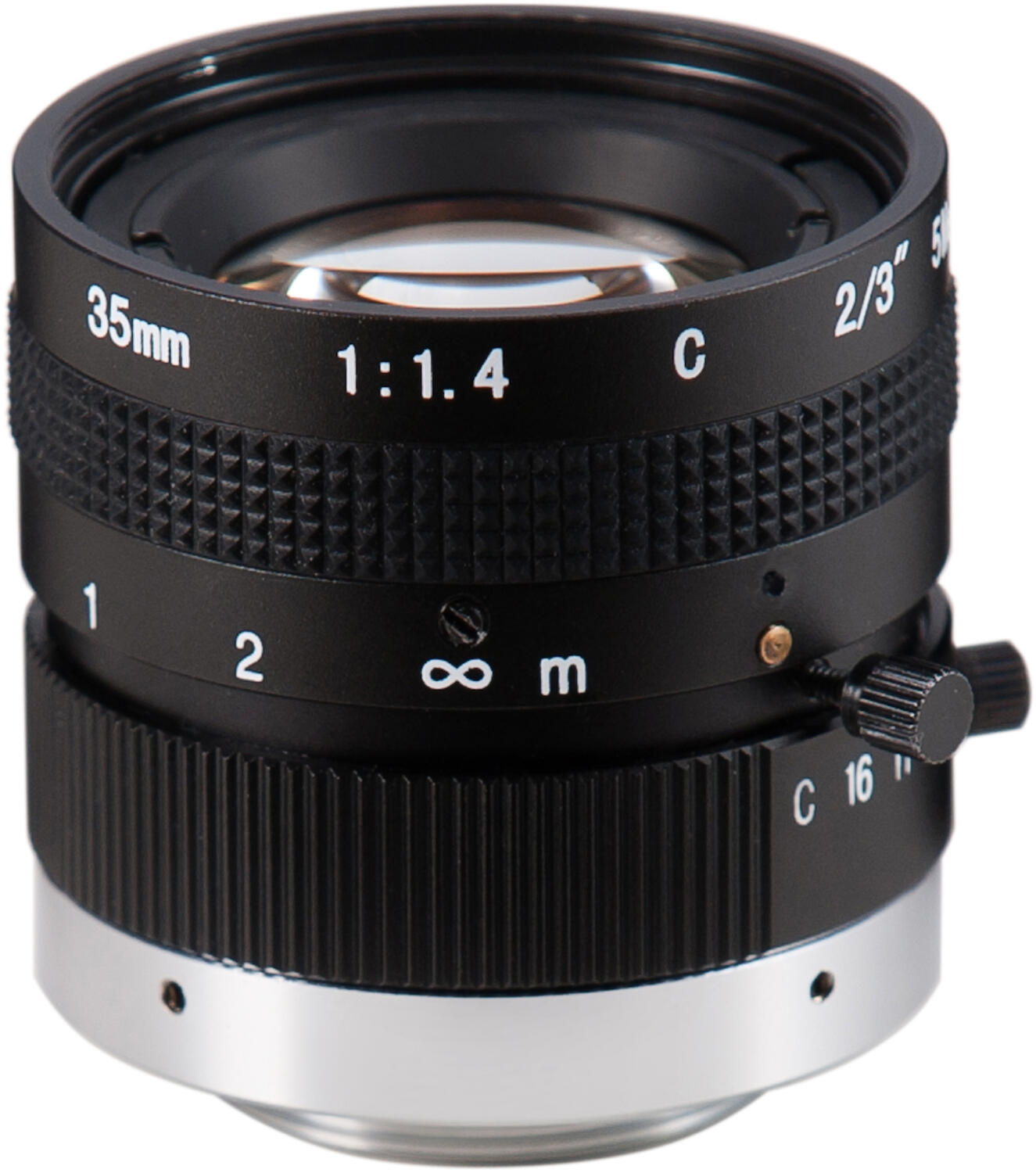

5MP man focus lens, 35mm 2/3, C mount, F1.4, man iris
Art:
AZURE-3514M5M
Copied
|
1.4
|
-0.1
|
35.5
|
35 mm
|
350 mm
|
2/3"
|
0.12 kg
|
|
||
|
5MP man focus lens, 50mm 2/3, C mount, F2, man iris
Art:
AZURE-5020M5M
Copied
|
2
|
-0.1
|
35.5
|
50 mm
|
400 mm
|
2/3"
|
0.152 kg
|
|
||
|

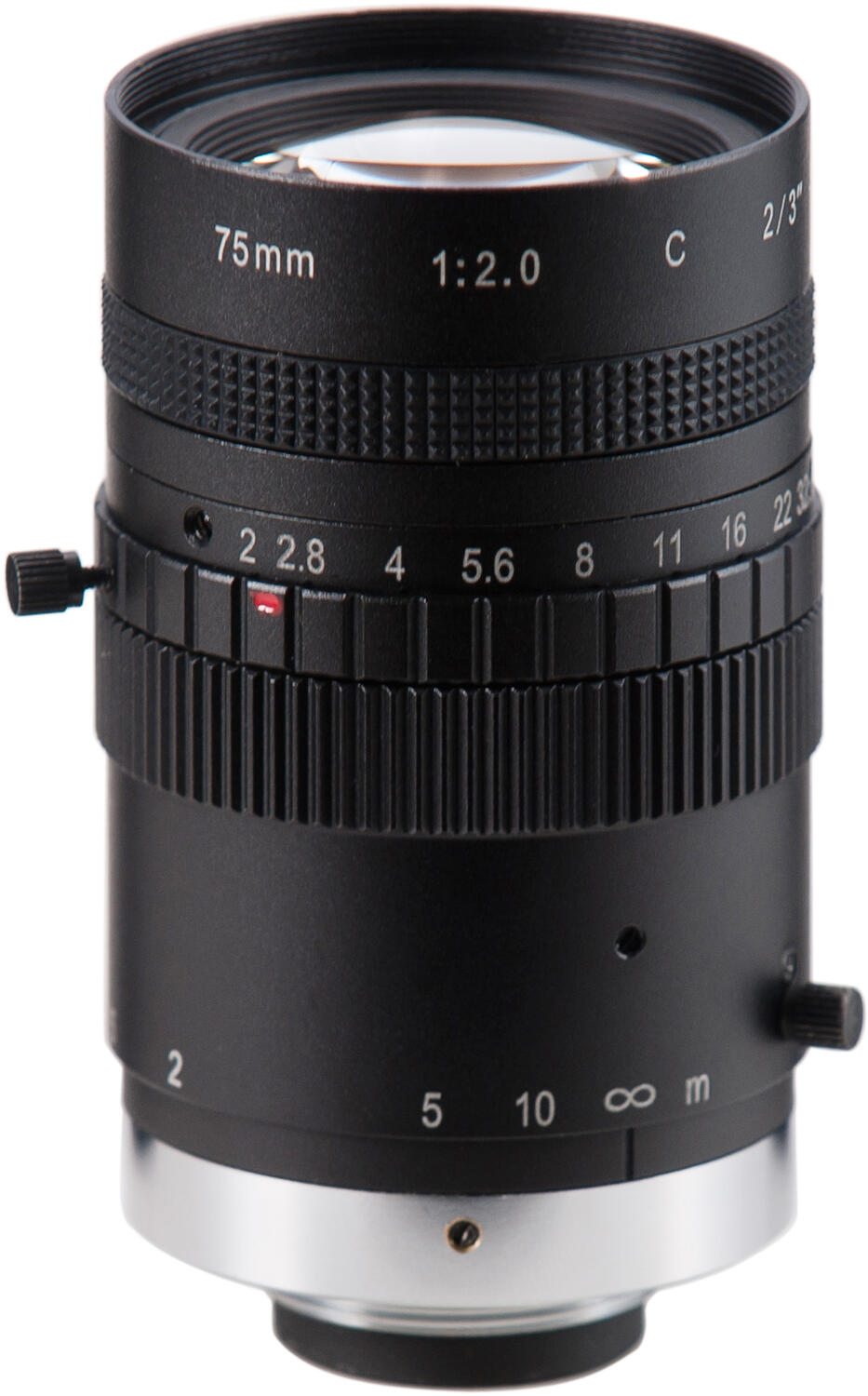

5MP man focus lens, 75mm 2/3, C mount, F2, man iris
Art:
AZURE-7520M5M
Copied
|
2
|
-0.1
|
40.5
|
75 mm
|
1000 mm
|
2/3"
|
0.29 kg
|
|
Select a variant in the list
