Panel Product manager Paul and KDS-FB flat cable entry system
2019-05-29

The Importance Of Cable Entry Systems - Paul Adkins

To an engineer, a leading product should do at least one of three things; save time, be easy to install or be more flexible than competitors.

In today’s automated world we see a huge variety of applications where all three of these requirements need to be met. More components than ever need to be connected whether to talk to each other, record data or to provide information to a user in real time. Safety is also a concern, with more connectivity comes more power requirements. For some, this proves to be a challenge.

Many applications prove a very hostile environment for sensitive components and connections. Water, chemicals or simple dust can have a huge impact on the performance, safety and reliability of an installation.

For example; a food processing plant, increasing productivity often requires automating processes. Information needs to be passed between sensors and users alike whilst power is delivered safely to all components. Often, connectivity isn’t limited to cables, but hoses, air pipes and conduits also require management.

Having an adaptable, reliable and safe solution to manage these types of cables and connections reduces the amount of maintenance required, improves productivity and ultimately plays a huge role in the success of many industrial installations.





Conta-Clip has invested in their cable management products, developing their already impressive range and ensuring they have a solution for these types of requirements. The KDS and KES range of cable management systems is now one of the most comprehensive on the market. Boasting an IP66 rating, the compact and flexible solution has been designed to manage a vast array of flat and round cables.

The latest edition to the range, the KDS-FB, is an ideal solution for flat cable management, especially when space is at a premium. With a versatile selection of inserts the KDS-FB also earns its flexibility credentials, allowing for a combination of flat and round cables or a large number of round cables, all with a minimal footprint.

Paul Adkins, Product Manager, Panel has been in the automation industry for over 18 years and prior to joining OEM Automatic gained experience in the electronics and communications industry.

Product news

Related products

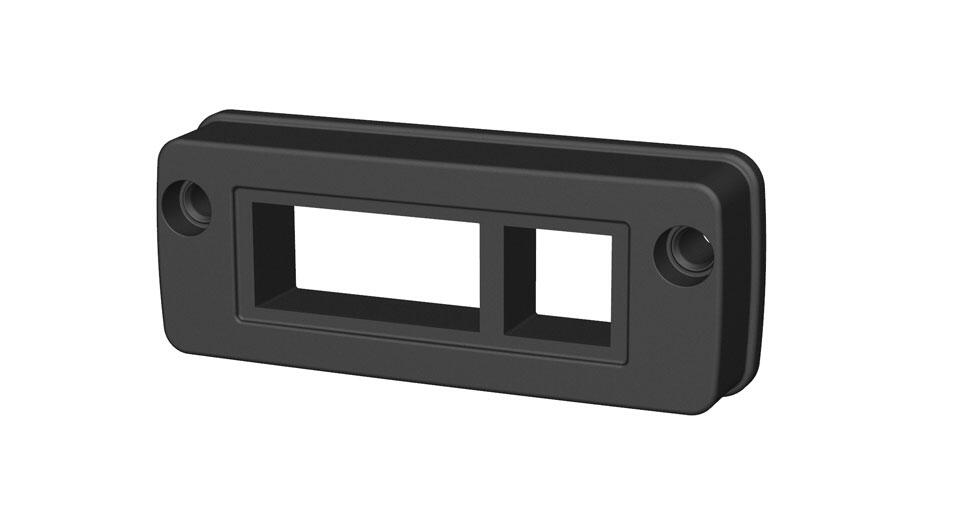

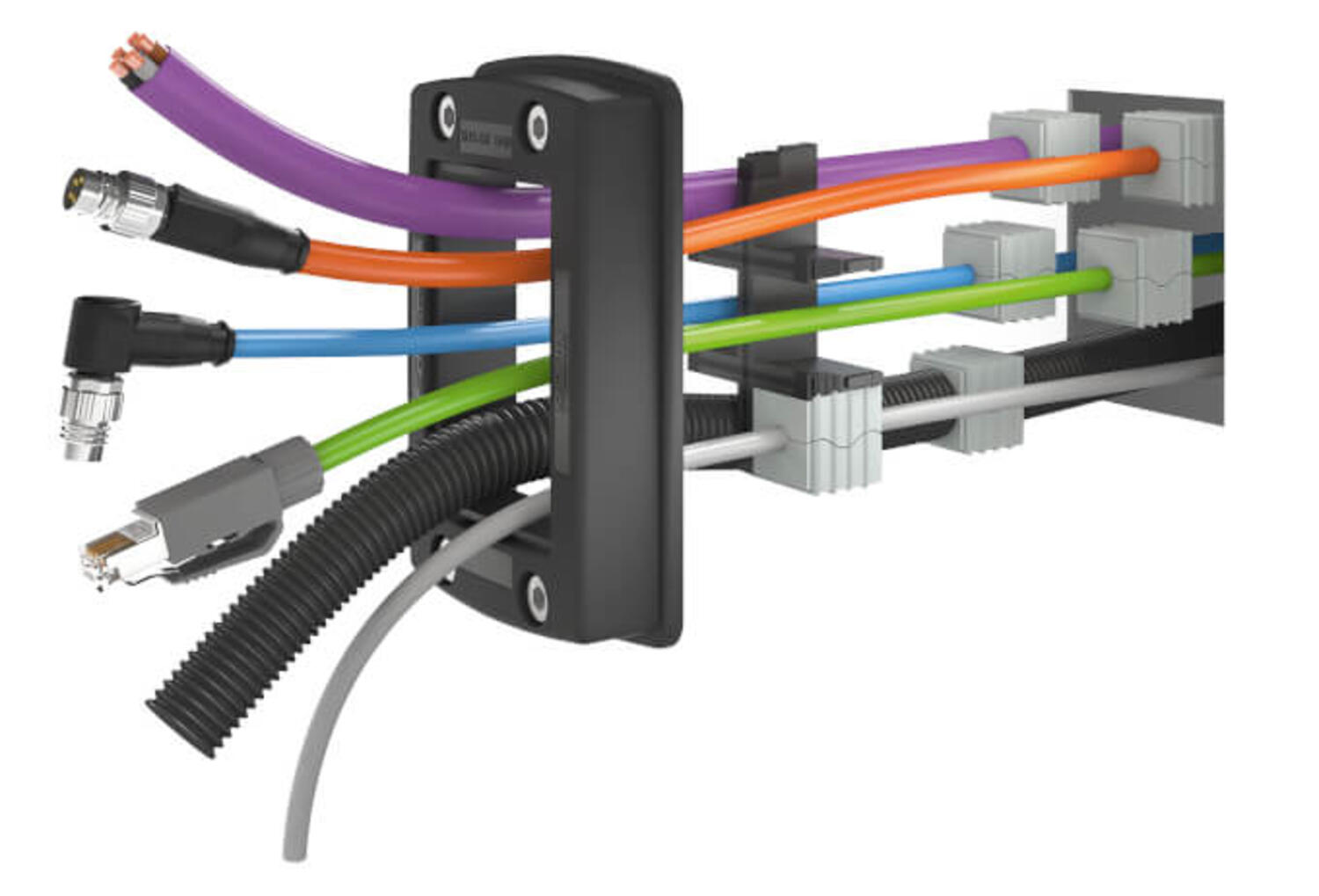

KDS-SR Frames & Inlays
CONTA-CLIP

KDS-SR Frames & Inlays

KDS-SR

  • Three parts, many solutions
  • Reduced installation time
  • Easy assembly from the inside to the outside
  • Perfect for pre-assembled cables
  • High IP66 protection
More information More information
KDS-KV split cable gland small
CONTA-CLIP

KDS-KV Split cable glands

KDS-KV

  • Retrofitting work is quick and easy
  • Ideal for pre-assembled cables
  • Can be installed in standard metric break-outs
  • Includes a separable hexagon nut
  • IP66
More information More information

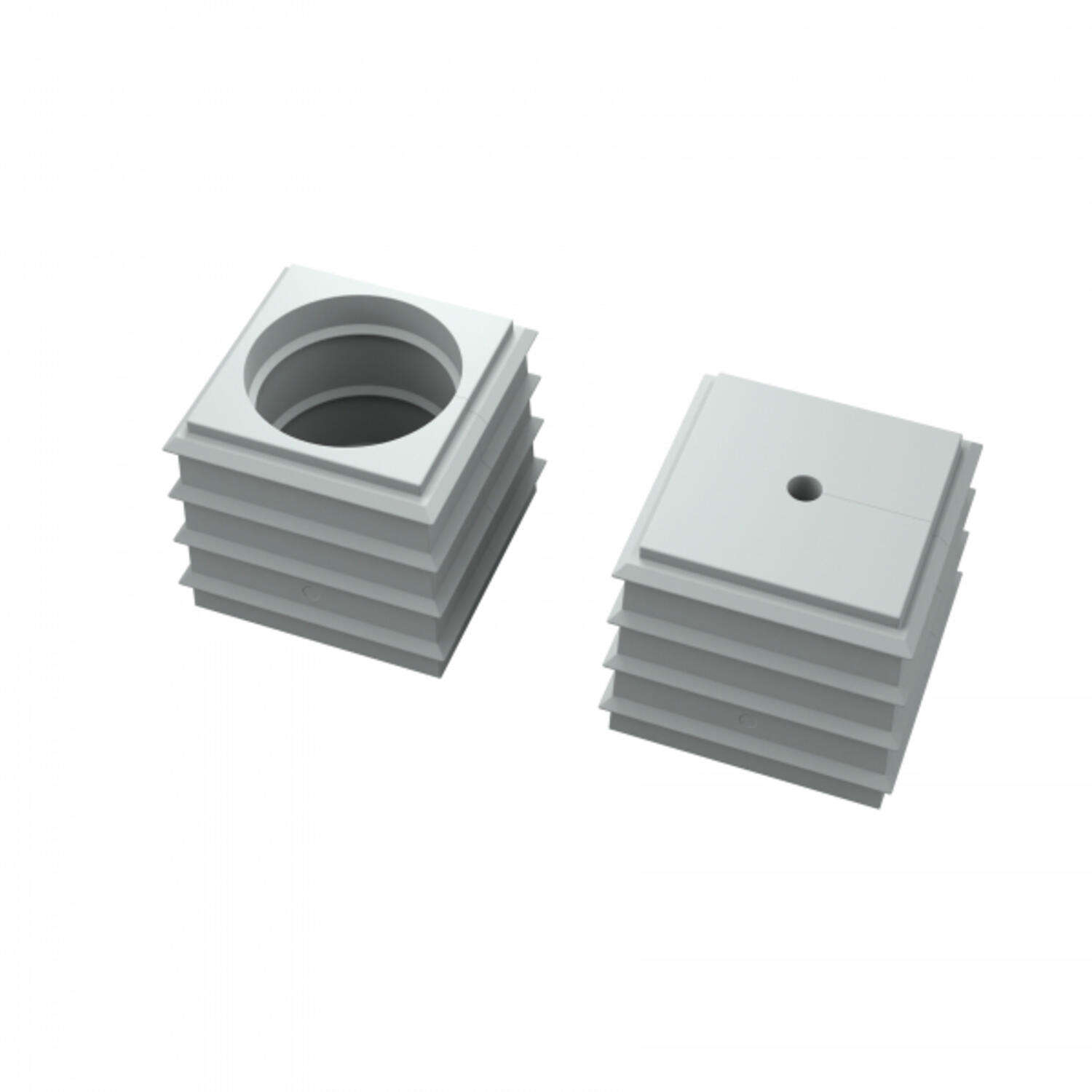

2 Conta-Clip KDS-DE seal with different size holes for cables
CONTA-CLIP

KDS Seal Inserts

KDS-DE, KDE-DEG, KDS-DES, KDE-DE-FB

  • 1.5mm to 35mm, cable diameters
  • Patented 'Wave Cut' technology
  • Flat cable versions for KDS-FB
  • -40°C to 120°C
  • IP66 - UL 94-V0 - Grey, UL 94HB- Black
More information More information

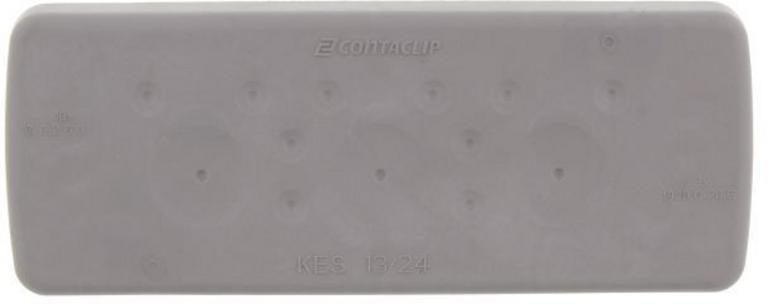

KES high density cable entry plates with cables
CONTA-CLIP

KES Cable Entry

KES, KES-R

  • For cable diameters 3.2mm to 20.5mm
  • Double Sealing to IP66
  • Polymide 6.6 Glass fibre reinforced core
  • Hygienic design for wash down - Ecolab approved
  • Integrated strain relief to EN62444
More information More information

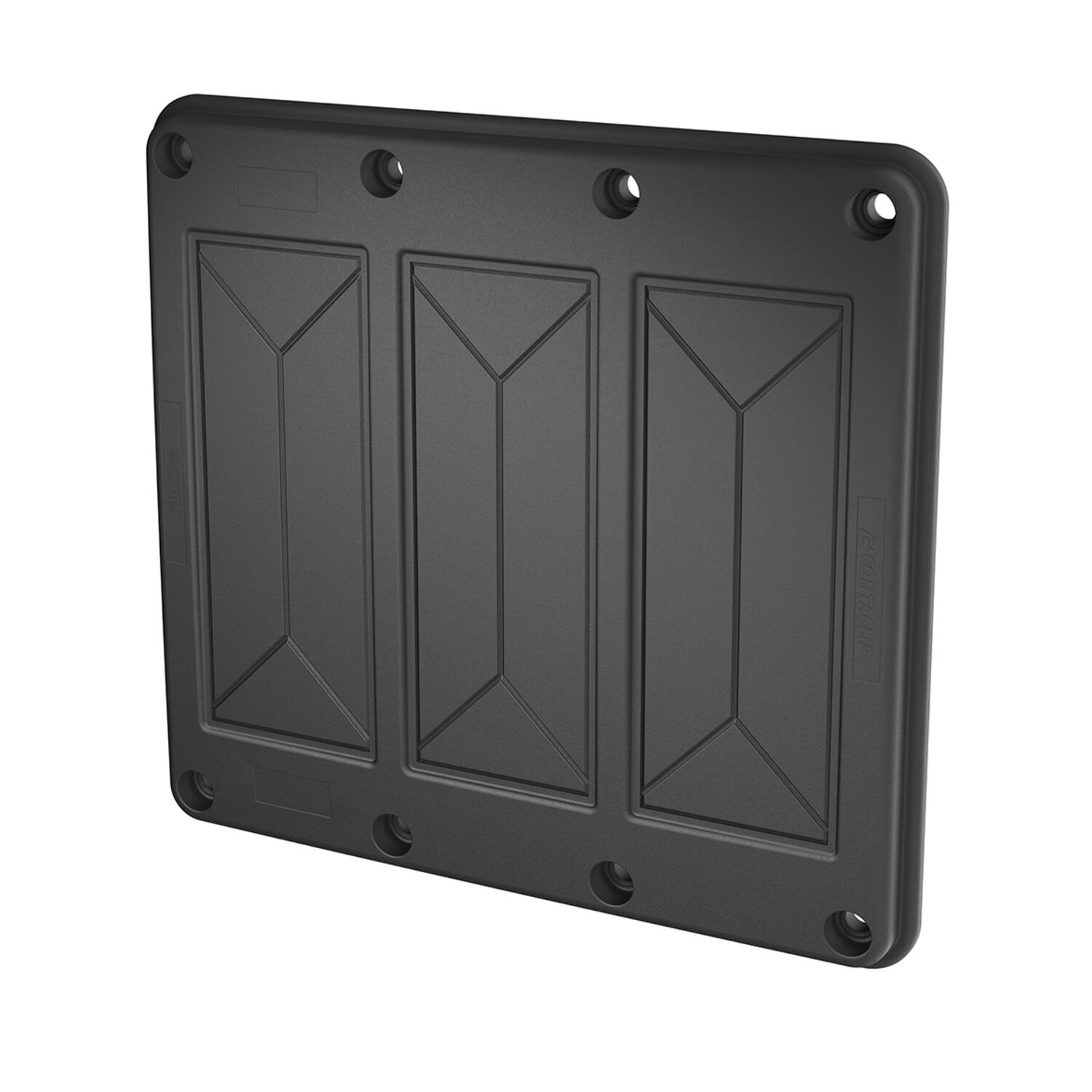

Conta-Clip KDS-FP flange plates for cable entry
CONTA-CLIP

KDS- FP Flange Plate

KDS-FP

  • Low profile, modular system
  • up to 120 cable entires
  • Uses standard KDS inserts
  • Tool free locking clamps
  • IP66
More information More information

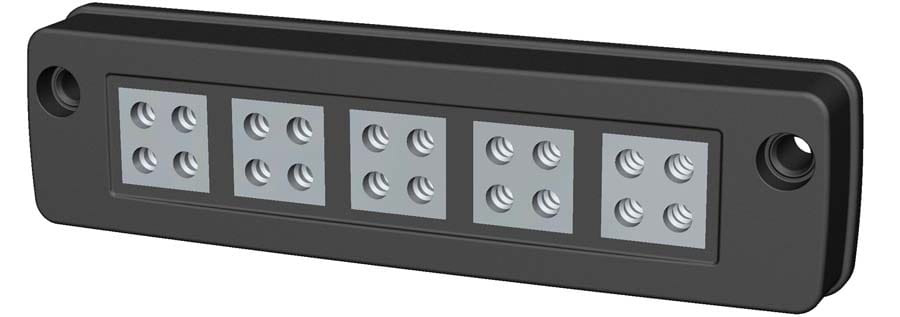

KDS-FB flat cable entry frames with seals and cables protruding from the frame and seals
CONTA-CLIP

KDS-FB Flat Cable Frames

KDS-FB

  • Flat & Round Cable Solution
  • Compact UL 94-V0, glass-fibre reinforced frame
  • Ideal for the Lift, Crane & Forklift Industry
  • Large range of Ecolab approved seals
  • IP66
More information More information

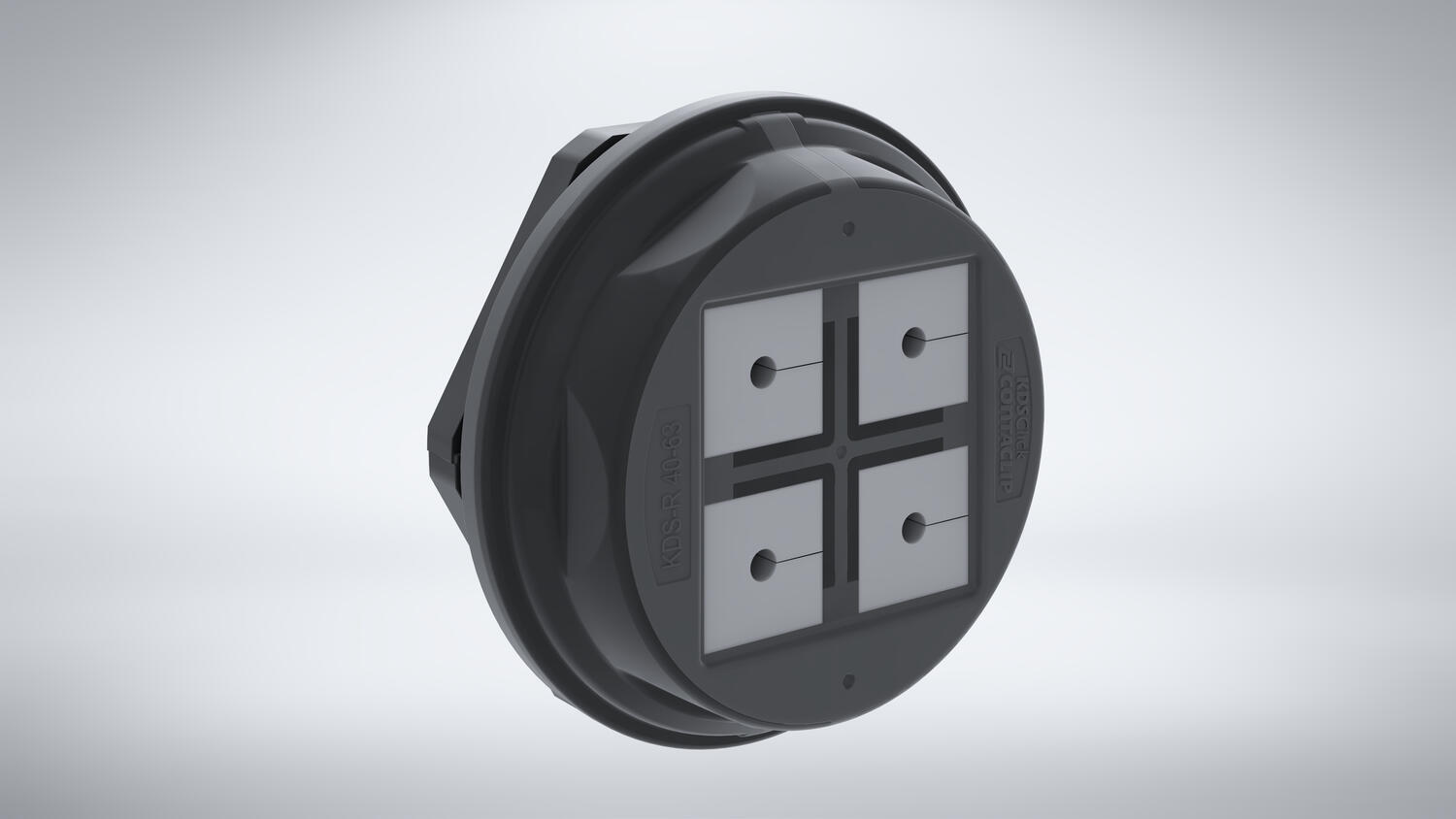

KDS-R Round Cable Entry Gland
