KÜBLER

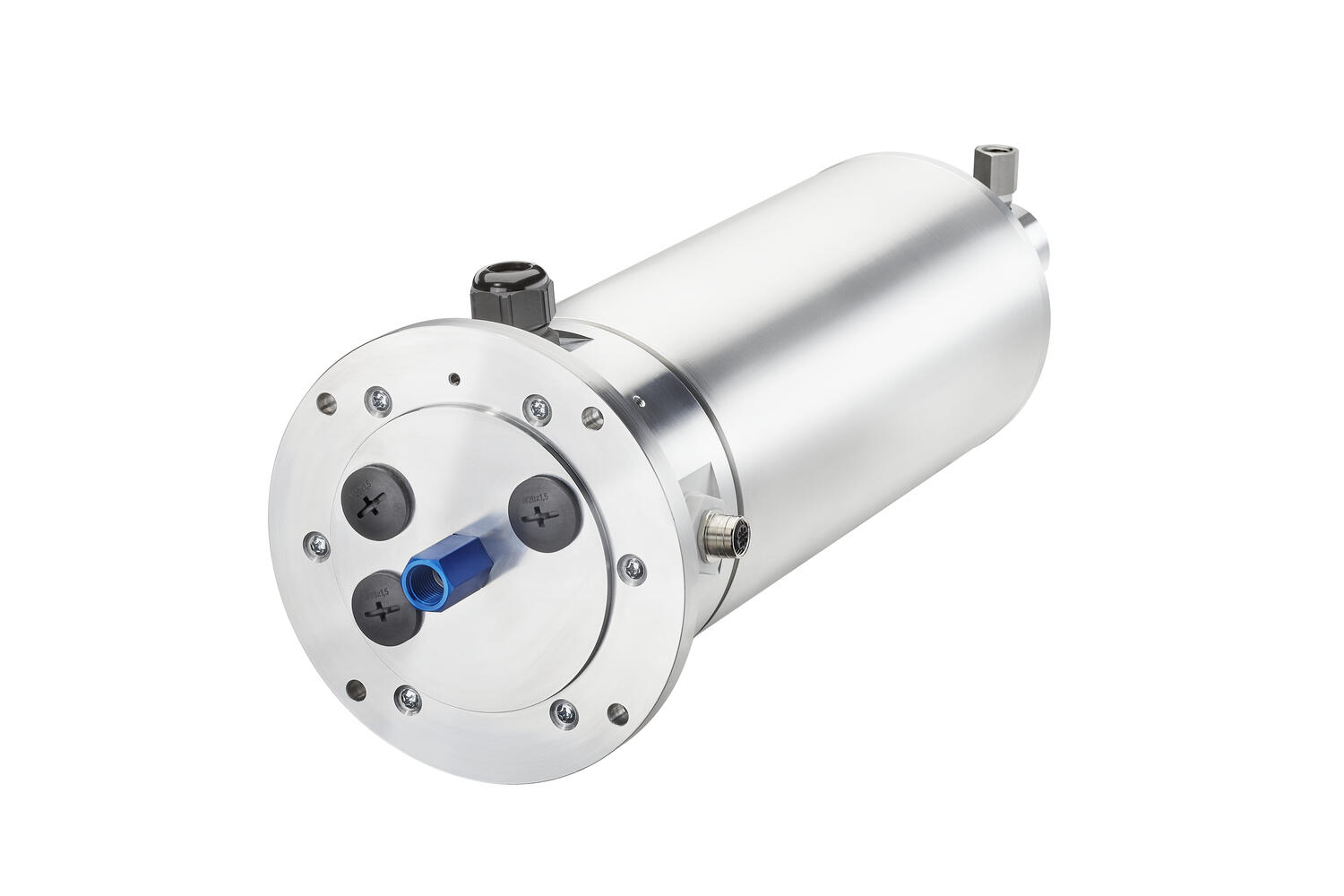

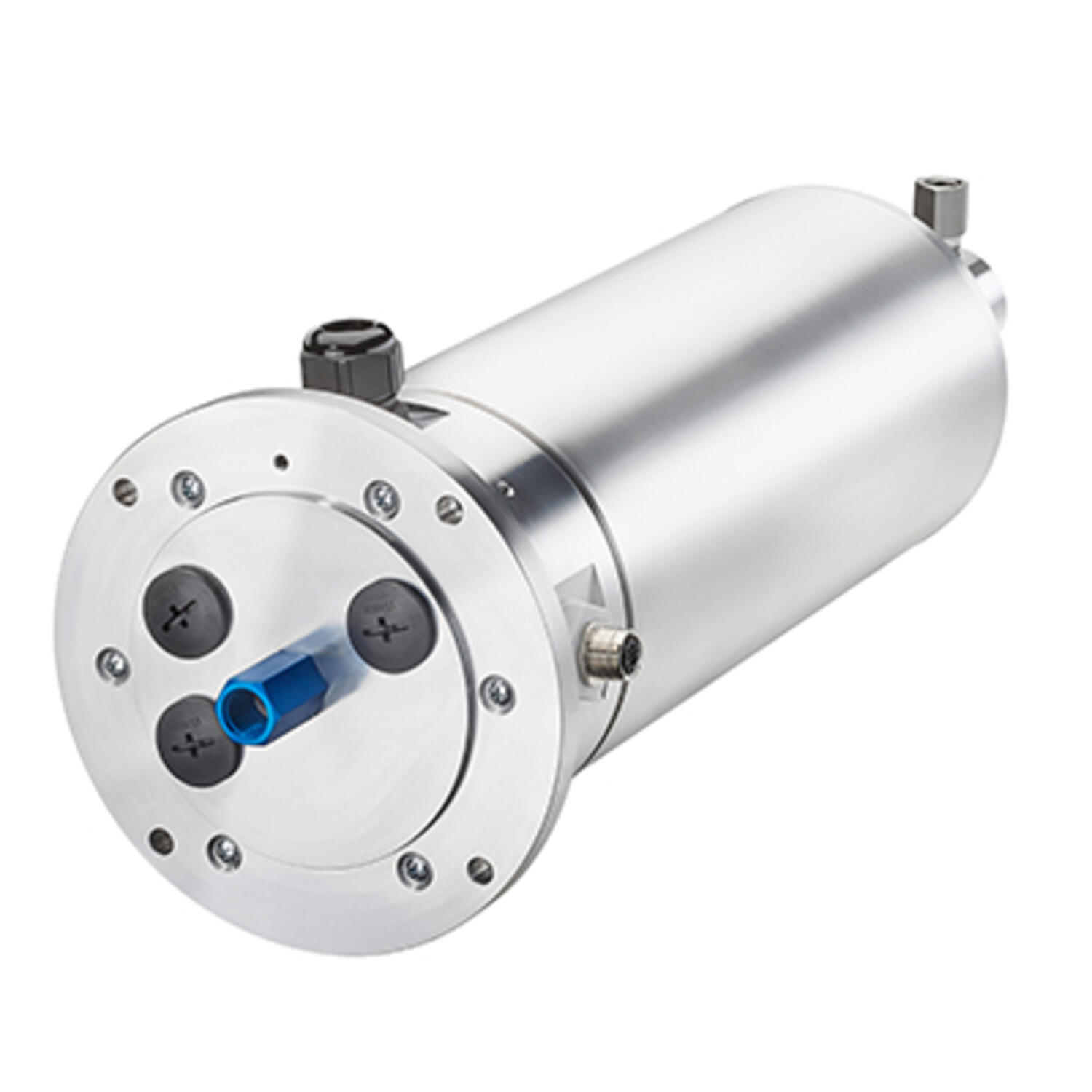

Kubler Slip ring SR120
The SR120 slip ring is specially designed for applications in industrial automation and Ethernet transmission.

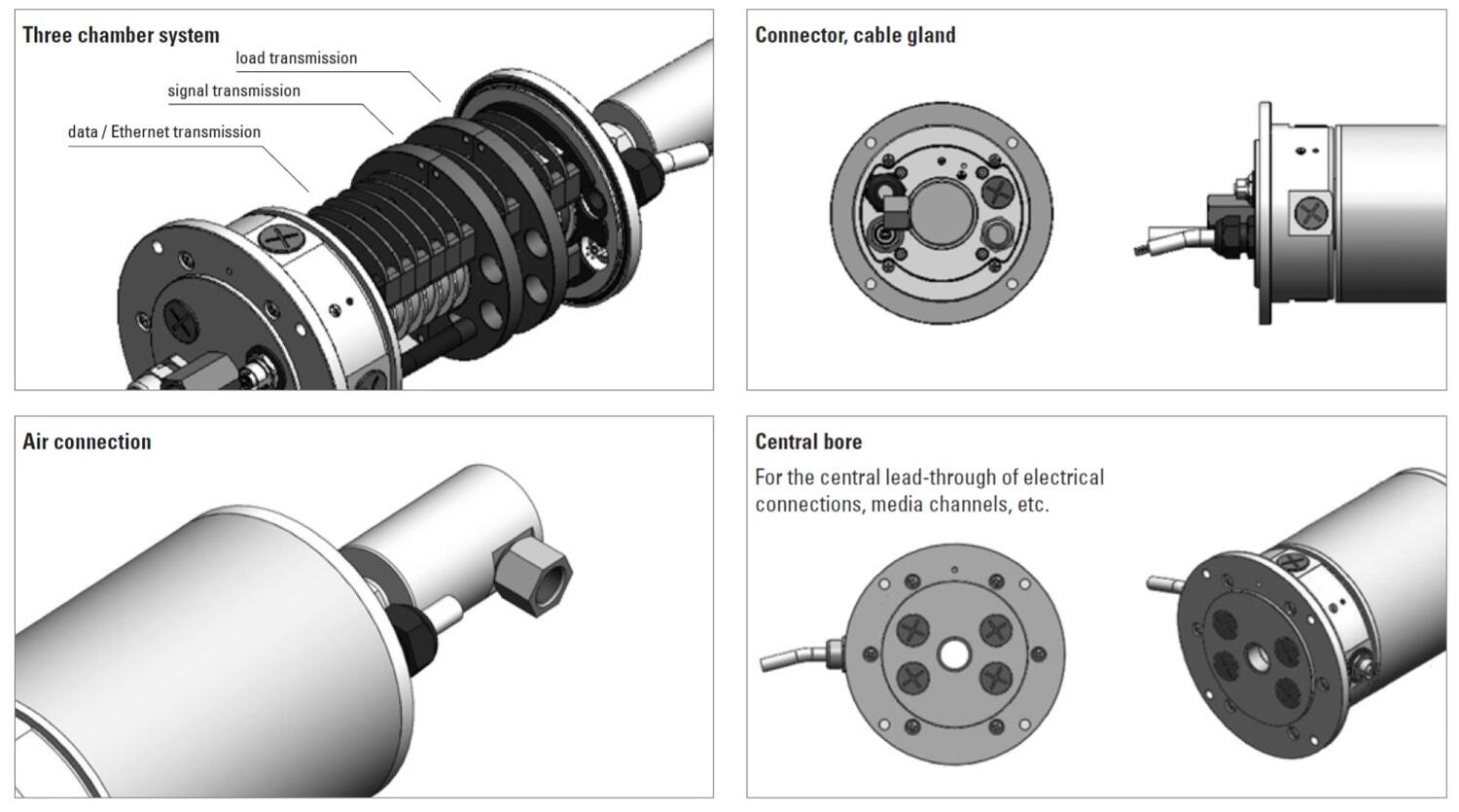

Thanks to its modular system, it can combine Ethernet data, power, signals, air and hydraulic transmission with up to 20 channels. With its well-developed 3-chamber system, the slip ring becomes shielded and insensitive to interference.
The house is as standard in aluminum but can also be ordered in stainless steel.
- Modular system
- Ethernet compatible
- Transfer speed up to 100 Mbps
- Shielded metal casing
Selected variant
Technical data
| IP class | IP64 |
|---|---|
| Life span | 500000000 revolution |
| Temperature operational max | 85 °C |
| Temperature operational min | -35 °C |
Product description
The SR120 slip ring is specially designed for applications in industrial automation and Ethernet transmission.
Thanks to its modular system, it can combine Ethernet data, power, signals, air and hydraulic transmission with up to 20 channels. With its well-developed 3-chamber system, the slip ring becomes shielded and insensitive to interference.
The house is as standard in aluminum but can also be ordered in stainless steel.
