PIL
PIL P44 Ultrasonic Sensor Analog and Transistor Output
- Sensing distance up to 3500 mm
- Made of PBT
- Output 0-10 V + 4-20 mA + 2 PNP NO/NC
- IP67
- Teach button
Selected variant
Technical data

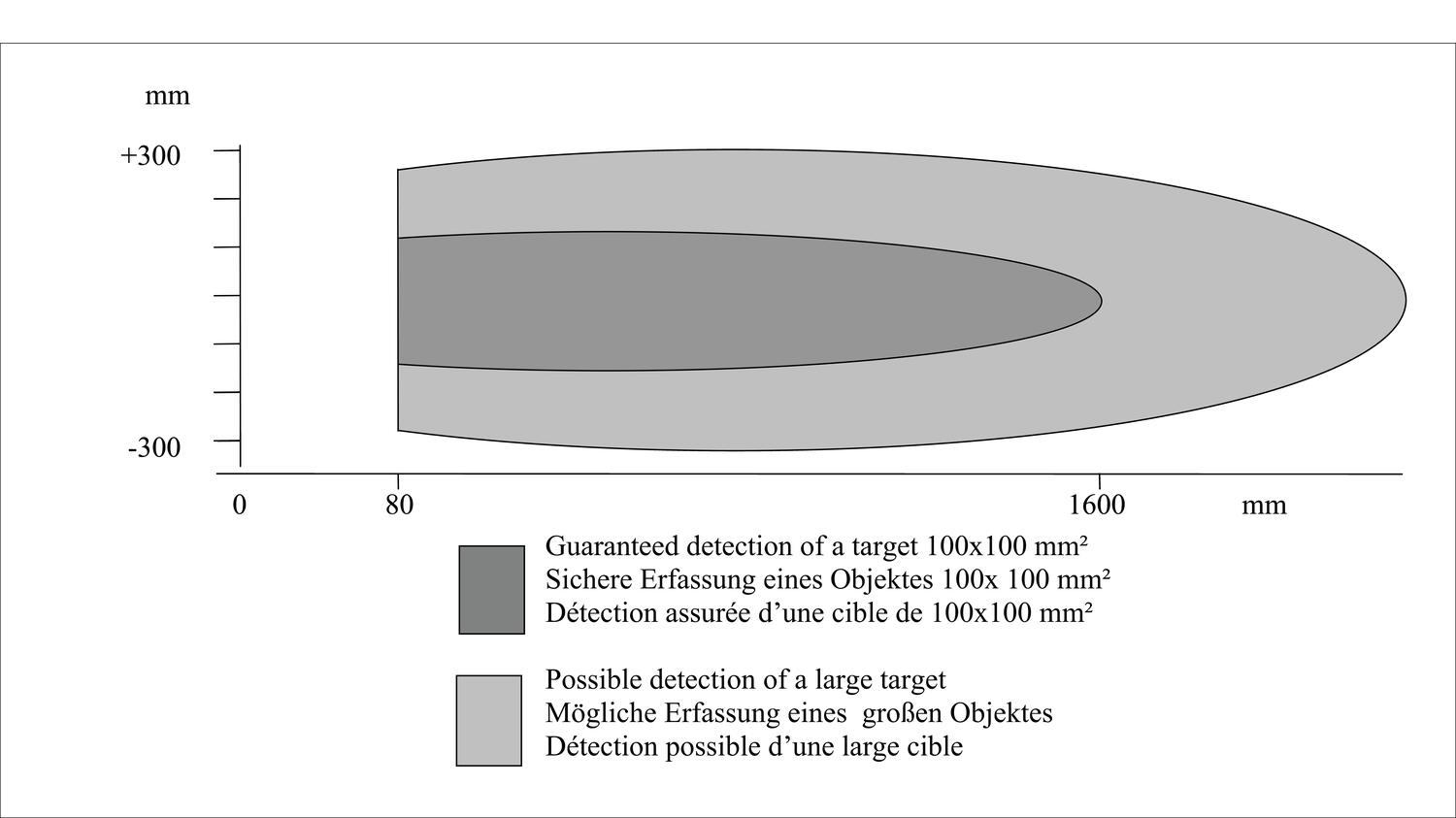

| Distance max | 1600 mm |
|---|---|
| Distance min | 80 mm |

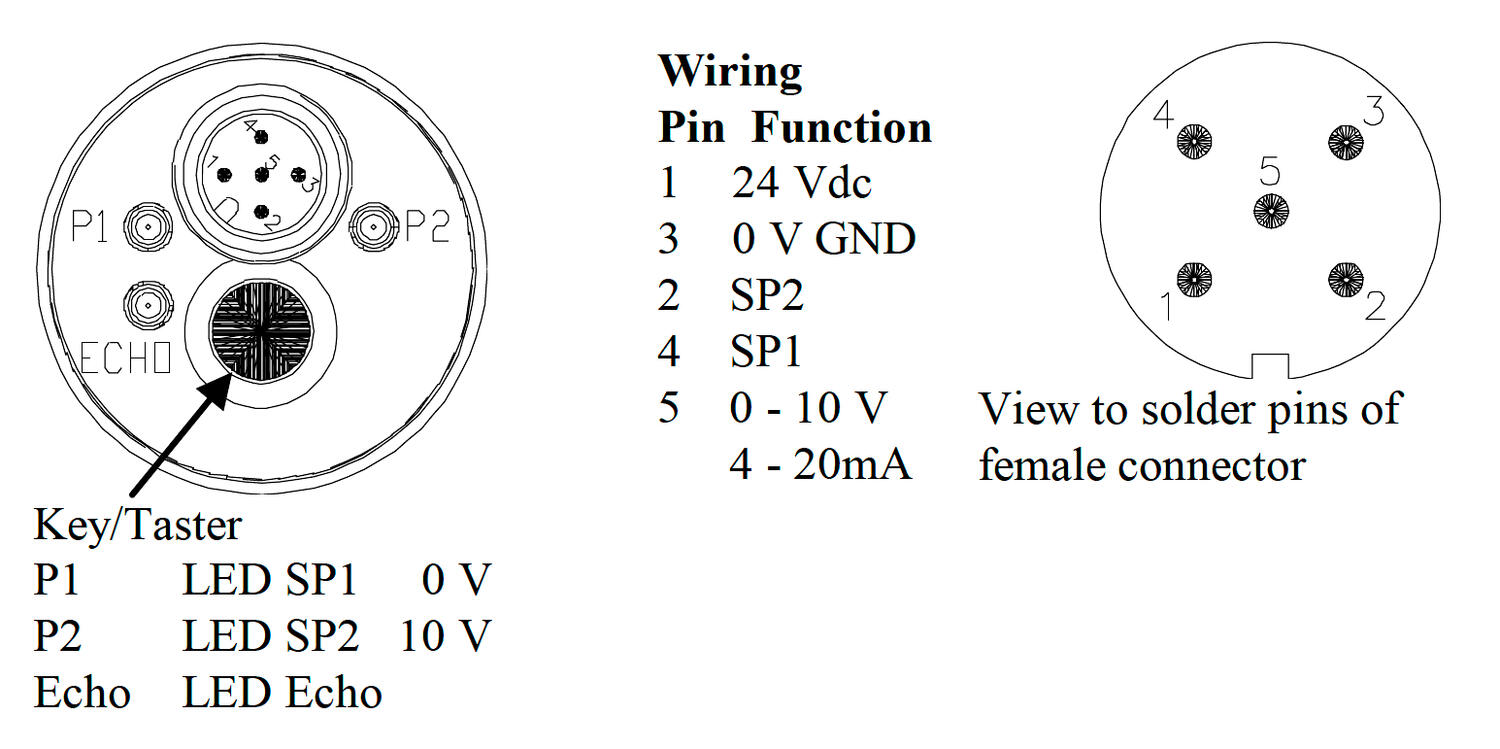

| Electrical connection | M12 5-pole connector |

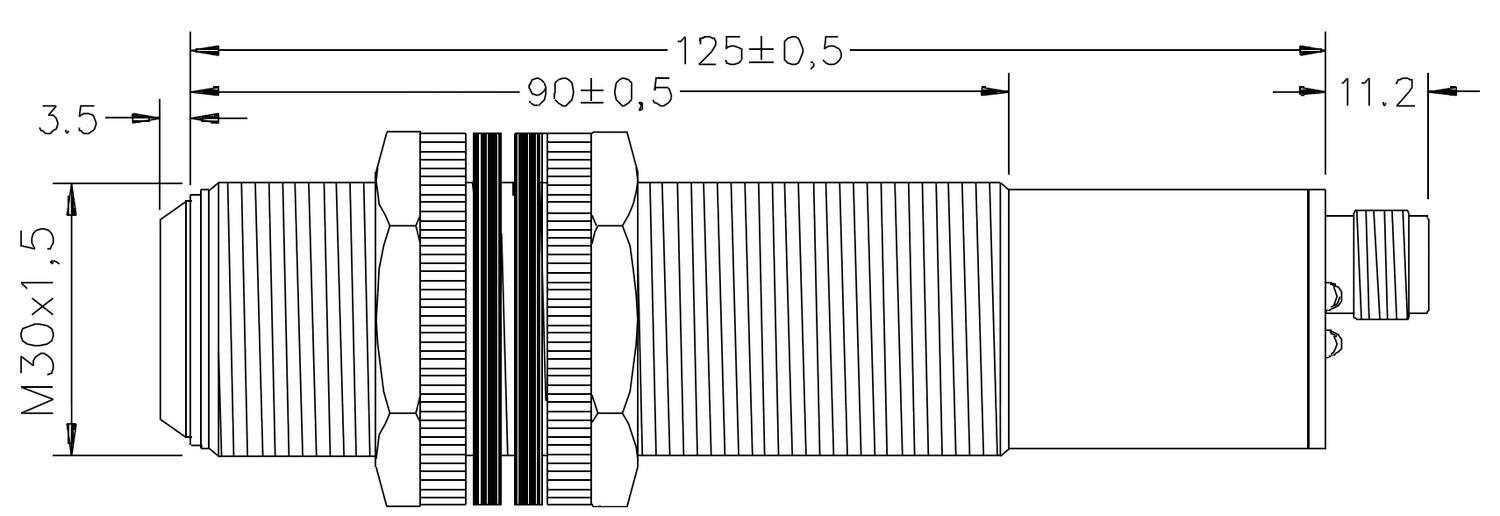

| Housing | M30 |
| IP class | IP67 |
| LED indication | Yes |
| Material of body | PBT |
| Operating frequency | 1 Hz |
| Output | 4-20mA, 0-10V, 2xPNP |
|---|---|
| Resolution | 2 mm |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 15 V DC |
| Temperature operational max | 70 °C |
| Temperature operational min | -15 °C |
