PIL

PIL P43 Ultrasonic Sensor Digital Output Cable Connector

  • Sensing distance up to 3500 mm
  • Made of PBT
  • Output 2xPNP or NPN, programmable distances
  • IP67
  • NO/NC, adjustable hysteresis

Selected variant

Available in several variants

Selected variant

Technical data

Distance max 400 mm
Distance min 30 mm
Electrical connection Embedded 2m cable
Housing M18
IP class IP67
LED indication Yes
Material of body PBT
Output 2xPNP
Resolution 0,125 mm
Supply voltage dc max 30 V DC
Supply voltage dc min 12 V DC
Temperature operational max 70 °C
Temperature operational min -20 °C

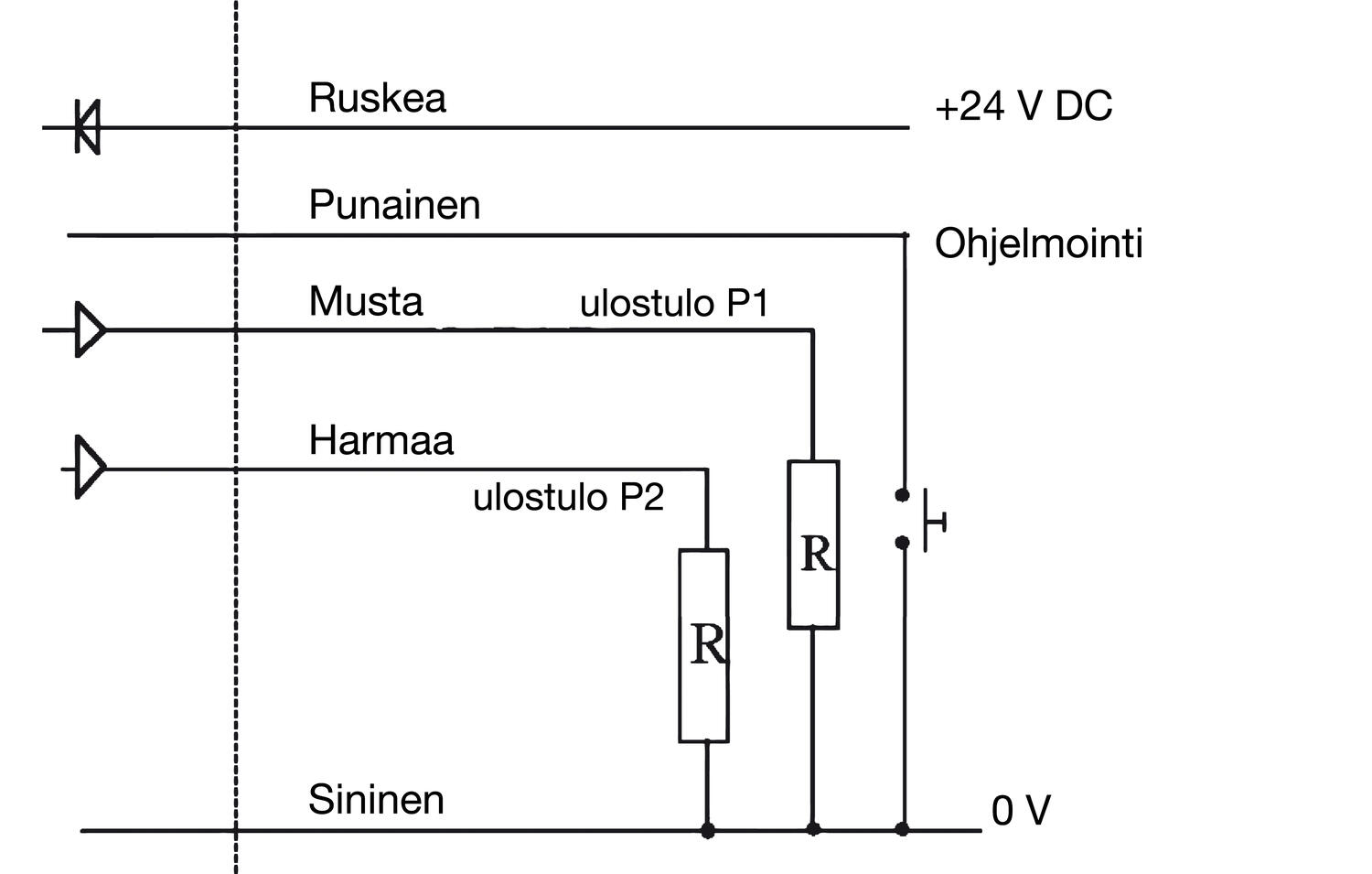

Measurements and connections

Technical illustrations

Accessories

Related

Parts Distance max Distance min Housing Resolution Price
400 mm
30 mm
M18
0,125 mm
500 mm
60 mm
M18
0,25 mm
800 mm
100 mm
M18
1 mm
1600 mm
80 mm
M18
1 mm
2000 mm
200 mm
M18
1 mm
3500 mm
300 mm
M30
1 mm
