Takex - F80 Fibre Amplifier with large digital display and long distances

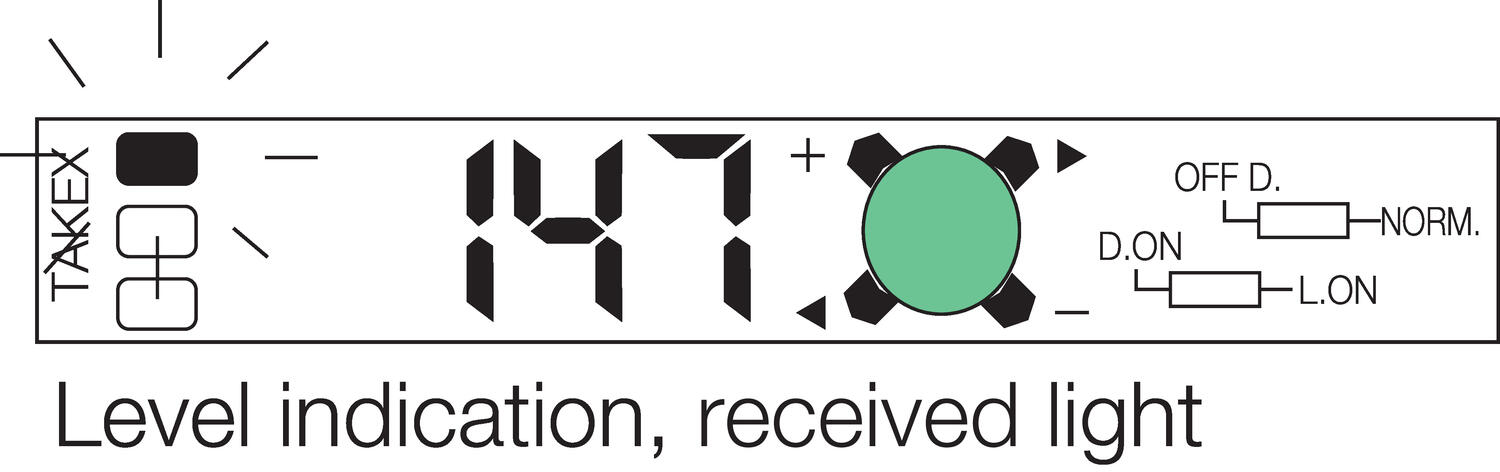

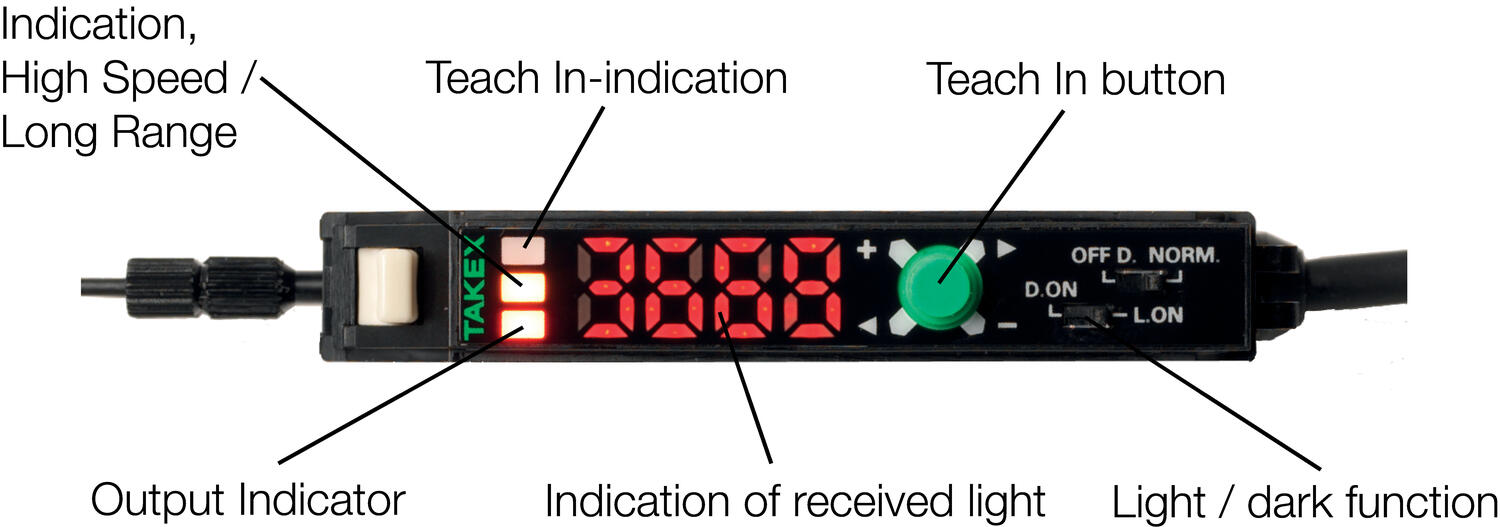

The F80 amplifier has a large, clear display which facilitates the reading of incoming light. On this amplifier, you can choose whether you want long detection distances or a fast reaction time. Reading takes place with Teach In via the green button on the amplifier. You also have the option of manually changing the value on the amplifier to the level at which you want your output signal.
- Large digital display

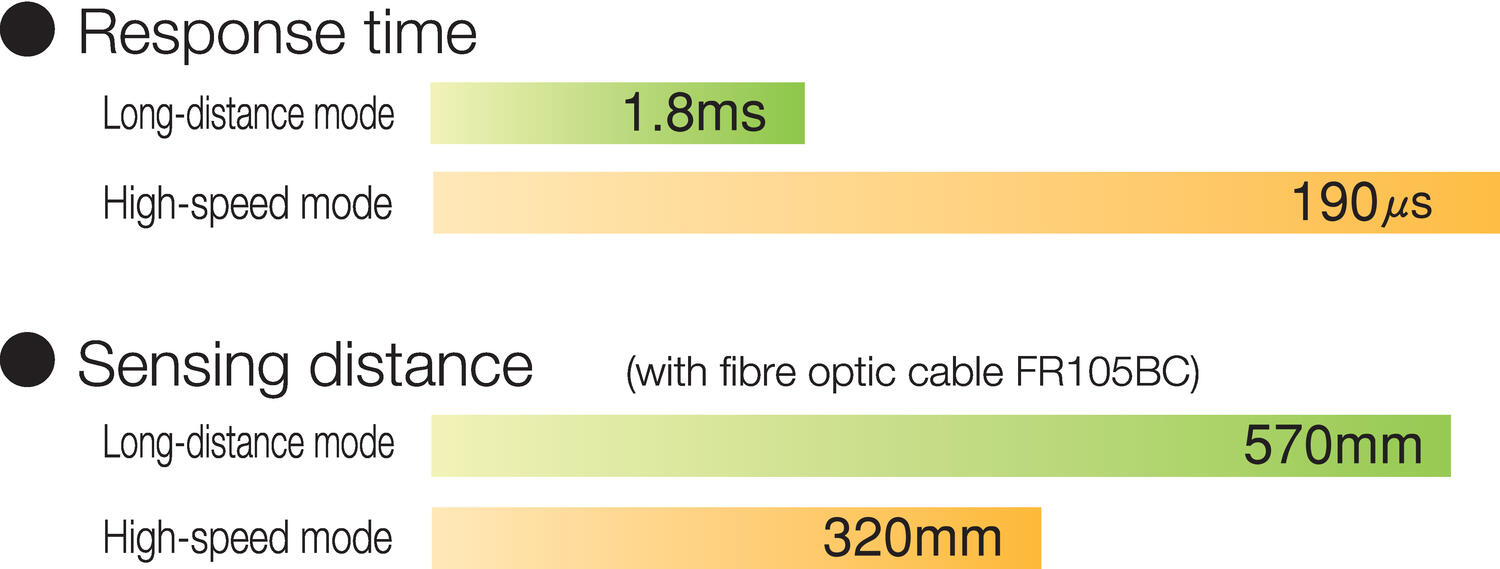

- Long distances/fast reaction time
- Teach In
Selected variant
Technical data
| Approvals | CE |
|---|---|
| Electrical connection | Embedded 2m cable |
| Function | Dark on / Light on |
| IP class | IP40 |
| Light type | Red LED |
| Light/dark switching | Yes |
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Fiber amblified |
|---|---|
| Power consumption max | 0.032 A |
| Reaction time | 0.19 ms |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Voltage dc max | 24 V |
| Voltage dc min | 12 V |

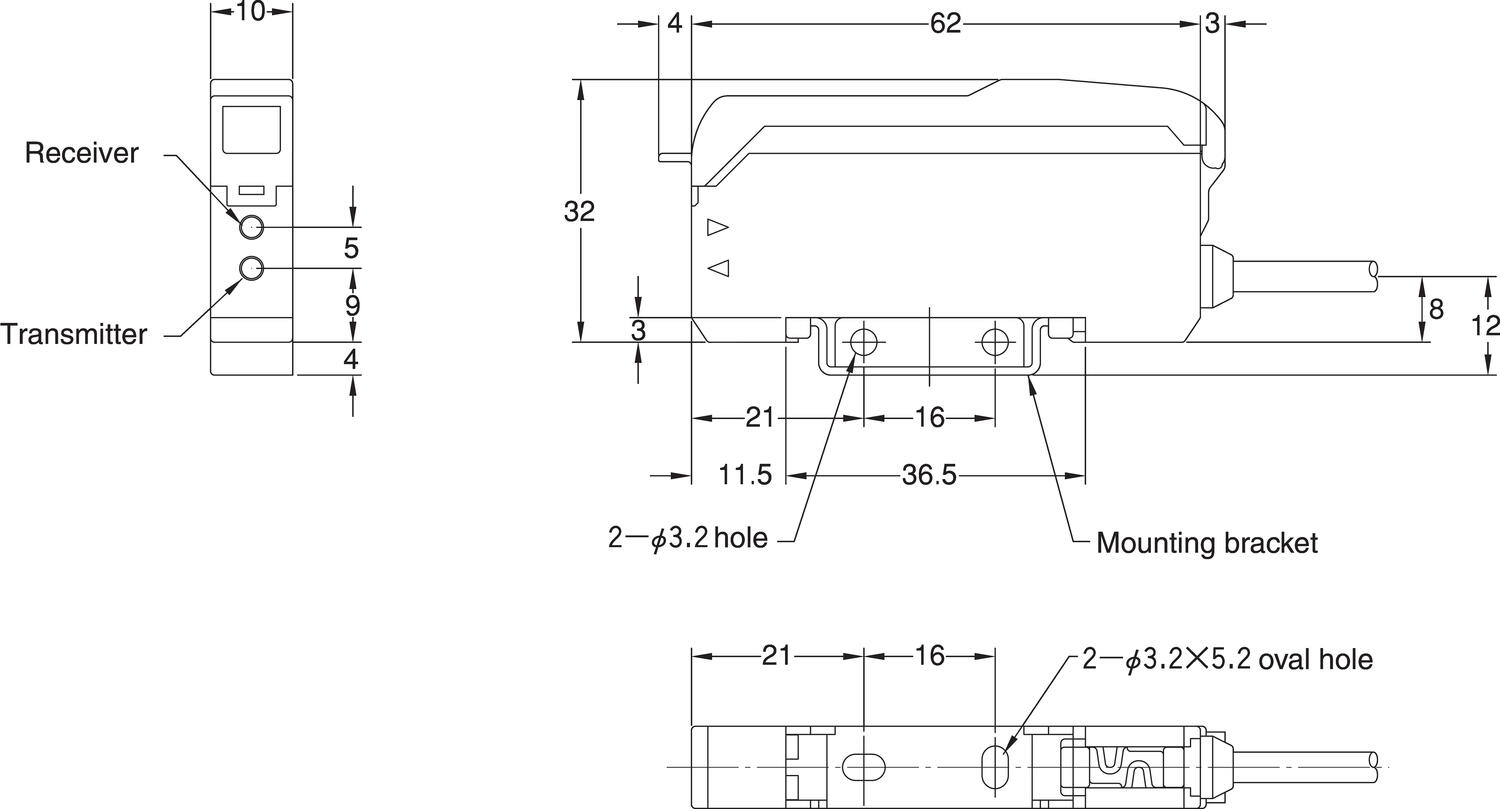

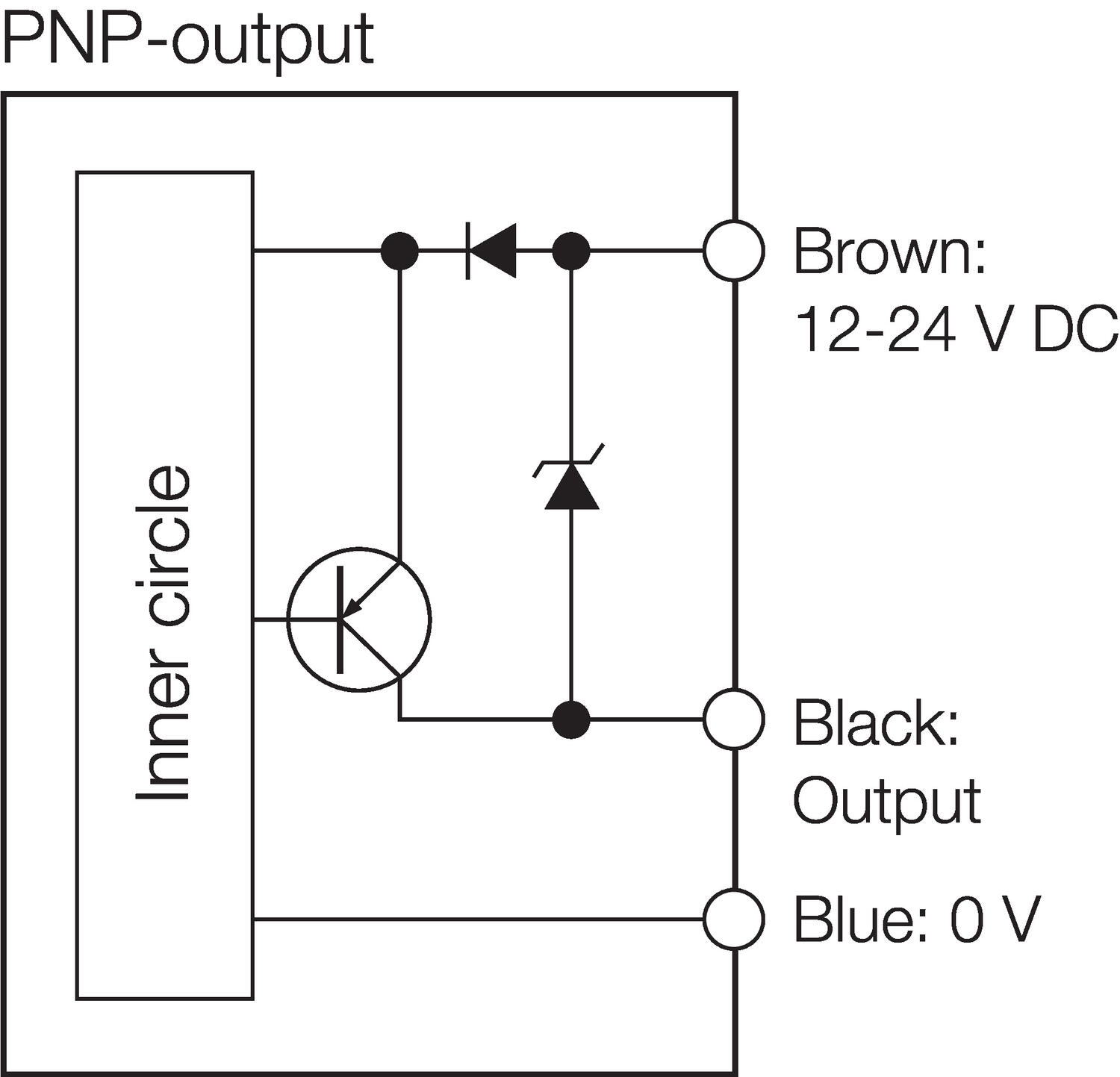

Measurements and connections

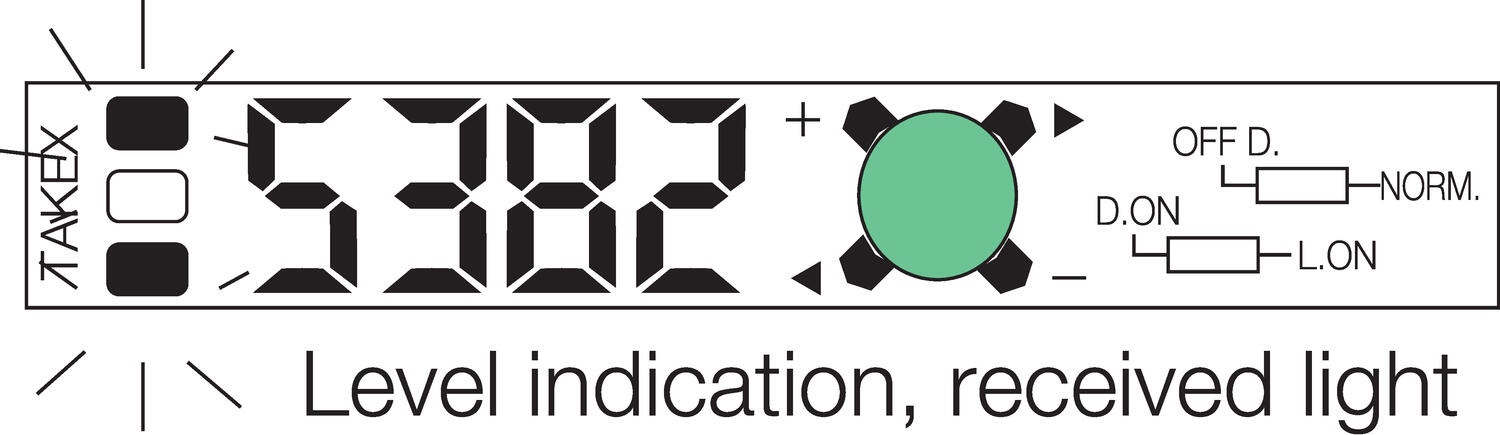

Now let the object pass

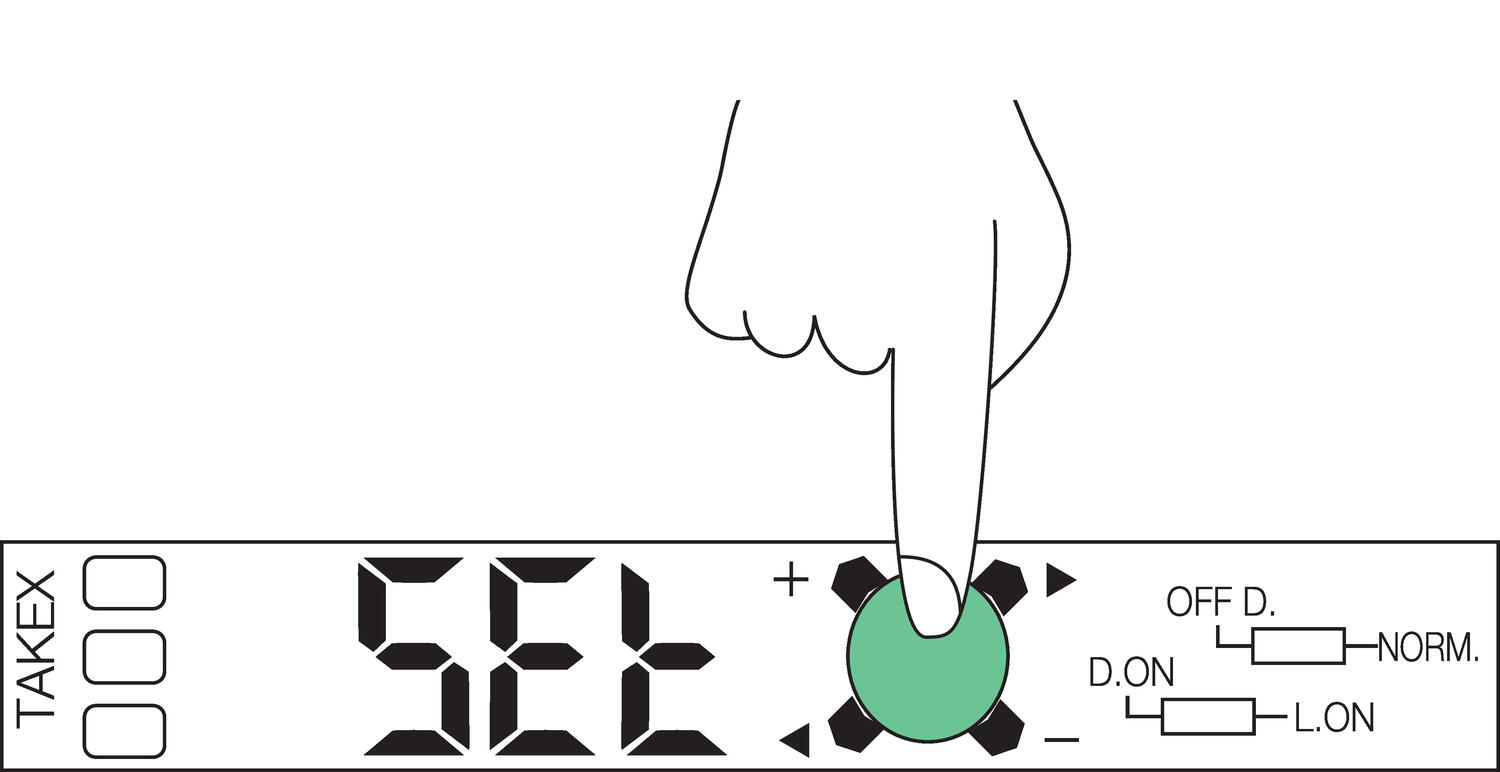

With an object. Hold down the green button until you see SET.

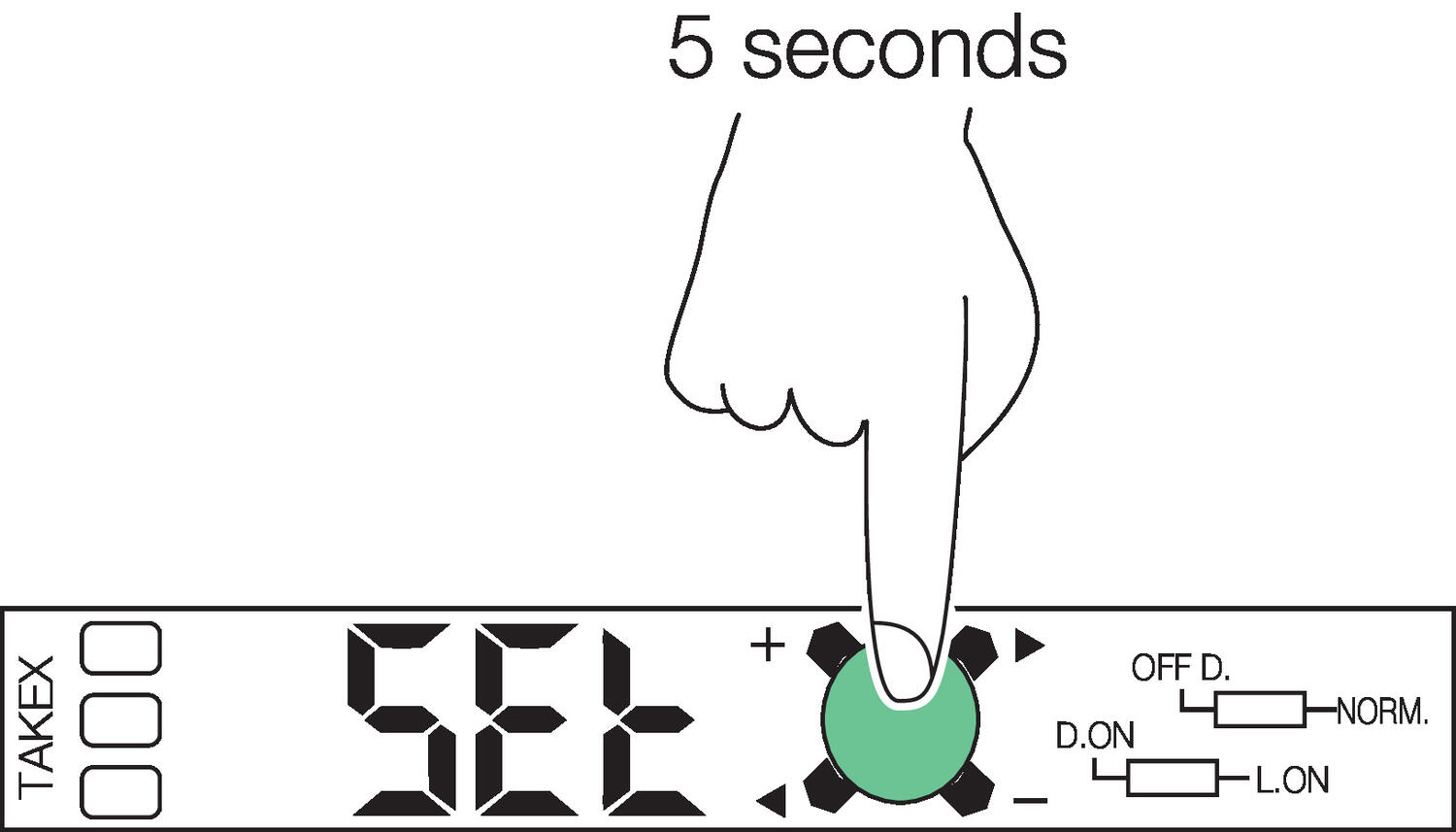

Hold down the green button for 5 sec.

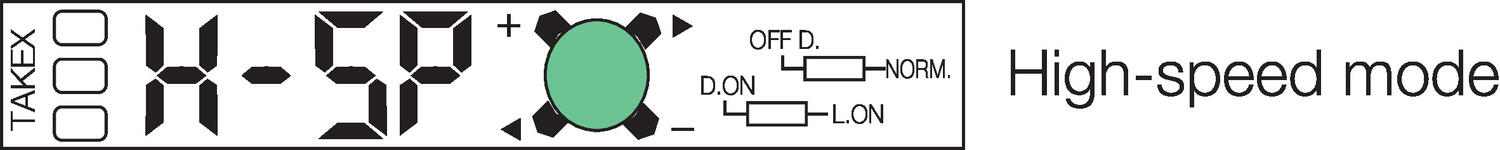

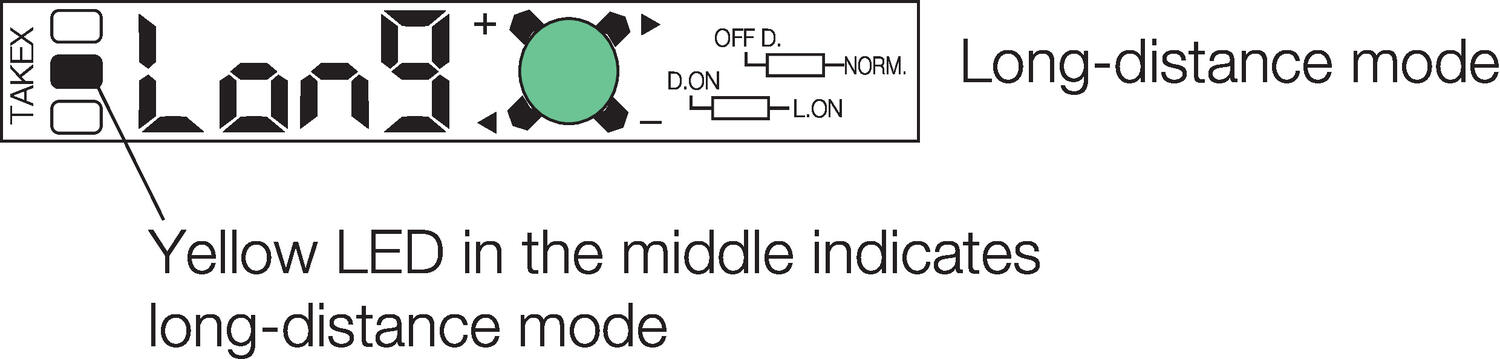

When Long or H-SP is displayed, release the button.

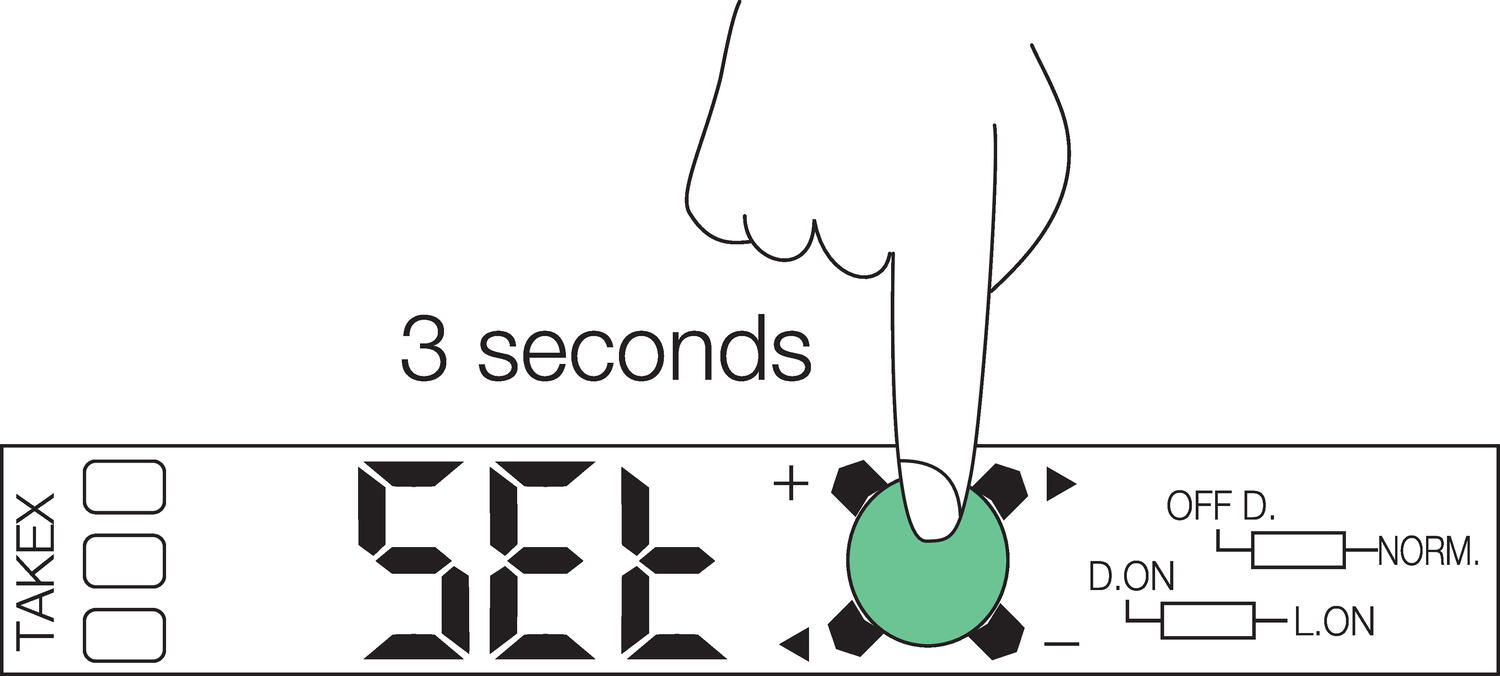

Without an object, hold down the green button for 3 sec
until you see SET and the green LED flashes. Release the button.
Hold down the green button for 5 sec.
When Long or H-SP is displayed, release the button.
With an object. Hold down the green button until you see SET.
With an object. Hold down the green button until you see SET.

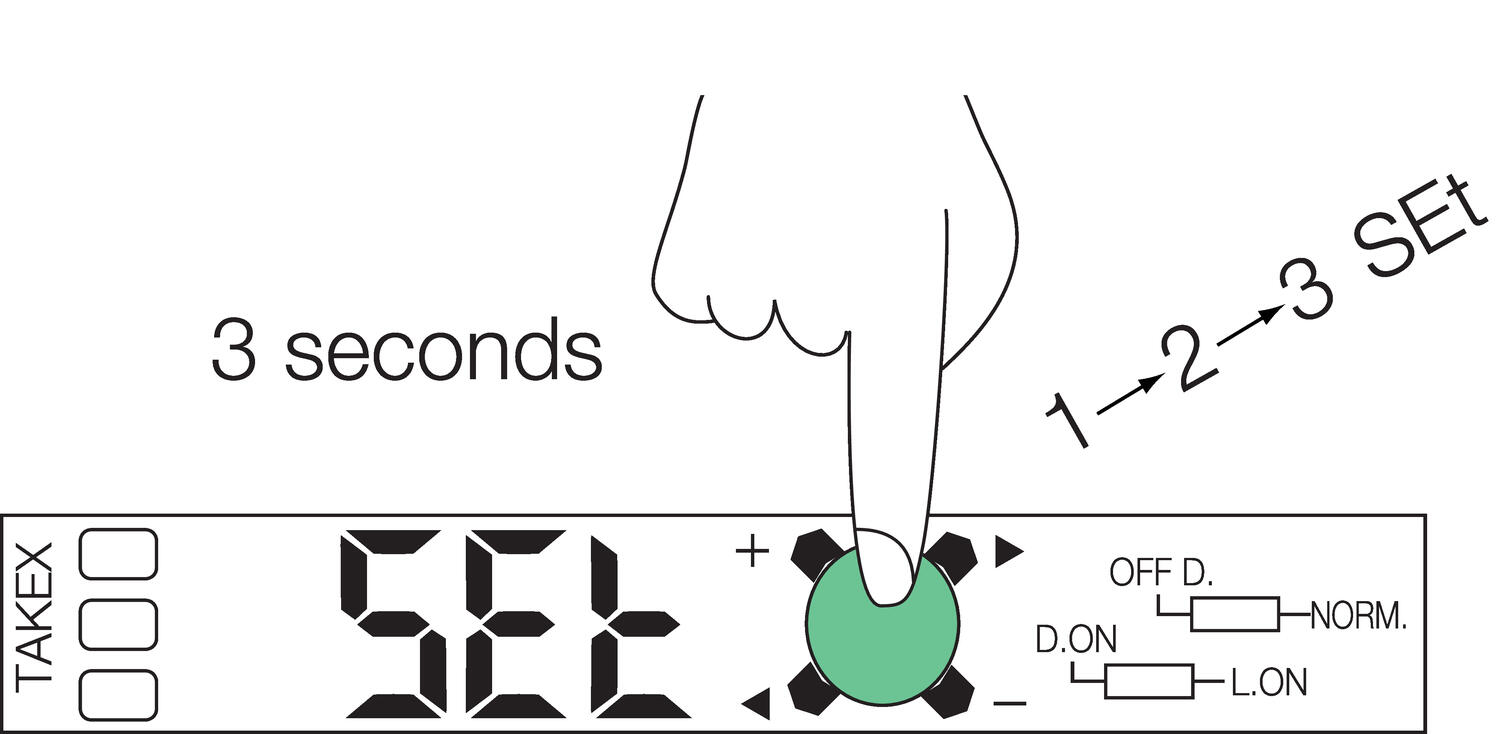

Hold down the green button for a further 3 sec.

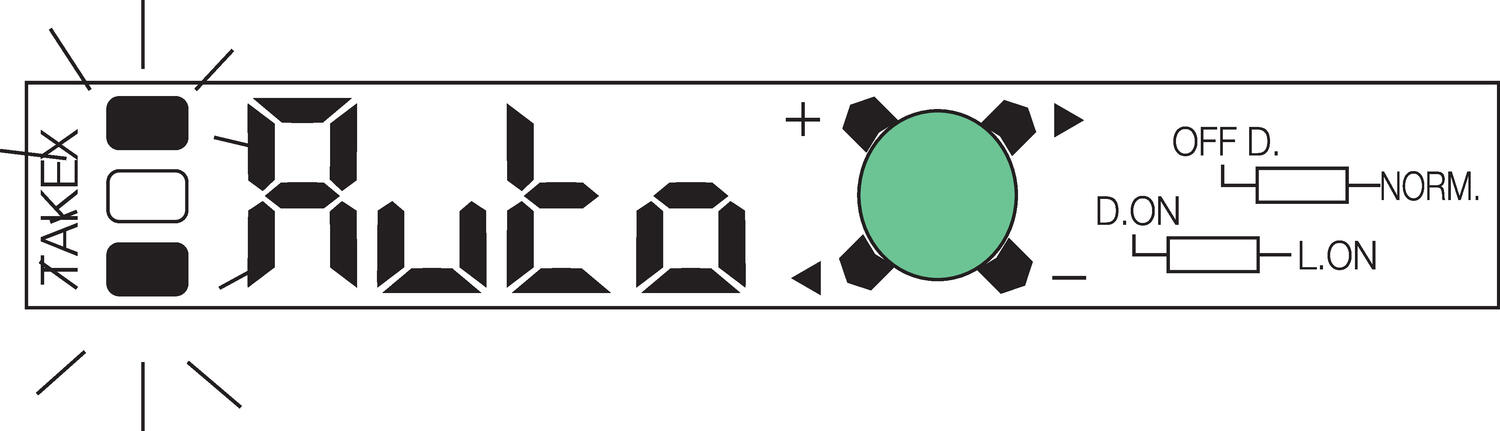

Release the button when you see Auto and the outer LEDs flash.
Without an object, hold down the green button for 3 sec until you see
SET and the green LED flashes. Release the button.
Product description
The F80 amplifier has a large, clear display which facilitates the reading of incoming light. On this amplifier, you can choose whether you want long detection distances or a fast reaction time. Reading takes place with Teach In via the green button on the amplifier. You also have the option of manually changing the value on the amplifier to the level at which you want your output signal.
