DATASENSING - S67 - Distance Sensor

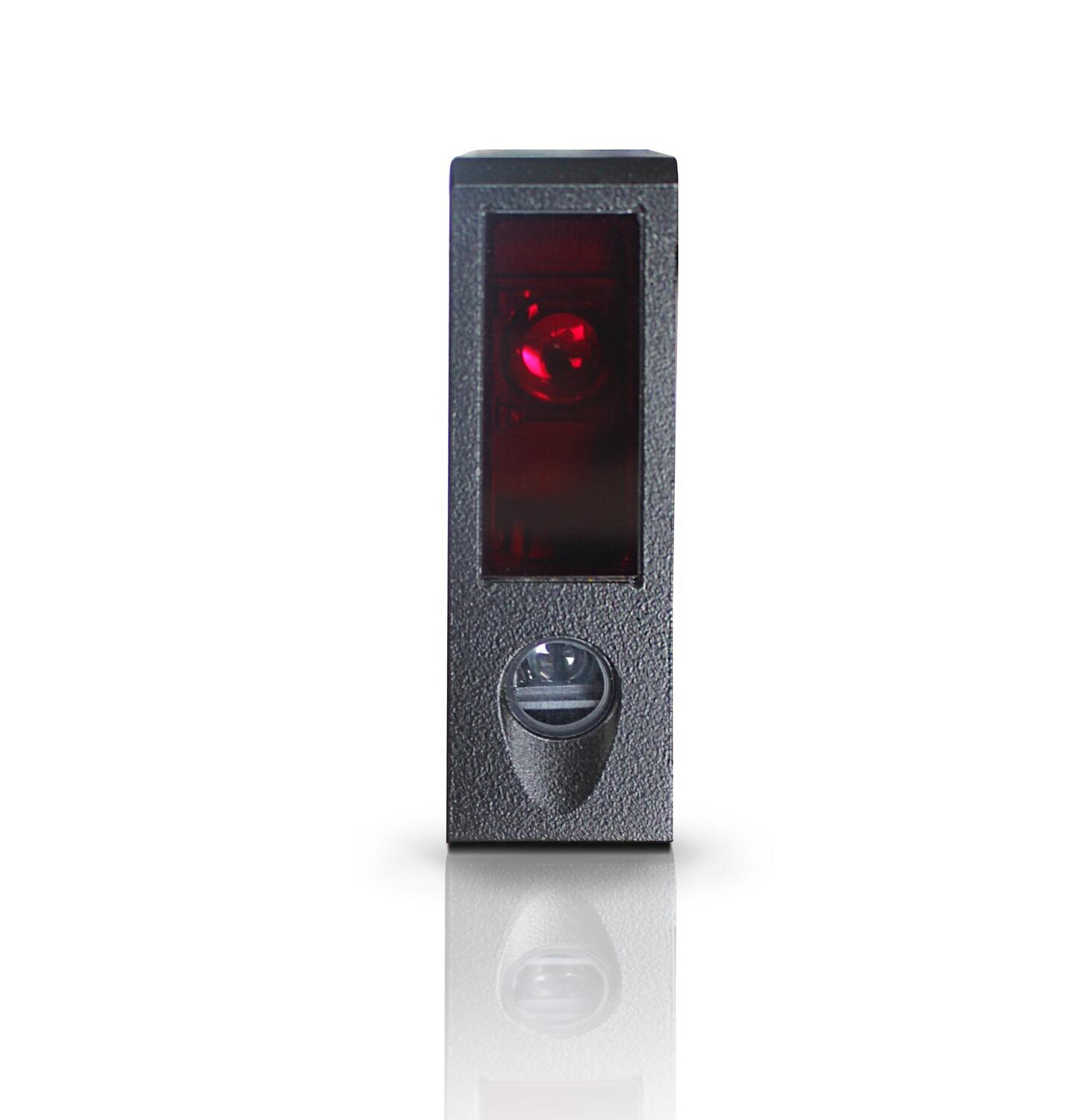

The new Datalogic S67 family is a very precise and reliable micrometric distance laser sensor series.



The S67 is supplied in a sturdy and compact metal case with a robust and rotatable M12 5poles connector to ensure a reliable distance sensing and a very easy installation.



The clear and easy user interface will make the commissioning and sensor set-up very easy and precise, suitable for any field operator fulfilling any application requirements for precise measurement and accurate object positioning .



Thanks to its accurate, precise and very bright laser spot the S67 allows very accurate installations, detecting very small parts as well. The embedded measuring algorithm and the high sensitivity photodiode array enables the sensor to work accurately regardless of color and different target surface types and target surface reflectivity.



Applications:



  • Automotive Industries
  • Textile and Paper Industries
  • Wood Industries
  • General Packaging Industries
  • Metal tooling
  • Assembly lines
  • Mechanical engineering and Special machinery
Read more
  • Sturdy metal Die-cast zinc IP67 housing.
  • Resolution of 10um @ 50mm.
  • Linearity error of +/-0,03mm @ 50mm range.
  • 0-10V and 4-20mA Analogue models

Selected variant

Available in several variants

Selected variant

Technical data

Approvals CE, UL
Dimension (mm) 20.6 x 65 x 50
Distance max 300 mm
Distance min 50 mm
Electrical connection M12 5-pole connector
IP class IP67
LED indicator Yes
Lens material Glass
Light type Red laser
Material of body Die cast metal
Output 4-20 mA
Photocell technology Distance measuring laser
Power consumption max 0,1 A
Reaction time 0,9 ms
Storage temperature max 70 °C
Storage temperature min -25 °C
Supply voltage 12-28 V DC
Temperature operational max 50 °C
Temperature operational min 0 °C
Type of light Laser
Weight 180 g

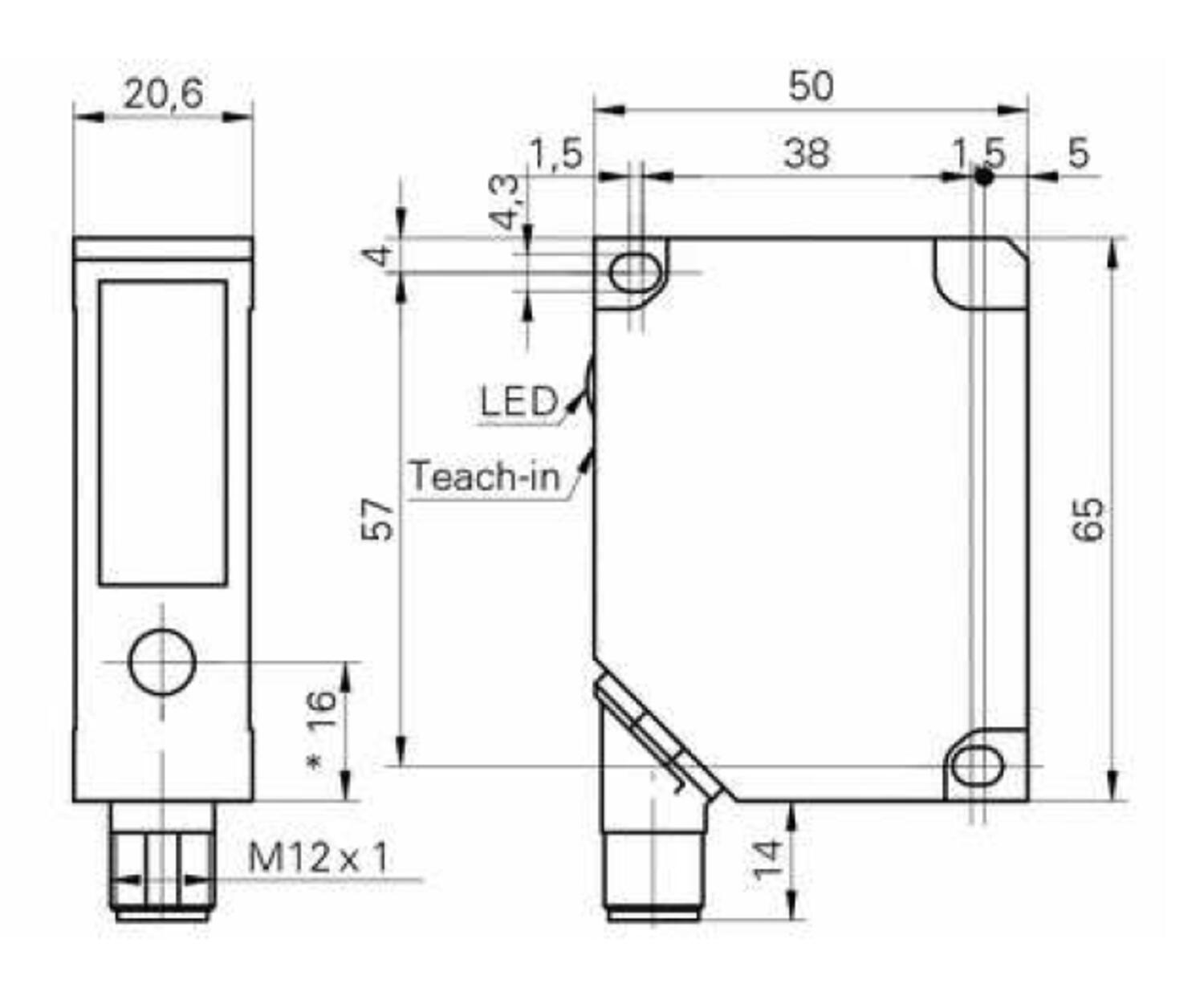

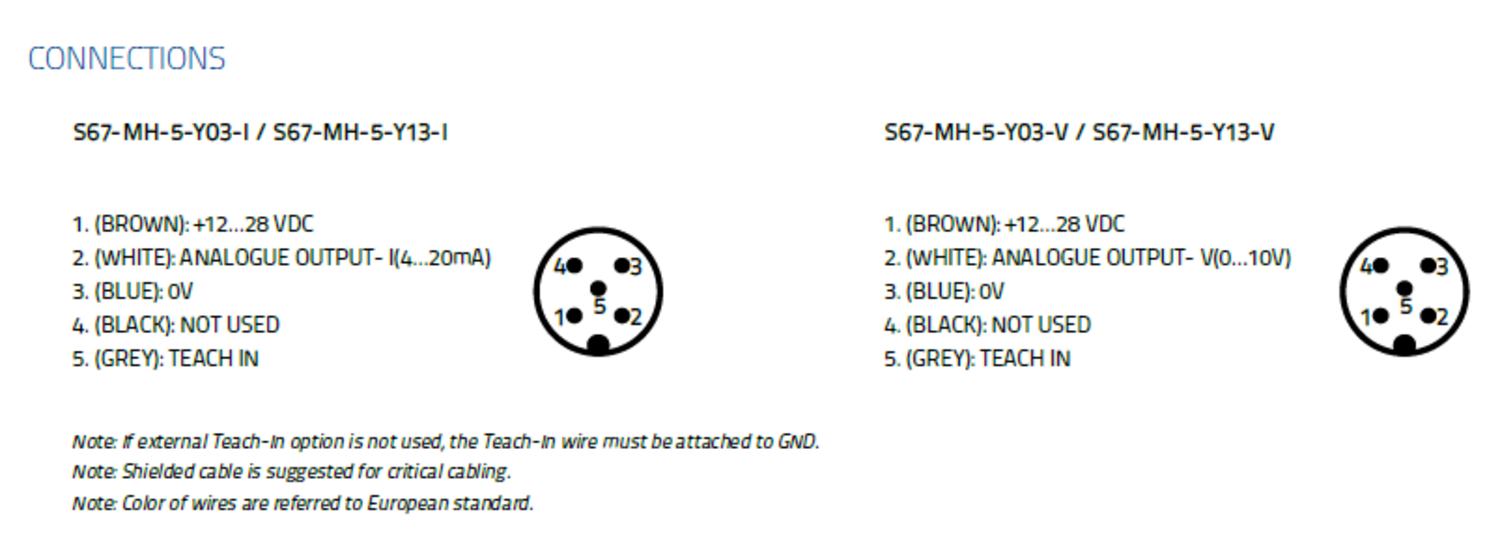

Measurements and connections

Product description

The new Datalogic S67 family is a very precise and reliable micrometric distance laser sensor series.



The S67 is supplied in a sturdy and compact metal case with a robust and rotatable M12 5poles connector to ensure a reliable distance sensing and a very easy installation.



The clear and easy user interface will make the commissioning and sensor set-up very easy and precise, suitable for any field operator fulfilling any application requirements for precise measurement and accurate object positioning .



Thanks to its accurate, precise and very bright laser spot the S67 allows very accurate installations, detecting very small parts as well. The embedded measuring algorithm and the high sensitivity photodiode array enables the sensor to work accurately regardless of color and different target surface types and target surface reflectivity.



Applications:



  • Automotive Industries
  • Textile and Paper Industries
  • Wood Industries
  • General Packaging Industries
  • Metal tooling
  • Assembly lines
  • Mechanical engineering and Special machinery

Accessories

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

hokuyu
Product news

The Smallest Safety Laser Scanner on the market by Hokuyo

Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

ATEX hazardous environments and OEM ATEX products
Blog

ATEX - Learn about explosion safety in hazardous environments

ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.

Sensor and safety engineer tony maton OEM automatic
Company news Product news

Our Newest Sensor and Safety Engineer

We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety

Parts Distance max Distance min Output Price
300 mm
50 mm
4-20 mA
300 mm
50 mm
0-10V
600 mm
100 mm
4-20 mA
600 mm
100 mm
0-10V

Selected variant

Select a variant in the list
