Datalogic safety light curtain kit

Our kits include everything you need to quickly and easily install a safety light curtain to protect your personnel around hazardous machinery.

The Sensors and Safety team at OEM Automatic UK are offering a fantastic promotion on Datalogic’s SG4 BASE safety light curtain range. In stock we have a range of sizes in both the 14mm and 30mm resolution light curtains. The table below shows part numbers for these kits.

Safety Light Curtain Kit - Finger Protection

Part Number	Description
DLSafetyKit14-150	Type 4 Safety Light Curtain 14mm Finger Res, 150mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-300	Type 4 Safety Light Curtain 14mm Finger Res, 300mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-450	Type 4 Safety Light Curtain 14mm Finger Res, 450mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-600	Type 4 Safety Light Curtain 14m m Finger Res, 600mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-750	Type 4 Safety Light Curtain 14mm Finger Res, 750mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-900	Type 4 Safety Light Curtain 14mm Finger Res, 900mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-1050	Type 4 Safety Light Curtain 14mm Finger Res, 1050mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-1200	Type 4 Safety Light Curtain 14mm Finger Res, 1200mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-1350	Type 4 Safety Light Curtain 14mm Finger Res, 1350mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-1500	Type 4 Safety Light Curtain 14mm Finger Res, 1500mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-1650	Type 4 Safety Light Curtain 14mm Finger Res, 1650mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit14-1800	Type 4 Safety Light Curtain 14mm Finger Res, 1800mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables



Order your finger protection safety light curtain kit here

Alternatively, view some of the products below that make up the kit.

Safety Light Curtain Kit - Hand Protection

Part Number	Description
DLSafetyKit30-150	Type 4 Safety Light Curtain 30mm Hand Res, 150mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-300	Type 4 Safety Light Curtain 30mm Hand Res, 300mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-450	Type 4 Safety Light Curtain 30mm Hand Res, 450mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-600	Type 4 Safety Light Curtain 30mm Hand Res, 600mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-750	Type 4 Safety Light Curtain 30mm Hand Res, 750mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-900	Type 4 Safety Light Curtain 30mm Hand Res, 900mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-1050	Type 4 Safety Light Curtain 30mm Hand Res, 1050mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-1200	Type 4 Safety Light Curtain 30mm Hand Res, 1200mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-1350	Type 4 Safety Light Curtain 30mm Hand Res, 1350mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-1500	Type 4 Safety Light Curtain 30mm Hand Res, 1500mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-1650	Type 4 Safety Light Curtain 30mm Hand Res, 1650mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables
DLSafetyKit30-1800	Type 4 Safety Light Curtain 30mm Hand Res, 1800mm Height + Type 4 Safety Relay + Brackets + M12 4-Pole 10m Cables



Order your hand protection safety light curtain kit here

Alternatively, view some of the products below that make up the kit.

What is a Safety Light Curtain?

Safety light curtains are a type of safety sensor. They use infrared light to detect any opaque object between the emitter and receiver. They are used to protect personnel from hazardous and moving parts of machinery.

Who are Datalogic?

Datalogic are a global technology leader in the automatic data capture and process automation markets, specialising in the design and manufacture of barcode readers, mobile computers, sensors for detection, measurement and safety, vision and laser marking systems.

What does the SG4 Safety Light Curtain kit contain?

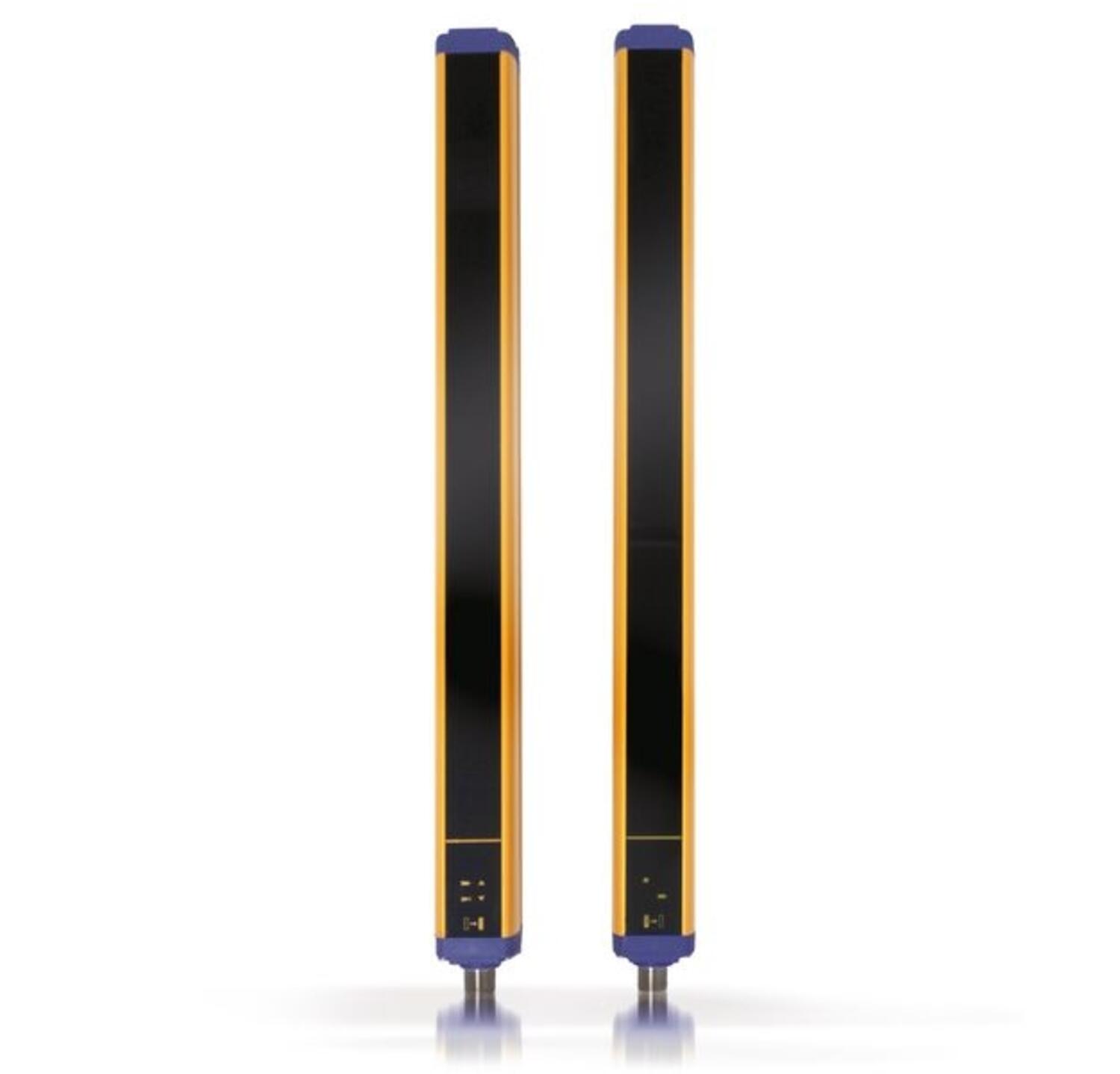

• 1 x emitter + 1 x receiver + 1 x mounting brackets kit - SG4 BASE
• 2 x M12 connectors with 10m cable

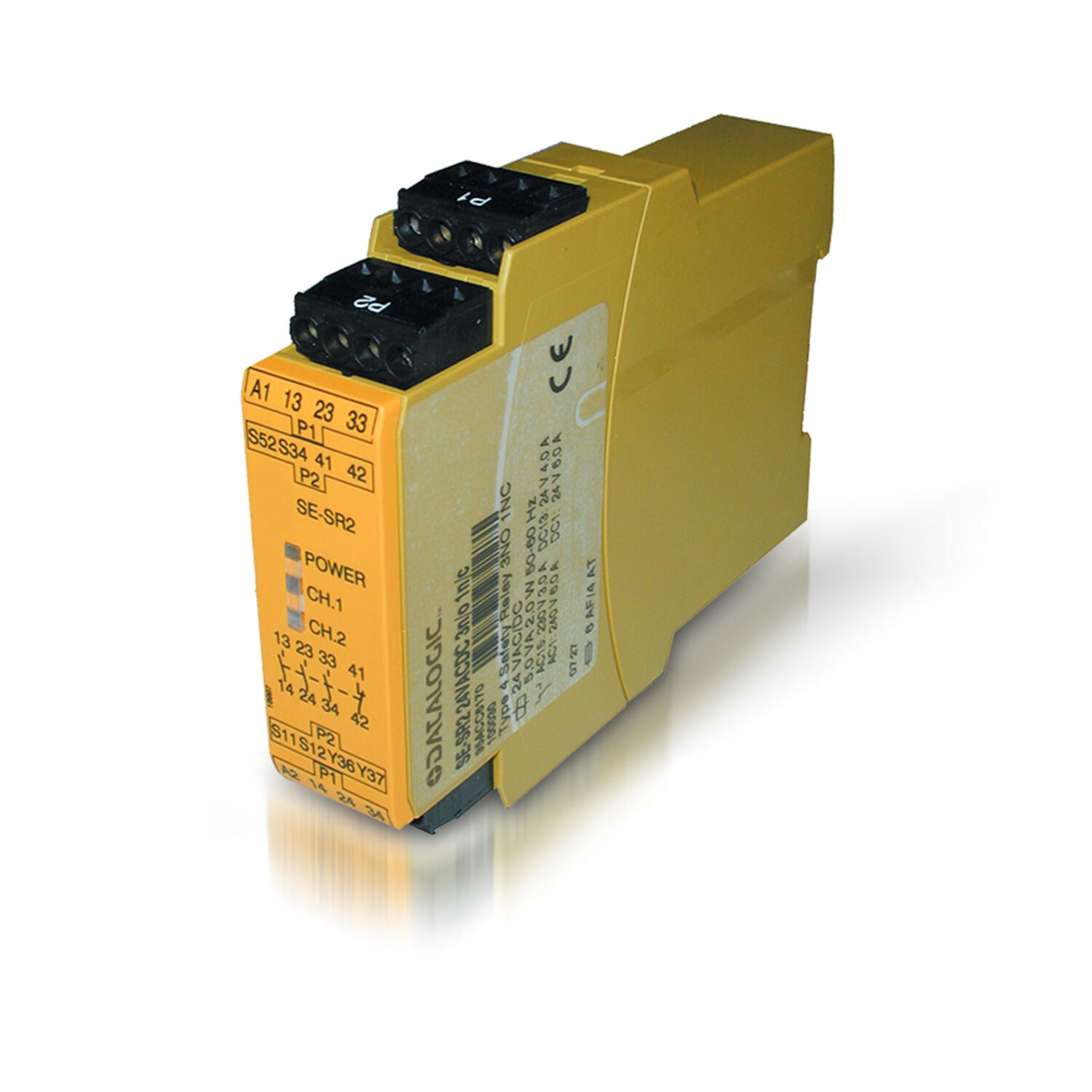

• 1 x safety relay SE-SR2

optional accessory

• 1 x kit orientable adaptors ST-K*OR
  (10° angular alignment)

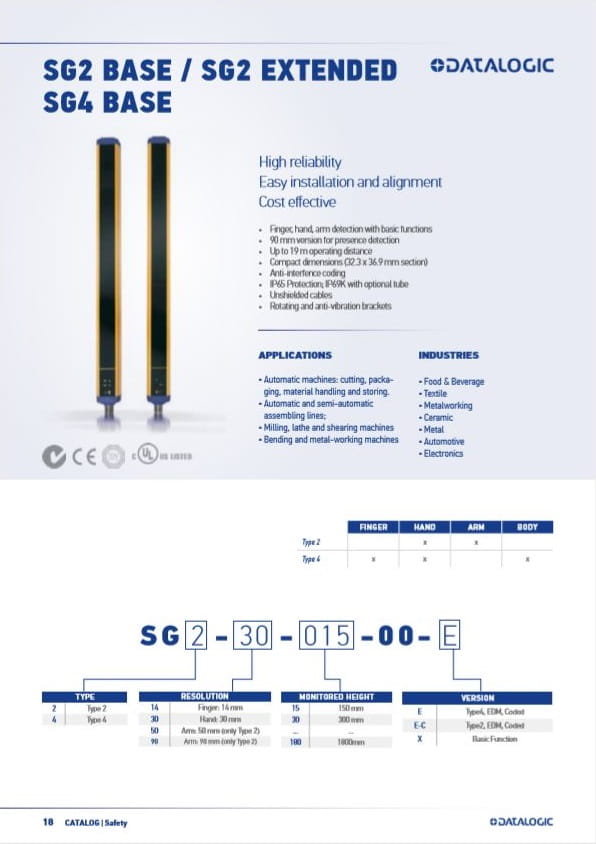

What are the technical features of the SG4 BASE?

Power Supply	24VDC +/-20%
Operating distance	0.2 .... 6m (14mm resolution / 0.2 ..... 19m (30mm resolution)
Output	2 x OSSD, 500mA each
Response time	8 to 19ms (depending model)
Mechanical protection	IP65 according EN 60529
Operating temperature	0°C to 55°C
Profile size	32 mm x 37 mm

What is the difference between the 14mm and 30mm resolution light curtains?

What if I have a question about my application?

How do I order?



Please be aware that this promotion can be withdrawn at any time.
