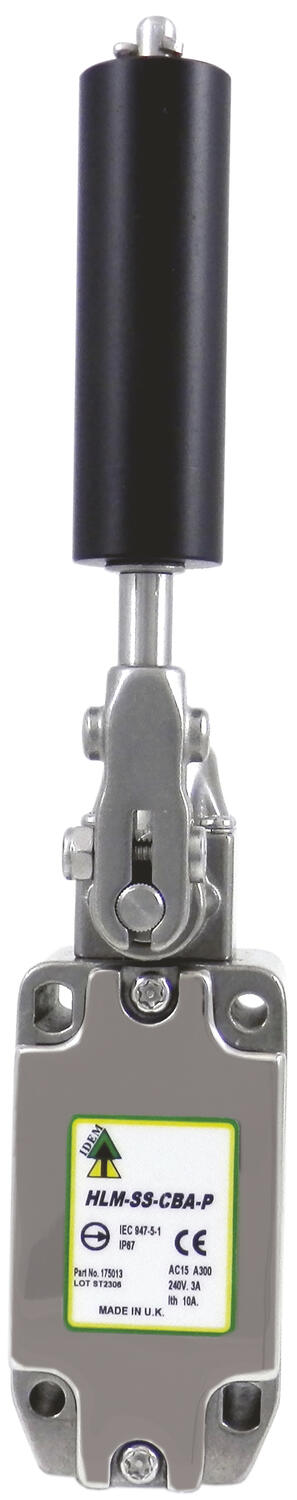

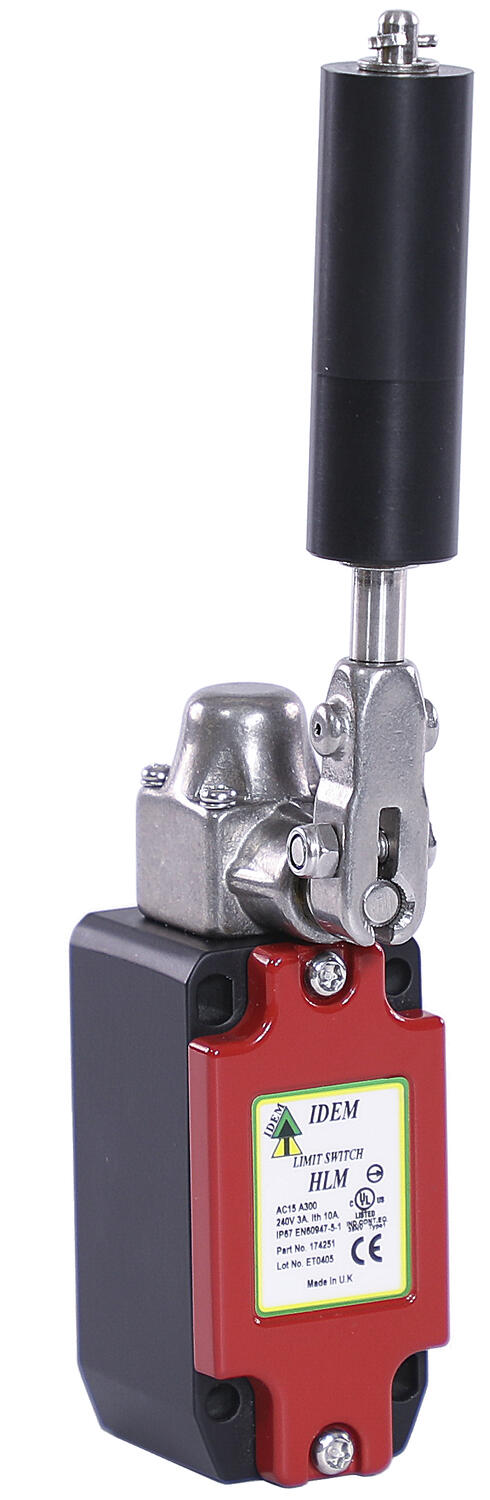

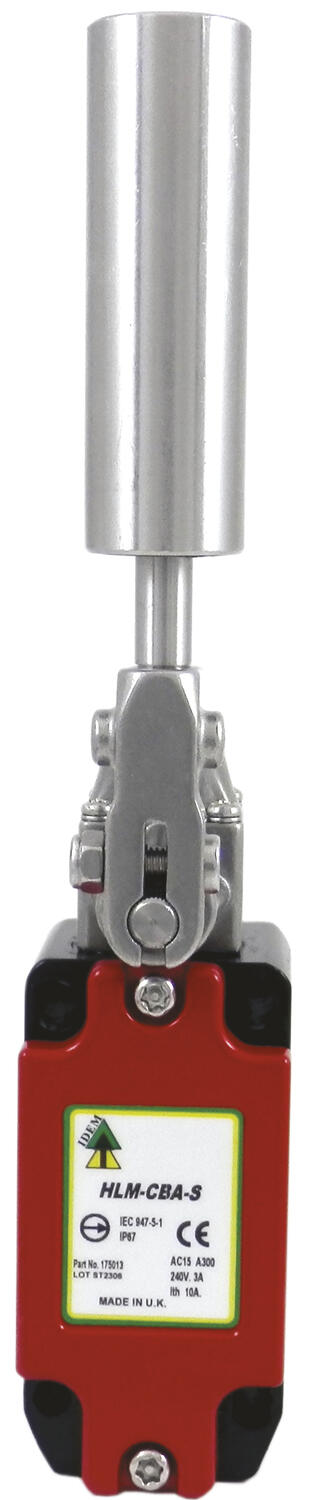

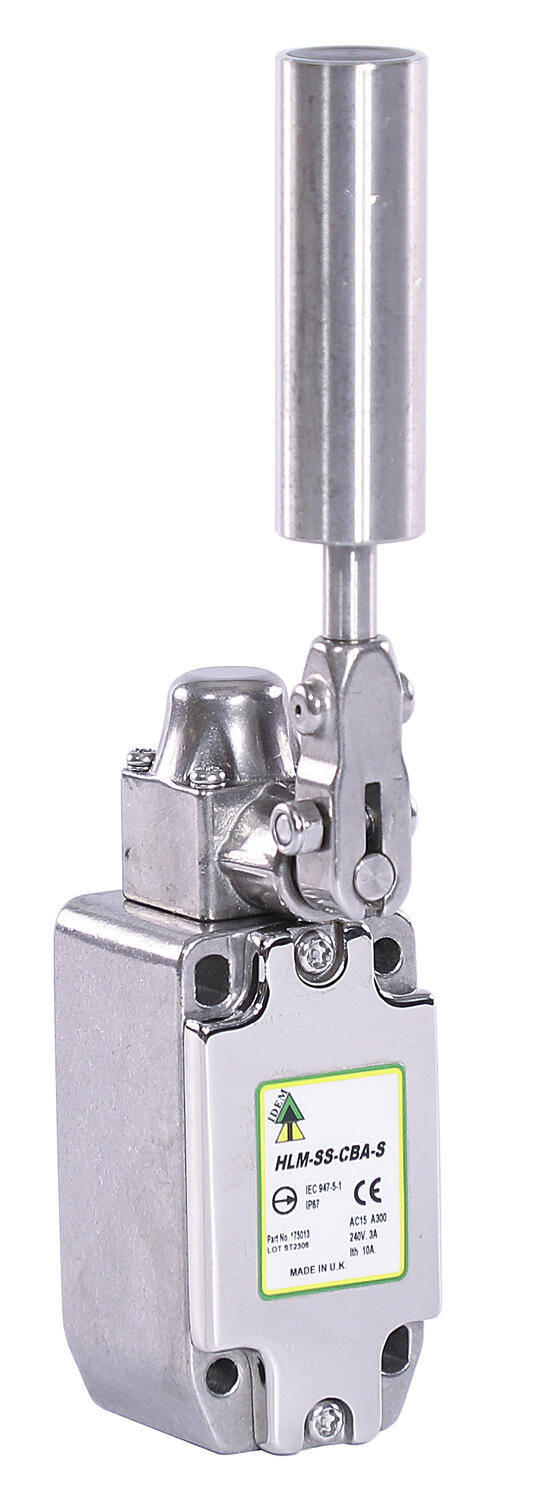

IDEM HLM-CBA/HLM-SS-CBA Tape convergence sensor explosion proof

The offer of tape cone detectors in the Mini IDEM version complements a wide range of cable switches used for emergency stop along conveyors. They are mounted along the conveyor belt and indicate the crookedness of the conveyor belt. We offer standard models (casting made of metal) and made of stainless steel. The rollers of these breakers can be of plastic or stainless steel.

Read more
  • Explosion proof
  • 2 types of lever rollers
  • Perfect for smaller conveyors
  • Small dimensions
  • Different contact configurations

Selected variant

Available in several variants

Selected variant

Technical data

Actuator Plastic Roller
Approvals ISO 14119, EN60947-5-1, EN60204-1, ISO 13849-1, EN62061, UL 508
ATEX approved Yes
Cable length 3 m
Conduit entry 3m 4 core Ex
Contacts 1NC 1NO
Electrical lifetime 100,000 cycle min. (at full load)
Housing material Die cast metal
Integrated LED indication No
IP class IP67
Mechanical reliability B10d 500,000 operations at 100mA load
Minimum current 5V 5mA DC

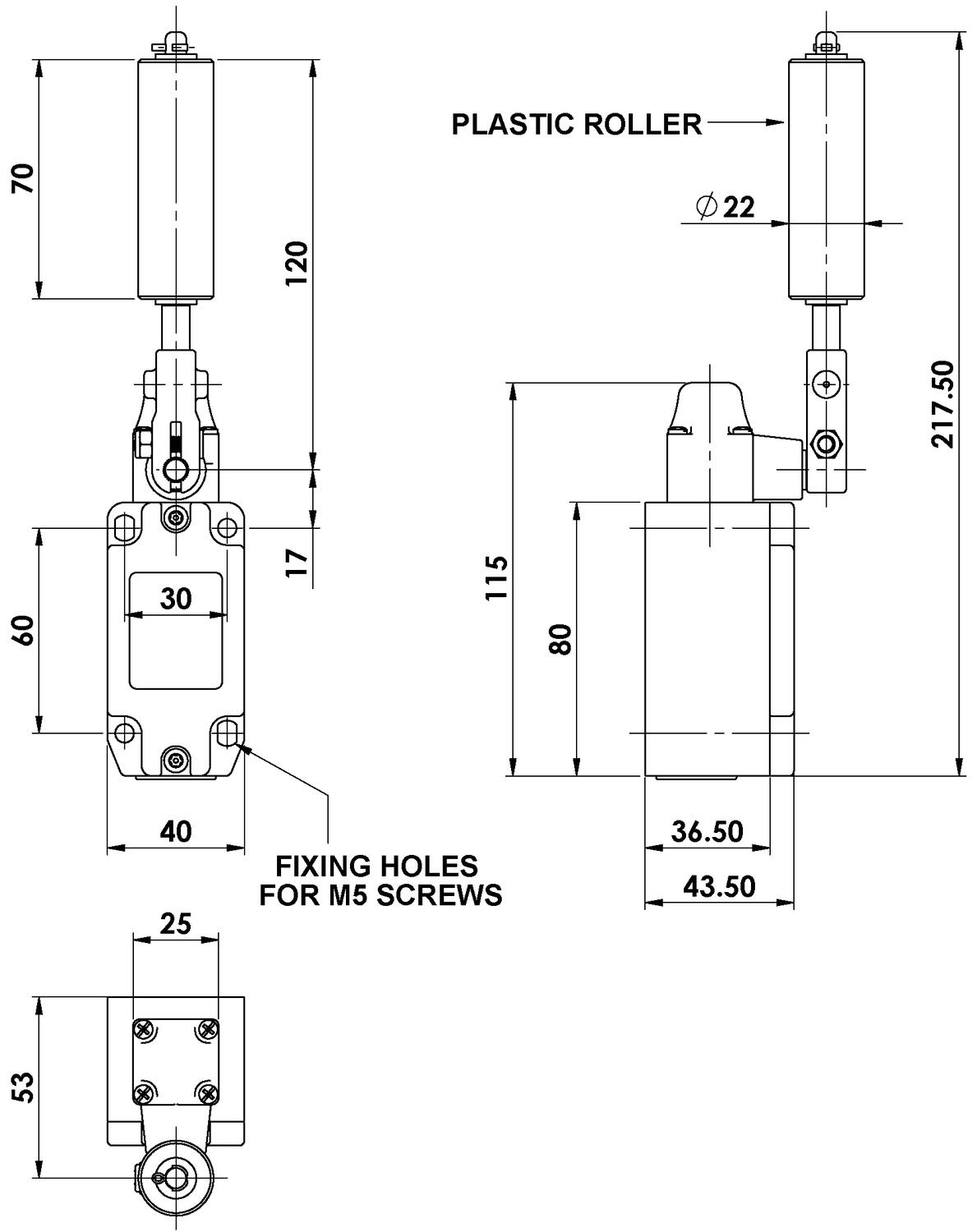

Mounting 4 x M5
Operating temperature -20°C...+60°C
Rated insulation voltage 300 V AC
Thermal current (lth) 10 A
Utilisation category AC15
Vibration IEC68-2-6 10-55Hz 0.35mm
Withstand voltage 2500 V AC

Product description

The offer of tape cone detectors in the Mini IDEM version complements a wide range of cable switches used for emergency stop along conveyors. They are mounted along the conveyor belt and indicate the crookedness of the conveyor belt. We offer standard models (casting made of metal) and made of stainless steel. The rollers of these breakers can be of plastic or stainless steel.

Accessories

Related

Parts Actuator Conduit entry Contacts Housing material IP class Number of poles Weight Price
Plastic Roller
3m 4 core Ex
1NC 1NO
Die cast metal
IP67
Plastic Roller
3m 4 core Ex
2NC
Die cast metal
IP67
Plastic Roller
3m 8 core Ex
2NC 2NO
Die cast metal
IP67
8
700 g
Stainless Steel Roller
3m 4 core Ex
1NC 1NO
Die cast metal
IP67
Stainless Steel Roller
3m 4 core Ex
2NC
Die cast metal
IP67
Stainless Steel Roller
3m 8 core Ex
2NC 2NO
Die cast metal
IP67
8
Plastic roller
3m 4 core Ex
1NC 1NO
Stainless steel 316
IP69K
Plastic roller
3m 4 core Ex
2NC
Stainless steel 316
IP69K
Plastic roller
3m 8 core Ex
2NC 2NO
Stainless steel 316
IP69K
Stainless steel roller
3m 4 core Ex
1NC 1NO
Stainless steel 316
IP69K
Stainless steel roller
3m 4 core Ex
2NC
Stainless steel 316
IP69K
Stainless steel roller
3m 8 core Ex
2NC 2NO
Stainless steel 316
IP69K
8
920 g
