SUCO

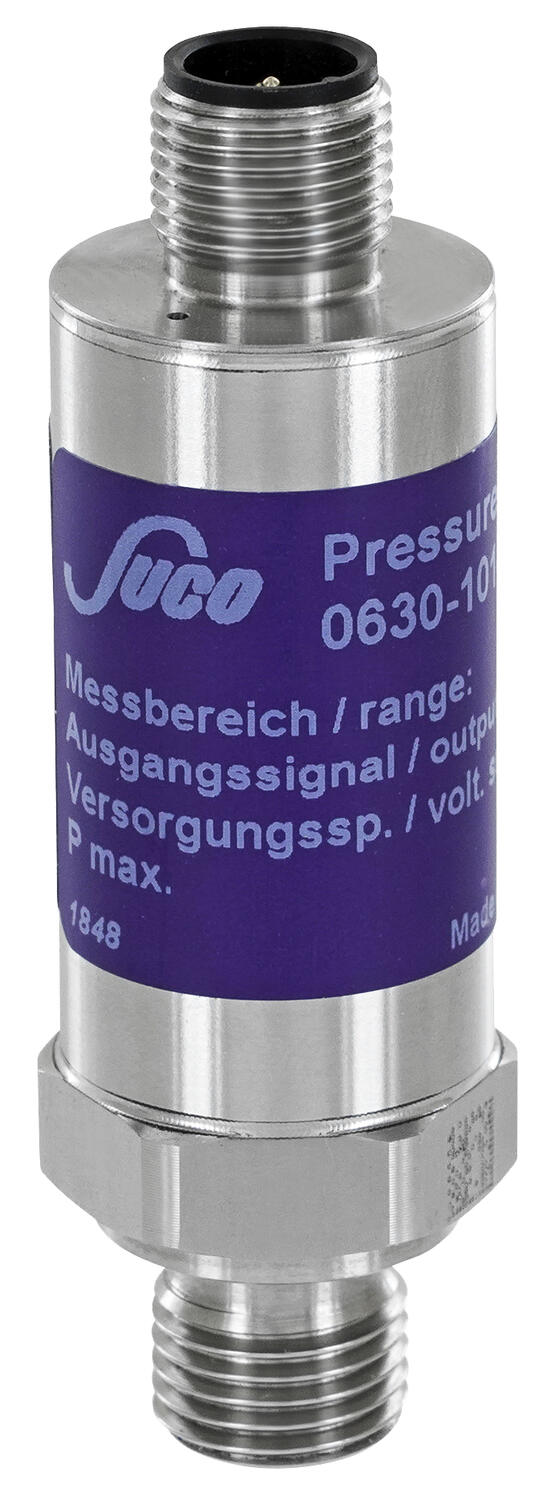

The SUCO 0630 (CANopen) and 0631 (CAN J1939) are rugged digital pressure transmitters built in a stainless‑steel (AISI 304) hex‑22 housing, designed for harsh industrial and mobile‑hydraulic environments. They cover a wide span of pressure ranges—from vacuum 0–1 bar up to high-pressure 0–600 bar (0–8,700 psi). Each unit features a fully welded 1.4542 stainless‑steel measuring cell ensuring excellent media compatibility, with burst pressure ratings up to 1,050 bar (15 230 psi). Electrical compatibility includes supply voltages of 10–32 V DC and rugged M12 connectors. The CANopen 0630 adheres to CiA DS‑301/404 standards while the 0631 supports SAE J1939 protocol—all via 1 Mb/s CAN 2.0 A/B interfaces. They deliver high accuracy (±0.5 % FS, ±0.25 % BFSL), excellent repeatability (±0.1 %), fast response (<1 ms), and long-term drift capped at 0.1 % FS per year—all with a mechanical lifespan rated to 10 million pulses.
These CANbus pressure sensors are ideal for mobile machinery, off‑highway vehicles, agriculture, rail, mining, and marine systems, especially where cabling simplicity and reliable networked communication are essential. The digital CAN interface supports not only pressure readings, but also real-time diagnostics, timestamps, and configurable parameters, enabling smart monitoring and predictive maintenance in multi-node control systems. Their durable stainless builds and IP67 protection make them ideal in wet, dusty or corrosive environments, while wide temperature tolerance (–40 to +105 °C ambient, –40 to +100 °C media) ensures stability across variable climates. With high overpressure ratings, weld-sealed sensors, and long service life, the 0630/0631 series are well-suited for high-reliability pressure monitoring and control in demanding mobile or industrial CANbus-enabled systems.
Accuracy | ±0.5% FS |
---|---|
Burst pressure | 9 bar |
Connection | G1/4-E |
Electrical connection | M12x1 |
IP class | IP67 |
Long term stability | <±0.1% of full scale per year |
Material of body | Stainless Steel 1.4301 |
Material of wetted parts | Stainless steel 1.4542 |
Mechanical life expectancy | 10 Million cycles |
Overpressure protection | 6 Bar |
Pressure range max | 1 bar |
Pressure range min | 0 bar |
Pressure reference | Gauge |
Pressure rise | ≤ 1 bar/ms |
Repeatability | ±0.1% FS |
---|---|
Response time | 1 ms |
Shock resistance | 1000g according to IEC68-2-32 |
Signal type | CANopen, CAN 2.0 A |
Supply voltage dc max | 32 V DC |
Supply voltage dc min | 10 V DC |
Temperature ambient from | -40 °C |
Temperature ambient to | 105 °C |
Temperature error | 1.5% FS |
Temperature of media from | -40 °C |
Temperature of media to | 100 °C |
Weight | 90 g |
Vibration resistance | 20g according to IEC 68-2-6 and IEC 68-2-36 |
The SUCO 0630 (CANopen) and 0631 (CAN J1939) are rugged digital pressure transmitters built in a stainless‑steel (AISI 304) hex‑22 housing, designed for harsh industrial and mobile‑hydraulic environments. They cover a wide span of pressure ranges—from vacuum 0–1 bar up to high-pressure 0–600 bar (0–8,700 psi). Each unit features a fully welded 1.4542 stainless‑steel measuring cell ensuring excellent media compatibility, with burst pressure ratings up to 1,050 bar (15 230 psi). Electrical compatibility includes supply voltages of 10–32 V DC and rugged M12 connectors. The CANopen 0630 adheres to CiA DS‑301/404 standards while the 0631 supports SAE J1939 protocol—all via 1 Mb/s CAN 2.0 A/B interfaces. They deliver high accuracy (±0.5 % FS, ±0.25 % BFSL), excellent repeatability (±0.1 %), fast response (<1 ms), and long-term drift capped at 0.1 % FS per year—all with a mechanical lifespan rated to 10 million pulses.
These CANbus pressure sensors are ideal for mobile machinery, off‑highway vehicles, agriculture, rail, mining, and marine systems, especially where cabling simplicity and reliable networked communication are essential. The digital CAN interface supports not only pressure readings, but also real-time diagnostics, timestamps, and configurable parameters, enabling smart monitoring and predictive maintenance in multi-node control systems. Their durable stainless builds and IP67 protection make them ideal in wet, dusty or corrosive environments, while wide temperature tolerance (–40 to +105 °C ambient, –40 to +100 °C media) ensures stability across variable climates. With high overpressure ratings, weld-sealed sensors, and long service life, the 0630/0631 series are well-suited for high-reliability pressure monitoring and control in demanding mobile or industrial CANbus-enabled systems.
OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.
When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!
Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.
Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Burst pressure | Overpressure protection | Pressure range max | Signal type | Price | ||
---|---|---|---|---|---|---|---|
![]()
CANopen, 0..1Bar, G¼, M12
Art:
063010041B032
Copied
|
9 bar
|
6 Bar
|
1 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..10Bar, G¼, M12
Art:
063010141B032
Copied
|
30 bar
|
20 Bar
|
10 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..100Bar, G¼, M12
Art:
063010241B032
Copied
|
300 bar
|
200 Bar
|
100 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..16Bar, G¼, M12
Art:
063016141B032
Copied
|
60 bar
|
40 Bar
|
16 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..160Bar, G¼, M12
Art:
063016241B032
Copied
|
600 bar
|
400 Bar
|
160 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..250Bar, G¼, M12
Art:
063025041B032
Copied
|
9 bar
|
6 Bar
|
2.5 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..25Bar, G¼, M12
Art:
063025141B032
Copied
|
150 bar
|
100 Bar
|
25 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..250Bar, G¼, M12
Art:
063025241B032
Copied
|
1000 bar
|
750 Bar
|
250 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..4Bar, G¼, M12
Art:
063040041B032
Copied
|
15 bar
|
10 Bar
|
4 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..40Bar, G¼, M12
Art:
063040141B032
Copied
|
150 bar
|
100 Bar
|
40 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..400Bar, G¼, M12
Art:
063040241B032
Copied
|
1000 bar
|
750 Bar
|
400 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..6Bar, G¼, M12
Art:
063060041B032
Copied
|
30 bar
|
20 Bar
|
6 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..60Bar, G¼, M12
Art:
063060141B032
Copied
|
300 bar
|
200 Bar
|
60 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CANopen, 0..600Bar, G¼, M12
Art:
063060241B032
Copied
|
1050 bar
|
840 Bar
|
600 bar
|
CANopen, CAN 2.0 A
|
| ||
![]()
CAN J1939, 0..1Bar, G¼, M12
Art:
063110041B032
Copied
|
9 bar
|
6 Bar
|
1 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..10Bar, G¼, M12
Art:
063110141B032
Copied
|
30 bar
|
20 Bar
|
10 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..100Bar, G¼, M12
Art:
063110241B032
Copied
|
300 bar
|
200 Bar
|
100 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..16Bar, G¼, M12
Art:
063116141B032
Copied
|
60 bar
|
40 Bar
|
16 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..160Bar, G¼, M12
Art:
063116241B032
Copied
|
600 bar
|
400 Bar
|
160 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..2,5Bar, G¼, M12
Art:
063125041B032
Copied
|
9 bar
|
6 Bar
|
2.5 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..25Bar, G¼, M12
Art:
063125141B032
Copied
|
150 bar
|
100 Bar
|
25 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..250Bar, G¼, M12
Art:
063125241B032
Copied
|
1000 bar
|
750 Bar
|
250 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..4Bar, G¼, M12
Art:
063140041B032
Copied
|
15 bar
|
10 Bar
|
4 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..40Bar, G¼, M12
Art:
063140141B032
Copied
|
150 bar
|
100 Bar
|
40 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..400Bar, G¼, M12
Art:
063140241B032
Copied
|
1000 bar
|
750 Bar
|
400 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..6Bar, G¼, M12
Art:
063160041B032
Copied
|
30 bar
|
20 Bar
|
6 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..60Bar, G¼, M12
Art:
063160141B032
Copied
|
300 bar
|
200 Bar
|
60 bar
|
CAN J1939, CAN 2.0 B
|
| ||
![]()
CAN J1939, 0..600Bar, G¼, M12
Art:
063160241B032
Copied
|
1050 bar
|
840 Bar
|
600 bar
|
CAN J1939, CAN 2.0 B
|
|
Select a variant in the list
