SUCO

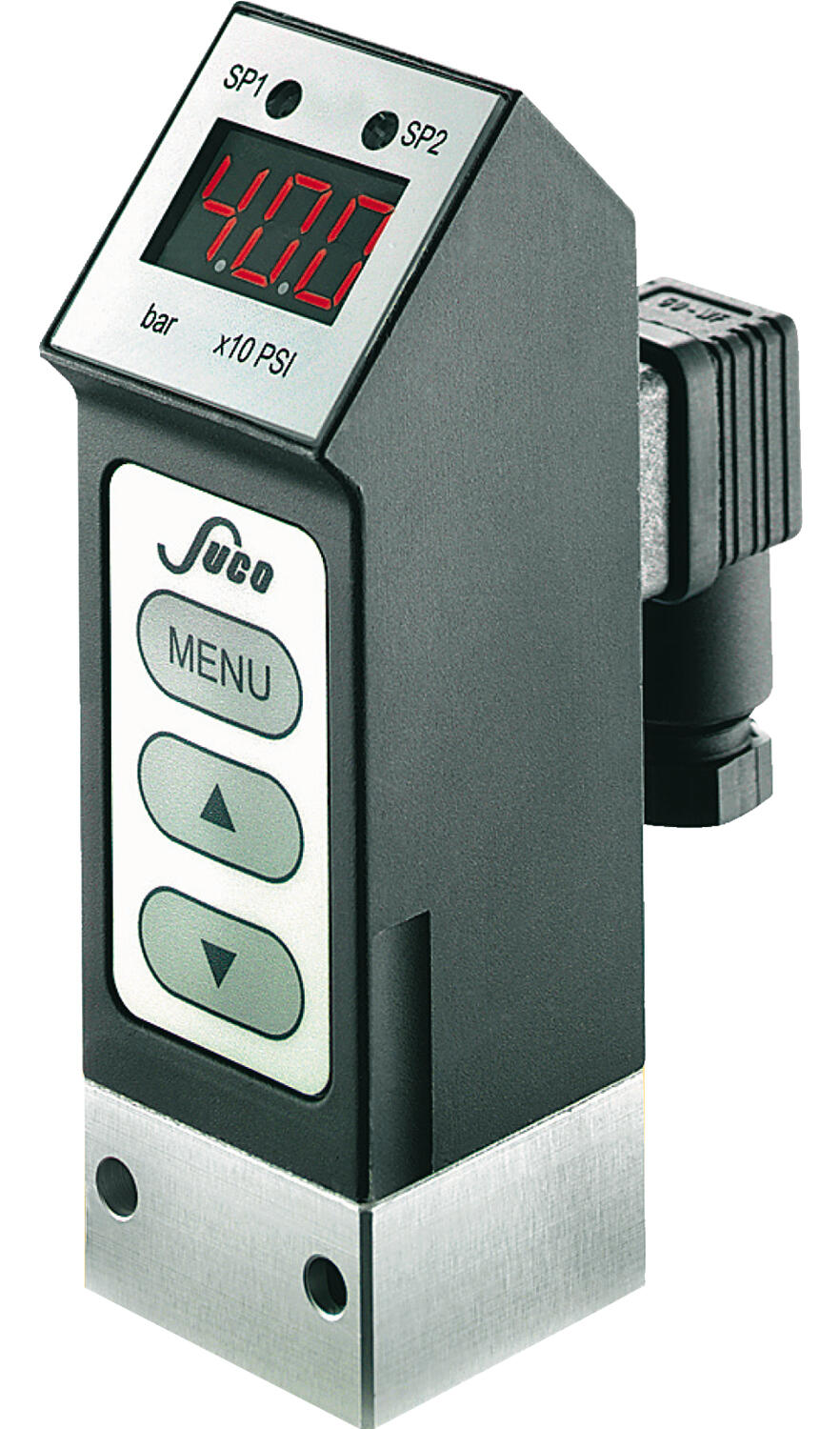

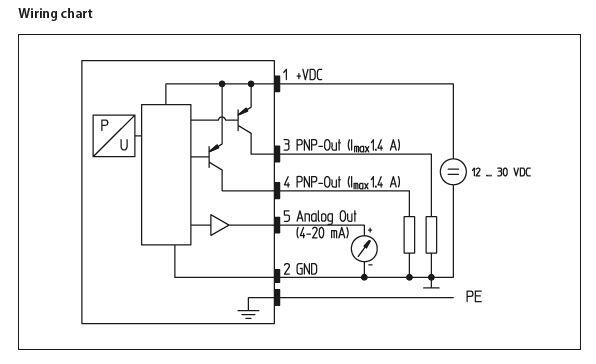

The SUCO 0570 is a precision electronic pressure switch featuring a ceramic thick-film sensor housed in a robust anodised aluminium and zinc die-cast body. It operates on 12–30 V DC and offers two programmable PNP transistor switch outputs (each up to 1.4 A) plus a 4–20 mA analogue output. Users can adjust two independent setpoints and their hysteresis via a front-panel keypad and a clear three-digit LED display. Field-adjustable options include time delays (0–3 s), zero-point reset, peak-value memory, and switch-point counters. Available in various pressure ranges, it supports overpressure safety up to 20 bar, 175 bar, or 650 bar depending on range, with burst limits reaching 25 bar, 300 bar, and 650 bar respectively. It features ±0.5% FS accuracy, ≤4 ms response time, IP65 protection, shock resistance to 294 m/s², and a mechanical life expectancy of 5 million cycles.
The SUCO 0570 is tailored for sophisticated control in hydraulics, pneumatics, industrial air systems, and factory automation. Its dual switch outputs and analogue signal allow direct interfacing with both digital control logic and PLC-based monitoring. The ceramic sensor ensures long-term stability and suitability for demanding fluid media, while the menu-driven configuration enables quick commissioning and on-site adjustments—ideal for applications like pump control, pressure safety interlocks, system diagnostics, or sequence triggering. Its wide pressure range and overpressure resilience also allow safe use in high-pressure hydraulic circuits or pneumatic actuators. Compact and field-calibratable, it’s a versatile and reliable choice for OEMs and maintenance teams.
General Data |
|
---|---|
Adjustment range max | 10 bar |
Adjustment range min | 0 bar |
Electrical connection | GO 51 FAV M |
Process connection | G1/4 female |
Burst pressure | 25 bar |
Pressure max | 20 bar |
Temperature & Materials Data |
|
Temperature of media from | -20 °C |
Temperature of media to | 80 °C |
Temperature ambient from | -20 °C |
Temperature ambient to | 80 °C |
Material of body | Anodised aluminum |
Material of wetted parts | Anodised aluminum, Ceramic, NBR |
*Invisible Heading* |
|
---|---|
Material membrane | NBR |
Measuring technology | Ceramic cell in thick-film technology |
Additional Data |
|
Supply voltage dc max | 30 V DC |
Supply voltage dc min | 12 V DC |
Weight | 340 g |
Safety & Approvals |
|
Approvals | CE, RoHS II |
IP class | IP65 |
Hysteresis | 1...99% Full Scale |
Shock resistance | 294m / s²; 11 ms half sinusoidal wave; DIN EN 60068-2-27 |
Accuracy | ±0.5% FS |
Mechanical life expectancy | 5,000,000 pulsations at rise rates to 1,000 bar/s nominal pressure |
The SUCO 0570 is a precision electronic pressure switch featuring a ceramic thick-film sensor housed in a robust anodised aluminium and zinc die-cast body. It operates on 12–30 V DC and offers two programmable PNP transistor switch outputs (each up to 1.4 A) plus a 4–20 mA analogue output. Users can adjust two independent setpoints and their hysteresis via a front-panel keypad and a clear three-digit LED display. Field-adjustable options include time delays (0–3 s), zero-point reset, peak-value memory, and switch-point counters. Available in various pressure ranges, it supports overpressure safety up to 20 bar, 175 bar, or 650 bar depending on range, with burst limits reaching 25 bar, 300 bar, and 650 bar respectively. It features ±0.5% FS accuracy, ≤4 ms response time, IP65 protection, shock resistance to 294 m/s², and a mechanical life expectancy of 5 million cycles.
The SUCO 0570 is tailored for sophisticated control in hydraulics, pneumatics, industrial air systems, and factory automation. Its dual switch outputs and analogue signal allow direct interfacing with both digital control logic and PLC-based monitoring. The ceramic sensor ensures long-term stability and suitability for demanding fluid media, while the menu-driven configuration enables quick commissioning and on-site adjustments—ideal for applications like pump control, pressure safety interlocks, system diagnostics, or sequence triggering. Its wide pressure range and overpressure resilience also allow safe use in high-pressure hydraulic circuits or pneumatic actuators. Compact and field-calibratable, it’s a versatile and reliable choice for OEMs and maintenance teams.
OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.
When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.
When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...
Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!
Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.
Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Adjustment range max | Electrical connection | Output | Burst pressure | Pressure max | Material membrane | Price | ||
---|---|---|---|---|---|---|---|---|---|
![]()
4-20mA, 2xPNP, 0..10 bar, G1/4 female, NBR, DIN
Art:
0570467141001
Copied
|
10 bar
|
GO 51 FAV M
|
|
25 bar
|
20 bar
|
NBR
|
| ||
![]()
4-20mA, 2xPNP, 0..10 bar, G1/4 female, FKM, DIN
Art:
0570467143001
Copied
|
10 bar
|
DIN A 43650
|
|
25 bar
|
20 bar
|
FKM
|
| ||
![]()
4-20mA, 2xPNP, 0..100 bar, G1/4 female, NBR, DIN
Art:
0570468141001
Copied
|
100 bar
|
GO 51 FAV M
|
|
175 bar
|
150 bar
|
NBR
|
| ||
![]()
4-20mA, 2xPNP, 0..100 bar, G1/4 female, FKM, DIN
Art:
0570468143001
Copied
|
100 bar
|
DIN A 43650
|
|
175 bar
|
150 bar
|
FKM
|
| ||
![]()
4-20mA, 2xPNP, 0..400 bar, G1/4 female, NBR, DIN
Art:
0570469141001
Copied
|
400 bar
|
GO 51 FAV M
|
2 x PNP + 4-20mA
|
650 bar
|
500 bar
|
NBR
|
| ||
![]()
4-20mA, 2xPNP, 0..400 bar, G1/4 female, FKM, DIN
Art:
0570469143001
Copied
|
400 bar
|
DIN A 43650
|
|
650 bar
|
500 bar
|
FKM
|
|
Select a variant in the list
