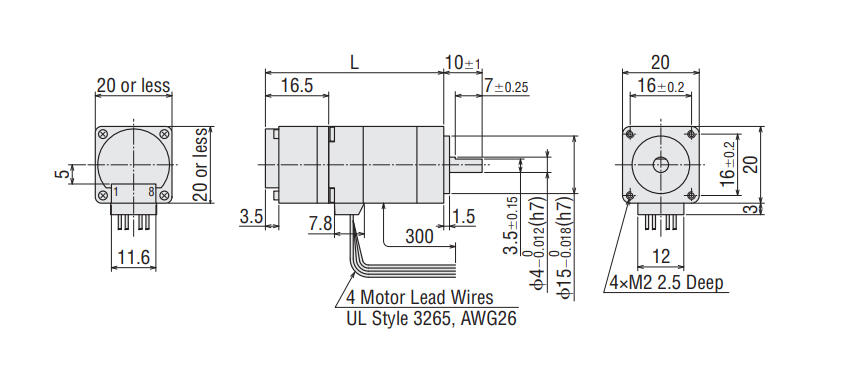

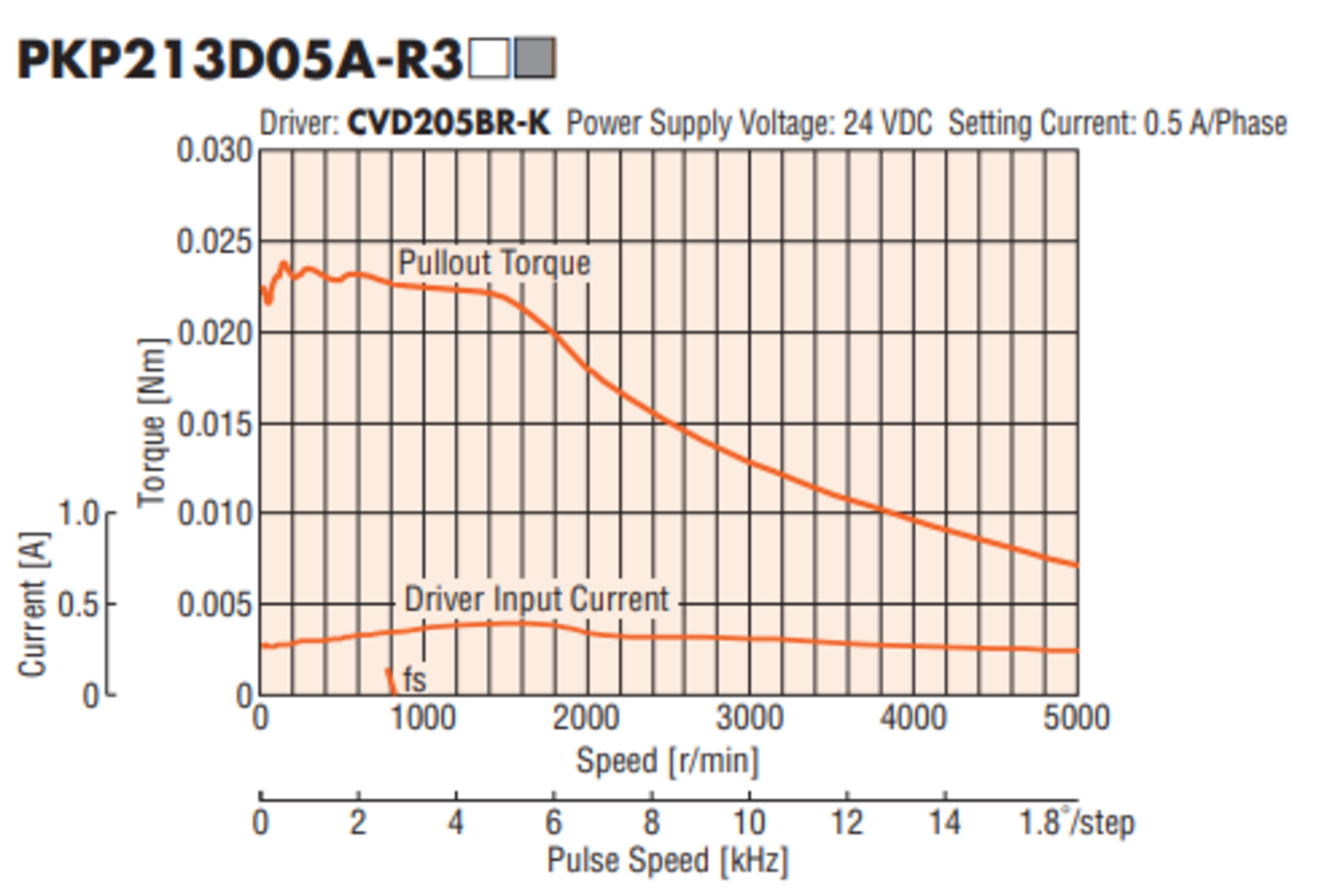

PKP Series stepper motor, 2-Phase, 20mm frame, 4 leads, single shaft, Encoder
Art:
PKP213D05A-R3XX
Copied
|
20 mm
|
4.1 mH/Phase
|
0.02 Nm
|
0.5 A/Phase
|
2.5x10⁻⁷
|
0.07 kg
|
8.5 Ω/Phase
|
4.25 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 20mm frame, 4 leads, single shaft, Encoder
Art:
PKP214D06A-R3XX
Copied
|
20 mm
|
3.5 mH/Phase
|
0.036 Nm
|
0.6 A/Phase
|
3.8x10⁻⁷
|
0.09 kg
|
6.5 Ω/Phase
|
3.9 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 28mm frame, 4 leads, single shaft, Encoder
Art:
PKP223D15A2-R3XX
Copied
|
28 mm
|
0.96 mH/Phase
|
0.095 Nm
|
1.5 A/Phase
|
9.9x10⁻⁷
|
0.13 kg
|
1.18 Ω/Phase
|
1.77 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 28mm frame, 4 leads, single shaft, Encoder
Art:
PKP225D15A2-R3XX
Copied
|
28 mm
|
1.6 mH/Phase
|
0.19 Nm
|
1.5 A/Phase
|
19x10⁻⁷
|
0.22 kg
|
2 Ω/Phase
|
3 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 35mm frame, 4 leads, single shaft, Encoder
Art:
PKP233D15A-R3XX
Copied
|
35 mm
|
1.5 mH/Phase
|
0.2 Nm
|
1.5 A/Phase
|
25x10⁻⁷
|
0.2 kg
|
1.62 Ω/Phase
|
2.43 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 35mm frame, 4 leads, single shaft, Encoder
Art:
PKP233D23A-R3XX
Copied
|
35 mm
|
0.67 mH/Phase
|
0.2 Nm
|
2.3 A/Phase
|
25x10⁻⁷
|
0.2 kg
|
0.68 Ω/Phase
|
1.56 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 35mm frame, 4 leads, single shaft, Encoder
Art:
PKP235D15A-R3XX
Copied
|
35 mm
|
2.6 mH/Phase
|
0.37 Nm
|
1.5 A/Phase
|
51x10⁻⁷
|
0.31 kg
|
2.4 Ω/Phase
|
3.6 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 35mm frame, 4 leads, single shaft, Encoder
Art:
PKP235D23A-R3XX
Copied
|
35 mm
|
1.2 mH/Phase
|
0.37 Nm
|
2.3 A/Phase
|
51x10⁻⁷
|
0.31 kg
|
0.97 Ω/Phase
|
2.23 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP243D08A2-R3XX
Copied
|
42 mm
|
10 mH/Phase
|
0.35 Nm
|
0.85 A/Phase
|
37x10⁻⁷
|
0.25 kg
|
5.4 Ω/Phase
|
4.6 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP243D15A2-R3XX
Copied
|
42 mm
|
3.3 mH/Phase
|
0.35 Nm
|
1.5 A/Phase
|
37x10⁻⁷
|
0.25 kg
|
1.8 Ω/Phase
|
2.7 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP243D23A2-R3XX
Copied
|
42 mm
|
1.4 mH/Phase
|
0.35 Nm
|
2.3 A/Phase
|
37x10⁻⁷
|
0.25 kg
|
0.78 Ω/Phase
|
1.8 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP244D08A2-R3XX
Copied
|
42 mm
|
14 mH/Phase
|
0.48 Nm
|
0.85 A/Phase
|
55x10⁻⁷
|
0.32 kg
|
6.7 Ω/Phase
|
5.7 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP244D15A2-R3XX
Copied
|
42 mm
|
4.4 mH/Phase
|
0.48 Nm
|
1.5 A/Phase
|
55x10⁻⁷
|
0.32 kg
|
2.1 Ω/Phase
|
3.2 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP244D23A2-R3XX
Copied
|
42 mm
|
1.9 mH/Phase
|
0.48 Nm
|
2.3 A/Phase
|
55x10⁻⁷
|
0.32 kg
|
0.93 Ω/Phase
|
2.1 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP245D08A2-R3XX
Copied
|
42 mm
|
16 mH/Phase
|
0.66 Nm
|
0.85 A/Phase
|
74x10⁻⁷
|
0.39 kg
|
7.1 Ω/Phase
|
6 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP245D15A2-R3XX
Copied
|
42 mm
|
5.3 mH/Phase
|
0.66 Nm
|
1.5 A/Phase
|
74x10⁻⁷
|
0.39 kg
|
2.2 Ω/Phase
|
3.3 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP245D23A2-R3XX
Copied
|
42 mm
|
2.2 mH/Phase
|
0.66 Nm
|
2.3 A/Phase
|
74x10⁻⁷
|
0.39 kg
|
1 Ω/Phase
|
2.3 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP246D15A2-R3XX
Copied
|
42 mm
|
7.9 mH/Phase
|
0.99 Nm
|
1.5 A/Phase
|
111x10⁻⁷
|
0.52 kg
|
2.9 Ω/Phase
|
4.4 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 42mm frame, 4 leads, single shaft, Encoder
Art:
PKP246D23A2-R3XX
Copied
|
42 mm
|
3.3 mH/Phase
|
0.99 Nm
|
2.3 A/Phase
|
111x10⁻⁷
|
0.52 kg
|
1.4 Ω/Phase
|
3.2 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP264D14A2-R3XX
Copied
|
56.4 mm
|
6 mH/Phase
|
0.74 Nm
|
1.4 A/Phase
|
140x10⁻⁷
|
0.47 kg
|
2.1 Ω/Phase
|
2.9 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP264D28A2-R3XX
Copied
|
56.4 mm
|
1.5 mH/Phase
|
0.74 Nm
|
2.8 A/Phase
|
140x10⁻⁷
|
0.47 kg
|
0.57 Ω/Phase
|
1.6 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP264D42A2-R3XX
Copied
|
56.4 mm
|
1.65 mH/Phase
|
0.74 Nm
|
4.2 A/Phase
|
140x10⁻⁷
|
0.47 kg
|
0.24 Ω/Phase
|
1 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP266D14A2-R3XX
Copied
|
56.4 mm
|
12 mH/Phase
|
1.4 Nm
|
1.4 A/Phase
|
270x10⁻⁷
|
0.72 kg
|
3.3 Ω/Phase
|
4.6 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP266D28A2-R3XX
Copied
|
56.4 mm
|
2.9 mH/Phase
|
1.4 Nm
|
2.8 A/Phase
|
270x10⁻⁷
|
0.72 kg
|
0.86 Ω/Phase
|
2.4 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP266D42A2-R3XX
Copied
|
56.4 mm
|
1.3 mH/Phase
|
1.4 Nm
|
4.2 A/Phase
|
270x10⁻⁷
|
0.72 kg
|
0.38 Ω/Phase
|
1.6 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP268D14A2-R3XX
Copied
|
56.4 mm
|
18 mH/Phase
|
2.5 Nm
|
1.4 A/Phase
|
500x10⁻⁷
|
1.12 kg
|
4.7 Ω/Phase
|
6.6 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP268D28A2-R3XX
Copied
|
56.4 mm
|
4.6 mH/Phase
|
2.5 Nm
|
2.8 A/Phase
|
500x10⁻⁷
|
1.12 kg
|
1.2 Ω/Phase
|
3.4 V DC
|
| |
|
|
PKP Series stepper motor, 2-Phase, 56.4mm frame, 4 leads, single shaft, Encoder
Art:
PKP268D42A2-R3XX
Copied
|
56.4 mm
|
2 mH/Phase
|
2.5 Nm
|
4.2 A/Phase
|
500x10⁻⁷
|
1.12 kg
|
0.53 Ω/Phase
|
2.2 V DC
|
| |
