Oriental Motor
Oriental Motor Bipolar 4-Wire With Brake PKP Series Hybrid Stepper Motor
- 28mm - 56.4mm Frame Size
- 0.095-2.5Nm Max. Holding Torque
- 1.5-2.8 A/Phase Rated Current
- Up to 1.7x more torque than other stepper motors.
Selected variant
Technical data
| Configuration | Electromagnetic Brake |
|---|---|

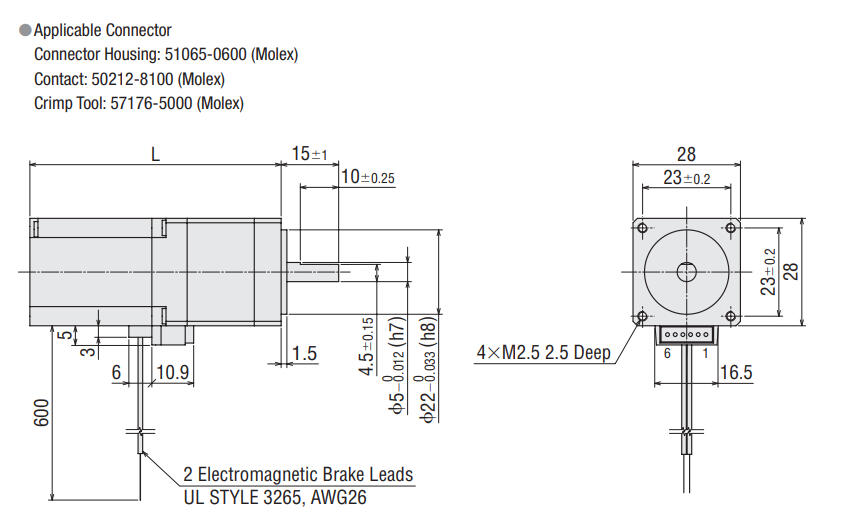

| Frame size | 28 mm |
| Inductance | 0.96 mH/Phase |
| Maximum Holding Torque | 0.095 Nm |
| Number of phases | 2 |
| Number of Wires | 4 |
| Rated Current | 1.5 A/Phase |
| Rotor Inertia | 14x10⁻⁷ |
|---|---|
| Step angle | 1.8 ° |
| Type | Standard With Electromagnetic Brake |
| Weight | 0.17 kg |
| Winding Resistance | 1.18 Ω/Phase |
| Voltage | 1.77 V DC |
