CROUZET MOTORS
The DCmind Brush range is Crouzet's next generation of high-performance brushed DC motors, engineered to be extremely quiet and energy-efficient they are ideal for medical and laboratory applications, and any application that requires very low noise and vibration levels.
Â
The motor without gearbox emits a noise level of just 35 dBA (for comparison moderate rainfall is around 50dBA), the DCmind Brush motors have a lifespan of up to 24,000hrs with no load and up to 5,000hrs with rated load.
Â
All motors are rated to IP65 as standard with the option to reach up to IP69K.
Â
DCmind is UL certified and carries various other specific certificates, including medical
Â

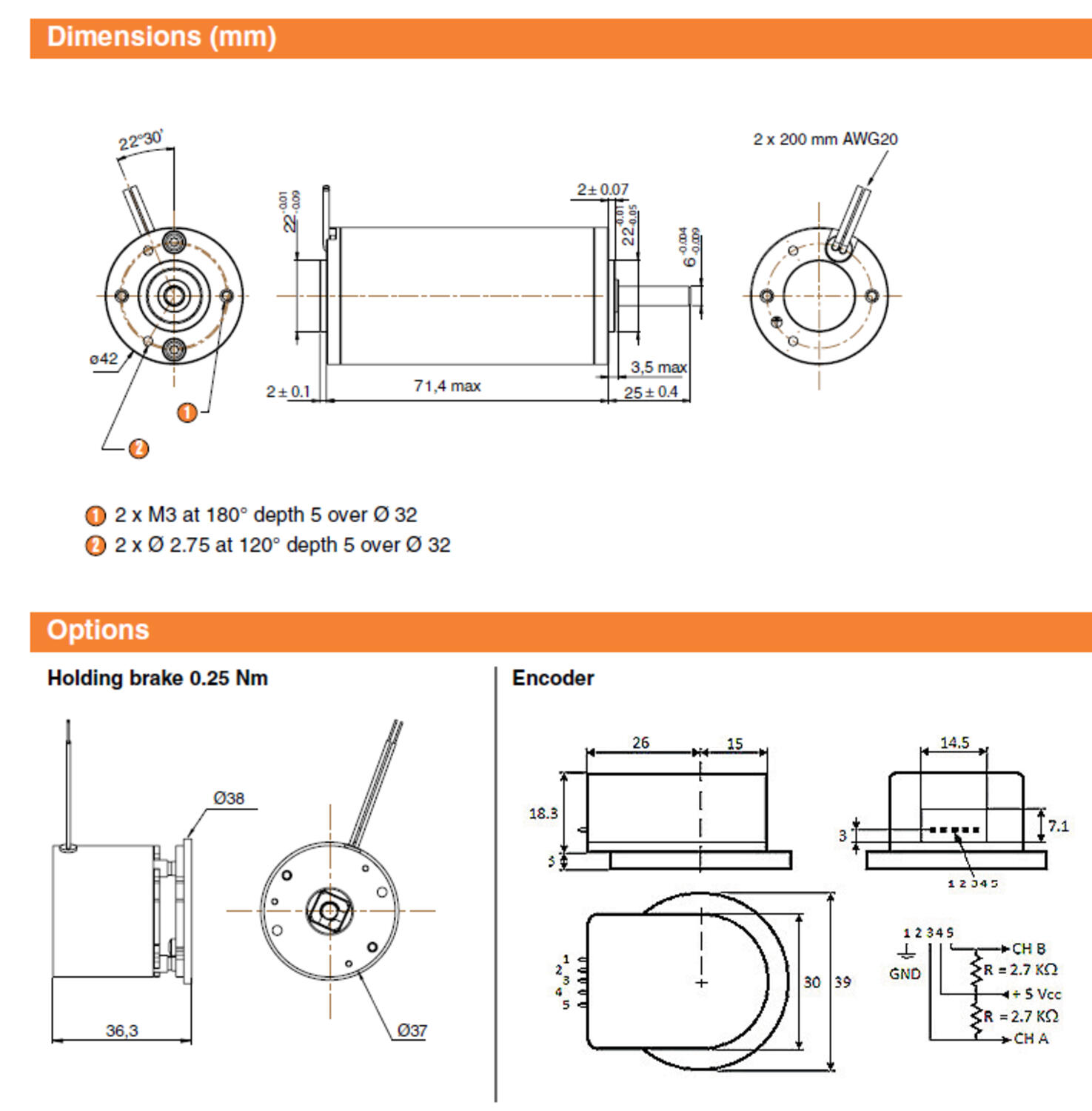

The standard motors can be adapted to better suit a specific application, adaptations can include the addition of an encoder, brake, special output shaft and general minor mechanical/electrical modifications
Â
Diameter | 42 mm |
---|---|
IP class | IP65 |
Length | 72 mm |
Life span | 4000h |
Nominal speed | 2920 rpm |
Nominal torque | 0.05 |
Power | 15 W |
---|---|
Shaft diameter | 6 mm |
Starting torque | 0.19 |
Supply voltage | 12 V DC, 24 V DC, 48 V DC |
Weight | 0.34 kg |
The DCmind Brush range is Crouzet's next generation of high-performance brushed DC motors, engineered to be extremely quiet and energy-efficient they are ideal for medical and laboratory applications, and any application that requires very low noise and vibration levels.
Â
The motor without gearbox emits a noise level of just 35 dBA (for comparison moderate rainfall is around 50dBA), the DCmind Brush motors have a lifespan of up to 24,000hrs with no load and up to 5,000hrs with rated load.
Â
All motors are rated to IP65 as standard with the option to reach up to IP69K.
Â
DCmind is UL certified and carries various other specific certificates, including medical
Â
The standard motors can be adapted to better suit a specific application, adaptations can include the addition of an encoder, brake, special output shaft and general minor mechanical/electrical modifications
Â
Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine. This email takes you through some of the various products we offer for specialist vehicle applications.
AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.
At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Length | Nominal speed | Nominal torque | Power | Starting torque | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|
![]()
Motor 42mmØ 15W 12?48Vdc 2920rpm 50mNm IP65 Low noise
Art:
89810XXX
Copied
|
72 mm
|
2920 rpm
|
0.05
|
15 W
|
0.19
|
0.34 kg
|
| ||
![]()
Motor 42mmØ 24W 12?48Vdc 3100rpm 75mNm IP65 Low noise
Art:
89800XXX
Copied
|
87 mm
|
3100 rpm
|
0.075
|
24 W
|
0.344
|
0.45 kg
|
| ||
![]()

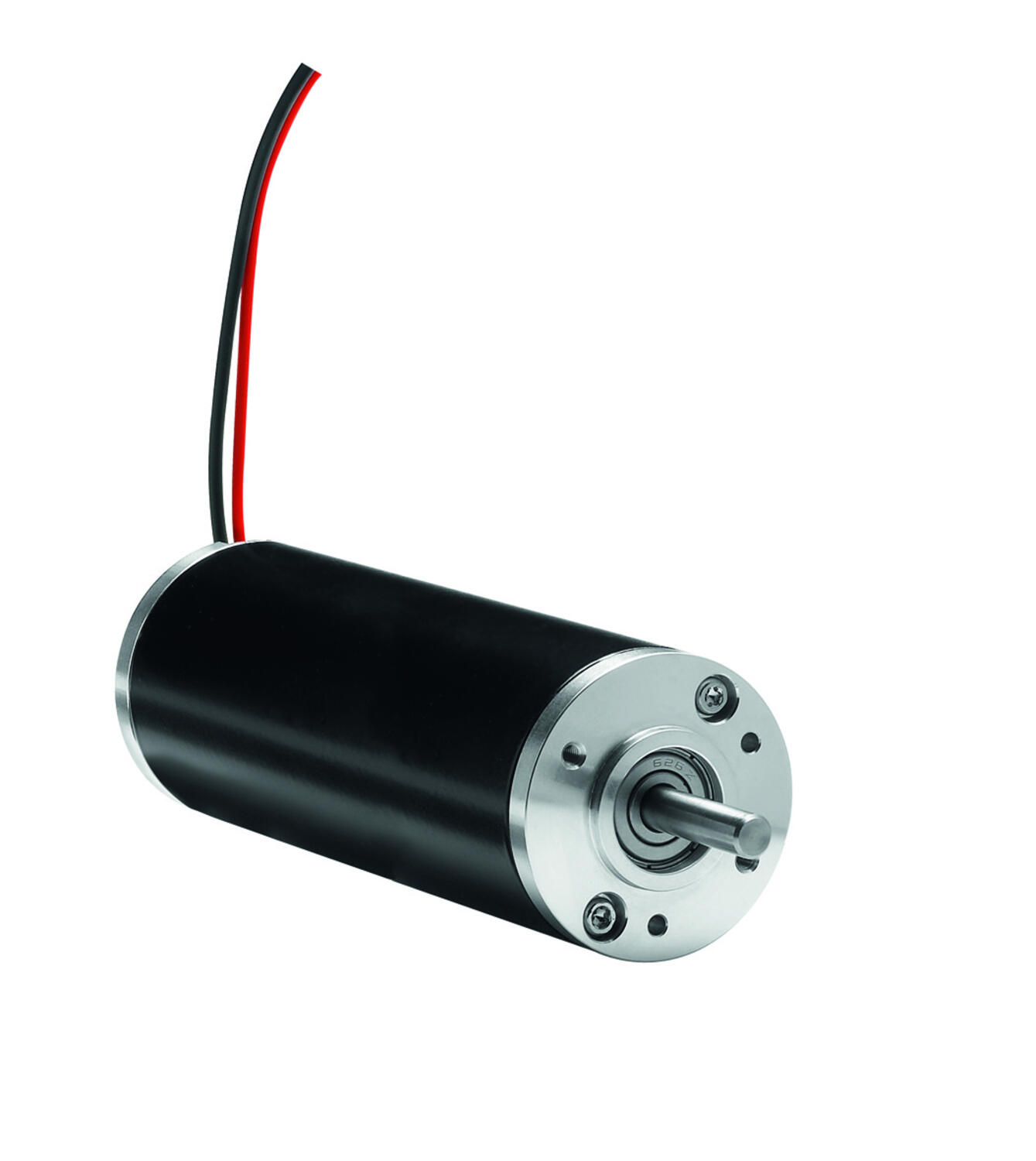

Motor 42mmØ 35W 12?48Vdc 3000rpm 110mNm IP65 Low noise
Art:
89850XXX
Copied
|
113 mm
|
3000 rpm
|
0.11
|
35 W
|
0.52
|
0.62 kg
|
|
Select a variant in the list
