MINIMOTOR
Minimotor - BS - brushless motor

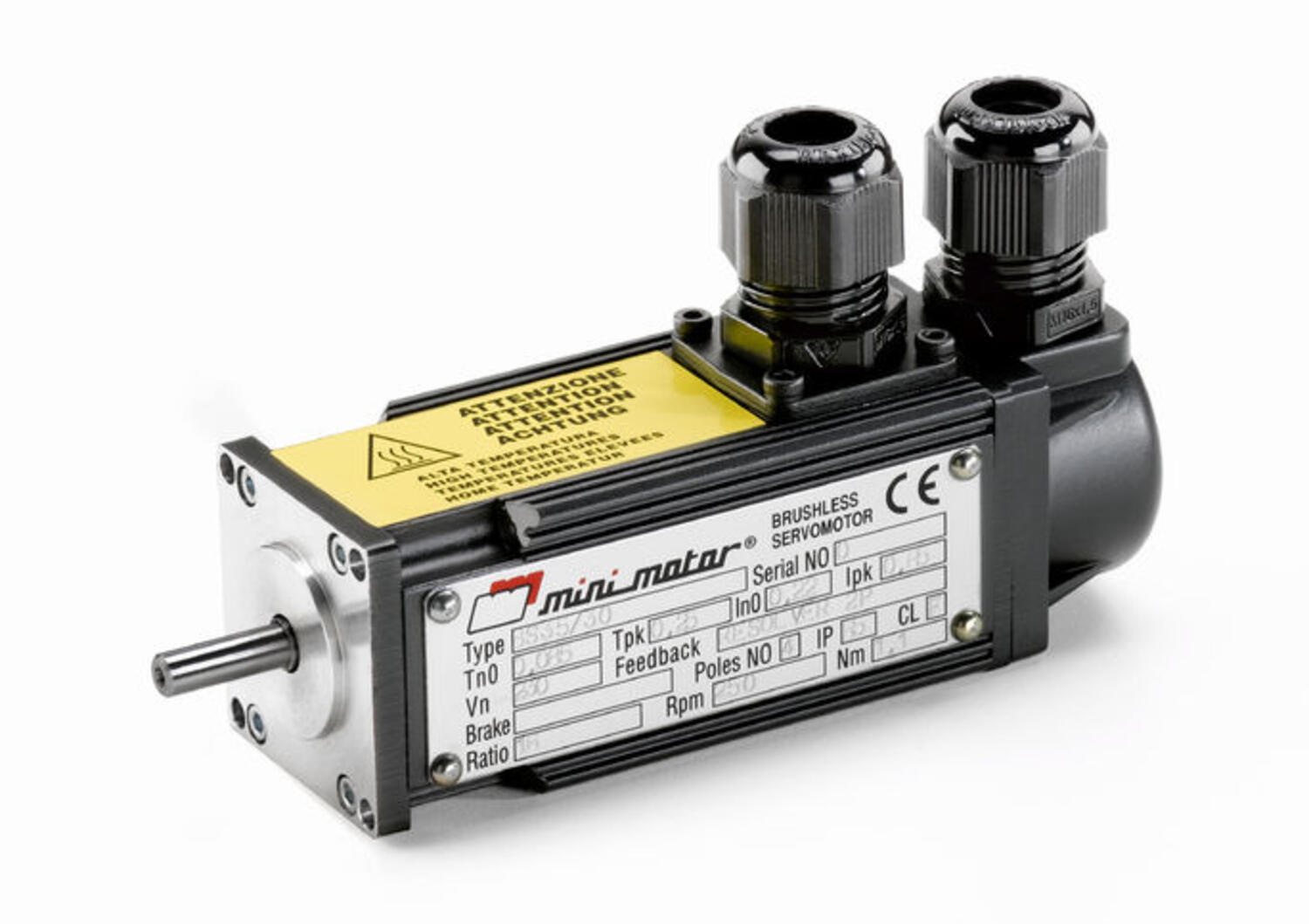

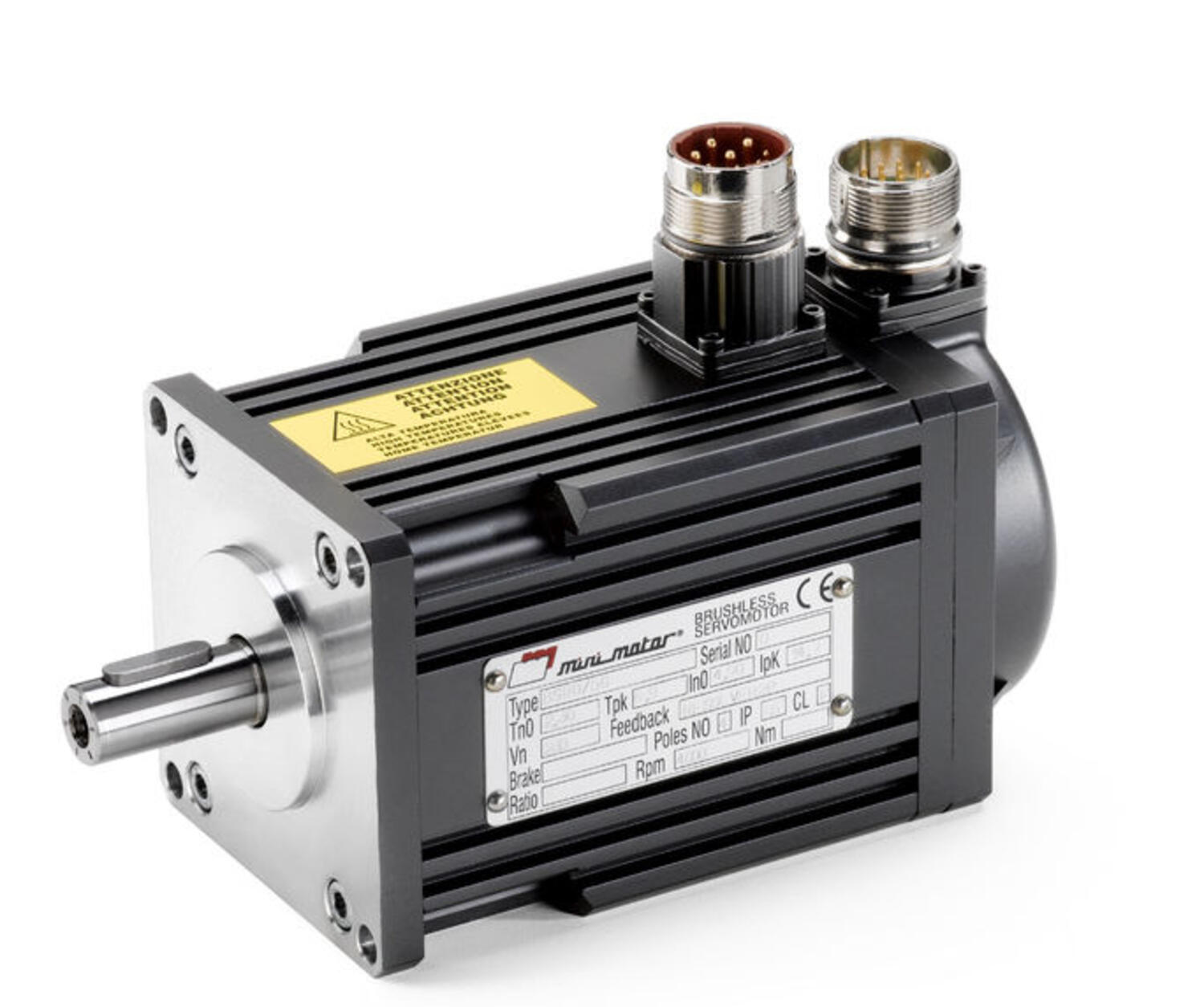

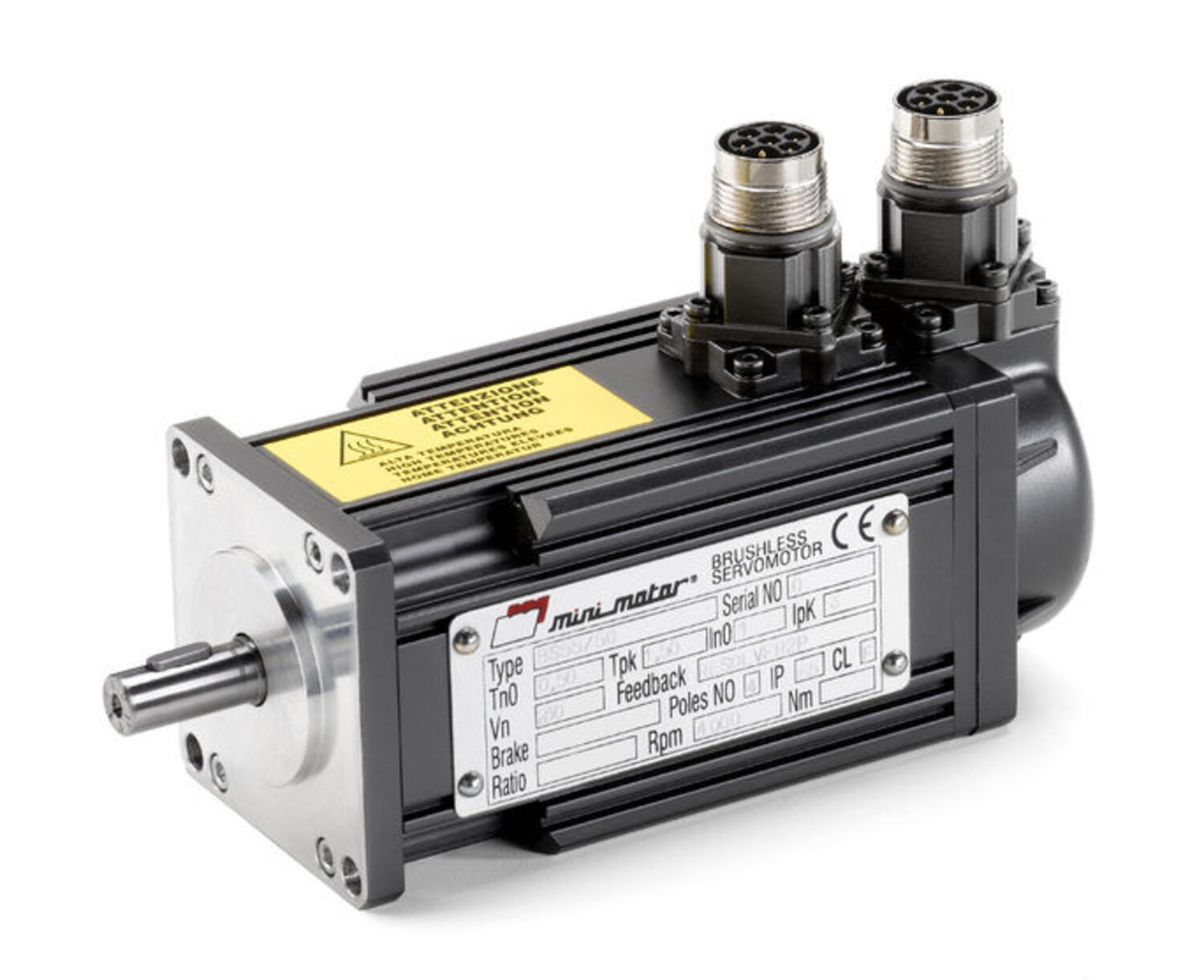

BRUSHLESS MOTOR
4 poles sinusoidal brushless motor, totally enclosed. Rotor with NdFeB magnets.Safety circuit breaker. Winding class F. IP65 protection according to CEI EN 60529 standards. Feedback with 2 pole resolver.
Reduced clearance bearings with special grease for high temperatures.
On request a 24 Vdc NC brake (normally closed) with permanent magnets may be supplied. It is identified by the letter K (BSK).

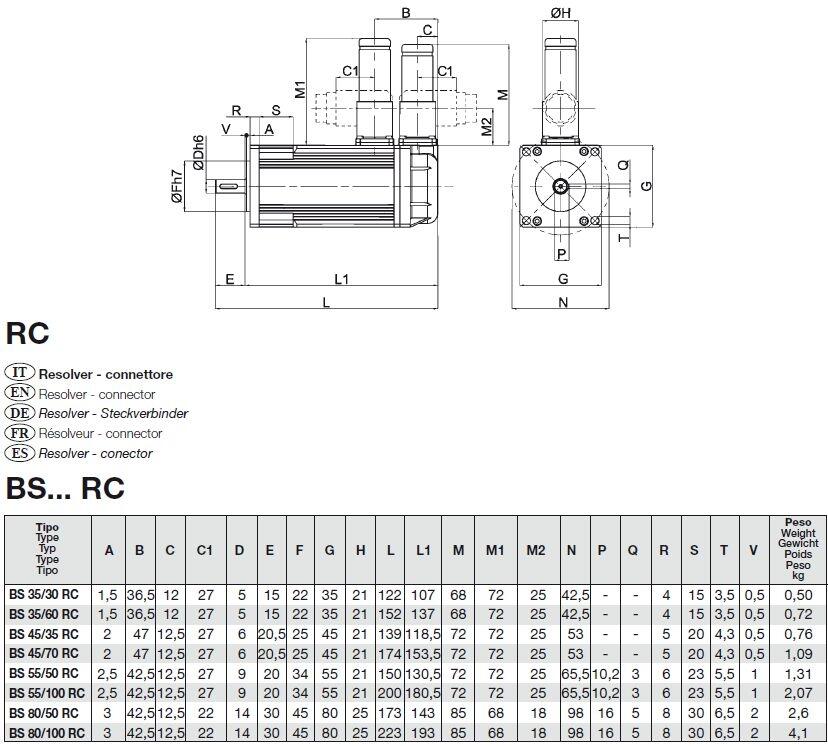

Please see PDF document for full technical details.
- 4 pole motor with NdFeB magnets
- 4000 rpm maximum speed
- Up to 2.1Nm rated torque
- Feedback via 2 pole reseolver
- IP65
Selected variant
Technical data
| AC drive voltage | 230 V |
|---|---|
| Ambient temperature | 0-40°C |
| Current at rated speed | 0.22 A rms |
| Current at rated speed, flanged | 0.22 A rms |
| Current at rated speed, free air | 0.17 A rms |
| Current max | 0.65 A |
| Current with rotor blocked, free air | 0.17 A rms |
| Max. torque | 0.25 |
| Maximum current | 0.65 A rms |
| Nominal speed | 4000 rpm |
| Output power | 32 W |
| Phase inductance | 207 mH |
| Phase resistance at 20C | 156 Ω |
| Phase voltage constant | 0.155 V x s |
| Rated power, flanged | 32 W |
|---|---|
| Rated power, free air | 24 A rms |
| Rated speed | 4000 rpm |
| Rated torque | 0.075Nm |
| Roter inertia | 3.94 Kg/mm² |
| Thermal cutout switch type | PTC |
| Thermal cutout temperature | 140 °C |
| Torque at rated speed, flanged | 0.075 |
| Torque at rated speed, free air | 0.057 |
| Torque constant | 0.389 Nm/A |
| Torque with rotor blocked | 0.085 |
| Torque with rotor blocked, flanged | 0.085 |
| Torque with rotor blocked, free air | 0.065 |
Product description
BRUSHLESS MOTOR
4 poles sinusoidal brushless motor, totally enclosed. Rotor with NdFeB magnets.Safety circuit breaker. Winding class F. IP65 protection according to CEI EN 60529 standards. Feedback with 2 pole resolver.
Reduced clearance bearings with special grease for high temperatures.
On request a 24 Vdc NC brake (normally closed) with permanent magnets may be supplied. It is identified by the letter K (BSK).
Please see PDF document for full technical details.
